Lumex 6220A Assembly & Operation Instructions

A Graham-Field Brand
Warning: This product should not be used without proper instruction from a healthcare
professional.
Warning: This product has a maximum user weight limitation of 250 lbs.
Warning: Lumex assumes no responsibility for any damage or injury caused by improper
installation, assembly or use of this product.
Warning: If components are damaged or missing, contact your dealer immediately. DO NOT
use substitute parts.
Warning: Before use, ensure that all cane tips are properly seated and straight.
Warning: Use cane on dry and level surfaces only . Do not use cane on slippery surfaces,
such as wet floors or ice; slippage and instability could occur. Inspect cane weekly for proper
function and wear. If any component is not in proper working order or appears worn, contact
your Lumex dealer for repair and/or appropriate replacement parts.

Height adjustment

1. Loosen locking collet by twisting counter-
clockwise (Note: 6220A does not have a
locking collet).
2. Adjust cane height: Depress push button
and slide lower section upward or down-
ward to desired height.
3. Secure locking collet by turning clockwise
until tight.
Warning: Before use, ensure that
push button protrudes fully through
adjustment hole and that locking
collet (if so equipped) is securely
tightened.
Ortho Ease grip adjustment
(6327/6328 only)
1. Loosen—don't remove—adjustment
screw. Rotate screw counter-clockwise and
pull back on handgrip until handgrip is
free to rotate.
2. Rotate handgrip to desired position.
3. Push handgrip forward until it is unable to rotate and locks into place. Tighten adjustment screw clock-
wise until secure.
Warning: Before use, ensure that handgrip adjustment screw is tightened (6327/6328 only).

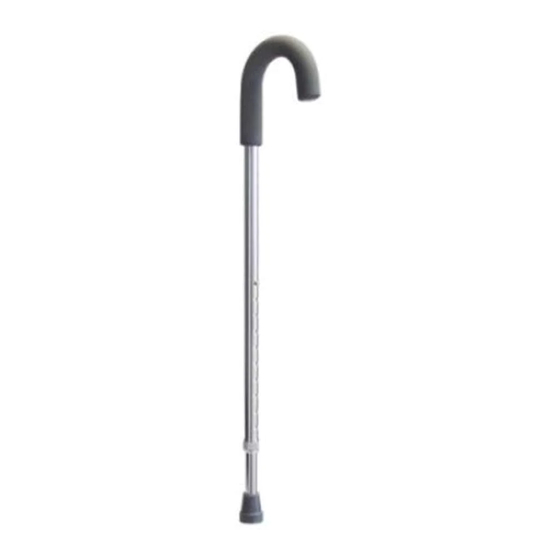

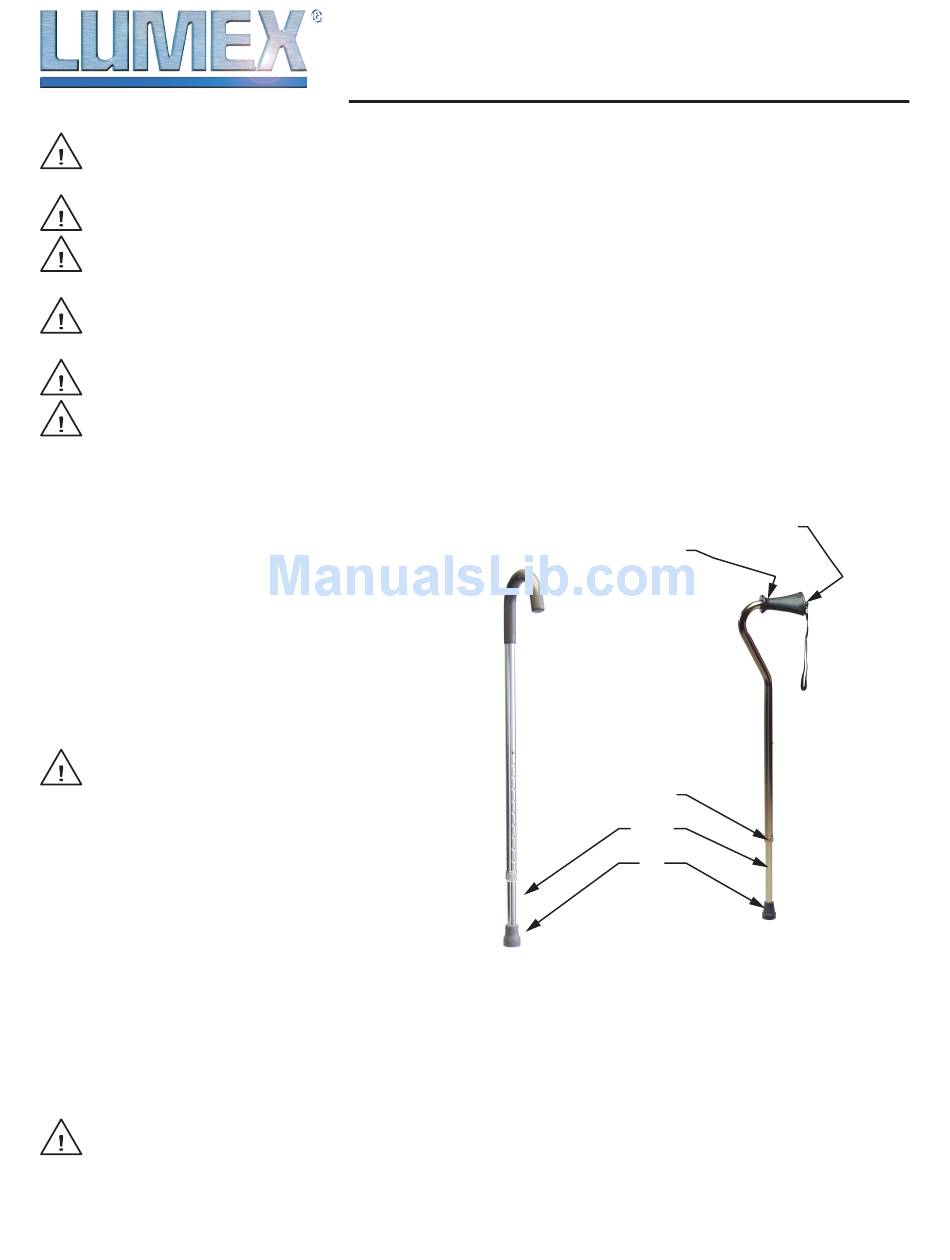

6220A: STANDARD CANE
6333A: BRONZE OFFSET CANE
6327, 6328: BRONZE OFFSET CANE WITH ORTHO EASE® GRIP
ASSEMBLY & OPERATION INSTRUCTIONS
6220A
Adjustment screw,
Ortho Ease grip
Handgrip
Locking
collet
Lower
leg
Tip
6327
