WARNING: Important: Read and understand these instructions before installing or using the
2800A/2800GA Versa-Helper Trapeze. Ensure that the Trapeze is installed as de-
scribed in the following paragraphs before use. If the Trapeze is not properly installed,
personal injury and/or property damage could result.
WARNING: The fixed trapeze used in conjunction with a bed can assist an individual weighing up
to 250 lbs. The fixed trapeze is designed to provide support, increase stability, and
assist the user when repositioning himself/herself in bed. The fixed trapeze is NOT
designed, however, to support the total body weight of an individual. Use it for assis-
tance ONLY.
WARNING: Do not use this product without proper instruction from a healthcare professional.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by
improper installation, assembly or use of this product.
WARNING: If components are damaged or missing, contact your Graham-Field Health Products
dealer immediately. DO NOT use substitute parts.
Tools needed: M14 wrench, Phillips screwdriver, Pliers
1. Use screwdriver to remove the screw,
labeled in picture at right, at top end of
trapeze arm.
2. Slide bracket onto trapeze arm with chains
downward as shown.
3. Adjust bracket to desired position; use the
T-screw on top of the bracket to tighten it.
4. Reinstall screw at top end of trapeze arm;
use screwdriver to tighten.
5. Slide bottom of trapeze arm over top of
trapeze post as shown.
6. Install washers on bolts. Install four bolts
through trapeze arm into connecting rod
at top of trapeze post. Tighten securely.
WARNING: Ensure that trapeze is correctly and securely assembled, that bracket is secure, and
that trapeze arm and post bolts are secure before proceeding.
Note: The trapeze is now ready to be installed on either the trapeze base or on bed headboard clamps. Please see the
next page for those instructions.
2800-INS-LAB-RevB07

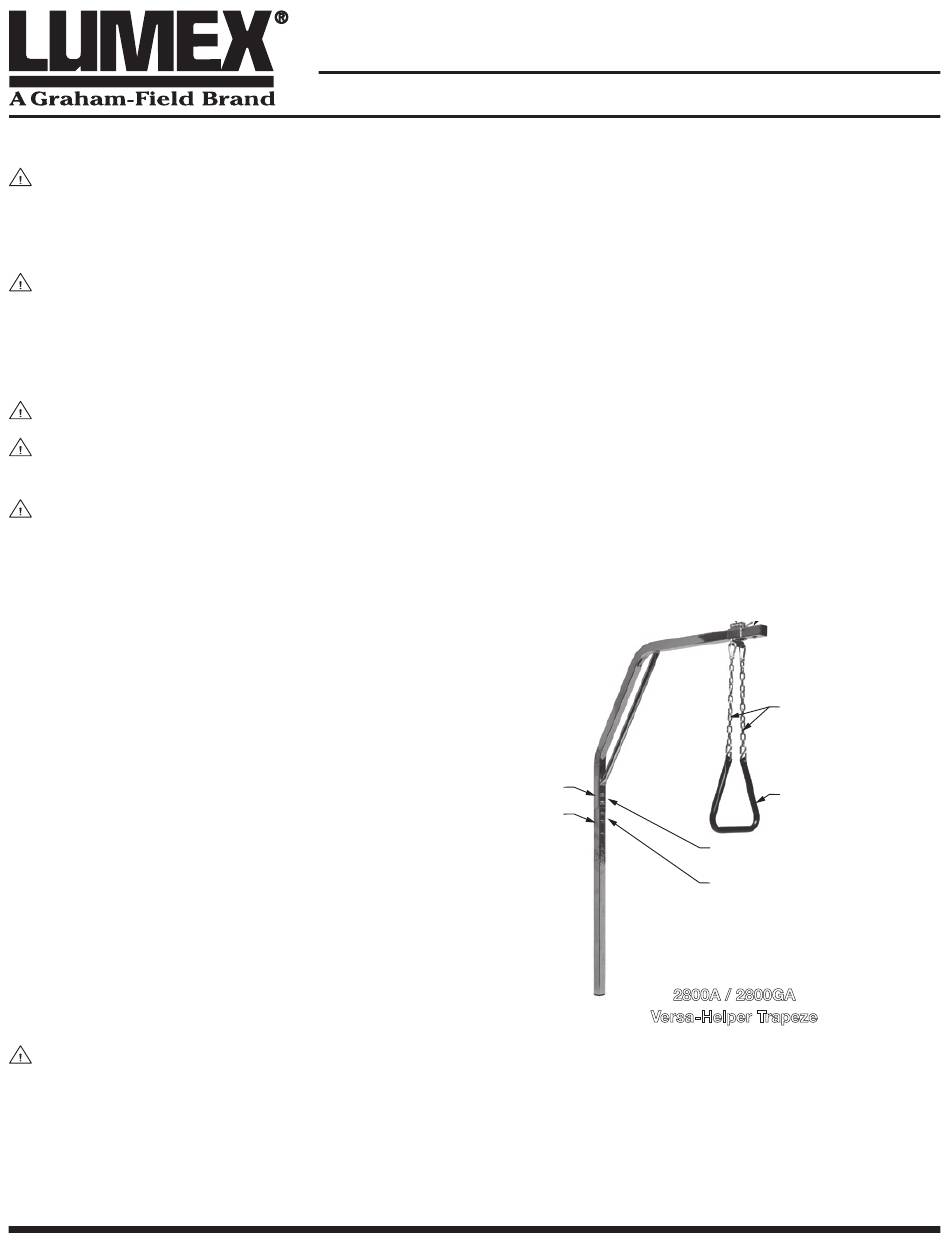

2800A, 2800GA: VersA-Helper TrApeZe
AsseMBlY & OperATION INsTrUCTIONs
pleAse sAVe THese INsTrUCTIONs FOr FUTUre Use
sAFeTY GUIdelINes - pleAse reAd BeFOre Use
TrApeZe AsseMBlY - reFer TO pICTUre AT rIGHT
trapeze arm
trapeze post
bracket
screw
chain
triangle
bolts, trapeze arm
bolts, trapeze post

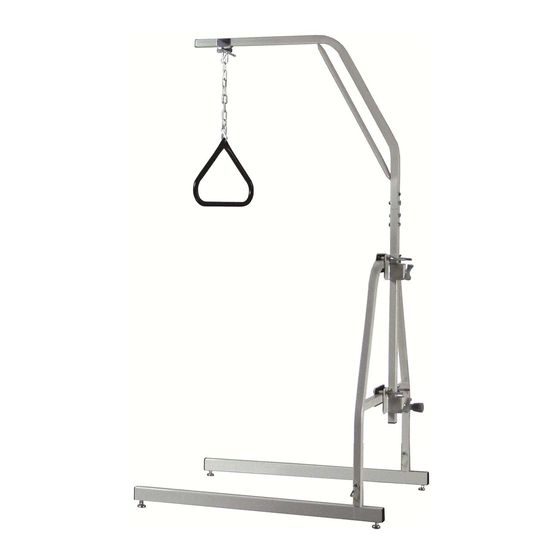

2800A / 2800GA
Versa-Helper Trapeze
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lumex 2800A
Summary of Contents for Lumex 2800A
- Page 1 2800A, 2800GA: VersA-Helper TrApeZe AsseMBlY & OperATION INsTrUCTIONs pleAse sAVe THese INsTrUCTIONs FOr FUTUre Use sAFeTY GUIdelINes - pleAse reAd BeFOre Use WARNING: Important: Read and understand these instructions before installing or using the 2800A/2800GA Versa-Helper Trapeze. Ensure that the Trapeze is installed as de- scribed in the following paragraphs before use. If the Trapeze is not properly installed, personal injury and/or property damage could result. WARNING: The fixed trapeze used in conjunction with a bed can assist an individual weighing up to 250 lbs. The fixed trapeze is designed to provide support, increase stability, and assist the user when repositioning himself/herself in bed. The fixed trapeze is NOT designed, however, to support the total body weight of an individual. Use it for assis- tance ONLY. WARNING: Do not use this product without proper instruction from a healthcare professional. WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper installation, assembly or use of this product. WARNING: If components are damaged or missing, contact your Graham-Field Health Products dealer immediately. DO NOT use substitute parts.
- Page 2 1. Slide upper clamp onto bottom of trapeze post so that it is oriented as shown at right. 2. Slide lower clamp onto bottom of trapeze post so that it is oriented as shown at right. 3. Assemble both clamps onto bed headboard as shown; use the thumbscrews on both sides of the clamps to tighten them. Ensure that clamps are secure on headboard. 4. Adjust trapeze to desired height, ensuring that it passes completely through both center clamps. Use the wing nuts on clamp center tubes to tighten clamps. Ensure that trapeze post is secure in clamps. TrApeZe OperATION WARNING: Before use, ensure that trapeze is correctly and securely as- sembled, and that all clamps are tight. Trapeze mounted on WARNING: The trapeze is intended to be used ONLY as an assistive bed headboard device—that is, to enable patients to more easily and safely reposition themselves. It is not intended to bear entire body weight. WARNING: When using trapeze assembled to bed headboard, ensure that bed casters are locked during trapeze use, to prevent unintended bed movement. WArrANTY GF Health Products, Inc. warrants the Lumex 2800A/2800GA Trapeze for a period of three years for defects in workmanship and materials. During the warranty period, defective items will be repaired or replaced at GF Health Products, Inc.'s option at no charge. © 2007 GF Health Products, Inc. 2800-INS-LAB-RevB07...
