Lumex 6341A Assembly & Operation Instructions

A Graham-Field Brand
Warning: This product should not be used without proper instruction from a healthcare
professional.
Warning: This product has a maximum user weight limitation of 250 lbs.
Warning: Lumex assumes no responsibility for any damage or injury caused by improper
installation, assembly or use of this product.
Warning: If components are damaged or missing, contact your dealer immediately. DO NOT
use substitute parts.
Warning: Before use, ensure that all crutch tips are properly seated and straight on each
crutch.
Warning: Use forearm crutches on dry and level surfaces only . Do not use crutches on
slippery surfaces, such as wet floors or ice; slippage and instability could occur. Do not use
crutches on stairs or steep inclines. Inspect crutches weekly for proper function and wear. If
any component is not in proper working order or appears worn, contact your Lumex dealer
for repair and/or appropriate replacement parts

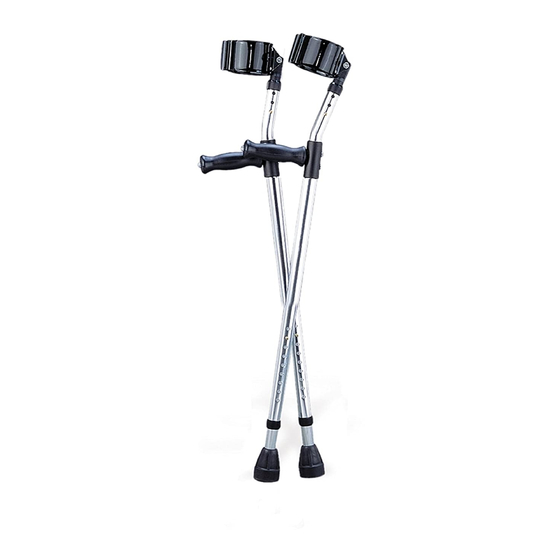

Forearm crutch
components are identified
in illustration at right.

Instructions for use

The chart at right can be used as a
guide to select height-appropriate
crutches. Please consult a healthcare
professional for the proper adjust-
ment.
6341A, 6342A, 6343A: DELUXE FOREARM CRUTCHES; 6345, 6346, 6347: DELUXE FOREARM CRUTCHES WITH ORTHO EASE GRIP
©GRAHAM-FIELD HEALTH PRODUCTS, 10/03
6341A, 6342A, 6343A: DELUXE FOREARM CRUTCHES
6345, 6346, 6347: DELUXE FOREARM CRUTCHES
WITH ORTHO EASE
ASSEMBLY & OPERATION INSTRUCTIONS
Handgrip
Holding bolt for
Ortho ease grip
(6345/6346/6347 only)
Forearm
crutch
Patient
Height
5' 5" - 6' 4"
5' 0" - 6' 0"
4' 10" - 5' 8"
®
GRIP
Cuff assembly
Upper locking collet
Upper push button
Lower section
Lower push button
Lower locking collet
Adjustable leg
Tip

Forearm Crutch Size Selection Chart

Product
Number
6341A / 6345
6342A / 6346
6343A / 6347
Adjustment Range
(Handgrip to Floor)
33" - 42"
28" - 37"
21.5" - 30.5"
1
