Instructions - Parts List

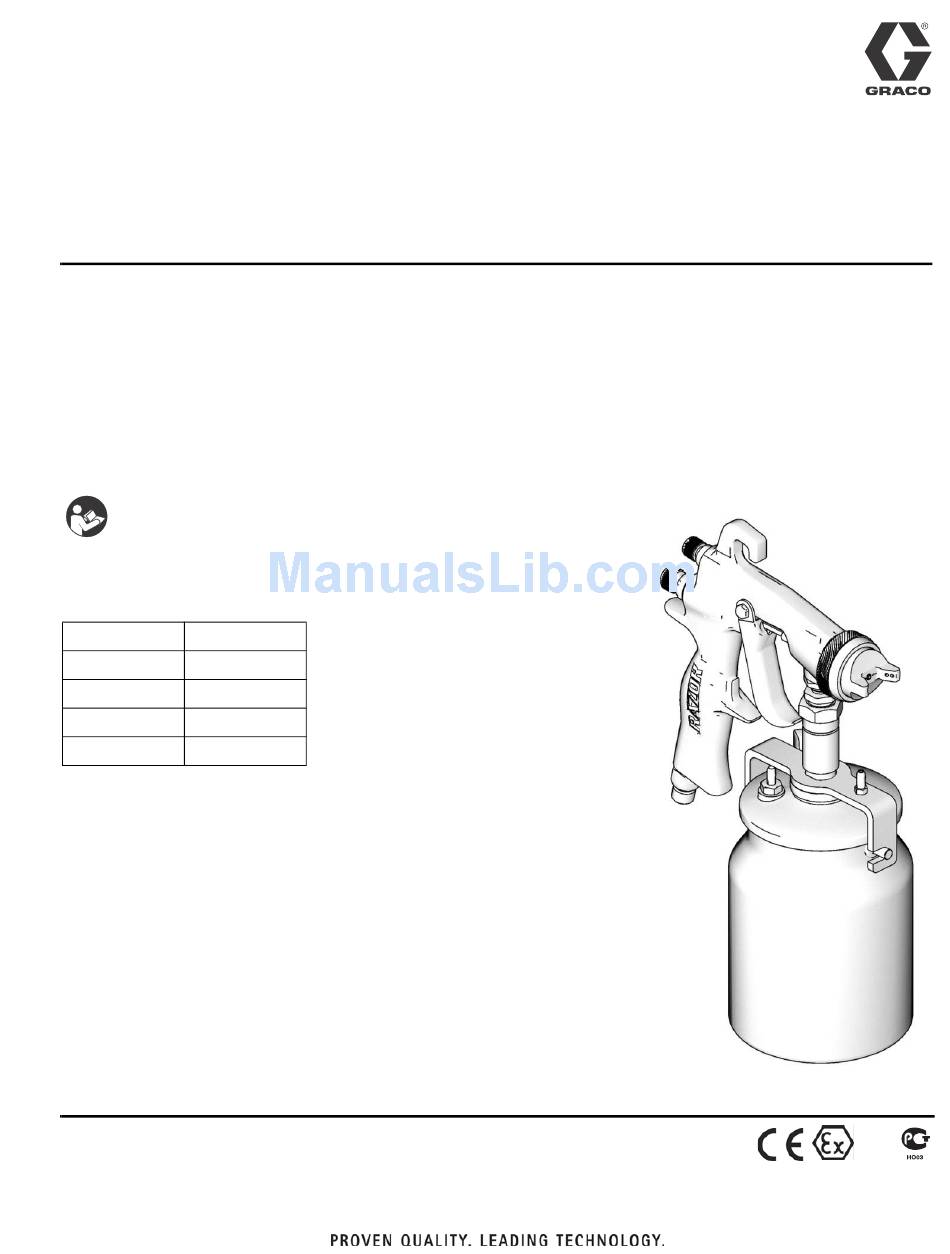

RAZOR
Feed Gun
A premier gun for the automotive refinish market for use with thin to medium viscosity
materials (14-20 seconds Zahn #2 cup). If spraying heavier materials, use a pressure or
gravity feed spray gun.
Includes HVLP, Compliant, and Conventional Series.
See page 2 for List of Models and maximum working pressures.
See page 10 for Parts.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
This manual is available in the following languages.
English
312106
Spanish
312107
French
312108
German
312109
Italian
312110
Contents
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 12
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 12
®
Siphon
312106F
ENG
TI8222A
II 2 G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco RAZOR 288588
Summary of Contents for Graco RAZOR 288588
-
Page 1: Table Of Contents
Instructions - Parts List ® RAZOR Feed Gun A premier gun for the automotive refinish market for use with thin to medium viscosity materials (14-20 seconds Zahn #2 cup). If spraying heavier materials, use a pressure or gravity feed spray gun. Includes HVLP, Compliant, and Conventional Series. -
Page 2: Models
Models Models Max HVLP/ Part Pressure psi Number Series Spray Type 288588 HVLP 30 (0.21, 2.1) 288589 Compliant 35 (0.24, 2.4) 288590 Compliant 35 (0.24, 2.4) 288591 Compliant 35 (0.24, 2.4) 288592 Compliant 35 (0.24, 2.4) 288593 Compliant 35 (0.24, 2.4) 288594 Compliant 35 (0.24, 2.4) -
Page 3: Warnings
Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. Refer back to these warnings. Additional, product- specific warnings may be found throughout the body of this manual where applicable. -
Page 4: Setup
Setup PERSONAL PROTECTIVE EQUIPMENT You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes, burns, and hearing loss. This equipment includes but is not limited to: •... -
Page 5: Maintenance
Volatile Organic Compounds (VOC) Regulation In certain states, spraying solvents that release VOCs into the atmosphere when cleaning a spray gun is prohibited. To comply with these air quality laws, you must use a cleaning method that prevents the escape of VOC vapors into the atmosphere. -
Page 6: Repair
Repair Repair See Parts, page 10, for callout references. Needle Replacement 1. Remove knob (8), spring (29), and needle (9). Inspect. Replace tip (9a) or needle (9) as necessary. See page 2. 2. Insert needle (9), spring (29), and knob (8). Nozzle Replacement 1. -
Page 7: Troubleshooting
Troubleshooting Problem Normal pattern. Right Dirty or damaged air cap or fluid nozzle. Wrong Heavy top or bottom pattern Pressure too high for viscosity of material being sprayed. Wrong Split pattern Dirty or distorted air horn holes. Wrong Gun spitting Air getting into paint stream. -
Page 8: Technical Data
Technical Data Technical Data Maximum Air Inlet Pressure ..... . 100 psi (0.7 MPa, 7 bar) Maximum HVLP/Compliant Inbound Air Pressure HVLP. -
Page 9: Accessories
Accessories Repair Kits Part No. Description 253748 Needle Packing Repair Kit 253783 Gun Repair Kit 253784 Air Cap Seal Kit 253785 Trigger Repair Kit 253933 Air Inlet Fitting Repair Kit 253934 Air Valve Repair Kit 24C269 Fluid Inlet Fitting Kit 24C310 Nozzle O-Ring Kit, 5-Pack Air Valves... -
Page 10: Parts
Parts Parts ‡8 ‡29 *‡22 ‡31 (sold separately) Pull trigger before installing nozzle (11). Insert spreader (15) with tapered end facing rear of gun. Insert u-cup (16) with open end facing front of gun. Apply lubricant. Apply low strength thread retainer. Apply high strength thread retainer. - Page 11 Ref. Part No.Description BODY, gun 2*✠ GASKET, fluid inlet 3✠ FITTING, fluid inlet 253976 VALVE, air control, assy 6*‡ VALVE, air, assy 7‡ 8‡ KNOB, fluid adjust page 2 NEEDLE (includes 9a) page 2 TIP, needle 10** TRIGGER page 2 NOZZLE (includes 21) 13✓...
-
Page 12: Graco Standard Warranty
Graco Standard Warranty Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
