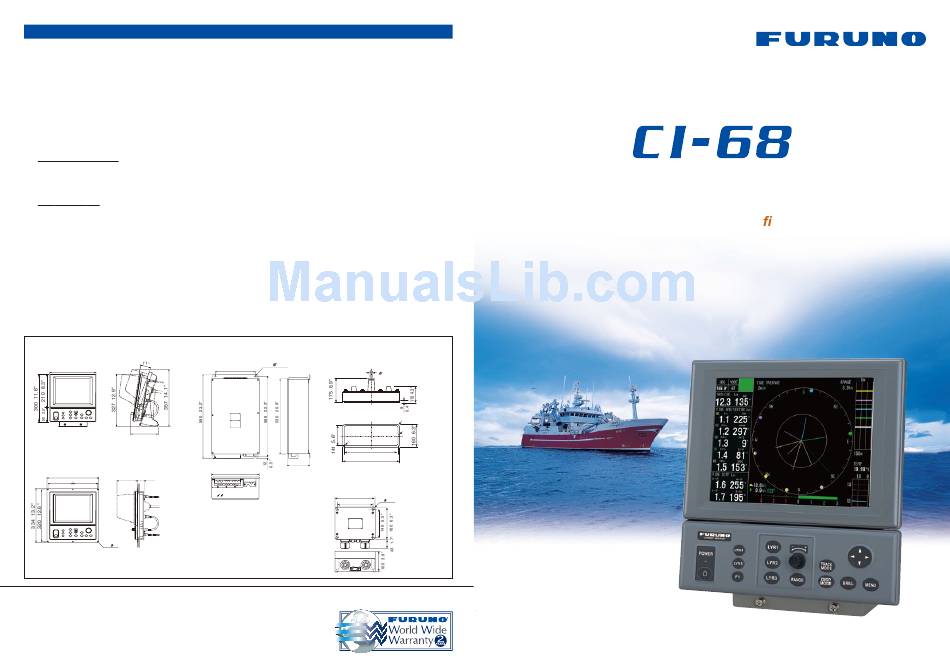

Furuno CI-68 Brochure & Specs

SPECIFICATIONS OF CI-68
Display
10.4" TFT color LCD, 640 x 480 pixels
Measurements
Current
Speed: 0 to 9.9 kt
Direction: 360°
Number of layers: 5 layers
Ship
Speed: -10 to 30 kt (fore-aft)
-9.9 to +9.9 kt (port-starboard)
Direction: 360°
Depth Range
For current measurement
2 to 75% of water depth up to 150 m
(Over 22 m of water depth is required in Ground tracking
mode. Over 40 m water depth is required in Water Tracking
mode)
For ground tracking
2 to 300 m
Accuracy
Current: ± 2% of ship's speed + 0.2 kt
Ship's speed: ± 1% + 0.1 kt
Number of Beams Three beams
Tilt 75° each
System Frequency
244 kHz
Data Interface (NMEA 0183 Ver.1.5/2.0/3.0, IEC 61162)
Inputs:
DBT, DPT (Depth), GGA, GLL, RMA, RMC (L/L),
HDG, HDM, HDT (Compass), MTW (Water temperature),
VTG (SOG, COG), ZDA (UTC)
Display/Control Unit Transceiver Unit
MU-100C/CI-6888-5E CI-6810
5.7 kg, 12.6 lb
290 11.4"
171 6.7"
Flush Mount Type
4.2 kg, 9.3 lb
320 12.6"
127 5.0" 41
153 6.0" 153 6.0"
1.6"
6- 7
FURUNO ELECTRIC CO., LTD. FURUNO ESPAÑA S.A. FURUNO FINLAND OY
Nishinomiya, Hyogo, Japan Madrid, Spain Espoo, Finland
www.furuno.co.jp www.furuno.es www.furuno.fi
FURUNO U.S.A. INC. FURUNO DANMARK AS FURUNO POLSKA Z o.o.
Camas, Washington, U.S.A. Hvidovre, Denmark Gdynia, Poland
www.furunousa.com www.furuno.dk www.furuno.pl
FURUNO (UK) LIMITED FURUNO NORGE A/S FURUNO EURUS LLC
Havant, Hampshire, U.K. Ålesund, Norway St. Petersburg, Russian Federation
www.furuno.co.uk www.furuno.no www.furuno.com.ru
FURUNO FRANCE S.A.S. FURUNO SVERIGE AB
Bordeaux-Mérignac, France Västra Frölunda, Sweden
www.furuno.fr www.furuno.se
Outputs:
CUR (Water current layer), VBW (Dual Ground/Water
Speed), VDR (Set and Drift), VHW (Water speed and
heading), VLW (Distance travelled through the water),
VTG (SOG, COG)
POWER SUPPLY
(IEC 60945 test method)
Temperature Display Unit: -15° to +55°
Control Unit: -15° to +55°
Transceiver Unit: -15° to +55°
Waterproofing Display Unit: IPX0 (IEC 60529)
Control Unit: IPX2 (IEC 60529)
Transceiver Unit: IPX0 (IEC 60529)
POWER SUPPLY
115/230 VAC
EQUIPMENT LIST
Standard
1. Display/Control Unit MU-100C/CI-6888-5E
2. Transceiver Unit CI-6810
3. Transducer CI-620-1-68 with 10 m cable or
CI-620-2-68 with 20 m cable
(Specify when ordering)
4. Transducer Tank CI-620-T-S (for Steel hull)
5. Through-hull Pipe CI-620-K-S (for Steel hull)
6. Installation materials and spare parts
7. Junction Box CI-630
Option
1. DC/AC Inverter TR-2451 for 24 VDC mains
2. Transducer Tank CI-620-T-F (for FRP hull)
3. Through-hull Pipe CI-620-K-F (for FRP hull)
4. Cable for Transceiver - Junction box
Z-6FUNV-SX-C 3P+1P, 5/10/15/20/30 m
5. Cable for Display - Control Unit
66S1249-0, 5/10 m
Transducer
17.0 kg, 37.5 lb CI-620-1-68
with 10 m cable 21 kg, 46.3 lb
CI-620-2-68
with 20 m cable 26 kg, 57.3 lb
4- 12
280 11.0"
18.7
R20
R9
R14
403 15.9"
160 6.3"
420 16.5"
336 13.2"
Junction Box
CI-630
2.0 kg, 4.4 lb
200 7.9"
4- 6.5
(180 7.1")
1112PDF
FURUNO DEUTSCHLAND GmbH
Rellingen, Germany Catalogue No. M-1530c
www.furuno.de
FURUNO HELLAS LTD.
Piraeus, Greece
RICO (PTE) LTD
Singapore
www.rico.com.sg
CURRENT INDICATOR
1 unit
High-performance current indicator displays
1 unit
accurate speed and current data at ve depth layers
1 unit
1 unit
on a 10.4" color TFT or virtually any VGA
1 unit
1 set
1 pc
monitor utilizing the BlackBox system
DOPPLER SONAR
