Furuno CH-300 Installation Manual

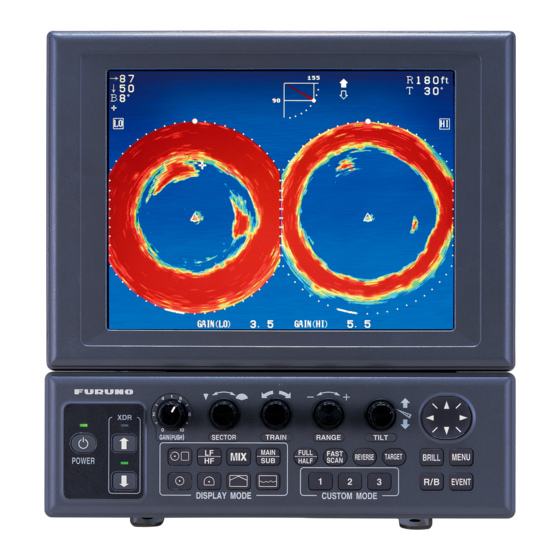

Dual frequency searchlight sonar
Hide thumbs Also See for CH-300:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
DUAL-FREQUENCY SEARCHLIGHT SONAR
SAFETY INSTRUCTIONS .............................................................................................................i
SYSTEM CONFIGURATION .......................................................................................................iii
EQUIPMENT LISTS.....................................................................................................................iv
1. MOUNTING ...........................................................................................................................1-1
1.1 Monitor Unit/Control Unit.................................................................................................1-2
1.2 Control Unit .....................................................................................................................1-6
1.3 Transceiver Unit ..............................................................................................................1-8
1.4 Hull Unit...........................................................................................................................1-9
1.5 Interface Unit.................................................................................................................1-27
1.6 Motion Sensor MS-100 (option) ....................................................................................1-28
1.7 Clinometer BS-704 (option)...........................................................................................1-29
2. WIRING .................................................................................................................................2-1
2.1 Wiring Among Units ........................................................................................................2-1
2.2 Transceiver Unit ..............................................................................................................2-4
2.3 Hull Unit...........................................................................................................................2-6
2.4 Interface Unit...................................................................................................................2-7
2.5 I/O Sentences .................................................................................................................2-8
3. ADJUSTMENT ......................................................................................................................3-1
3.1 General Checks ..............................................................................................................3-1
3.2 Checking TX Frequency..................................................................................................3-2
3.3 Heading Adjustment Setting............................................................................................3-4
3.4 Setting for Synchronizing Transmission with other Equipment .......................................3-5
3.5 Setting for Satellite Compass..........................................................................................3-6
3.6 Setting of Motion Sensor/Satellite Compass...................................................................3-8
3.7 System Back Up..............................................................................................................3-9
3.8 Setting of Interface Unit.................................................................................................3-10
PACKING LISTS....................................................................................................................... A-1
OUTLINE DRAWINGS.............................................................................................................. D-1
INTERCONNECTION DIAGRAMS........................................................................................... S-1
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Installation Manual
www.furuno.com
CH-300
Model

Advertisement

Table of Contents
loading

Related Manuals for Furuno CH-300

Summary of Contents for Furuno CH-300

  • Page 1: Table Of Contents

    Installation Manual DUAL-FREQUENCY SEARCHLIGHT SONAR CH-300 Model SAFETY INSTRUCTIONS ......................i SYSTEM CONFIGURATION .......................iii EQUIPMENT LISTS........................iv 1. MOUNTING ...........................1-1 1.1 Monitor Unit/Control Unit....................1-2 1.2 Control Unit ........................1-6 1.3 Transceiver Unit ......................1-8 1.4 Hull Unit...........................1-9 1.5 Interface Unit.........................1-27 1.6 Motion Sensor MS-100 (option) ..................1-28 1.7 Clinometer BS-704 (option)...................1-29...
  • Page 2 7KH SDSHU XVHG LQ WKLV PDQXDO LV HOHPHQWDO FKORULQH IUHH )85812 $XWKRUL]HG 'LVWULEXWRU'HDOHU  $VKLKDUDFKR 1LVKLQRPL\D  -$3$1 $  $35  3ULQWHG LQ -DSDQ $OO ULJKWV UHVHUYHG *  0$5    3XE 1R ,0(* 5()8 &+           ...

  • Page 3: Safety Instructions

    The installer of the on the label above the power connector. equipment is solely responsible for the proper installation of the equipment. FURUNO will assume no responsibility for any damage associated with improper installation.
  • Page 4 CAUTION CAUTION Ground the equipment to prevent WORKING WITH THE SONAROIL electrical shock and mutual interference. Precautions Keep oil away from eyes. Wear protective gloves when working with the oil. The oil Observe the following compass safe can cause inflammation of the eyes. distances to prevent deviation of a magnetic compass: Do not touch the oil.

  • Page 5: System Configuration

    SYSTEM CONFIGURATION INTERFACE UNIT IF-8000 MONITOR UNIT MU-100C Note 2 Navigator Control Unit Note 1 Display Unit VGA Ext. Remote Monitor Controller Note 2 CONTROL UNIT CH-302 TRANSCEIVER UNIT CH-303 Satellite compass 12-24 VDC NMEA Input DATA/VIDEO OUT Rectifier Speaker RU-1746B-2 Motion Sensor 100/110/200/220 VAC...

  • Page 6: Equipment Lists

    EQUIPMENT LISTS Standard Supply Name Type Code no. Remarks Control Unit/ CH-302/ Not supplied with blackbox type Monitor Unit MU-100C Control Unit CH-302 Not supplied with unibody type Interface Unit IF-8000 For blackbox type (not required for MU-151C) Transceiver Unit CH-303 CH-304 400 stroke...

  • Page 7: Monitor Unit/Control Unit

    Options Name Type Code no. Remarks Remote Controller CH-256-E 000-068-492 Interface Unit IF-8000 Motion Sensor MS-100 Monitor Unit MU-100C Control Unit CH-302-E Clinometer BS-704 Loudspeaker CA-151S-ASSY 001-466-200 CA-150BS-ASSY 000-190-183 Signal Cable S06-9-5 006-556-270 Extension cable for loudspeaker Rectifier RU-1746B-2 000-030-439 MJ-A6SPF0012-050C 000-154-053 6pin-6pin, 5m...
  • Page 8 This page is intentionally left blank.
  • Page 9 MOUNTING NOTICE Do not apply paint, anti-corrosive sealant or contact spray to coating or plastic parts of the equipment. Those items contain organic solvents that can damage coating and plastic parts, especially plastic connectors. Necessary tools and materials To install the units, prepare the tools and materials shown below. Necessary Tools Name Specification...
  • Page 10 1. MOUNTING Necessary Materials Name Specification Remarks Power Cable DPYCYS-2.5 Prepare the sufficient cable length according to the mounting location. Ground Wire IV-2sq. Crimping Terminal FV2-4 For the ground wire 10 A (For 12 VDC) Connect between the transceiver unit and power source. 5 A (For 24VDC) DC Breaker 30 A (For 12VDC)
  • Page 11 1. MOUNTING 1.1.2 Mounting Unibody type 1. Fasten the mounting base to the mounting location with four self-tapping screws (5X20). FRONT Mounting base 2. Fasten the bracket at the rear of monitor/control unit with four binding screws (M4x10). Bracket (rear view) Bracket, rear view 3.
  • Page 12 1. MOUNTING Flush mounting Flush mounting for unibody (Type: OP06-16, Code no.: 006-556-300) Name Type Code No. Remarks Fixing metal 06-021-1311-2 100-279-612-10 Self-tapping screw 5x20 000-162-609-10 Hex. bolt M4x12 000-162-939-10 1. Cut out a hole (W287 x H297) in the mounting location. 2.
  • Page 13 1. MOUNTING 3. Attach the bracket at rear of the monitor unit with four binding screws (M4x10). Bracket (rear view) Bracket, rear view 4. Coat threads of upset screws (M6x16, 2 pcs.) used to fasten bracket to mounting base. 5. Fasten the bracket to the mounting base with two upset screws. (Use the upper holes to tilt the monitor unit 20°;...

  • Page 14: Control Unit

    1. MOUNTING 1.1.4 Blackbox type The blackbox type requires a VGA monitor, connected via the interface unit IF-8000. Supply commercial monitor and interconnection cable (Max. length 15 m with Dsub-15P connectors of male, three rows of 15 pins). The monitor used should satisfy the specifications shown below.
  • Page 15 1. MOUNTING To mount the control unit separate from the monitor unit, the optional control unit separate kit is required. Mount the control unit same as the above procedure. See the outline drawing at the back of this manual to mount. Type: OP06-15-1.5 NEW Code no.: 006-559-140: with 1.5 m cable Type: OP06-15-5 NEW...

  • Page 16: Transceiver Unit

    1. MOUNTING Transceiver Unit 1.3.1 General mounting considerations • The mounting location should be well ventilated and dry. • The unit can be mounted on a bulkhead or the deck. • The maximum cable length between the transceiver unit and the raise/lower drive unit is 50 m.

  • Page 17: Hull Unit

    1. MOUNTING Hull Unit NOTICE NOTICE The flange of the retraction tank Install the hull unit away from the must be parallel with the waterline. places subject to water splash and rain. The keel of the ship may not be parallel with the ship’s draft.
  • Page 18 1. MOUNTING Mounting method A typical mounting method is shown in the outline drawing at the back of this manual. Consult ship’s owner, dockyard and user to determine appropriate mounting method. Pay attention to safety (strength, watertightness) first, followed by ease of maintenance and inspection. 1.4.3 Retraction tank Note: For installation of the retraction tank on a wooden vessel, see Appendix 1...
  • Page 19 1. MOUNTING Guideline for the installation on a steel or aluminum hull When the retraction tank is installed on a steel or aluminum hull, follow the guideline shown below and see the outline drawing at the back of this manual. •...
  • Page 20 1. MOUNTING • If the length of the retraction tank (Li) is more than 1 m, install at least one reinforcement rib to prevent damage of the tank and vessel by sea accident. One reinforcement rib should be installed toward the ship’s bow (see the figure below).
  • Page 21 1. MOUNTING • Install a fairing plate to the bottom hull where the transducer projects to protect the transducer from the water pressure. The fairing plate should contact the frame of the hull plate. For the fairing plate, use the same material and thickness as the hull plate. The wooden or plastic material is also available.
  • Page 22 1. MOUNTING For small FRP ship The retraction tank should be mounted in parallel with the ship’s draft. For a small ship, however, the hull has 2 degrees of tilt rising toward the bow. This creates high water pressure in the tank because of the resistance at the rear of the tank well.
  • Page 23 1. MOUNTING 1.4.4 Assembling and mounting of hull unit The hull unit is shipped as the parts shown in the hull unit kit in the Equipment Lists (page v). Assemble the hull unit as shown in the procedure below. Note: Confirm the frequency of soundome before mounting by referring to the table below.
  • Page 24 1. MOUNTING 2. Remove hex bolt, nut, spring washers, flat washers and trunnion pins from the main body flange. Then, mount the raise/lower drive unit on the shaft sleeve by using the hardware removed. Raise/lower drive unit Flat washer Hex. bolt Flange assembly (M10X30) Spring washer...
  • Page 25 1. MOUNTING 4. After fully screwing the main shaft into the soundome neck, unscrew it by four turns and apply the supplied sealant (LOCTITE NO.575) to the threads. Coat threads with the sealant (LOCTITE NO.575). Applying the sealant to main shaft 5.
  • Page 26 1. MOUNTING 8. If the gap at a side is more than 0.5 mm, install shim(s) to make the gap within 0.5 mm. a) Unscrew four M10x50 bolts. b) Unscrew four countersunk screws, then attach shim(s) with the countersunk screws as shown below. Hex.
  • Page 27 1. MOUNTING The table below shows tank length and necessary shim thickness. In addition, the shim thickness shown is for one side. For example, when cutting the 1800 mm tank to 800 mm, the tank inside diameter is 191.25 mm, and shim thickness is 2.5 mm as shown the table in below.
  • Page 28 1. MOUNTING 9. Coat the inside of the tank guide with liquid gasket (TB1121 or TB1184). Then, fasten tank guide at the neck of the main shaft securely with M10X80 bolts. Hex. bolt : Coat with liquid gasket (M10x80) (TB1121 or TB1184). Flat washer Spring washer Bow mark...
  • Page 29 1. MOUNTING 12. Align the bow mark on the soundome with the bow mark on the flange assembly, and then fix the main shaft with and shaft retainer. 13. Fix the jubilee clip to the main shaft. Hex. bolt Shaft retainer 15 mm 1-2 mm Jubilee Clip...
  • Page 30 1. MOUNTING 18. Remove and discard the protection sponge placed in soundome. NOTE Do not unfasten two nuts painted in red. Socket head cap screw 8 pcs, M5x30 Unfastening the nuts may allow water to leak inside, which can Spring washer damage the soundome.
  • Page 31 1. MOUNTING CAUTION Keep oil away from eyes. Where protective goggles when working with the oil. The oil cause inflammation of the eyes. Do not touch the oil. The oil can cause inflammation of the skin. Wear protective gloves when working with the oil. Do not ingest the oil.
  • Page 32 1. MOUNTING Note 2: When the soundome is painted (to keep marine life off the transducer), observe the following precautions: Use only anti-fouling paint type MARINE STAR 20 (Manufacture: Chugoku Marine Paint Co., Ltd., Japan). Paint only the plastic portion of the dome. Painting the metal parts causes electric corrosion.
  • Page 33 1. MOUNTING Fix the shaft sleeve and retraction tank with hex bolts, flat washers and spring washers. Hex bolt Shaft retainer 15 mm 1-2 mm Jubilee clip Main shaft 10 mm 1-25...
  • Page 34 1. MOUNTING Checking manual raise/lower of soundome with hand crank Perform this check after all wiring has been completed. CAUTION Turn the main power off before this check, otherwise the raise/lower motor action may cause injury. 1. Turn off the breaker on the hull unit. 2.

  • Page 35: Interface Unit

    1. MOUNTING Interface Unit The interface unit is shipped with the blackbox type to enable connection of a monitor. Note that this unit is not necessary when using monitor MU-151C. 1.5.1 General mounting considerations • The mounting location should be well ventilated and dry. Avoid locations subject to water splash or rain.

  • Page 36: Motion Sensor Ms-100 (Option)

    1. MOUNTING Motion Sensor MS-100 (option) The MS-100 measures ship’s pitching and rolling angles with a sensor, using the principles of the gyroscope. The MS-100 is free from error caused by ship’s vertical and horizontal motion. Therefore, it can be installed at any convenient location.

  • Page 37: Clinometer Bs-704 (Option)

    1. MOUNTING Clinometer BS-704 (option) The clinometer detects ship’s inclination caused by ship’s rolling, pitching and its output is used to stabilize the sonar beam against rolling and pitching. The clinometer is, in principle, a pendulum. It measures the inclination of the ship by sensing the direction of gravity acted on it and therefore when installed on a ship, it should be placed on or near the rotation axes of the ship’s rolling and pitching.
  • Page 38 1. MOUNTING This page is intentionally left blank. 1-30...

  • Page 39: Wiring

    WIRING Wiring Among Units • The figure on the next page shows wiring among units. • The signal cables are fitted with connectors. Connect the cables to the monitor, transceiver and hull units referring to the interconnection diagram on page S-1.
  • Page 40 2. WIRING Navigation equipment Monitor/control unt CH-302/MU-100C Note 3 MJ-A10SPF0002-0015 0.15 m Note 1 Remote controller (5 m) Note 2 Interface unit 06S4078 Monitor IF-8000 (5/10m) (User supply) Transceiver unit CH-303 Note 4 MJ-A6SPF 0012 DPYCYS-2.5 Loudspeaker 12-24 VDC (w/cable) Satellite compass 06S4037...
  • Page 41 2. WIRING Interface unit IF-8000 Note 1 Navigation equipment Max. 15m External monitor Note 2 Note 3 External monitor Interface unit 06S4078 Note 3 (5/10m) CONT MJ-A10SPF0002-050 06S4078 (5m) (5/10m) Control unit CH-302 Control unit, rear view (5m) Remote controller Transceiver unit CH-303 SPEAKER...

  • Page 42: Transceiver Unit

    2. WIRING Transceiver Unit Connect the cables as shown in the figure below. 06P0254 7P-NH connector (local supply) Tie these cables with locking spacer. *Note *Note DATA/VIDEO OUT SPEAKER Earth MOTION SENSOR Monitor unit 12-24VDC HULL External loudspeaker To ship's Motion sensor MU-100C UNIT...
  • Page 43 2. WIRING Synchronizing Transmission with Echo Sounder or Other Sonar To synchronize transmission of the CH-300 with an echo sounder or other type of sonar, connect it as shown below. H7P-SHF (local supply) Transceiver unit Sonar, E/S Vinyl wire (local supply)

  • Page 44: Hull Unit

    2. WIRING Hull Unit Pass the cables to the 06P0257 Board, through the cable protectors. Fasten glands securely by hand. 06P0257 Cable from transducer 06S4081 Attach the EMI core RFC-4 (supplied) to this cable, and then fix the core to the *Note cable for JI with the cable tie CV-100N (supplied).

  • Page 45: Interface Unit

    Note 3: Connect control unit or navigator equipment to either interface unit or monitor unit (supplied by FURUNO). Note 4: When connecting the monitor unit MU-100C to the interface unit, or two interface units in parallel to the transceiver unit, the length of cables should be as shown in the figure on next page.

  • Page 46: I/O Sentences

    2. WIRING External monitor 06S4078 06S4078 Transceiver Display unit Interface A+B<15m unit MU-100C unit Control unit may be connected to interface unit or display unit. External External monitor monitor 06S4078 06S4078 Interface Interface Transceiver A+C<15m unit unit unit Connect control unit to an interface unit.

  • Page 47: Adjustment

    ADJUSTMENTS General Checks General checks...

  • Page 48: Checking Tx Frequency

    General checks (con’t) Checking TX Frequency MENU MENU COM1 COM2 HORZ VERT SHORT-CUT GO TO SYS MENU : SELECT MENU: END : CHANGE User menu (SYS)
  • Page 49 ** SYSTEM MENU ** SYSTEM SETTING: RANGE-SONAR MODE RANGE-VERTICAL MODE RANGE-E/S MODE RANGE-TRACK MODE COLOR PALETTE LANGUAGE SYSTEM BACKUP LOAD BACKUP DATA HEADING OFFSET, DRAFT OFFSET ADJ MOTION SENSOR TX FREQ ADJUST TEST TEST PATTERN DEMO MODE DEFAULT : MENU DISPLAY MENU: END : SELECT System menu MAIN PROGRAM NO.
  • Page 50 Heading Alignment Setting ° ° Heading 12 o'clock position Buoy When on-screen target is skewed right, transducer heading is skewed left. Checking heading alignment MENU ** HEADING OFFSET/DRAFT OFFSET ** HEADING 0 ˚ (-180˚ - +180˚) DRAFT 0.0 ˚ (0.0 - 60.0m) : SELECT : CHANGE MENU: END...

  • Page 51: Setting For Synchronizing Transmission With Other Equipment

    3. ADJUSTMENT Setting for Synchronizing Transmission with other Equipment To synchronize transmission with other echo sounder (see paragraph 2.2), do as follows: 1. Press the MENU key to display the menu. 2. Press to select COM1 at the top of menu display. MENU COM1 COM2 HORZ VERT...

  • Page 52: Setting For Satellite Compass

    Setting for Satellite Compass MENU ** SYSTEM SETTING 1 ** MENU POSITION SHIP'S L/L SHIP'S LOP CURSOR L/L TRACK : OFF CURRENT DATA FLOW FROM FLOW TO HEADING INDICATION : TRUE NORTH MARK : OFF CSE DATA : NAV GYRO NAV DATA : GPS LoranC LoranA DR DECCA OTHERS...
  • Page 53 ** SYSTEM SETTING 2 ** MENU GAIN SETTING PROTECT : HORZ/HISTORY HORZ/VERT ZOOM HORZ/PLOTTER NORMAL EMPHASIS MODE STABILIZER MOTION SENSOR SAT. COMPASS AUTO RETRACTION (OFF, 5-15 kt) SPEED ALARM/MESSAGE : : DOT LINE SWEEP INDICATOR DEFAULT SETTING : NO MAXIMUM ALLOWABLE SPEED IS 15 KNOTS WHILE SOUNDOME IS BEING RETRACTED.

  • Page 54: Setting Of Motion Sensor/Satellite Compass

    3. ADJUSTMENT Setting of Motion Sensor/Satellite Compass When connecting the motion sensor, clinometer or satellite compass, enter ship’s roll and pitch angles as shown below. Note that the adjustment can be done only when connected to the MOTION SENSOR port. For the satellite compass, however, do not duplicate this adjustment;...

  • Page 55: System Back Up

    System Back Up MENU ** SYSTEM BACK UP** ARE YOU SURE? NOTE: OVERWITES PREVIOUS BACKUP DATA : CHANGE MENU: END System backup menu MENU MENU...

  • Page 56: Setting Of Interface Unit

    Setting of Interface Unit • • *: J6 and J7 set to "THROUGH" side. Interface unit, DIP switch S1 location External Monitor Processor Interface Monitor Unit Unit Unit S1:All OFF External Monitor Processor Interface Unit Unit S1:All ON External External Monitor Monitor Processor...

  • Page 57: Appendix 1 How To Make The Retraction Tank For Wooden Vessel

    APPENDIX 1 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL These instructions show how to make the retraction tank for a wooden vessel. Retraction tank (conceptual drawing) Necessary components for the retraction tank Prepare the components shown in the table below for the retraction tank. The dimensions in the table are recommended values.
  • Page 58 APPENDIX 1 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Thickness Name Material Remarks Flange-1 SS400 More than Inside diameter: Same as the outside diame- 20.0 mm ter of the fixing pipe. Outside diameter: 343 mm 8 × Ø23 45°...
  • Page 59 APPENDIX 2 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Thickness Name Material Remarks SS400 More than Inside diameter: Max. 259 mm, Flange-2 12.0 mm Min. Pipe O.D + 20 mm Outside diameter: 343 mm 45° 8 × Ø14 I.D: Inside diamater Pipe O.D: Outside diameter of the PVC pipe SUS304-CP 4.0 mm...
  • Page 60 APPENDIX 1 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Welding the component Before assembling the retraction tank, weld the components to create the flange assembly 1 and • Flange assembly 1 Weld the fixing pipe and four angle-1 to the flange-1. After welding, mask the thread groove of the fixing pipe, then apply anticorrosive coating to the flange assembly 1.
  • Page 61 APPENDIX 2 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL How to assemble the retraction tank To assemble the retraction tank, prepare the installation materials shown in the table below. Type Name Material SUS304 M12×20 -25 Hex. bolt SUS304 M12×25 or more SUS304 Hex.
  • Page 62 APPENDIX 1 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Apply the silicone sealant to the threads of the PVC pipe, then screw the PVC pipe into the flange assembly. PVC pipe PVC pipe Flange Flange asssembly asssembly Apply the silicone sealant Apply the silicone sealant to the threads.

  • Page 63: Appendix 2 How To Install The Retraction Tank For Wooden Vessel

    APPENDIX 2 HOW TO INSTALL THE RETRACTION TANK FOR WOODEN VESSEL Install the retraction tank for wooden vessel (prepared in Appendix1) as shown here. Installation location considerations Discussion and agreement are required with the dockyard and ship owner in deciding the location for the retraction tank (hull unit).
  • Page 64 APPENDIX 2 HOW TO INSTALL THE RETRACTION TANK FOR WOODEN VESSEL Selection of the flow rectification component According to the vertical distance between the bottom line of the keel and center of the retraction tank, select a fairing or stainless plate as the flow rectification. Retraction tank Keel A <...
  • Page 65 APPENDIX 2 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Recommended dimensions for the faring • Length (bow-stern direction): R. P + 100 mm or more (700 mm or more recommended) • Length (both sides direction): Pipe O.D + 100 mm or more •...
  • Page 66 APPENDIX 2 HOW TO INSTALL THE RETRACTION TANK FOR WOODEN VESSEL Mounting hole and installation of the flow rectification component Select the installation location referring to “Installation location considerations“ (AP-7 page). For the location of the mounting hole, consider the following points: •...
  • Page 67 APPENDIX 2 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Installation of the tank reinforcement structure Install the tank reinforcement structure to prevent the retraction tank from coming off and vibrating. Fix the tank reinforcement structure to the ribs or ship’s superstructure. Tank reinforcement structure Tank reinforcement structure (conceptual drawing) Create the tank reinforcement structure considering the structure of the hull.
  • Page 68 APPENDIX 2 HOW TO INSTALL THE RETRACTION TANK FOR WOODEN VESSEL How to install the retraction tank Set the retraction tank to the tank reinforcement structure and mounting hole. Loosen the bolts fixing the flange (8 locations, 16 pcs.), then adjust the flange of the retraction tank so that it is parallel with the waterline.
  • Page 69 APPENDIX 2 HOW TO MAKE THE RETRACTION TANK FOR WOODEN VESSEL Use a hair dryer or the like to dry the mounting hole, then apply the adhesive to the con- tact areas between the retraction tank and mounting hole. Apply the adhesive both to the retraction tank and mounting hole. Set the retraction tank to the tank reinforcement structure and mounting hole to align the line marked at step 4.
  • Page 70 APPENDIX 2 HOW TO INSTALL THE RETRACTION TANK FOR WOODEN VESSEL This page is intentionally left blank. AP-14...
