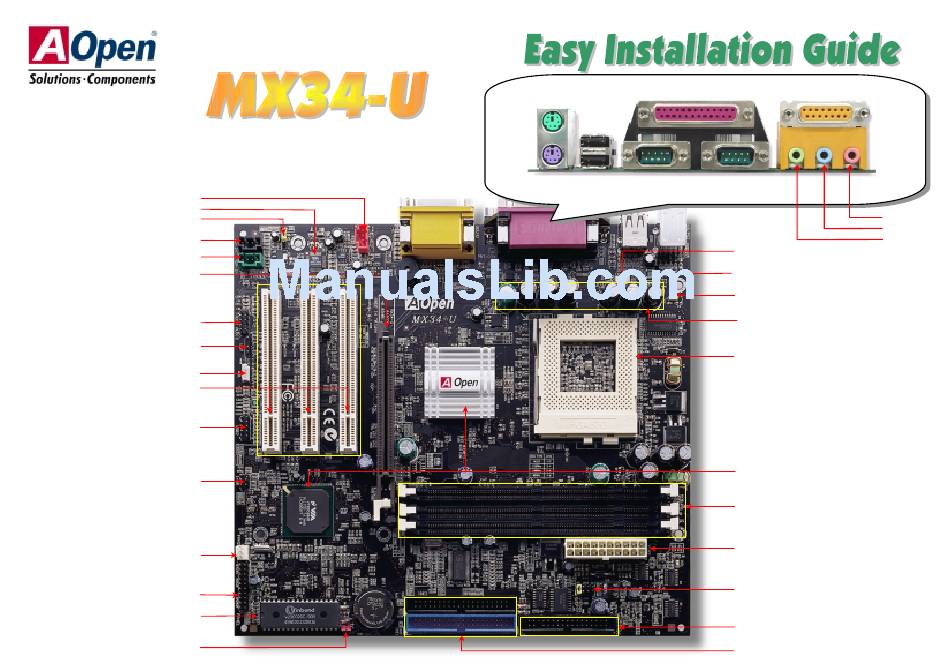

MODEM-CN
AC'97 CODEC Chipset
JP12 Onboard Audio Select Jumper
CD-IN
AUX-IN
AGP 4x Expansion Slot
Front Audio Connector
WOM (Wake On Modem)
WOL (Wake On LAN)
32bit PCI Expansion Slot x 3
nd
Support 2
USB Port
IrDA Connector
FAN2 (with H/W Monitoring)
Front Panel Connector
2Mbit Flash ROM BIOS
JP14 Clear CMOS Jumper
PS/2 Mouse
SPP/EPP/ECP
Connector
Parallel Port
PS/2 Keyboard
USB Port
COM 1 Port
Connector
Game Port
COM 2 Port
MIC-In
Line-In
Speaker Out
CPU Fan (with H/W Monitoring)
Resettable Fuse
JP27 USB Keyboard/Mouse Wakeup
Low ESR Capacitors
370-pin CPU Socket with Voltage &
Frequency Auto-detection
®
supports Intel
Pentium™ III (Both
Coppermine & Tualatin are supported) &
Celeron 533MHz~1.2GHz+ CPU
VIA Apollo Pro 133T Chipset with
Aluminum Heatsink
PC133 DIMM Slot x3
ATX Power Connector
JP23 FSB Select Jumper
FDD Connector
ATA33/66/100 IDE Connector x2
Advertisement
Table of Contents
Related Manuals for AOpen MX34-U
Summary of Contents for AOpen MX34-U
- Page 1 PS/2 Mouse SPP/EPP/ECP Game Port Connector Parallel Port PS/2 Keyboard USB Port COM 1 Port COM 2 Port Connector MODEM-CN AC’97 CODEC Chipset MIC-In JP12 Onboard Audio Select Jumper Line-In CD-IN Speaker Out CPU Fan (with H/W Monitoring) AUX-IN Resettable Fuse AGP 4x Expansion Slot JP27 USB Keyboard/Mouse Wakeup Low ESR Capacitors...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3. -
Page 3: Installing Processor
3. Installing Processor 5. Setting CPU Voltage & Frequency This socket supports FC-PGA package CPU, which is the latest CPU package developed Setting CPU Core Voltage by Intel, we strongly recommend you not to insert former PPGA-package CPU onto it. This motherboard supports CPU VID function. -
Page 4: Jp23 Fsb/Pci Clock Ratio
6. JP23 FSB/PCI Clock Ratio 8. Connecting IDE and Floppy Cable The JP23 is used to specify the relationship of PCI and FSB clock. Generally speaking, if Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and you are not overclockers, we recommend you to set the jumper at the default setting. -
Page 5: Front Audio Connector
12. Connecting CD / MODEM / AUX 10. Support 2nd USB Port This motherboard provides 4 connectors to connect USB devices, such as mouse, CD-IN The CD-IN connector is used to connect CD Audio keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can cable from CDROM or DVD drive to onboard sound. -
Page 6: Bios Upgrade
15. AOpen Bonus Pack CD 17. BIOS Upgrade AOpen Easy Flash is more user friendly than traditional flash method. The BIOS binary You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select file and flash routine are combined together and you simply run a single file to complete model name. -
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. MX34-U is model name of motherboard, R1.00 is BIOS version. Re-install Windows 95, Windows 98 or Windows NT. - Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
