Everything you need to boot this
motherboard is included in this Easy
Installation Guide. For more
information, a complete Online User's
Manual can be found in the
Pack CD Disc. Thanks for the help of
saving our earth.
Hard Drive IDE Cable x 1
80-Wire IDE Cable x 1
Floppy Drive Cable x 1
Bonus Pack CD disc x 1
This Easy Installation Guide x 1
PART NO: 49.87A01.005 DOC. NO: AX3S-EG-E0011C
Normal Operation
Bonus

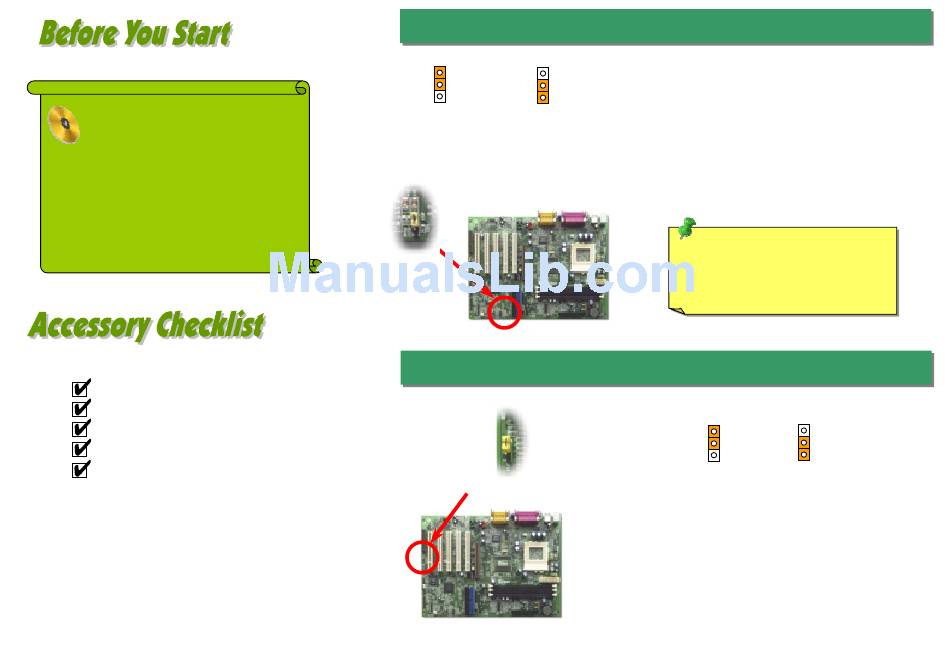

JP14 Clear CMOS

1
1
2
2
3
3
Clear CMOS
(default)
JP12 Enable/Disable Onboard Audio
You can clear CMOS to restore system default setting. To clear
the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pins 1-2.
5. Connect ATX power cable back to connector PWR2.
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
2. Forget password...
3. Troubleshooting...
1
2
3
Disable
Enable
This motherboard has AC97 sound onboard. JP12 is used to
enable or disable onboard AD1885 CODEC chip. If you
select Disable, you can use your preferred PCI sound card
or CNR card.
