230 Volt Operation
If 230V, single phase operation is desired, the following instructions must be followed:
1. Disconnect the machine from the power source.
2. Turn the handwheel until the saw blade is in the 45° position. This will allow easy access to the motor
junction box.

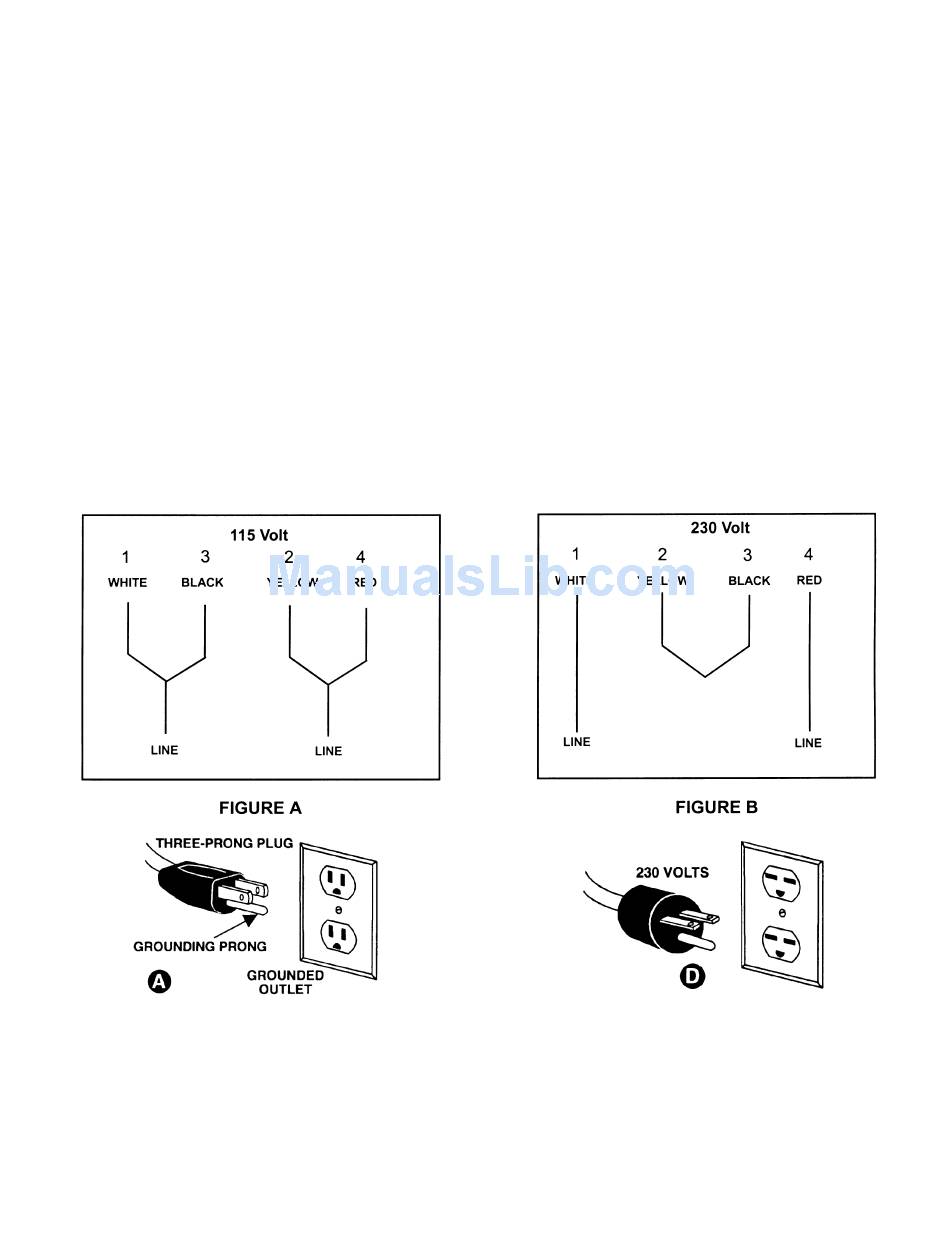

3. This tablesaw is supplied with four motor leads that are connected for 115V operation, as shown in
Figure A. Reconnect these four motor leads for 230V operation, as shown in Figure B.
4. The 115V attachment plug (A), supplied with the tablesaw, must be replaced with a UL/CSA listed
plug suitable for 230V operation (D). Contact your local Authorized JET Service Center or qualified
electrician for proper procedures to install the plug. The tablesaw must comply with all local and
national codes after the 230 volt plug is installed.
5. The tablesaw with a 230 volt plug should only be connected to an outlet having the same
configuration (D). No adapter is available or should be used with the 230 volt plug.
Important: In all cases (115 or 230 volts), make certain the receptacle in question is properly grounded.
If you are not sure, have a registered electrician check the receptacle.
