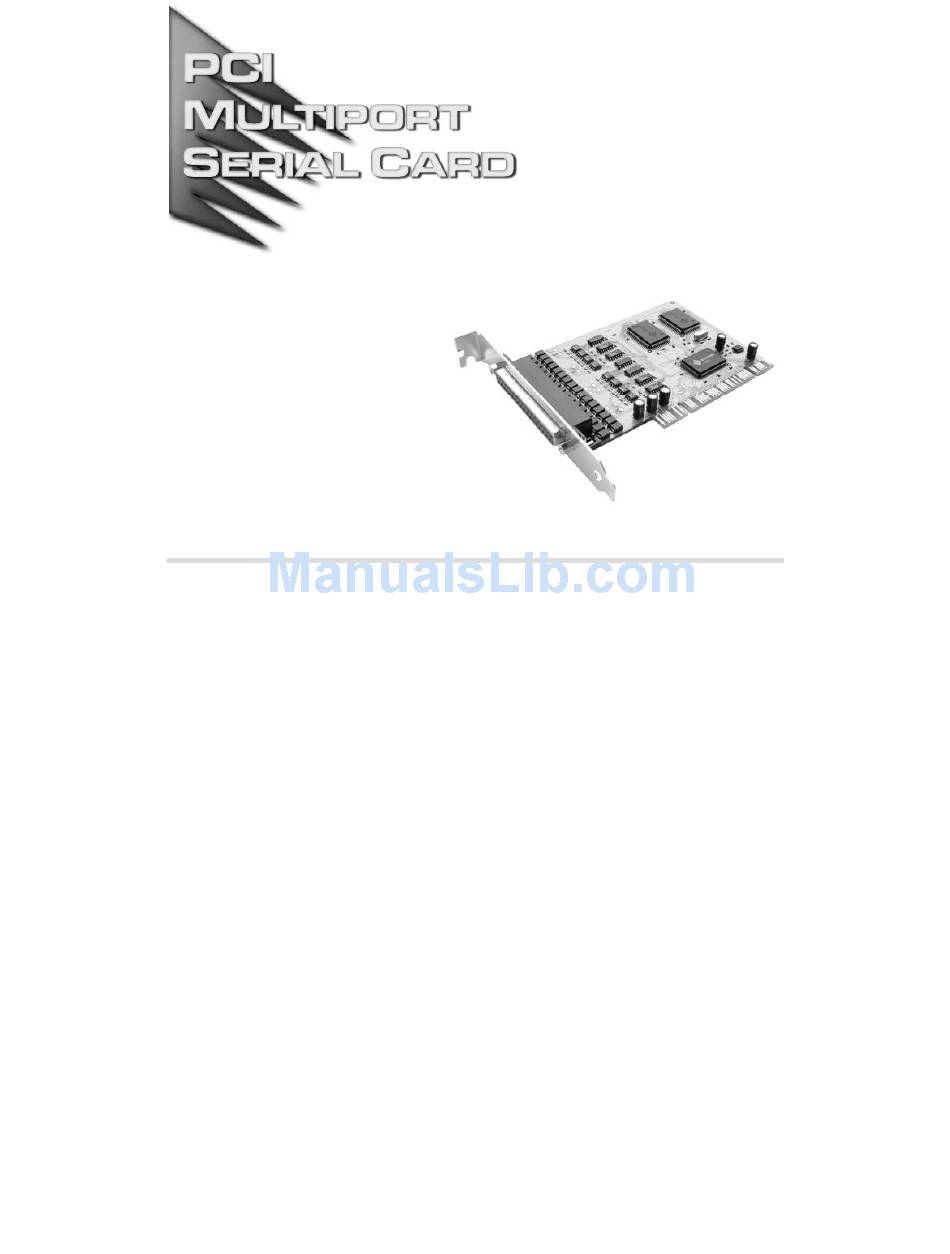

- Page 1 IC-424AP PCI 32 bit RS-422/485 Multi Port Adapter User Manual...
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications.
- Page 3 The IC-424AP supports both 3.3 and 5 voltages and can be used in either a 32 or 64 bit PCI slot. It can be installed in virtually any computer. Setup is easy since it is plug and play compatible, users do not need to set jumpers for I/O addresses or interrupt locations.
-
Page 4: Package Contents
￭ Package Contents 1 - PCI Serial IO Card 1 - DB9 or DB25 Male cable 1 - CD Driver 1 - User Manual If anything is missing or damaged, please contact you dealer immediately. ￭ Hardware Requirements Pentium or equivalent computer with an available PCI slot. CD-ROM / DVD-ROM required for software installation. -
Page 5: Driver Installation
￭ Driver Installation On Windows systems, the system will detect the presence of the PCI Serial card during the boot process and prompt you with a driver installation wizard. Please ignore the wizard. Instead, insert the driver CD in your CD/DVD ROM drive and run the appropriate setup file according to your operating system. - Page 6 Lastly, click “Finish” to complete the installation. Note: The “Found New Hardware Wizard” windows will show up and re-install the driver several times until you finish setting up each serial port. Uninstall Driver Please click Start > Control Panel > Add or Remove Programs then click on “Change/Remove”...
- Page 7 ￭ Verifying the Serial PCI Card When Windows finishes installing the driver, you can verify the card is recognized by the OS by checking: Control Panel>System-Hardware>Device Manager>Ports [COM&LPT] it should show the PCI Multifunction adapter. Note: If you install PCI serial ports to your system, you will be requested to restart your computer when you finish setting up each serial port.
-
Page 8: Configuring The Com Port
￭ Configuring the COM Port Select the PCI Serial Port you want to configure (for example COM3) by right clicking the mouse, then click “Properties”. Click the “Port Settings” to configure the Bits per second, Data bits, Parity, Stop bits and Flow control if you need to adjust the settings. - Page 9 The screen shot below will be displayed on Windows 2000/XP/2003 systems: The screenshot below will be displayed on Windows 95/98SE/ME systems: Notes: Enable Auto CTS/RTS Flow Control means the CTS/RTS flow control is controlled by hardware automatically. The system will be more stable if the function is enabled. If you set the Receive/Transmit Buffer to a higher value you will get faster performance because the time for the interrupt service routine will become shorter.
-
Page 10: Pin Assignments
￭ Pin Assignments U S E R M A N U A L ￭ I C - 4 2 4 A P... -
Page 11: Specifications
￭ Specifications Function Type Serial Communication Host Controller Mode of Operation Differential Mode RS-422 Full-Duplex Bus Transceivers RS-485 Half-Duplex RS-422 1 Driver Drivers per Line RS-485 10 Driver RS-422 10 Receivers Receivers per Line RS-485 32 Receivers Hardware SUN1889 Controller UART (16C650 compatible) Bus Interface 64-bit &... -
Page 12: Limited Warranty
For further inquiries, please contact your direct vendor. © Copyright 2004 ATEN International Co., Ltd. ®... - Page 13 Filename: IC424AP.doc Directory: C:\Documents and Settings\marc\My Documents\aten manuals\ic108_422_424_428 Template: C:\Documents and Settings\marc\Application Data\Microsoft\Templates\Normal.dot Title: Faskfsjfaksljfajsfj;afjkfkjk;lfjafjksajfajsfjsklfjsajfjsakfjsfjas jfklsajfkjaslf;jaskfjkasjfka;fjakfjasjfjaskdfjakjfklajkfljalsdfjaj;lfjasklfjklasjdfkl jas;fjasfjaklfjafj Subject: Author: Keywords: Comments: Creation Date: 10/12/2004 11:54:00 AM Change Number: Last Saved On: 10/18/2004 6:02:00 PM Last Saved By: Total Editing Time:...
