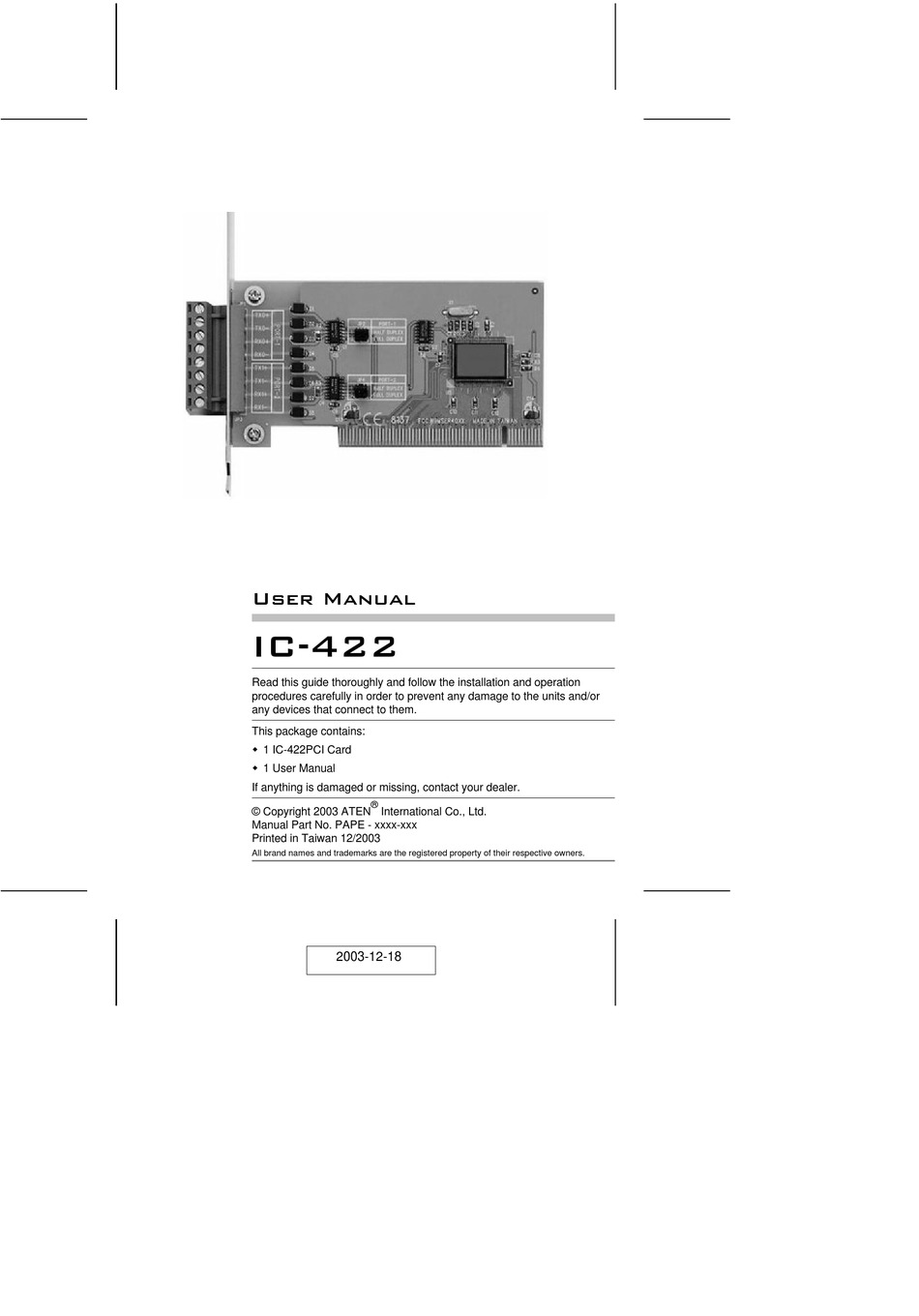

User Manual
IC-422
Read this guide thoroughly and follow the installation and operation
procedures carefully in order to prevent any damage to the units and/or
any devices that connect to them.
This package contains:
M 1 IC-422PCI Card
M 1 User Manual
If anything is damaged or missing, contact your dealer.
®
© Copyright 2003 ATEN
International Co., Ltd.
Manual Part No. PAPE - xxxx-xxx
Printed in Taiwan 12/2003
All brand names and trademarks are the registered property of their respective owners.
2003-12-18
Advertisement
Table of Contents
Related Manuals for ATEN IC-422
Summary of Contents for ATEN IC-422
- Page 1 M 1 IC-422PCI Card M 1 User Manual If anything is damaged or missing, contact your dealer. ® © Copyright 2003 ATEN International Co., Ltd. Manual Part No. PAPE - xxxx-xxx Printed in Taiwan 12/2003 All brand names and trademarks are the registered property of their respective owners.
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 RS-422/485 standard serial interface ports, each with 32 Bytes of FIFO storage capacity and the ability to reach speeds of up to 960 Kb/sec. The IC-422 provides two mini terminator block type connectors for the attachment of four wire standard telephone cable.
-
Page 4: Hardware Installation
Hardware Installation Before you begin, make sure that power to all the devices you will be connecting up have been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. To prevent damage to your equipment, make sure that all devices you will be connecting up are properly grounded. - Page 5 Pin Assignments Half Duplex (2 wire) for RS-485 Full Duplex (4 wire) for RS-422/485 - 3 - 2003-12-18...
-
Page 6: Jumper Settings
Jumper Settings Technical Specifications Function Specification Connectors 2 x 4 Wire Terminl Blocks Chips 1 x Sun 1889 Compatibility 32 Bit PCI card for 486/586/Pentium /Pentium II/P III/C5/K6 Operating System Win 95, 98, NT, 2000, XP, OS/2, Linux, DOS, Win 3.1 2 Layer / 120 x 104 mm - 4 - 2003-12-18... -
Page 7: Troubleshooting
Troubleshooting Problem Solution Computer returns an error Try a different slot. when booting up Clean the slot contacts. Clean the card contacts. If these don’t remedy the problem, contact your dealer for further assistance. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS... - Page 8 Notes: - 6 - 2003-12-18...
