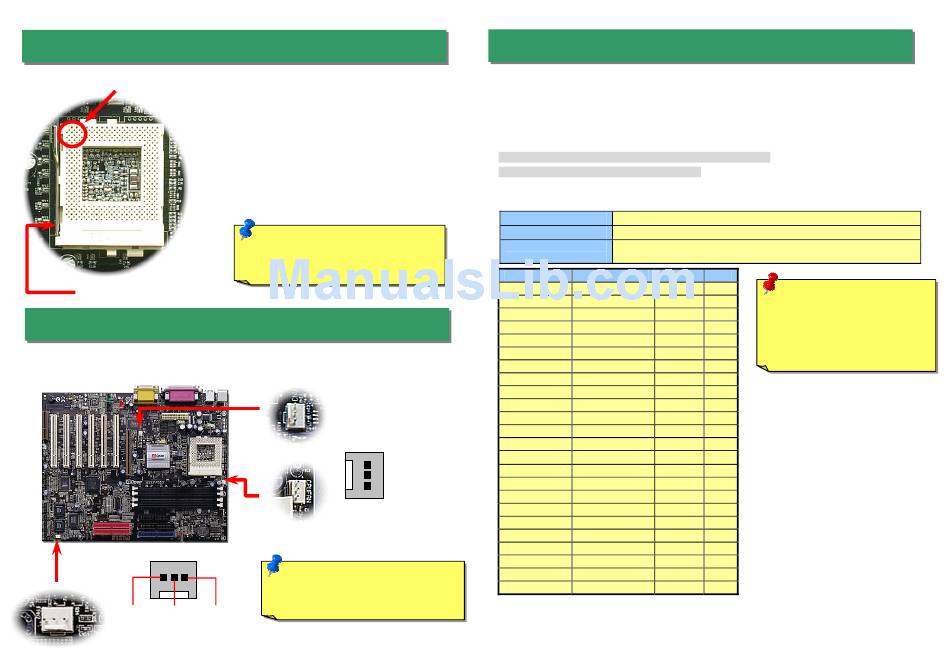

3. Installing CPU

CPU Pin 1 and cut edge
1.
2.
3.
CPU socket level
4. Installing CPU & Housing Fan
Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan,
you can also plug it on FAN2 or FAN3 (without H/W monitoring) connector.
GND Sensor
+12V
Fan2 Connector
Pull up the CPU socket level and up to
90-degree angle.
Locate Pin 1 in the socket and look for a
(golden) cut edge on the CPU upper interface.
Match Pin 1 and cut edge. Then insert the
CPU into the socket.
Press down the CPU socket level and finish
CPU installation.
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
may damage the CPU.
Fan3 Connector
GND
+12V
Sensor
CPU Fan Connector
Note: Some CPU fans do not have
sensor pin, so that cannot support fan
monitoring.
5. Setting CPU Voltage & Frequency
Setting CPU Core Voltage
This motherboard supports CPU VID function. The CPU core voltage will be automatically
detected and the range is from 1.3V to 3.5V. It is not necessary to set CPU Core Voltage
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through the
BIOS setup, and no jumpers or switches are needed.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setup
Core Frequency = CPU FSB Clock * CPU Ratio
CPU Ratio 2x, 2.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, and 8x
CPU FSB (By BIOS table) 66.8, 68.5, 75, 83.3, 100, 103, 112, 117, 124, 129, 133.3, 138, 143, 148, 150MHz.
CPU FSB (By manual 66~248MHz by 1MHz stepping adjustment technology
Adjustment)
CPU CPU Core Frequency FSB Clock
Celeron 300A 300MHz 66MHz
Celeron 566 566MHz 66MHz
Celeron 600 600MHz 66MHz
Celeron 667 667MHz 66MHz
Celeron 700 700MHz 66MHz
Celeron 733 733MHz 66MHz
Celeron 800 800MHz 100MHz
Celeron 850 850MHz 100MHz
Pentium III 600E 600MHz 100MHz
Pentium III 650E 650MHz 100MHz
Pentium III 700E 700MHz 100MHz
Pentium III 750E 750MHz 100MHz
Pentium III 800E 800MHz 100MHz
Pentium III 850E 850MHz 100MHz
Pentium III 900E 900MHz 100MHz
Pentium III 533EB 533MHz 133MHz
Pentium III 600EB 600MHz 133MHz
Pentium III 667EB 667MHz 133MHz
Pentium III 733EB 733MHz 133MHz
Pentium III 800EB 800MHz 133MHz
Pentium III 866EB 866MHz 133MHz
Pentium III 933EB 933MHz 133MHz
Pentium III 1GEB 1GHz 133MHz
Pentium III 1.13G 1.13GHz 133MHz
Ratio
4.5x
®
Warning: Intel i815E/i815EP
8.5x
chipset supports maximum
9x
133MHz FSB and 66MHz AGP
10x
clock, higher clock setting may
10.5x
cause serious system damage.
11x
8x
8.5x
6x
6.5x
7x
7.5
8x
8.5x
9x
4x
4.5x
5x
5.5
6x
6.5
7x
7.5x
8.5x
