Part 1
OPERATION OF
INSTRUMENTS
Chapter 1- 1
Overview of instruments
and controls
_
_
Instrument cluster overview
_
Indicator symbols on the
instrument panel
1998 COROLLA(U)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Corolla 1998 and is the answer not in the manual?

Questions and answers

José Manuel
February 21, 2025

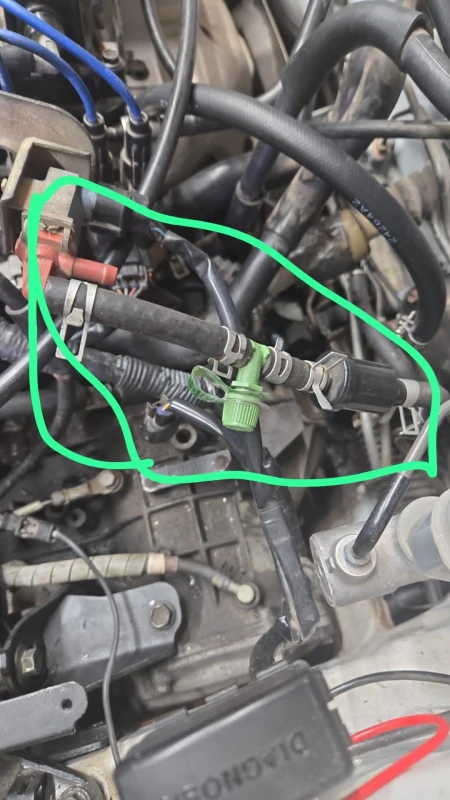

Donde fijar la tubería del combustible rn el motor
