Xerox WorkCentre 5325 Specifications
Workcentre 5300 series multifunction system copy / print / colour scan to email, usb, device folder / optional network scan / optional fax
Hide thumbs
Also See for WorkCentre 5325:
- User giude (222 pages) ,
- Administrator's manual (160 pages) ,
- Evaluator manual (21 pages)
Advertisement
Quick Links
WorkCentre
Multifunction System
Configurations
Speed
Black and white
First-Page-Out Time
Copy
Print
Paper Handling
Duplex Automatic Document Feeder (Standard)
1
Capacity
Speed
Sizes
Weights
1
Paper capacities are based on 75 gsm stock; capacities will vary with different weight stocks.
TM
5325/5330/5335
WorkCentre 5300 Series
shown with Mobile Stand

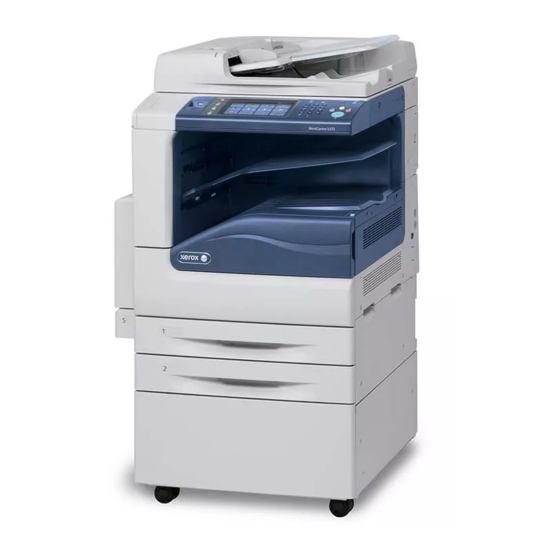

WorkCentre 5325
Copy: Black and white copying
Copy / Print / Colour Scan to Email, USB, Device Folder / Optional Network Scan / Optional Fax
Up to 25 ppm (pages per minute)
A4/210 x 297 mm LEF
Up to 14 ppm
A3/297 x 420 mm
WorkCentre 5325/5330: As fast as 4.2 seconds
WorkCentre 5335: As fast as 4.0 seconds
As fast as 11.0 seconds
110 sheets
55 images per minute (A4 long edge feed (LEF)
A5 to A3 SEF
Custom sizes: 85 x 125 mm to 297 x 432 mm (one-sided); 110 x 125 mm to 297 x 432 mm (two-sided)
38 to 128 gsm (one-sided); 50 to 128 gsm (two-sided)
WorkCentre 5300 Series
shown with High-Capacity Tandem
Tray, Integrated Office Finisher and
High Capacity Feeder
WorkCentre 5330
Up to 30 ppm
A4/210 x 297 mm LEF
Up to 16 ppm
A3/297 x 420 mm
WorkCentre 5300 Series
shown with High-Capacity Tandem
Tray and Office Finisher LX with
Booklet Maker
WorkCentre 5335
Up to 35 ppm
A4/210 x 297 mm LEF
Up to 17 ppm
A3/297 x 420 mm
Detailed Specifi cations
1
Advertisement
Related Manuals for Xerox WorkCentre 5325
Summary of Contents for Xerox WorkCentre 5325
- Page 1 A3/297 x 420 mm A3/297 x 420 mm A3/297 x 420 mm First-Page-Out Time Copy WorkCentre 5325/5330: As fast as 4.2 seconds WorkCentre 5335: As fast as 4.0 seconds Print As fast as 11.0 seconds Paper Handling Duplex Automatic Document Feeder (Standard)
- Page 2 WorkCentre 5325/5330/5335 Bypass Tray (Standard) Capacity 50 sheets Sizes Custom sizes: 89 x 98 mm to 297 x 432 mm Weights 60 to 215 gsm Types Same as front-loading trays plus envelopes, postcards and labels Two Tray with Stand configuration Capacity Trays 1 and 2: 520 sheets each Sizes...
- Page 3 WorkCentre 5325/5330/5335 Output / Finishing Dual Catch Tray (Standard) Capacity Up to 250 sheets each, lower tray offsets Sizes 89 x 98 mm to 297 x 432 mm Weights 60 to 215 gsm Integrated Office Finisher (Optional) Stacking Tray • 500 sheets of A4 •...
- Page 4 Single position stapling (requires Integrated Office Finisher) Watermark Foreign Device Interface Interface to third-party access control devices, coin machines and card readers (Optional) Supports a variety of vending stations available through the Xerox Alliance Partner Programme Print Specifications System Copier Copier/Printer/Scanner...
- Page 5 Linux (HP-UX 11.0, 11i Bidirectional with Xerox Custom AIX 5 (Red Hat ® Enterprise, Fedora Graphical User Interface Core 12-14)) Standard: Driver based on Microsoft tree structure user interface (includes Xerox features and functionality) Detailed Specifi cations Enhanced: Xerox custom graphical user interface...
- Page 6 WorkCentre 5325/5330/5335 Xerox Mobile Express Makes it easy for mobile users to find, use and manage Xerox and non-Xerox devices in every new location. Plug ® Driver (X-MED) into a new network, and X-MED automatically discovers available printers and provides status and capability information.
- Page 7 • Provides built-in process intelligence that allows the printing of barcodes on any appropriately configured Barcode Utility (Optional) PostScript printer on the SAP R/3 4.x (or higher) network. Used in conjunction with Xerox Device Types for SAP Information available R/3 Environment and Xerox Font Centre Barcode Fonts. Utility automatically calculates checksum, placement at www.xeroxofficesap...
- Page 8 WorkCentre 5325/5330/5335 Fax Send Features Fax from print driver (LAN Fax) Auto fax transmission reduction Page-by-page job status at the machine Fax from glass Delay start Automatic memory resend Automatic cover sheets Priority send Broadcast Booklet Scan PSTN Fax Phone number entry via keyboard or address book Secure Fax via FCODE Up to 50 group dials with up to 20 recipients per group Fax Receive Features...
- Page 9 WorkCentre 5325/5330/5335 Fax Send Features LAN Fax - Fax from print driver Auto fax transmission reduction Page-by-page job status at the machine Fax from platen Delay start Automatic memory resend Automatic cover sheets Priority send Broadcast Booklet Scan Fax Receive Features One- or two-sided printing Reduction at reception to fit available paper Junk Fax prevention...
- Page 10 • Nuance OmniPage Pro (for desktop/client installation) – OCR and file format conversion software • Image Retriever – provides fully automated retrieval of scanned images direct from a scan enabled Xerox or through email WorkCentre to individual desktops. Also includes an Email inbox polling capability.
- Page 11 Data can be exported via a CSV file, user required to enter XSA ID into the print driver when submitting a print job, similar to secure print. Monthly Duty Cycle WorkCentre 5325: Up to 100,000 pages / month WorkCentre 5330: Up to 125,000 pages / month WorkCentre 5335: Up to 150,000 pages / month...
- Page 12 Xerox Extensible Interface Platform (EIP) Xerox EIP is a software platform inside the WorkCentre 5300 series that enables personalised solutions you can access right from the device touch screen. These applications can leverage your existing databases and meet your specific business challenges.
-
Page 13: Energy Star
WorkCentre 5325/5330/5335 Power Consumption WorkCentre 5325 WorkCentre 5330 WorkCentre 5335 Copier Copier/Printer/ Copier Copier/Printer/ Copier Copier/Printer/ Scanner Scanner Scanner 220 - 240V Running (Avg): 724 watts 706 watts 742 watts 720 watts 783 watts 757 watts Standby: 115 watts 122 watts... - Page 14 Description Order Number ® Smart Kit Drum Cartridge 013R00591 ©2011 Xerox Corporation. All rights reserved. Contents of this publication may not be reproduced in any form without permission of Xerox ® ® ™ Corporation. XEROX , XEROX and Design and WorkCentre are trademarks of Xerox Corporation in the United States and/or other countries.
