AutoView 200/400 Installer/User Guide
Installing your AutoView 400

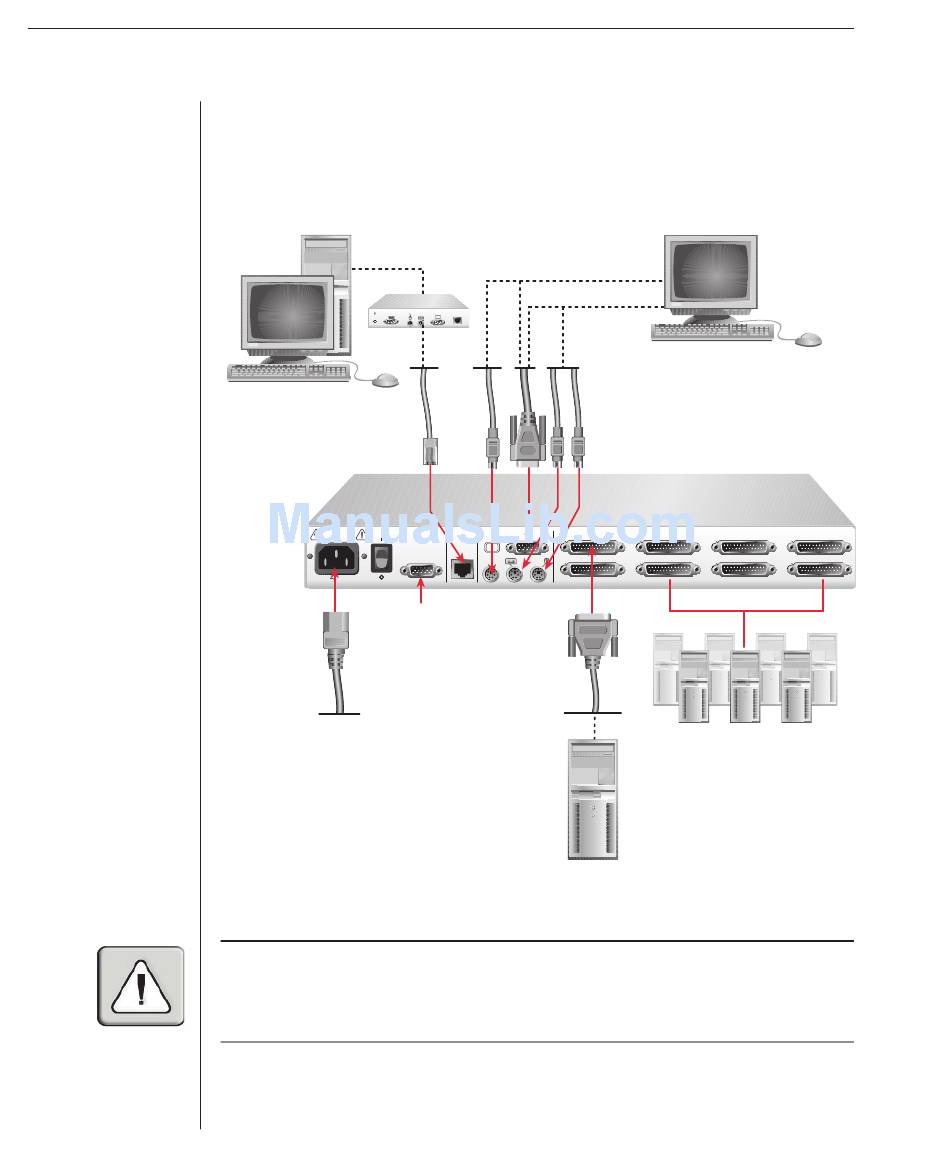

The diagram below illustrates one possible configuration for your AutoView
400 switch. Follow the step-by-step procedure To install an AutoView 200/400
switch to properly install your new switch.
Extended Access User
(via LongView)
–––+
24VDC
.5A
100-240V , .1A, 50/60 Hz
DB9 serial port for
updating firmware
Figure 2.3: AutoView 400 Installation Example
WARNING: To reduce the risk of electric shock or damage to your equipment -
- Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
- Plug the power cord into a grounded (earthed) outlet that is easily accessible at all times.
- Disconnect the power from the unit by unplugging the power cord from either the electrical
outlet or the unit.
For Sun Only
RECEIVER
For PS/2 Only
REMOTE I/O
REMOTE LOCAL USER
A
USER
I/O
SETUP
B
SUN
Server A
Local
User
AutoView 400
C E G
D F H
Servers B-H
