Summary of Contents for Dual BAK1500

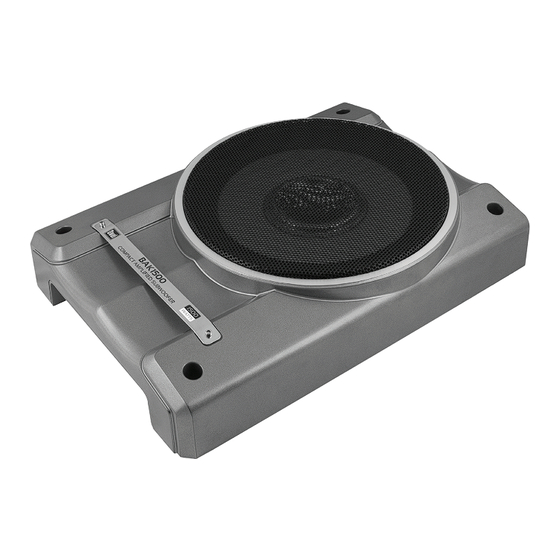

- Page 1 BAK1500 INSTALLATION/OWNER'S MANUAL Compact Amplified Subwoofer...
-
Page 2: Getting Started
Please read entire manual before installation. Due to the technical nature of amplifiers, it is highly recommended that your Dual BAK1500 is installed by a professional installer or an authorized dealer. -
Page 3: Safety First
The following installation instructions are intended to be used as a basic guideline. If you feel unsure about installing this speaker system yourself, Dual recommends acquiring the services of a professional car audio installation center. Before installation, please review the following guidelines: 1. -
Page 4: Connection Descriptions
INSTALLATION Connection Descriptions Note: Be sure to follow specific instructions included with your amplifier installation kit (not included with this amplifier). The information below should be used a general guideline only. Power Wire (+12V) • Disconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure. • Plan wire routing before cutting any wires to length. Begin by routing the power +12V wire from the battery to the amplifier location. Use a grommet when running wires through the firewall or metal openings. -
Page 5: Connections And Controls
INSTALLATION Connections and Controls Phase Control Input Connections Crossover Frequency Power Indicator Remote Connection Protect Gain Power Connection & High Level Input... - Page 6 12 gauge wire or larger. Make sure and amperage. Using an incorrect to use the same size power and fuse could damage the amplifier. ground wire. The BAK1500 uses (1) 10 amp ATO style fuse.
- Page 7 Crossover Frequency The adjustable crossover is used to filter out Control frequencies above 25Hz ~ 120Hz. Adjust it to where the BAK1500 sound output blends with the rest of the sound system. Phase Control The phase control compensates for delay between the BAK1500 output and the rest of the sound system.
-
Page 8: Mounting The Subwoofer
INSTALLATION Mounting the Subwoofer Determine optimal location for mounting the subwoofer (refer to page 2 for mounting location guidelines. A typical mounting location is shown below. Typical Below-Seat Mounting Location... -
Page 9: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name Dealer Phone Purchase Date Register Your Product... -
Page 10: Limited One-Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 11: Specifications
OPERATION Specifications Amplifier Maximum Output Power 1500 watts Frequency Response 25-120Hz S/N Ratio @ 1 watt 92dB Input Impedance Low level (RCA): 10k ohms High level (speaker wire): 200 ohms Input Sensitivity (RCA) 125mV – 3V Crossover Frequency 50–160Hz Crossover Slope 6dB/octave Phase 0–180 degrees Fuse 10 amp ATO Dimensions 2.85 x 14.88 x 10.55 (H x W x D) Subwoofer Features Woofer size 10"... - Page 12 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2013 Dual Electronics Corp. All rights reserved. NSA0513-V01 Printed in China...
