Dual SBX100 - Subwoofer Manual

Installation

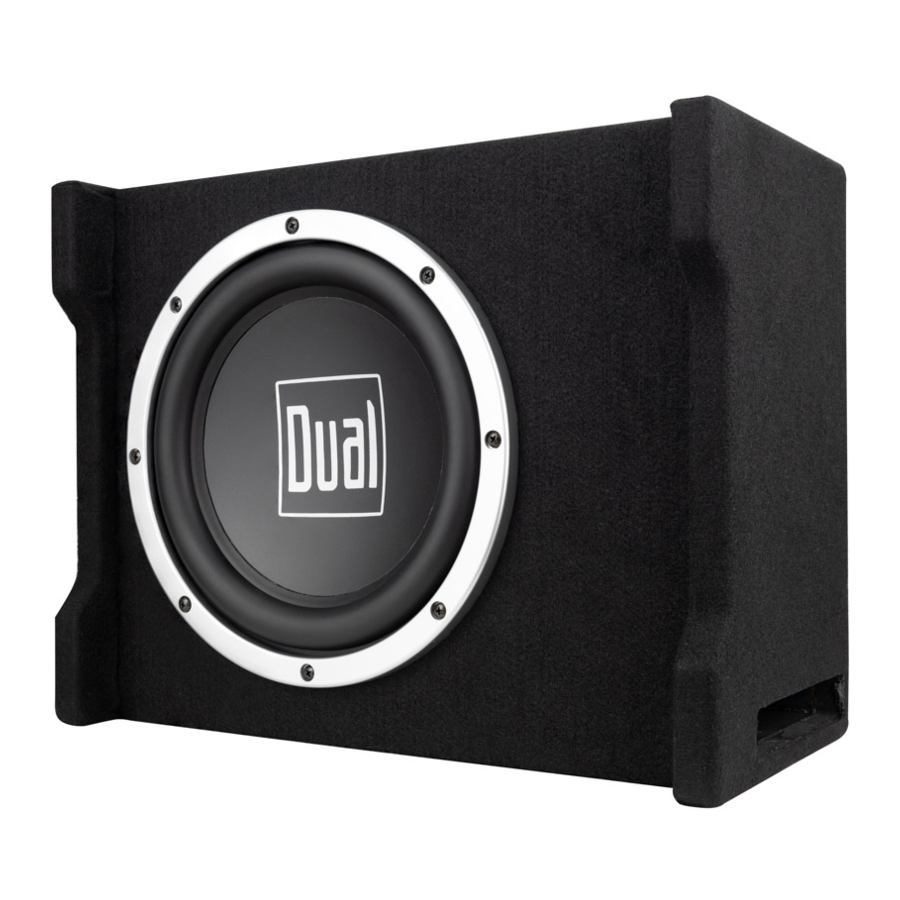

Thank you for purchasing the SBX100 10" Subwoofer in Vented Enclosure. Although Dual has attempted to make sure all of the information contained within this manual is accurate. please be aware that any part of it is subject to change without notice.

The following instructions should be used as a general guideline only. If you are unsure about performing any of the procedures listed below, please consult a professional car audio installation center.

Before Installation, please follow these guidelines:

  1. Be sure to carefully read and understand the instructions before attempting to install this product.
  2. For safety, disconnect the negative terminal from the battery prior to beginning the installation of your amplifier.
  3. Use the highest quality wire and connectors for a reliable installation and to minimize signal or power loss.
  4. Use caution if you drill or cut! Be careful not to cut or drill into gas tanks. fuel lines. brake or hydraulic lines. vacuum lines or electrical wiring when working on any vehicle.
  5. Never run wires underneath your vehicle. Running wires inside the vehicle provides the best protection from exhaust heat and environmental elements.
  6. Avoid running wires over, near or through sharp edged surfaces. Use rubber grommets to protect any wires routed through metal.
  7. When running wires from the amplifier. avoid running it near sources of high current

Connection Diagram

Strip 5/8" off the end of the wires, and connect the SBX100 to an amplifier as shown in the Connection Diagram below.
Connection Diagram

Installation Diagram

The below diagrams can to be used with the dimensions listed below to provide measurements for mounting the enclosure.
Design and specifications subject to change without notice.
Dimensions

Specifications

Sensitivity: 88dB
Frequency response: 25Hz-500Hz
Nominal impedance: 4 Ohm
RMS power output: 175 Watts
Peak power output: 500 Watts

Dual Electronics Corporation Toll Free:
1-866-382-5476
Monday-Friday, 9:00 a.m, to 5:00 p.m, EST)
www.dualav.com
