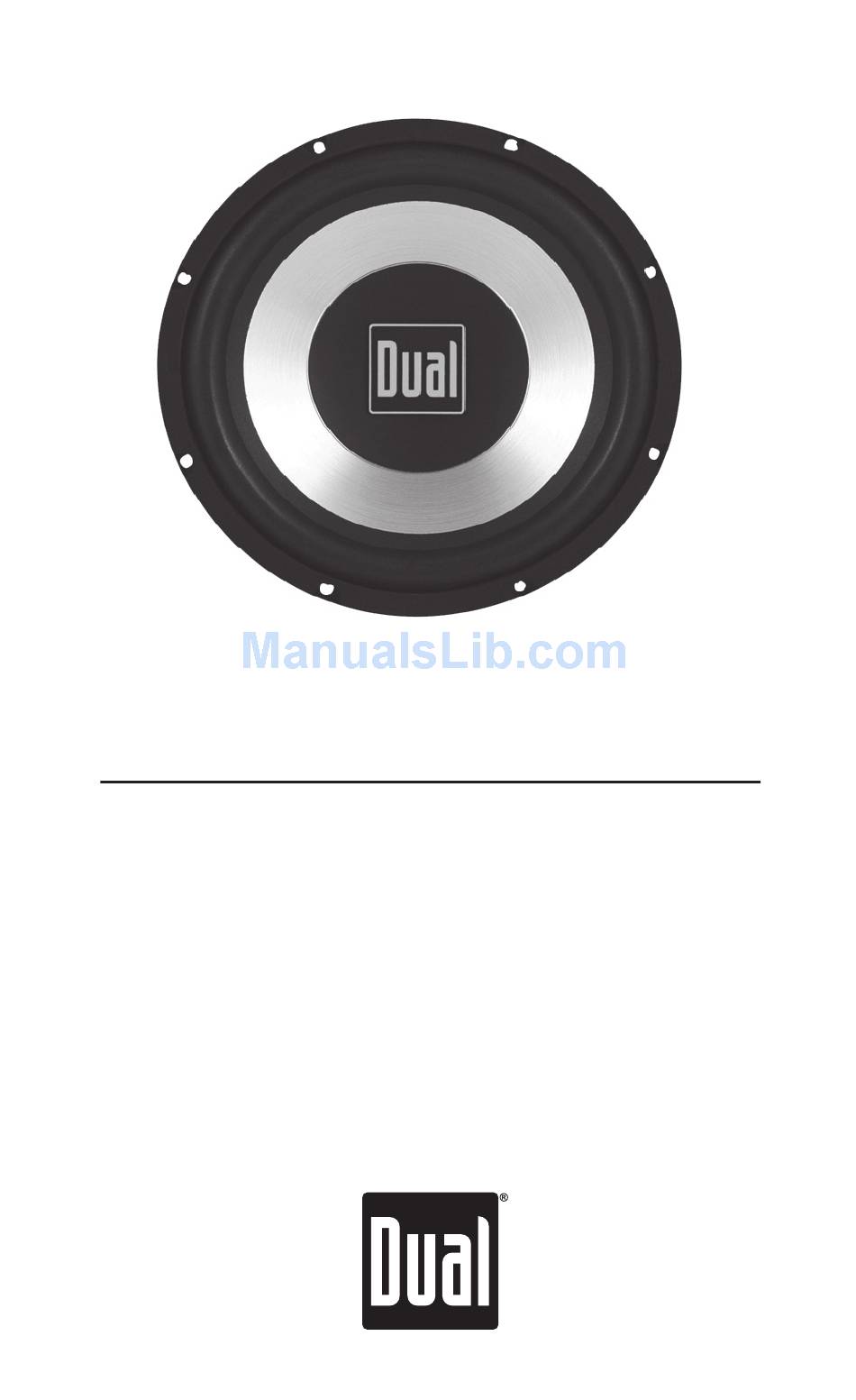

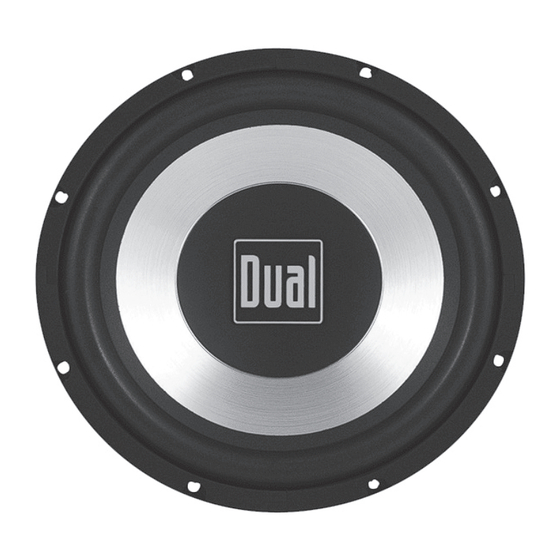

- Page 1 DS10 DS12 XS10 DS - XS SERIES INSTALLATION/OWNERS MANUAL Car Audio Subwoofers...
-
Page 2: Getting Started
DS - XS SERIES Getting Started Thank you for purchasing a Dual DS or XS series subwoofer. Although Dual has attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice. -
Page 3: Installation
The following installation instructions are very basic. If you feel unsure about personally installing this speaker system, Dual recommends aquiring the services of a professional car audio installation center. Before installation, please follow the following rules: 1. Be sure to carefully read and understand the instructions before attempting to install this product. - Page 4 DS - XS SERIES XS Subwoofer Information 4.2" (106.68mm) 8.6" (218.44mm) SUBWOOFER INFO XS10 Sensitivity: 87dB Freq. Response: 30Hz-125Hz Nominal Impedance: 4 ohms Peak Power: 400 watts RMS: 150 watts Voice Coil Size: 2" Magnet Size: 24oz. 4.0" (101.6mm) Note: All specifications are subject to change without notice. 9.66"...
- Page 5 DS - XS SERIES SUBWOOFER INFO DS Subwoofer Information DS10 Sensitivity: 87dB Freq. Response: 30Hz-125Hz Nominal Impedance: 4 ohms Peak Power: 400 watts RMS: 150 watts Voice Coil Size: 2" Magnet Size: 24oz. 4.2" 4.0" (106.68mm) (101.6mm) 8.6" 9.66" (218.44mm) (245.36mm)
-
Page 6: Enclosure Guidelines
DS - XS SERIES Enclosure Guidelines To achieve the best possible sound from this subwoofer enclosure, Dual recommends aquiring the services of a professional car audio installation center. If you feel confident in your ability to install this product without the assistance of a professional, please read this section thoroughly. - Page 7 "L" shaped brackets. We at Dual are diligent in checking the dimensions provided. The engineers, staff and installers provide this information to make your installation go as smoothly as possible. Errors do occasionally occur.
-
Page 8: Sealed Enclosure
DS - XS SERIES Sealed Enclosure 10” Subwoofer Enclosures Good Bass Performance Mini-Enclosure (Vb) Box Volume=.35 Cu. Ft. Example Dimensions: 13.5" W x 13.5" H x 6.625" D Better Bass Performance Small Enclosure (Vb) Box Volume=.55 Cu. Ft. Example Dimensions: 14.5" W x 16" H x 7.25" D Best Bass Performance Medium Enclosure (Vb) Box Volume=.75 Cu. - Page 9 DS - XS SERIES Vented Enclosure 10” Subwoofer Enclosures Good Bass Performance Mini-Enclosure (Vb) Box Volume=.75 Cu. Ft. Example Dimensions: 13.25" W x 13.25" H x 13" D (P) Port=3" ID x 8.62" Long Better Bass Performance Small Enclosure (Vb) Box Volume=1.00 Cu. Ft. Example Dimensions: 14.25"...
-
Page 10: Bandpass Enclosure
Good Bass Performance/Mini-Enclosure (Vf) Box Volume .38 Cu. Ft. (Vr) Box Volume .31 Cu. Ft. (P) Port 4" ID x 5.125" Long (Sb) Speaker baffle location/outside front: 5.75" Example Dimensions: 14" W x 11.75" H x 14" D Better Bass Performance/Small Enclosure (Vf) Box Volume .54 Cu. -
Page 11: Limited One-Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. - Page 12 Namsung America Inc. 21318 64th Ave. South Kent, WA 98032 U.S.A. Toll Free: 1-866-626-7863 ©2006 Namsung America, Inc. NSA0406-V01...
