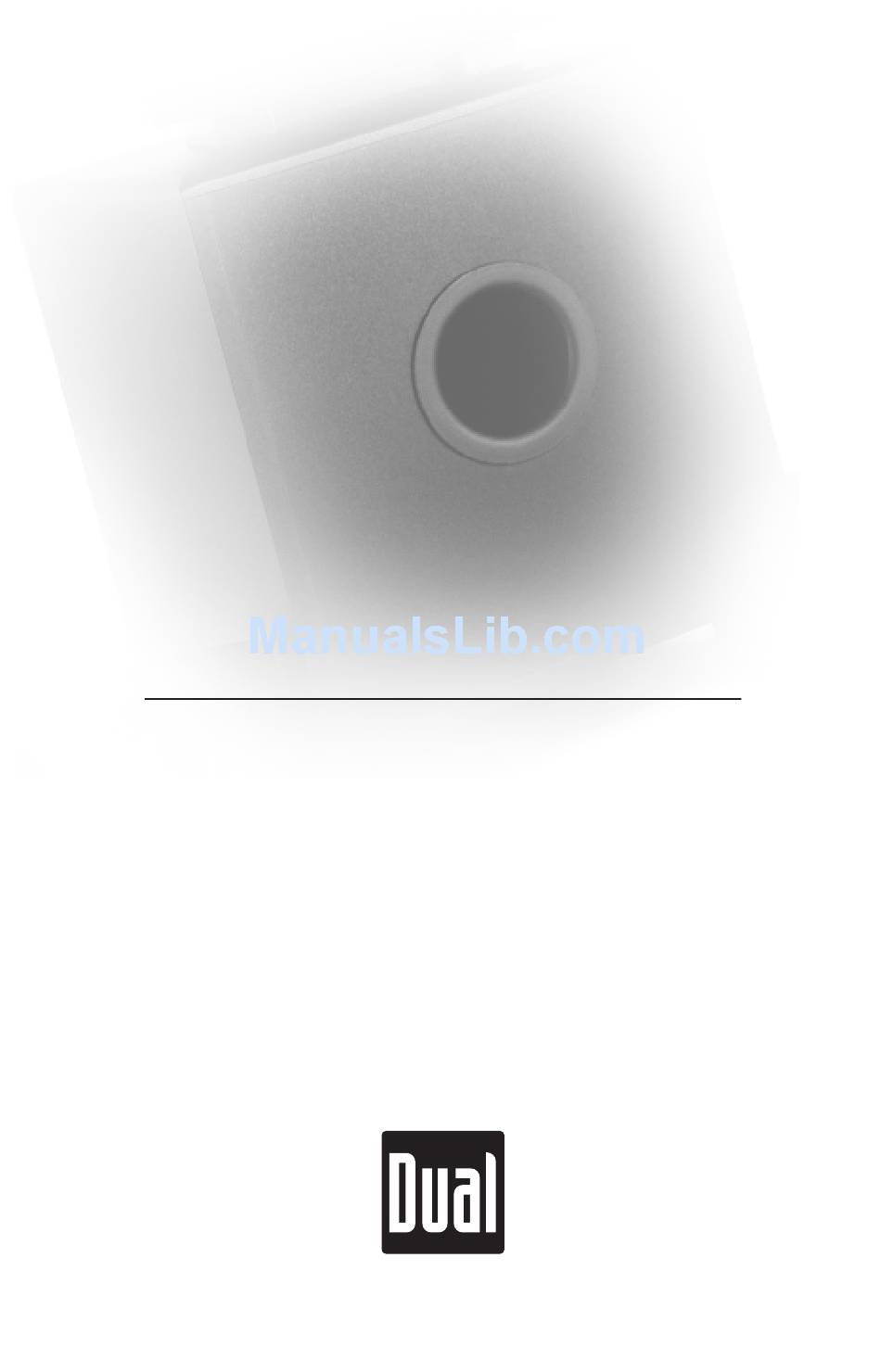

- Page 1 L6SW/L8SW INSTALLATION/OWNERS MANUAL Powered Subwoofer...
- Page 2 SUBWOOFER SERIES INTRODUCTION Introduction Thank you for your purchase. Your new Dual powered sub- Introduction woofer was designed and manufactured to deliver refined musical reproduction and vivid home theater excitement. Dual audio products are constructed using the finest quality components and we are proud of our custom designed drivers and electronics.
- Page 3 SUBWOOFER SERIES PLACEMENT Placement Your DUAL subwoofer can be placed in many convenient Indoor Placement locations in your home, but must be placed on the floor. Do not attempt an installation that would elevate the subwoofer above floor level. You should experiment with various place- ments.
-
Page 4: Connecting Speakers
SUBWOOFER SERIES INSTALLATION Connecting Speakers IMPORTANT - When you make connections, make sure that the Connecting & Adjusting power switches of all components, including subwoofer, are OFF. Your Subwoofer The attached power cord is to be used with a standard AC wall Power Cord outlet (110 volt AC outlet capable of supplying at least 250 Watts) This LED is unlit when the AC power switch is OFF. - Page 5 CD's and DVDs. Important: Use Option1 or Option 2, but not both. OPTION 1. Connection with speaker wire - Connect speaker wires Note: Dual recommends you from the Receiver’s front left and right speaker outputs to the use 16-gauge speaker wire for Subwoofer’s Speaker Level-In connections.
-
Page 6: Troubleshooting
This can lead to costly loudspeaker failure. Distorted or unnatural sound can also indicate poor connections. Check the connections. If the sound remains poor or distorted, the subwoofer may have a problem. Please call Dual service number for assistance. -
Page 7: Specifications
SUBWOOFER SERIES SPECIFICATIONS Specifications L6SW FEATURES • Gain control for volume adjustment • High level inputs • Low Level Inputs • Sleep mode feature integrated into the power switch for signal sensing Off/Auto/On •Led Indicator SPECIFICATIONS Woofer: 6.5" PVA treated rigid cone with ridge-edge... -
Page 8: Limited Warranty
If the product requires warranty service, you chase. Namsung America agrees, at our option, must prepay the initial shipping charges. DUAL during the warranty period, to repair any defect will pay the return shipping...
