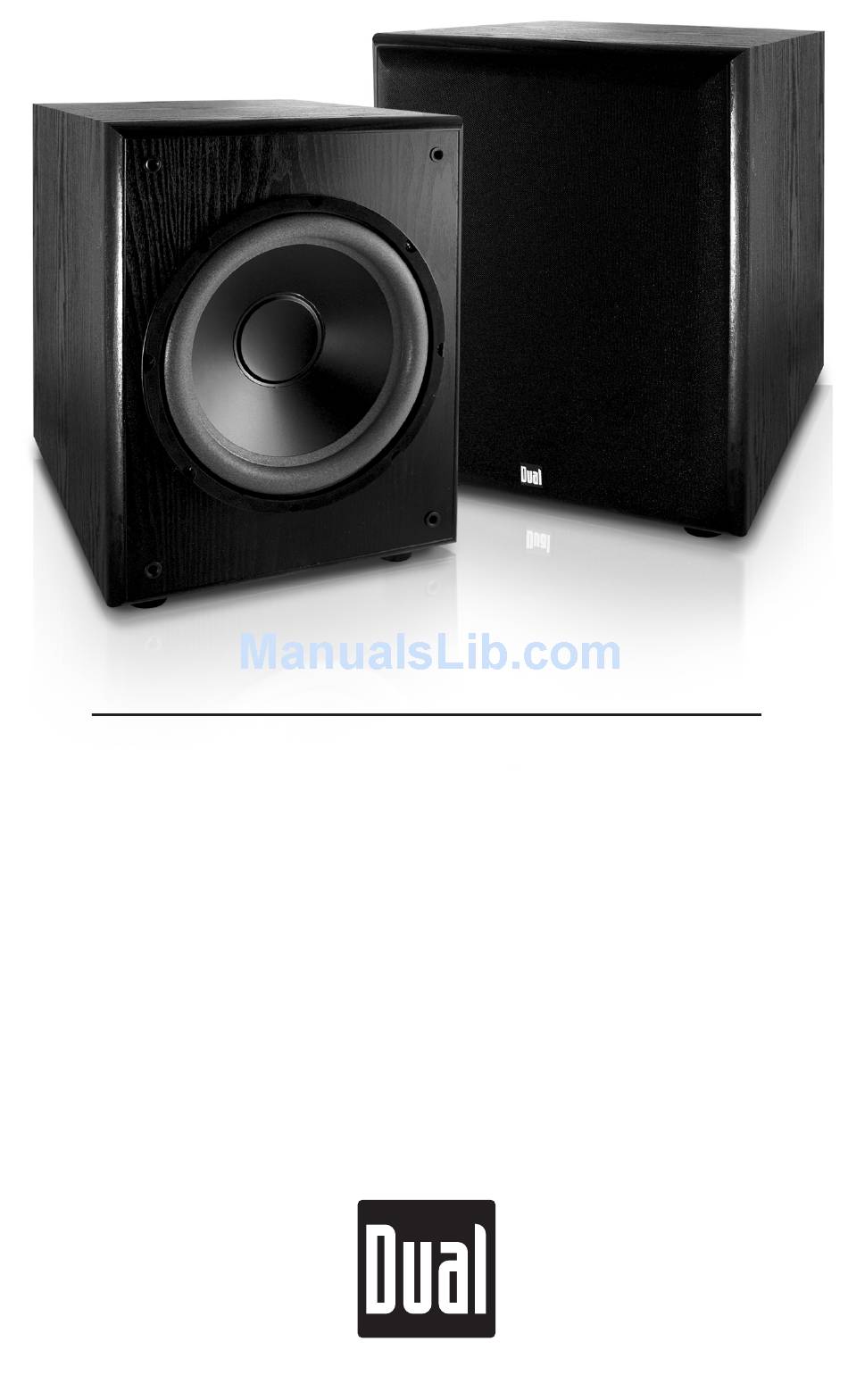

- Page 1 L10SW/L12SW INSTALLATION/OWNERS MANUAL Powered Subwoofer...
- Page 2 Introduction Introduction Important INTRODUCTION Thank you for your purchase. Your new Dual powered sub- woofer was designed and manufactured to deliver refined musical reproduction and vivid home theater excitement. Dual audio products are constructed using the finest quality components and we are proud of our custom designed drivers and electronics.
- Page 3 SUBWOOFER SERIES PLACEMENT Placement Your DUAL subwoofer can be placed in many convenient Indoor Placement locations in your home, but must be placed on the floor. Do not attempt an installation that would elevate the subwoofer above floor level. You should experiment with various place- ments.
-
Page 4: Connecting Speakers
SUBWOOFER SERIES Connecting Speakers Connecting & Adjusting Your Subwoofer Power Cord Power Indicator LED Power Switch Fuse Speaker-In Terminals Low Pass Frequency (LPF) Control INSTALLATION IMPORTANT - When you make connections, make sure that the power switches of all components, including subwoofer, are OFF. The attached power cord is to be used with a standard AC wall outlet (110 volt AC outlet capable of supplying at least 250 Watts) This LED is unlit when the AC power switch is OFF. - Page 5 Low Pass Frequency (LPF) Control (cont’d) Level Control Note: Dual recommends you use 16-gauge speaker wire for Opinion 1 when hooking your Receiver speaker outputs in making an audio connection to your Subwoofer. SUBWOOFER SERIES Connecting Speakers This can be a desired setting if you are using the sub in combina- tion with tower or floor-standing speakers.
-
Page 6: Troubleshooting
This can lead to costly loudspeaker failure. Distorted or unnatural sound can also indicate poor connections. Check the connections. If the sound remains poor or distorted, the subwoofer may have a problem. Please call Dual service number for assistance. -
Page 7: Specifications
SUBWOOFER SERIES L10SW FEATURES • Gain control for volume adjustment. • Adjustable low pass 50 Hz to 150 Hz. • Phase switch 0-180 degrees. • High level inputs • Low Level Inputs and Outputs. • Sleep mode feature integrated into the power switch for signal sensing on/off. -
Page 8: Limited Warranty
What to do? If the product requires warranty service, you must prepay the initial shipping charges. DUAL will pay the return shipping charges if the product is returned to an address within the USA.
