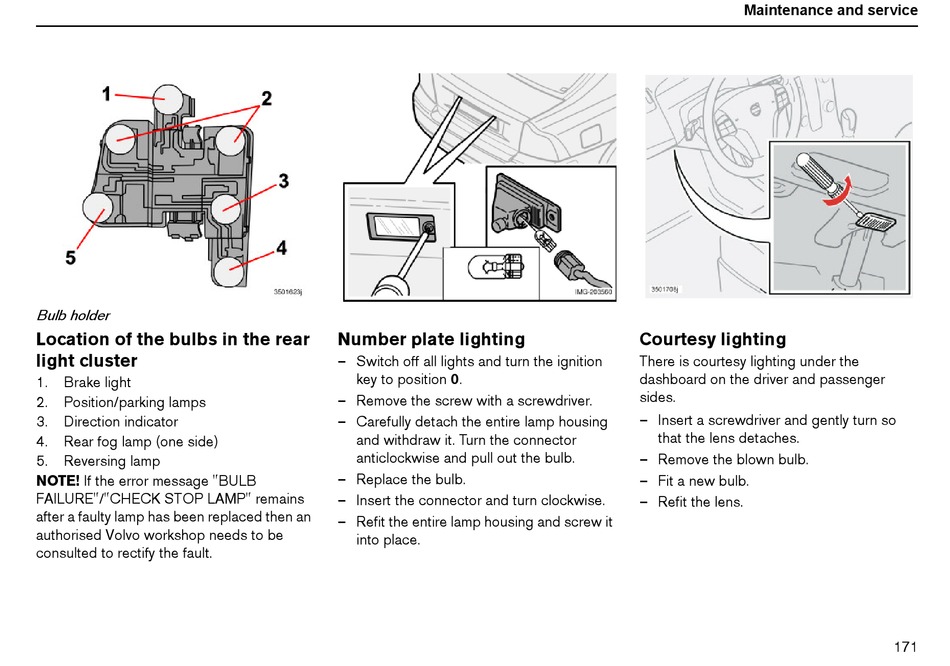

Bulb holder
Location of the bulbs in the rear
light cluster
1. Brake light
2. Position/parking lamps
3. Direction indicator
4. Rear fog lamp (one side)
5. Reversing lamp
NOTE! If the error message "BULB
FAILURE"/"CHECK STOP LAMP" remains
after a faulty lamp has been replaced then an
authorised Volvo workshop needs to be
consulted to rectify the fault.
Number plate lighting
– Switch off all lights and turn the ignition
key to position 0.
– Remove the screw with a screwdriver.
– Carefully detach the entire lamp housing
and withdraw it. Turn the connector
anticlockwise and pull out the bulb.
– Replace the bulb.
– Insert the connector and turn clockwise.
– Refit the entire lamp housing and screw it
into place.
Maintenance and service

Courtesy lighting

There is courtesy lighting under the
dashboard on the driver and passenger
sides.
– Insert a screwdriver and gently turn so
that the lens detaches.
– Remove the blown bulb.
– Fit a new bulb.
– Refit the lens.
