Download this manual See also: Owner's Manual, Operating Manual

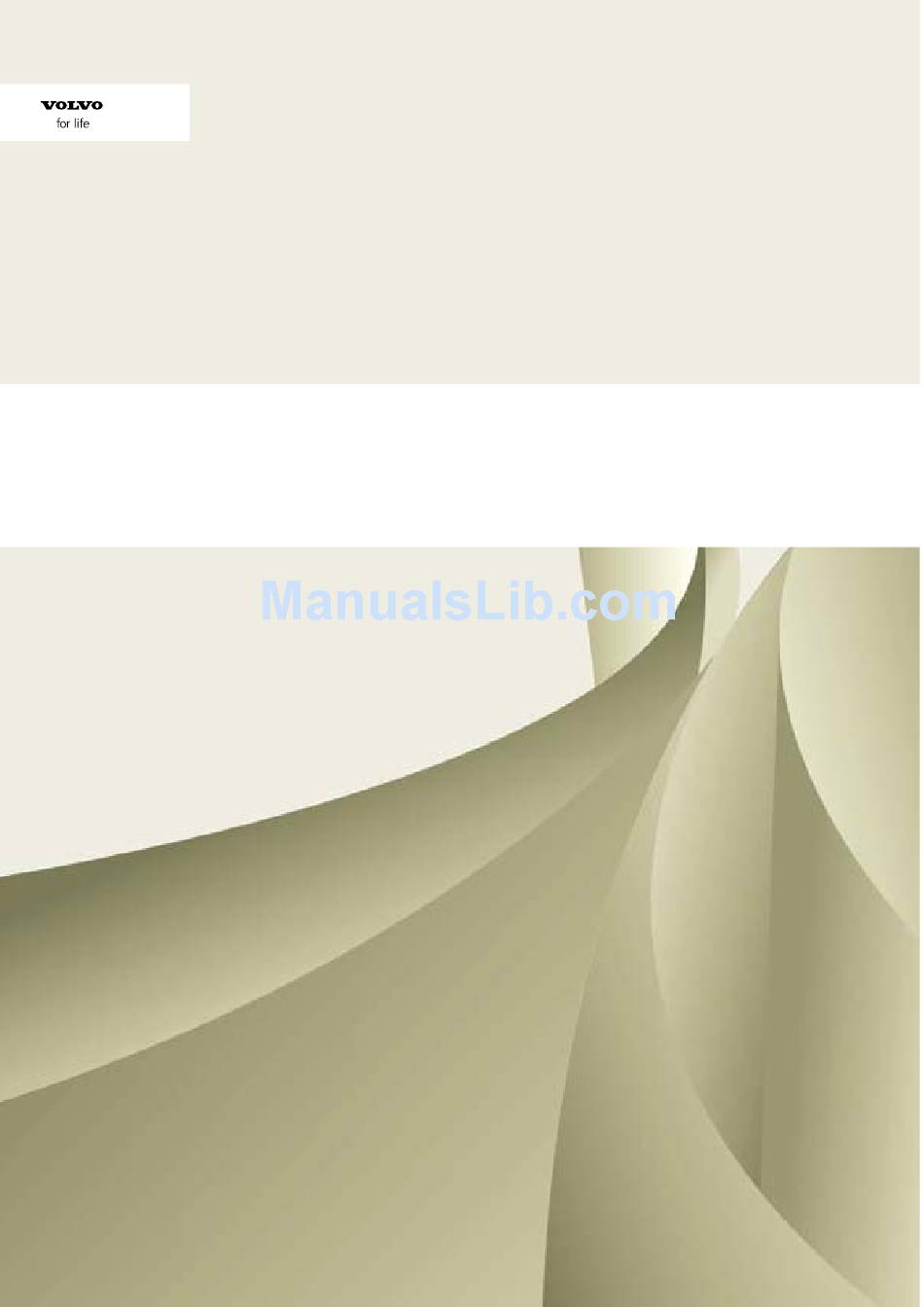

VOLVO

WIRING DIAGRAM

S40 (04-)/V50/C70 (06-)
TP 3999202
2007

Advertisement

Table of Contents
loading

Related Manuals for Volvo S40

Summary of Contents for Volvo S40

  • Page 1: Wiring Diagram

    VOLVO WIRING DIAGRAM S40 (04-)/V50/C70 (06-) TP 3999202 2007...

  • Page 2: Vehicles With Srs (Airbag)/Sips Bag

    2. Damage or malfunction of the SRS/SIPS bag/IC system. Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo workshop. In case of doubt, consult the SRS and SIPS bag/IC service manual.

  • Page 3: Table Of Contents

    31/110 - 31/116 ............32 Manual beam length adjustment........78 31/117 - Ground connections in chassis...... 33 Automatic beam length adjustment (Bi-Xenon) ... 79 Position/Parking lights, Tail lights S40/V50 ....80 Position/Parking lights, Tail lights (Bi-Xenon) Control modules S40/V50 ..............81 Overview of locations...........
  • Page 4 Group 37 Wiring and fuses Group 83 Doors and openings 12V outlet S40/V50............ 117 12V outlet C70 ............118 Central locking, front doors S40/V50 ......151 Diagnostics system............ 119 Central locking, rear doors S40/V50 ......152 Tow hitch cable harness, 4-pin ........120 Central locking system C70 ........
  • Page 5 Dashboard harness LHD ..........245 ..............174 Dashboard harness RHD..........245 Power passenger seat with memory function RHD Floor harness S40 LHD ..........246 ..............175 Floor harness S40 RHD..........247 Power driver’s seat LHD ..........176 Floor harness V50 LHD ..........248 Power driver’s seat RHD ...........
  • Page 6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 7: Abbreviations

    = Markets outside USA and Canada WH, W = White = Finland YE, Y = Yellow = Great Britain = Israel = Japan = Korea = Norway = Netherlands = Sweden = United States of America = Western Europe TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 8: How To Use The Wiring Diagrams 1:2

    There is a section at the end of the manual in which Service/diagnostics the appearance and location of components is Contact reel described in numerical order. Meter Ignition component/shunt Optics Ground connection Branching point Connector TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 9 = Data communication = CAN communication = MOST communication 31/52 31/11 31/12 = MOST communication = Connection with distribution = Further connection to... = Connector between cable harnesses = Connector connected in 10/17-18 component TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 10: Electrical Distribution 1:2

    GN-BU B:33 5 CYL B:11 B:29 Diesel 64/90= 15/31A 64/90 GN-BU 2/35 64/90=15/31A BK-RD RD-GN GN-YE 7/51:6 2/32 64/90=15/31A BK-BU RD-OG GN-BU GN-BU GN-YE RD-OG 8/84:1 I4 Diesel 64/90=15/31A GN-YE GN-YE GN-YE GN-BU GN-YE TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 11 63/231 RD-WH S40/V50 RD-WH 64/90=15/31A 2/22 BK-YE GN-YE 64/90=15/31A RD-BU 4/56 2/34 E:29 E:20 RD-OG G:18 E:23 GN-WH 10/5:1 E:22 10/6:1 E:21 RD-YE 2/182 BK-YE RD-GN E:30 G:11 RD-BK BK-RD GN-YE 6/104:1 RD-WH 64/861 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 12: Fuses

    Glow plug control module, 5-cyl. Diesel 4/16 Brake Control Module (BCM), pump 4/16 Brake Control Module (BCM), valves 2/32 Main relay, engine management system F32-F36 Fuses in the engine compartment distribution box 2/32 4/31 Fan control module continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 13: Engine Compartment Distribution Box F11-F18

    Audio module (AUD), S40/V50 Engine compartment distribution box, S40/V50 Fuse in the Central Electronic Module (CEM), S40/V50 Fuse in the Central Electronic Module (CEM), S40/V50 F65-F67 Fuses in the Central Electronic Module (CEM), S40/V50 2/159 2/159 Infotainment relay, C70 16/105...

  • Page 14: Engine Compartment Distribution Box F20-F31

    Electromagnetic clutch, climate control system 2/22 2/34 Relay, front fog lights 10/5 Fog light, front left 2/34 10/6 Fog light, front right 2/34 4/46 Engine control module (ECM), 4-cyl. 2.0l/1.6l Diesel 6/26 Alternator, 4-cyl. continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 15: Engine Compartment Distribution Box F32-F34

    8/113 Fuel pressure bypass valve, Man 8/119 Pressure monitor, climate control system, 5-cyl. 8/120 EGR valve 8/133 Control valve fuel pressure 20/3 -20/7 Spark plug and ignition coil 20/17 Transformer, ignition coils, 1.6l continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 16: Engine Compartment Distribution Box F35-Fh1

    8/132 Control valve inlet 9/32 PTC-resistor air preheating 4/46 Engine Control Module (ECM) 7/15 Heated oxygen sensor, front 7/51 Accelerator pedal sensor 10/65 Auxiliary light, front right 2/64 10/69 Auxiliary light, front left 2/64 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 17: Central Electronic Module (Cem) F43-F49

    Relay, windshield washer motor 2/93 Relay, rear window washer motor Washer pump 2/92 Washer pump 2/93 6/32 Rear window wiper motor 2/16 Supplemental Restraint System Module (SRS) 7/93 Occupant Weight Sensor (OWS), USA/CDN continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 18: Central Electronic Module (Cem) F51-F63

    Gas Discharge Lamp Module (GDL), master, left 10/1 Lamp housing, front left 9/12 Seat Heating Module (SHM), driver’s side 9/13 Seat Heating Module (SHM), passenger side 4/33 Sunroof control module 3/129 Rear Right Door Module (RDM) continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 19: Central Electronic Module (Cem) F64-F74

    Belt buckle contact, center rear 3/219 Belt buckle contact, rear right 4/33 Sunroof control module 8/48 Auto-dimming rearview mirror 10/22 Ceiling light 4/83 Fuel pump control module, Gasoline 2/23 6/33 Fuel pump 2/23, 26/5 continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 20: Central Electronic Module (Cem) F77-F86

    Power Seat Module (PSM) 10/24 Cargo compartment lighting 10/25 Ceiling light, cargo compartment 10/26 Reading light, rear left 10/27 Reading light, rear right 10/114 Vanity mirror lighting, left 26/5 DC/AC converter, fuel tank 2/23 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 21: Battery Pf1-Pf2

    F16-F18 Fuses in the engine compartment distribution box F20-F21 Fuses in the engine compartment distribution box F23-F24 Fuses in the engine compartment distribution box F26-F27 Fuses in the engine compartment distribution box F29-F31 Fuses in the engine compartment distribution box TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 22: Relays

    (wiring side) B = Corresponds to the position on the relay. C = An old designation that may be found on 1(86) 3(30) 1(86) 3(30) the relay 2(85) 5(87) 4(87a) 2(85) 5(87) 4(87a) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 23: Distribution Box In Engine Compartment R2-R14

    Relay, front fog lights 2/142 Fuel filter preheater relay 2/182 Relay, headlight washer motor 2/82 Relay, heated rear window 2/22 Relay, climate control system 2/35 Relay, starter motor 2/32 Main relay, engine management system TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 24: Central Electronic Module (Cem) R15-R18

    Relays Central Electronic Module (CEM) R15-R18 4/56 Central Electronic Module (CEM) Relay function 2/23 Fuel pump relay, Gasoline 2/193 Relay, comfort functions TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 25: Central Electronic Module (Cem) R1-R11B

    Relay function 2/89 Relay, interior lighting 2/80 Relay, reversing light 2/92 Relay, windshield washer motor 2/93 Relay, rear window washer motor 2/63 Relay, high beam R11A 2/16 Relay, rear window wiper R11B 2/159 Relay, infotainment TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 26: Other Relays

    Other relays Relays accessories Relay function Dashboard 2/64 Relay auxiliary lights Cargo 2/157 Relay, subwoofer control module compart- ment Front 2/192 Relay, electric engine heater member Beneath 2/238 Relay, audio disconnection glove com- partment TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 27: Ground Connections Overview

    Ground connections Overview TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 28 Rear 12V outlet 10/22 Ceiling light 10/29 Glove compartment lighting 10/114 Vanity mirror lighting, left, S40/V50 10/115 Vanity mirror lighting, right 10/150 Rear reading light 16/1 Integrated Audio Module (IAM) 16/93 Control module, cellular phone handsfree TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 29 Front knock sensor, Gasoline 7/192 Water detection sensor, Diesel Electromagnetic clutch, climate control system, Diesel 9/32 PTC resistor, crankcase ventilation 9/38 Heated fuel filter, Diesel 10/65 Auxiliary light, front right 10/69 Auxiliary light, front left TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 30 8/92 Driver’s lap belt tensioner, RHD 9/12 Seat Heating Module (SHM), driver’s side, RHD 9/13 Seat Heating Module (SHM), passenger side, LHD 10/27 Reading light, rear right 10/114 Vanity mirror lighting, left, C70, RHD TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 31 Spark plug and ignition coil 20/6 Spark plug and ignition coil 20/7 Spark plug and ignition coil 31/102 Front member 2/192 Relay, electric engine heater 31/107 Tailgate (V50) 16/16 Window antenna amplifier 31/117 Ground connection, roof, V50 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 32 Additive Dosing Module (ADM), RHD 6/33 Fuel pump, RHD 31/116 Right A-post 3/127 Passenger Door Module (PDM), LHD 4/83 Fuel pump control module, LHD, Gasoline 4/111 Additive Dosing Module (ADM), LHD 6/33 Fuel pump TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 33: 31/117 - Ground Connections In Chassis

    Window antenna amplifier 16/49 Traffic Message Channel Module (TMC) 16/141 Interference filter, rear window, left 16/142 Interference filter, rear window, right 16/150 AM/FM antenna and amplifier, rear right fender 18/4 Contact reel 20/22-25 Glow plug TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 34: Control Modules Overview Of Locations

    Control modules Overview of locations TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 35: Overview Of Designations

    Seat Heating Module (SHM), passenger side Supplemental Restraint System Module (SRS) 16/79 Subwoofer Module (SUB) 3/254 Steering Wheel Module (SWM) 4/28 Transmission Control Module (TCM) 16/49 Traffic Message Channel Module (TMC) 4/110 Trailer Module (TRM) Wiper Motor Module (WMM) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 36: Central Electronic Module (Cem) 1:2

    G:28 C:12 E:10 H:21 B:19 E:25 G:27 E:37 B:23 A:41 B:22 B:21 F:31 F:28 A:15 C:14 G:23 A:25 G:12 G:21 F:19 F:18 H:22 F:21 G:11 F:20 B:27 G:18 A:34 A:32 B:26 B:11 B:12 F:12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 37 E:27 E:11 G:30 C:41 C:27 A:21 A:29 R11B 30+ (3) E:20 2/159 C:40 C:17 E:28 2/23 C:16 30+ (4) E:23 E:36 A:18 C:25 C:31 C:24 C:44 C:30 C:29 D:14 C:23 A:19 C:32 31/10 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 38: Data Communication, Low Speed Can 1:2

    64/43 63/422 GY-RD GY-RD A:12 BU-RD BU-RD 63/232 4X/110B GY-RD BU-RD 63/233 GY-RD BU-RD 16/60 4/56 F:30 F:15 A:12 GY-OG B:24 GY-BK A:11 B:25 BU-YE BU-BK G:16 GY-RD G:32 BU-RD B:15 BU-RD GY-RD B:16 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 39 Control modules Data communication, Low speed CAN 2:2 BU-WH GY-VT 16/1.2 3/112 A:10 C°/F° GY-RD BU-WH GY-BK BU-YE TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 40: Data Communication, High Speed Can

    W/O AWD GY-RD 64/51 F:14 BU-RD BU-RD GY-RD GY-RD F:16 B:12 64/50 64/50 BU-RD BU-RD BU-RD B:11 GDL/AWD 2 WD & GDL GY-RD GY-RD GY-RD 4/82 BU-RD BU-RD 63/225 BU-RD 63/224 GY-RD GY-RD GY-RD TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 41: Data Communication, Most S40/V50

    Control module Data communication, MOST S40/V50 16/1.2 16/1 16/60 16/108 64/97 16/105 64/978 16/105 16/105 64/978 64/978 16/145 16/139 RDAR 16/139 16/139 64/978 64/978 16/105 16/105 64/979 16/145 16/49 RDAR TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 42: Data Communication, Most C70

    Data communication, MOST C70 16/1.2 16/1 16/60 16/108 64/97 64/974 64/979 16/139 16/105 16/105 16/105 16/145 16/79 RDAR 64/978 16/79 16/139 64/972 64/971 16/49 16/145 RDAR 16/139 16/105 64/973 16/105 16/79 16/49 16/79 16/105 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 43: Data Communication, Lin 1:2

    64/111 AW55-51 64/90 3/155 4/113 4/112 ECU SLAVE ECU MASTER 16/35 A:11 A:11 A:12 4/56 4/102 WH-BK B:17 WH-GN WH-GN 63/339 WH-RD G:26 6/1 LHD 6/1 RHD 4/103 WH-GN A:35 WH-GN 7/149 H:23 WH-GN TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 44 4/46.2 WH-RD A:46 WH-RD 5 CYL 2,5 L T 3/126 3/127 S40/V50 64/41 64/43 63/26 A:13 WH-RD 4/126 A:13 4/127 3/81 S40/V50 WINDOW CONTROL GN-WH SWITCH WH-RD S40/V50 S40/V50 3/128 3/129 64/45 64/47 S40/V50 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 45: Start Control Module (Scu)

    Control modules Start Control Module (SCU) INHIBIT KEY IN PATS MODULE 63/5 4/102 63/88 WH-GN 63/339 4/56 A:10 C:39 E:29 C:38 A:16 C:18 31/83 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 46: Accessory Electronic Module (Aem)

    Electric engine heater Steering, alternating current feed B:11 Handsfree, mute of audio Input signal B:15 Alarm signal Output signal B:16 Alarm signal Output signal B:33 Alarm signal Output signal B:34 Alarm signal Output signal TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 47: Group 23 Fuel System Engine Management System Diesel, 5-Cyl. 2.4L 1:3

    2,4 L D YE-RD 8/98 YE-RD A:23 BN-RD A:93 7/166 A:34 A:36 A:42 6/118 GN-OG A:81 WH-BK YE-BK A:40 BN-YE A:52 6/120 GN-RD A:24 BN-BU A:72 A:67 BK-OG WH-BU A:18 YE-BU A:11 8/111 A:47 A:94 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 48 GLOW P5 GLOW P4 GLOW P3 GLOW P2 GLOW P1 BN-GN A:64 7/162 WH-GN A:65 YE-GN A:19 A:87 7/165 64/90 WH-GN A:85 BK-GN A:82 A:15 GN-YE 64/90 20/22 20/23 20/24 20/25 20/26 GN-BU GN-RD GN-OG TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 49 BK-WH BK-YE 9/32 63/85 GN-WH 63/120 WH-BK BK-WH 64/51 GN-RD GN-OG 31/52 B:23 9/38 B:22 7/51 6/33 64/90 B:47 GN-BU BK-YE GN-BU 63/65 64/111 GN-YE BK-OG 63/12 63/33 GN-BU 31/115 31/116 31/114 31/10 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 50: Engine Management System, 4-Cyl. 1.6L 1:2

    7/16 8/65 B:29 BN-WH GN-WH 63/52 20/17 GN-WH BK-GN 20/3 20/6 20/4 BK-OG 20/5 GN-RD BK-OG B:35 63/74 A:16 63/SH7 63/SH8 A:32 7/24 A:31 A:20 BN-GN A:52 7/165 WH-VT YE-GN WH-GN B:17 GN-OG GN-YE TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 51 B:21 1,6 L 7/51 G:22 A:47 G:31 C:16 E:41 E:28 64/111 64/51 B:31 63/25 B:19 63/12 BK-YE A:42 BK-YE B:40 BK-YE 63/53 BK-YE 6/33 I4 PETROL 2 WD GN-OG 31/52 31/115 31/84 31/116 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 52: Engine Management System, 4-Cyl. 1.8L & 2.0L 1:2

    B:29 GN-RD GN-YE 20/3 B:11 GN-BU 20/4 B:46 WH-RD 63/95 GN-RD 20/5 B:23 WH-BU GN-BK 20/6 B:34 WH-GN 6/120 B:22 GN-RD BK-OG B:10 B:37 WH-BU BN-BU B:38 B:25 WH-BU B:26 YE-BU GN-OG GN-YE BK-BU TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 53 B:20 B:15 63/25 64/51 26/5 A:41 DC/AC FlexiFuel A:30 63/12 64/54 GN-OG 6/33 Flexi fuel A:23 BK-YE 63/53 A:11 BK-YE A:10 BK-YE 6/33 A:34 1.8l/ 2.0l GN-OG GN-YE BK-BU 31/115 31/52 31/116 31/10 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 54: Engine Management System, 5-Cyl. 1:2

    YE-RD A:34 WH-BU GN-BU 20/7 YE-RD A:35 WH-GN 31/89 63/121 6/120 A:75 GN-RD BK-OG A:74 A:24 BN-BU A:72 A:15 WH-BU A:96 YE-BU 8/18 63/120 GN-BU A:53 8/19 BK-OG GN-BU BK-OG A:78 GN-BU GN-YE 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 55 64/51 63/25 A:58 63/33 A:45 A:57 A:44 4/83 63/12 GN-OG BK-RD BK-YE BK-YE 63/53 BK-YE 6/33 6/33 GN-BU GN-BU 63/65 I5 PLASTIC I5 PZEV AWD 2WD METAL TANK GN-BU 31/52 31/115 31/84 31/116 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 56: Engine Management System, 5-Cyl. Turbo 1:2

    WH-RD 31/88 GN-BU 63/103 20/5 A:34 WH-BK GN-BU 20/6 63/121 A:82 WH-BU GN-NU 20/7 A:58 WH-GN 31/89 A:75 GN-RD 6/120 63/120 BK-OG A:14 WH-BU A:19 BN-BU A:74 A:88 WH-BU A:65 YE-BU GN-BU GN-YE 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 57 WH-BK B:54 64/51 B:41 63/25 B:57 63/33 B:44 4/83 63/12 BK-YE BK-YE 63/53 BK-YE BK-RD GN-BU GN-BU 63/65 6/33 6/33 I5 PLASTIC I5 PZEV AWD 2WD METAL TANK GN-BU 31/84 31/52 31/115 31/10 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 58: Engine Management System Diesel, 4-Cyl. 1.6L 1:2

    BN-GN 63/121 B:B4 YE-GN 64/90 YE-VT 7/21 YE-VT YE-RD B:F4 63/41 WH-VT B:D1 64/600 BN-WH B:A1 63/120 8/120 WH-GN C:D4 BN-GN C:D3 20/25 20/24 20/23 20/22 YE-GN B:A4 BK-GN B:D2 B:C2 GN-BK 31/114 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 59 8/122 64/51 BN-GN B:J2 WH-GN 63/41 B:F4 YE-RD WH-GN B:M1 BK-GN 4/111 A:G4 BK-YE A:H4 BK-YE 63/53 A:H1 BK-YE GN-OG B:M2 GN-OG A:G1 GN-OG 6/33 64/90 GN-BU BK-RD GN-BK GN-BU 31/52 31/115 31/116 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 60: Engine Management System Diesel, 4-Cyl. 2.0L 1:2

    C:F4 7/25 WH-RD C:B4 BN-RD C:F1 63/121 64/90 B:A2 WH-VT 7/77 BN-WH B:G3 63/120 64/600 BK-YE A:G4 BK-YE A:H4 B:K2 BK-YE 63/53 C:H4 BK-YE C:J4 BK-YE C:K4 BK-YE 20/25 20/24 20/23 20/22 31/52 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 61 B:C2 YE-VT B:B2 WH-VT B:D3 BN-WH 4/111 8/120 B:E2 YE-GN B:D2 WH-GN B:C3 BN-GN B:L2 BK-GN B:M2 GN-BK GN-OG C:K2 GN-YE 63/65 C:K3 GN-YE 6/33 C:J3 GN-YE 64/90 BK-RD 31/115 31/116 GN-BU GN-OG 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 62: Emission Control, 4-Cyl. 1.6L

    4/46.7 8/18 B:16 BK-OG 4 CYL 1,6 L GN-RD A:41 7/15 A:30 64/60 BK-OG 7/163 B:38 WH-VT WH-VT A:49 WH-BU B:27 BN-WH BN-WH BN-BU 7/82 7/25 B:37 WH-RD B:26 BN-RD BK-YE B:39 A:38 B:14 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 63: Emission Control, 4-Cyl. 1.8L & 2.0L

    8/18 B:45 BK-OG B:32 BN-RD B:44 4 CYL 1,8 L GN-RD A:41 7/15 A:30 BK-GN BN-BU A:26 WH-BU 7/163 GN-YE B:18 WH-VT 63/63 7/82 A:25 BN-WH BK-GN A:27 WH-GN 7/25 WH-RD BN-RD B:17 BN-RD TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 64: Emission Control, 5-Cyl

    B:44 A:48 A:47 BK-YE 7/172 GN-YE A:17 YE-BK 7/186 A:19 BN-RD A:63 WH-VT A:49 BN-RD A:68 WH-RD 7/173 A:39 A:11 YE-RD BN-BU A:64 WH-BK A:43 BN-BU BN-BU GN-YE 7/187 63/94 A:50 BN-RD A:95 WH-RD TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 65: Emission Control, 5-Cyl. Turbo

    B:54 7/15 B:41 A:73 BK-YE B:57 GN-YE B:44 A:91 A:67 A:92 7/172 A:68 A:16 YE-RD A:36 BN-WH 7/82 BN-RD A:49 A:83 WH-VT GN-YE A:90 WH-RD 7/173 A:17 YE-BK A:95 BN-RD A:37 BN-YE A:59 WH-BK TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 66: Group 26 Cooling System Cooling Fan

    5 CYL B:53 BN-RD BN-RD B:47 BN-RD W/O T YE-RD B:31 YE-RD WH-VT B:51 WH-RD B:58 A:67 YE-VT W/O T 7/16 B:45 A:42 BN-WH 6/29 A:22 BN-WH W/O T B:57 A:12 WH-VT B:44 63/120 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 67: Cooling Fan Diesel

    B:F2 A:B2 WH-RD 6/29 B:H1 4/46.4 64/90 A:B2 WH-RD 4 CYL 7/16 8/119 2,0 L D C:A2 C:G1 BK-YE BK-YE 4/46 Diesel BK-RD 8/127 BK-BU BK-BU 4/46 Diesel BK-BU 63/109 3/120 63/108 31/114 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 68: Group 27 Engine Control Cruise Control, 4-Cyl

    A:41 B:37 WH-BU 1.8L B:38 BN-BU A:30 B:25 WH-BU B:26 YE-BU A:A3 DW10 / DV6 A:A4 4/56 7/51 3/39 G:21 GN-YE G:31 GN-YE G:24 G:22 BK-YE G:15 G:14 F:16 64/111 F:14 63/12 31/83 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 69: Cruise Control, 5-Cyl

    A:67 BK-BO 5CYL T Diesel A:18 WH-BU Diesel B:23 5CYL Diesel YE-BU A:11 4/56 7/51 7/123 Petrol G:12 G:22 GN-YE Petrol G:23 G:31 Petrol G:21 BK-YE G:15 G:14 64/111 F:16 F:14 63/12 31/83 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 70: Group 32 Alternator And Voltage Regulator Power Supply, 4-Cyl

    Group 32 Alternator and voltage regulator Power supply, 4-cyl. 31/4 31/3 6/25 15/31 64/90 4/46.7 6/26 A:33 1.6 L 4/46.6 VOLT. REG. B:15 B:20 1.8 L 4/46.4 A:A1 B:H4 2,0 L D 4/46.5 C:B1 B:A3 1,6 L D TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 71: Power Supply, 5-Cyl

    Group 32 Alternator and voltage regulator Power supply, 5-cyl. 31/4 31/3 6/25 6/26 VOLT. REG. 4/46.3 Diesel A:88 WH-RD 4/46.1 A:88 WH-RD 4/46.2 Turbo WH-RD A:46 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 72: Group 33 Starting System Starting System, 4-Cyl

    64/120 2/35 6/25 RD-GN BK-RD 64/90 4/46.4 64/111 2,0 L D A:1D 4/46.7 1,6 L B:30 4/56 A:42 4/46.5 1,6 L D C:1A BK-RD G:21 GN-YE 4/46.6 1,8 L 3/39 BK-RD G:24 31/4 31/3 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 73: Starting System, 5-Cyl

    BK-RD 2,5 L T 4/56 A:17 A:42 GN-YE 4/46.1 B:30 B:15 B:17 B:11 GN-BU 2,4 L 7/123 G:21 G:23 G:12 4/28 WH-RD GN-YE 64/113 3/271 4/93 B:20 63/109 63/53 63/108 31/110 31/3 31/4 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 74: Starting System, 5-Cyl. Diesel

    Group 33 Starting system Starting system, 5-cyl. Diesel 64/111 2/35 3(30) 1(86) GN-BU BK-RD 5(87) 2(85) 64/90 6/25 4/46.3 B:41 B:33 B:44 4/56 A:42 2,4 L D B:34 B:29 4/28 63/53 31/3 31/4 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 75: Group 35 Lighting Follow-Me-Home Lighting

    Group 35 Lighting Follow-me-home lighting 15/31 4/56 E:21 C:31 C:24 64/43 64/41 3/127 A:18 A:18 3/126 B:13 BK-RD B:13 BK-RD B:12 B:12 BK-OG A:12 A:12 6/62 6/63 10/148 10/149 64/43 64/41 31/115 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 76: High And Low Beam

    A:28 10/1 10/2 PARK PARK TURN HIGH TURN HIGH GN-OG GN-BK GN-WH 63/109 63/121 GN-VT 3/111 63/25 FF = FRONT FOG LIGHTS ON RF = REAR FOG 63/120 63/108 63/6 31/6 31/114 31/10 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 77: High And Low Beam (Bi-Xenon)

    ELEC. ELEC. BALLAST LEVELING HI DRTL BALLAST LEVELING HI DRTL GN-OG 63/93 GN-BK 63/92 4/113 4/112 63/121 63/109 A:10 A:10 SLAVE MASTER A:11 A:11 WH-BK A:12 63/6 63/25 63/120 63/108 31/6 31/114 31/10 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 78: Manual Beam Length Adjustment

    LIGHTS ON RF = REAR FOG 4/56 E:21 E:22 2/89 10 13 A:40 A:38 63/139 64/111 GN-YE GN-YE S40/V50 S40/V50 10/2 10/1 6/38 6/39 HIGH PARK TURN HIGH PARK TURN 63/124 64/111 63/6 31/6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 79: Automatic Beam Length Adjustment (Bi-Xenon)

    HI DRTL HI DRTL 11 2 12 11 63/92 63/93 4/113 4/112 GN-BK MASTER SLAVE 63/91G GN-YE GN-YE A:11 A:11 WH-BK A:10 A:10 A:12 63/121 63/109 63/120 63/108 64/50 7/120 7/121 64/113 31/114 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 80: Position/Parking Lights, Tail Lights S40/V50

    PARK TURN OG-BU 64/48 OG-GN OG-WH 10/3 10/18 10/17 TAIL TAIL STOP STOP BACK BACK TURN TURN GND2 GND2 63/196 10/17 10/18 TAIL TAIL BACK BACK 64/48 63/172 31/66 31/11 31/12 31/110 31/114 31/6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 81: Position/Parking Lights, Tail Lights (Bi-Xenon) S40/V50

    Group 35 Lighting Position/Parking lights, Tail lights (Bi-Xenon) S40/V50 15/31 3/111 FF = FRONT FOG LIGHTS ON RF = REAR FOG 4/56 E:22 E:21 A:40 G:14 OG-BK G:15 BK-BU E:13 F:16 F:14 10/1 10/2 HIGH BEAM HIGH BEAM ACTUATOR ACTUATOR AUX.

  • Page 82: Position/Parking Lights, Tail Lights C70

    PARK HIGH HIGH PARK TURN OG-BU 64/233 OG-GN OG-WH OG-WH 10/3 10/18 10/17 TAIL1 STOP TAIL2 TURN BACK BACK STOP TURN TAIL2 TAIL1 GND2 GND2 10/19:5 64/233 63/172 31/11 31/66 31/12 31/110 31/114 31/6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 83: Position/Parking Lights, Tail Lights (Bi-Xenon) C70

    LEVELING LEVELING HI DRTL HI DRTL 64/233 OG-GN OG-WH OG-WH 10/3 10/18 10/17 TAIL1 STOP TAIL2 TURN BACK BACK STOP TURN TAIL2 TAIL1 GND2 GND2 10/19:5 64/233 63/172 31/11 31/66 31/12 31/110 31/114 31/6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 84: Fog Lights S40/V50

    A:32 GN-BU B:23 BK-YE B:22 BK-YE GN-OG GN-YE GN-YE 63/109 GN-YE 63/121 10/18 10/17 63/6 63/108 63/120 10/18 10/17 TAIL TAIL STOP STOP BACK BACK TURN TURN GND2 GND2 31/114 31/6 31/110 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 85: Fog Lights C70

    RF = REAR FOG A:32 GN-BU B:23 BK-YE B:22 BK-YE GN-OG 63/109 63/121 63/6 63/108 63/120 10/18 10/17 TAIL1 TURN STOP BACK STOP TURN TAIL2 TAIL1 TAIL2 BACK GND2 GND2 31/114 31/11 31/6 31/110 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 86: Fog Lights Lhd, Japan S40/V50

    GN-OG 10X/18C 63/109 GN-YE 63/121 GN-YE 10/18 10/17 63/6 10X/18C GN-YE 63/108 63/120 10/18 10/17 10X/18C 10X/17C TAIL TAIL STOP STOP BACK BACK TURN TURN GND2 GND2 10X/18C 10X/17C 31/114 31/6 31/110 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 87: Fog Lights Lhd, Japan C70

    A:32 GN-BU B:23 BK-YE B:22 BK-YE GN-OG 63/109 10X/18C 63/121 63/6 10/18 10/17 TAIL1 STOP STOP TURN TAIL2 TAIL1 TURN BACK BACK TAIL2 GND2 GND2 63/108 63/120 10X/18C 10X/17C 31/114 31/11 31/12 31/6 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 88: Brake Lights S40/V50

    E:40 GN-WH 64/48 OG-YE OG-YE OG-YE 10/19 16/142 C:22 D:12 63/196 63/212 63/211 OG-BK 64/48 OG-BK 10/18 10/17 63/172 10/17 10/18 TAIL TAIL STOP STOP BACK BACK TURN TURN GND2 GND2 31/66 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 89: Brake Lights C70

    E:21 E:28 64/90 OG-WH D:14 D:15 F:16 E:41 F:14 E:40 GN-WH 64/233 OG-YE 10/19 10/3:3 64/233 10/18 10/17 TAIL1 STOP TAIL2 TURN BACK STOP TURN TAIL2 TAIL1 BACK 63/172 GND2 GND2 31/66 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 90: Reversing Lights S40/V50

    RD-YE 2/80 G:14 G:15 F:16 F:14 64/90 GN-YE GN-BU E:14 C:45 GN-BK GN-BK GN-BK 3/10 10/18 10/17 63/53 GN-BK 10/18 10/17 TAIL TAIL STOP STOP BACK TURN BACK TURN GND2 GND2 31/52 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 91: Reversing Lights C70

    4/56 E:22 RD-BU E:21 RD-YE 2/80 G:14 G:15 F:16 F:14 64/90 GN-BU E:14 C:45 3/10 63/53 GN-BK 10/18 10/17 TAIL1 TAIL1 TURN STOP BACK BACK STOP TURN TAIL2 TAIL2 GND2 GND2 31/52 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 92: Interior Lighting S40/V50 1:2

    A:38 10/97 10/102 63/172 63/139 A:25 10/115 10/29 BK-BU 63/10 10/22 D:12 A:28 1 On 2 Off 10/114 3 Ctsy MAP READING 3/117 A:10 10/150 OG-YE 63/211 OG-YE OG-YE OG-YE 63/213 OG-YE OG-YE 63/25 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 93 64/45 BK-OG C:31 C:24 3/76 3/74 64/41 64/43 F:21 F:19 63/198 63/193 64/47 F:20 BK-BU F:18 64/45 64/43 3/75 3/77 3/127 A:18 A:12 A:11 BN-WH 63/192 63/195 64/43 64/47 63/171 31/67 31/66 31/115 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 94: Interior Lighting C70 1:2

    64/250 10/24 64/250 63/173 F:24 C:20 OG-BU A:38 10/97 10/102 63/139 A:25 10/29 10/115 BK-BU 63/10 14 2 D:12 3/117 A:28 1 On 2 Off 3 Ctsy 10/22 63/214 OG-YE OG-YE 63/213 OG-YE 63/25 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 95 Group 35 Lighting Interior lighting C70 2:2 64/41 A:18 3/126 4/56 64/41 A:14 C:31 C:24 3/74 64/41 64/43 F:19 F:18 64/43 3/75 3/127 A:18 A:12 A:14 64/43 31/116 31/115 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 96: Instrument And Control Illumination

    2/89 F:15 3/111 F:30 FF = FRONT FOG LIGHTS ON RF = REAR FOG B:21 A:38 63/139 OG-BU BK-RD OG-BU 64/25G S40/V50 OG-BU 63/6 3/286 3/25 OPEN ROOF CLOSE ROOF 63/86 63/25 31/6 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 97: Auxiliary Lights

    Group 35 Lighting, Accessories Auxiliary lights 15/31 E:22 4/56 2/63 A:28 3/60 GN-RD 63/25 2/64 10/69 10/65 31/52 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 98: Group 36 Additional Electrical Equipment

    Group 36 Additional electrical equipment Direction indicators and hazard warning flashers S40/V50 15/31 3/254 4/56 E:21 E:22 C:24 C:31 64/41 64/43 3/127 A:18 A:18 3/126 A:12 A:12 B:12 B:14 B:14 B:12 E:38 B:19 C:10 E:39 10/16 6/63 6/62 10/15 10/2...

  • Page 99: Direction Indicators And Hazard Warning Flashers

    Group 36 Additional electrical equipment Direction indicators and hazard warning flashers (Bi-Xenon) S40/V50 15/31 3/254 4/56 E:21 E:22 C:24 C:31 64/43 64/41 3/127 A:18 A:18 3/126 A:12 A:12 B:12 B:12 E:38 B:19 C:10 E:39 10/16 6/63 6/62 10/15 10/13 10/14...

  • Page 100: C70

    10/15 10/2 10/1 PARK HIGH LOW HIGH PARK TURN TURN 10/18 10/17 63/5 TAIL1 TURN STOP BACK STOP TAIL2 TAIL1 TAIL2 BACK TURN GND2 GND2 64/41 64/43 31/11 31/83 31/12 31/115 31/114 31/110 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 101: Direction Indicators And Hazard Warning Flashers (Bi-Xenon) C70

    BALLAST LEVELING LEVELING HI DRTL HI DRTL 10/18 10/17 63/5 TAIL1 STOP TAIL2 TURN BACK STOP TURN TAIL2 TAIL1 BACK 63/121 63/109 GND2 GND2 64/41 63/108 63/120 31/110 31/115 31/12 31/116 31/114 31/83 31/11 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 102: Windshield Wiper/Washer

    63/108 GN-WH 4/56 A:17 E:20 2/193 64/79V YE-BK R7 A R7 B 2/92 2/93 Petrol 5cyl E:12 WH-BK Petrol 5cyl 64/79V F:16 F:14 A:28 A:45 WH-BK 3/254 OG-BK 63/25 BK-WH 63/5 31/110 31/10 31/83 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 103: Headlight Washer

    Group 36 Additional electrical equipment Headlight washer 15/31 2/182 1(86) 3(30) 4/56 5(87) 2(85) G:11 BK-RD BK-GN A:40 OG-BK 64/79V 3/111 FF = FRONT FOG LIGHTS ON RF = REAR FOG 14 6 64/79V 63/6 31/6 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 104: Rear Window Wiper/Washer V50

    R7 B 2/92 2/93 Petrol 5cyl E:12 WH-BK Petrol 5cyl F:16 F:14 64/79V R11 A 2/193 2/16 WH-BK C:33 C:34 A:28 A:45 3/254 6/32 OG-BK 64/48 63/25 BK-WH 63/5 63/172 63/196 31/66 31/83 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 105: Rain Sensor

    Group 36 Additional electrical equipment Rain sensor 15/31 3/254 64/111 4/56 E:20 A:17 2/193 7/149 OG-BK H:23 WH-GN D:10 63/214 A:28 A:14 63/211 63/25 63/12 1 LHD 4 RHD 3 LHD 2 RHD 63/108 31/110 31/10 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 106: Horn

    Group 36 Additional electrical equipment Horn 15/31 3/254 3/37 18/4 2/17 63/30 4/56 B:26 G:18 16/10 OG-BU 16/11 OG-BU 63/5 63/121 63/120 31/83 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 107: Immobilizer/Steering Column Lock Module (Scl)

    1,8 L 63/339 G:15 A:15 RD-GN F:16 63/88 F:14 B:13 4/46.7 B:10 4 CYL B:30 1,6 L 4/102 OG-BK POWER 4/46.5 WH-GN LIN BUS 4 CYL 63/5 1,6 L D 63/6 C:A1 31/83 31/6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 108: Keyless Vehicle S40/V50 1:2

    C:41 OG-WH A:15 C:26 RD-BK 64/112 B:17 RD-GN RD-GN RD-GN 63/88 64/48 BK-YE D:14 BK-YE 10/3 BK-WH 63/171 BK-WH 63/5 63/196 64/113 B:20 WH-RD WH-RD 3/271 64/48 63/172 63/109 63/108 31/83 31/66 31/67 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 109 D:13 BN-WH CLUTCH 63/193 BN-BU YE-BU UNLOCK RELEASE D:21 WH-GN LOCK 16/130 GY-OG 64/49 16/132 E:14 WH-BK WH-BK E:15 GY-BK GY-BK GY-OG 31/66 WH-GN 16/133 E:18 WH-GN GY-OG 16/134 E:20 WH-VT GY-WH E:22 16/135 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 110: Keyless Vehicle C70 1:2

    C:41 A:15 C:26 AUTO RD-BK 64/112 B:17 RD-GN RD-GN RD-GN 63/88 64/233 63/277 BK-YE D:14 BK-YE 10/3 BK-WH 63/171 BK-WH 63/5 64/113 B:20 WH-RD WH-RD 3/271 64/233 63/172 63/109 63/108 31/83 31/66 31/67 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 111 3/262 A:14 BN-OG 3/74 63/198 D:11 CLUTCH UNLOCK RELEASE LOCK D:20 A:11 16/128 64/49 16/132 E:14 WH-BK WH-BK E:15 GY-BK GY-BK 16/133 E:18 WH-GN GY-OG 64/70 16/134 E:20 WH-VT WH-VT GY-WH GY-WH E:22 16/135 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 112: Rear Parking Assistance

    63/421 A:14 GY-RD GY-RD 15 1 7/133 63/415 63/422 YE-RD RR/I BU-RD BU-RD BU-RD 15 2 WH-RD 15 3 BN-RD 63/416 7/132 YE-RD LR/I WH-BU BN-RD 7/131 YE-RD LR/O WH-GN 4/110 BN-RD BN-RD 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 113: Front Parking Assistance

    LF/O C:38 64/1300 4/86 7/206 64/322 15 5 RF/I LF/I 63/420 15 4 63/421 A:14 GY-RD GY-RD 15 1 63/422 BU-RD BU-RD BU-RD 15 2 64/1400 7/205 LF/I RF/I 4/110 7/204 LF/O RF/O 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 114: Anti-Theft Alarm S40/V50

    A:12 63/120 3/129 3/77 64/47 CHILD LOCK 63/192 3/128 CLOCK UNLOCK 3/76 DLOCK 64/45 CHILD LOCK LOCK FEEDBACK CLOCK 63/193 UNLOCK AJAR DLOCK LOCK 63/172 FEEDBACK 63/171 AJAR 31/66 31/114 31/10 31/67 31/116 31/115 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 115: Anti-Theft Alarm C70

    63/25 63/171 3/75 64/43 AJAR 64/41 3/126 3/127 A:18 OG-YE A:18 A:14 LOCK FEEDBACK DLOCK A:12 A:12 UNLOCK A:14 CLOCK 3/74 CLOCK UNLOCK 63/120 DLOCK LOCK FEEDBACK AJAR 31/114 31/11 31/115 31/10 31/67 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 116: Accessory Electronic Module (Aem)

    Group 36 Additional electrical equipment, Accessories Accessory Electronic Module (AEM) 15/31 4/56 E:21 E:22 F:15 F:30 C:22 64/250 17X/19 S40/V50 17/19 4/86 64/250 64/322 63/421 GY-RD A:14 GY-RD GY-RD BU-RD BU-RD BU-RD 63/422 4X/110B 31/12 31/11 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 117: Group 37 Wiring And Fuses

    Group 37 Wiring and fuses 12V outlet S40/V50 15/31 4/56 E:22 E:20 A:28 2/193 C:22 A:23 63/25 64/25G 17/19 9/25 31/12 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 118: 12V Outlet C70

    Group 37 Wiring and fuses 12V outlet C70 15/31 4/56 E:22 E:20 A:28 2/193 C:22 A:23 63/25 64/25G 64/250 63/86 17/19 64/250 31/11 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 119: Diagnostics System

    Group 37 Wiring and fuses Diagnostics system 15/31 4/56 E:21 B:15 B:16 B:11 B:12 LOSPEED 63/5 BK-OG 63/6 BU-RD BU-RD 31/83 31/6 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 120: Tow Hitch Cable Harness, 4-Pin

    F:30 F:15 E:41 OG-BK 10/17 BACK STOP TURN TAIL2 TAIL1 GND2 OG-BK 17/37 10/17 64/322 63/421 GY-RD GY-RD BU-RD BU-RD 63/422 A:12 OG-BK 10/17 TAIL STOP BACK TURN 4/86 A:14 GY-RD GND2 BU-RD 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 121: Tow Hitch Cable Harness, 7-Pin

    E:41 A:10 17/38 64/322 63/421 GY-RD GY-RD BU-RD BU-RD OG-BK 63/422 A:12 10/17 TAIL2 TAIL1 BACK STOP TURN 63/420 GND2 4/86 A:14 GY-RD BU-RD OG-BK 10/17 10/17 TAIL STOP BACK TURN GND2 31/12 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 122: Tow Hitch Cable Harness, 13-Pin

    OG-BK STOP TURN TAIL2 TAIL1 BACK OG-BK 10/17 TAIL STOP GND2 BACK TURN GND2 4/110 64/322 63/421 GY-RD GY-RD A:12 BU-RD BU-RD A:10 63/422 63/420 4/86 17/39 A:14 GY-RD BU-RD RESERVE: INDICATION TRAILER 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 123: Group 38 Instruments Driver Information Module

    6/63 RHD GN-WH 63/173 7/69 64/51 4/111 WH-RD WH-BU 26/5 μ WH-RD WH-BU 64/54 WH-BU BN-BU Plastic I5 I5 PZEV Additive tank Metal tank I4_Diesel only 2WD/AWD 1.8l Flexifuel 6/33 6/33 6/33 6/33 6/33 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 124: Seat Belt Reminder S40/V50

    15/31 64/111 3/46 4/56 A:30 E:22 E:21 64/31 BK-GN F:13 BN-RD F:17 YE-RD BK-WH A:28 63/25 BK-RD GN-BU C:18 D:12 3/217 3/218 3/219 63/211 OG-GN 63/170 3/117 1 On 2 Off 3 Ctsy 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 125: Seat Belt Reminder C70

    Seat belt reminder C70 15/31 64/111 3/46 4/56 A:30 E:22 E:21 64/31 BK-GN F:13 BN-RD F:17 YE-RD A:28 63/25 BK-RD GN-BU C:18 D:12 3/217 3/219 63/214 OG-GN 63/170 3/117 1 On 2 Off 3 Ctsy 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 126: Group 39 Other Audio S40/V50 1:2

    Audio S40/V50 1:2 15/31 16/1 4/56 E:23 2/159 R11B F:16 F:14 A:21 RD-YE 63/27 RD-YE OG-GN 63/29 16/1.2 3/254 WH-BU OG-GN BK-BU 63/12 16/138 16/9 64/190 16/16 16/9 AM/FM1 BN-RD 63/199 31/84 31/10 31/107 31/117 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 127 Audio S40/V50 2:2 16/1 16/5 64/112 64/47 A:10 16/137 16/3 64/43 A:11 GY-RD WH-RD 16/56 WH-RD GY-RD 16/6 64/45 A:13 GY-WH GY-WH WH-VT WH-VT 16/136 WH-VT GY-WH 16/4 64/41 A:12 GY-BK WH-BK 16/55 WH-BK GY-BK TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 128: Audio C70 1:2

    Group 39 Other Audio C70 1:2 15/31 16/1 63/231 E:23 4/56 2/159 R11B F:16 F:14 A:21 C:40 63/27 RD-YE OG-GN 63/29 16/1.2 3/254 WH-BU OG-GN BK-BU 63/12 64/190 16/68 16/67 16/150 31/84 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 129 Group 39 Other Audio C70 2:2 16/1 16/5 64/112 A:10 16/56 64/707 16/3 64/43 63/40 A:11 GY-RD WH-RD 63/41 16/6 A:13 GY-WH GY-WH WH-VT WH-VT 16/55 64/708 16/4 64/41 63/42 A:12 GY-BK WH-BK 63/43 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 130: Audio High Performance/Premium Sound S40/V50 1:2

    Group 39 Other Audio High Performance/Premium Sound S40/V50 1:2 15/31 16/105 63/25 63/231 4/56 A:28 E:23 2/159 R11B F:16 F:14 C:44 C:23 A:21 C:40 GN-BU GN-BU RD-WH 16/1.2 OG-GN 63/29 RD-YE 63/27 RD-YE BK-BU WH-BU 16/49 16/1 3/254 64/247 BK-BU...
  • Page 131 Group 39 Other Audio High Performance/Premium Sound S40/V50 2:2 16/105 16/26 64/112 B:10 WH-RD WH-RD GY-RD GY-RD 16/5 64/47 B:13 16/137 16/3 64/43 B:11 16/56 WH-RD GY-RD 16/6 64/45 GY-WH B:12 WH-VT 16/136 WH-VT GY-WH 16/4 64/41 16/55 WH-BK GY-BK...

  • Page 132: Audio High Performance/Premium Sound C70 1:2

    C:44 C:23 A:21 C:40 63/135 GN-BU GN-BU RD-WH 16/1.2 OG-GN 63/29 RD-YE 63/27 RD-YE BK-BU WH-BU 16/49 16/1 3/254 64/247 BK-BU 64/190 USA (NO TMC) 63/12 A:14 16/68 16/67 17/40 16/150 31/10 31/84 31/11 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 133 16/136 WH-VT GY-WH 16/4 FULLRANGE/ WOOFER PREMIUM SOUND 64/708, 16/151 16/151 WOOFER + 64/41 WOOFER - 63/42 IN - IN + MID - 63/43 MID + 64/660 16/4MID WH-BU WH-BU GY-BU GY-BU 16/98 64/179 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 134: Cellular Phone 1:2

    A:11 2/159 R11B F:16 F:14 F:30 F:15 B:24 B:25 C:23 C:40 A:21 A:33 A:17 GY-VT RD-OG 16/105 GN-BU B:16 WH 63/135 16/98 64/179 16/1.2 OG-GN 3/254 63/29 BK-BU BK-BU 63/12 WH-BU 31/10 31/11 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 135 Cellular phone 2:2 16/60 16/62 A:18 BN-BU WH-BU A:19 WH-RD A:20 HANDSET 16/140 WH-BU DETECT WH-GN DATA BK-GN RESET RD-YE POWER GY-WH GY-OG CLOCK 3/267 WH-BU WH-GN OG-BK A:13 BN-BU A:14 BN-RD A:15 WH-RD 16/47 64/40 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 136: Satellite Radio

    Group 39 Other Satellite radio 15/31 63/231 4/56 E:23 2/159 R11B C:44 63/504 16/145 16/47 RDAR WH-RD S40/V50 WH-RD 63/31 63/184 31/11 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 137: Multimedia & Traffic Information

    A:29 A:21 C:44 16/1.2 OG-GN WH-BU 63/29 7/182 63/504 GN-OG OG-YE OG-YE 63/28 16/46 16/108 OG-YE RD-YE 63/27 RD-YE 16/139 B:10 B:10 63/12 BK-BU BK-BU BK-BU OG-YE 63/184 63/31 S40/ 16/47 31/10 31/12 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 138: Turn By Turn Navigation, Audio

    11 LHD / 12 RHD SPEED WH-BK 4 LHD / 5 RHD 8/48 4/33 64/958 2/238 GY-RD RELAY WH-BN GN-BK GY-RD BU-YE GN-BK BU-GN 12 LHD / 11 RHD 64/955 5 LHD / 4 RHD 16/46.1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 139: Turn By Turn Navigation, Audio High Performance/Premium Sound

    64/962 11 LHD / 9 RHD 16X/1A 4/56 SPEED WH-BK 8/48 4/33 64/958 2/238 GY-RD RELAY WH-BN GN-BK GY-RD BU-YE GN-BK BU-GN 1 LHD / 3 RHD 64/955 9 LHD / 11 RHD 16/46.1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 140: Handsfree Universal, Audio

    Group 39 Other, Accessories Handsfree Universal, Audio 16/1 A:10 A:13 A:12 A:11 16/93 UNIVERSAL 16/64 4/78 16/127 GR-W B:11 16/126 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 141: Handsfree Universal, Audio High Performance/Premium Sound

    Handsfree Universal, Audio High Performance/Premium Sound 16X/105B 16/105 B:14 B:15 SCREEN B:16 B:10 GR-R B:12 GR-W B:13 GR-W GR-R GR-R GR-R GR-R GR-R GR-R B:11 4/56 A:28 63/25 31/10 16/93 UNIVERSAL 16/64 4/78 16/127 GR-W B:11 16/126 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 142: Handsfree Max With Adapter

    Group 39 Other, Accessories Handsfree Max with Adapter 16X/105B 16/105 B:14 B:15 SCREEN B:16 B:10 GR-R B:12 GR-W B:13 GR-W GR-R GR-R GR-R GR-R GR-R B:11 GR-R 4/56 A:28 63/25 16/93 16/127 4/78 B:11 16/126 16/64 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 143: Handsfree Max

    Group 39 Other, Accessories Handsfree Max 16/1 A:10 A:13 A:12 A:11 16/93 16/127 4/78 B:11 16/126 16/64 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 144: Subwoofer

    Group 39 Other, Accessories Subwoofer 15/31 4/56 E:23 63/25 A:28 2/159 R11B F:30 F:15 C:40 16/1B:1 16/1.2B:2 64/599 64/978 16/105 16X/105A 63/1000 OG-BU OG-BU 2/157 3(30) 2(85) 4(87a) 5(87) 1(86) 63/1001 16/79 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 145: Group 43 Transmission Automatic Transmission Aw55-51

    2,4 L 8/39 GY-WH B:15 8/72 C:17 8/73 C:22 B:57 B:44 8/74 C:21 GY-RD GY-RD GY-RD BU-RD HISPEED BU-RD BU-RD A:13 GY-OG A:16 RD-YE BK-YE 63/53 64/90 3/156 3/155 64/111 RD-YE GY-OG 8/36 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 146: Transmission M66

    Group 43 Transmission Transmission M66 15/31 4/56 E:22 A:39 8/134 WH-BK BK-OG 63/25 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 147: Differential Electronic Module (Dem)

    Group 43 Transmission Differential Electronic Module (DEM) 15/31 64/111 4/56 A:17 C:38 BK-OG 64/50 4/82 GN-RD BK-OG 63/171 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 148: Group 59 Brake System Brake Control System & Stc

    Group 59 Brake system Brake control system & STC 15/31 4/56 A:17 4/16 GN-YE (STC) 7/124 7/31 7/32 64/113 64/816 7/56 64/817 7/57 YE-GN YE-GN WH-GN WH-GN 31/80 31/119 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 149: Brake Control System & Dstc

    Group 59 Brake system Brake control system & DSTC 15/31 4/56 A:17 4/16 GN-YE 3/254 DSTC 7/124 7/31 7/32 64/113 64/816 7/56 64/817 7/57 YE-GN YE-GN WH-GN WH-GN YE-RD BN-RD 7/164 YE-RD BN-RD 31/119 31/80 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 150: Group 64 Steering Electronic Power Steering

    1,6 L D B:44 64/111 A:3A B:58 B:45 4/46.6 4/46.3 B:49 A:41 4 CYL 5 CYL 1,8 L 2,4 L D X 15 B:50 A:30 B:22 B:23 4/56 A:17 3/254 4/16 6/71 GY-BU 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 151: Group 83 Doors And Openings

    LOCK F:12 A:14 63/12 3/126 3/127 A:28 C:31 C:24 63/25 A:12 A:12 64/41 64/43 A:18 A:18 A:13 A:13 A:11 A:11 BN-WH BN-OG A:15 63/198 A:15 A:10 A:10 63/195 3/75 3/74 31/115 31/116 31/10 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 152: Central Locking, Rear Doors S40/V50

    3/127 3/126 4/56 E:22 E:21 E:20 A:12 A:12 64/41 64/43 F:12 63/12 A:14 3/128 3/129 A:28 C:21 C:27 63/25 64/45 64/47 OG-WH 63/192 63/193 63/171 63/172 3/76 3/77 31/115 31/66 31/67 31/10 31/84 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 153: Central Locking System C70

    UNLOCK UNLOCK LOCK LOCK F:12 BK-YE A:14 63/12 3/126 3/127 A:28 C:31 C:24 63/25 A:12 A:12 64/41 64/43 A:18 A:18 A:13 A:13 A:14 A:14 A:15 A:15 A:10 A:10 3/75 3/74 31/115 31/116 31/10 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 154: Central Locking, Tailgate S40/V50

    Group 83 Doors and openings Central locking, tailgate S40/V50 15/31 4/56 E:21 E:22 3/173 B:27 BK-BU 63/25 A:28 A:14 63/12 63/172 64/48 3/35 10/3 63/196 3/78 31/66 31/84 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 155: Central Locking, Tailgate C70

    Group 83 Doors and openings Central locking, tailgate C70 15/31 4/56 E:21 E:22 3/173 B:27 BK-BU 63/25 A:28 A:14 63/12 63/277 BK-YE W/O KVM BK-YE 10/3 64/233 3/35 63/172 3/78 31/11 31/66 31/84 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 156: Central Locking, Storage Compartment C70

    64/660 64/41 64/43 64/662 10/246 10/245 63/504 ILLUMINATION ILLUMINATION 8/137 8/138 YE-BK YE-BK WH-BK WH-BK 8/140 8/141 64/80 64/80A WH-BK WH-BK WH-BK WH-BK 63/59 YE-BK YE-BK YE-BK YE-BK 63/58 8/139 YE-BK WH-BK 31/10 31/12 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 157: Child Safety Lock S40/V50

    3/129 C:27 C:21 C:31 64/45 64/47 OG-BU OG-WH 63/193 63/171 63/192 63/172 3/126 64/41 3/77 A:13 WH-RD 3/81 63/26 A:18 2 BK-WH A:14 3/76 POWER A:11 BN-OG A:12 63/198 31/66 31/10 31/84 31/115 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 158: Central Locking, Fuel Filler Flap

    Group 83 Doors and openings Central locking, fuel filler flap 15/31 4/56 E:21 E:22 A:28 63/25 A:14 63/12 A:34 3/111 FF = FRONT FOG LIGHTS ON RF = REAR FOG 6/37 63/184 31/12 31/6 31/84 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 159: Signal Receiver, Remote-Control, Central Locking

    Group 83 Doors and openings Signal receiver, remote-control, central locking 15/31 4/56 E:21 E:22 A:35 A:41 4/103 63/5 S40/V50 BK-YE 63/13 31/83 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 160: Power Windows, Front Doors S40/V50

    Group 83 Doors and openings Power windows, front doors S40/V50 15/31 3/80 4/56 E:21 C:31 C:24 3/127 3/126 A:12 A:16 GN-RD 64/41 64/43 3/83 63/195 64/41 63/26 63/198 64/47 64/45 3/82 3/81 3/128 3/129 31/115 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 161: Power Windows, Front Doors C70

    Power windows, front doors C70 15/31 3/81 4/56 E:21 E:20 C:31 C:21 C:27 C:24 3/127 3/126 A:12 A:16 GN-RD A:16 A:12 64/660 GN-YE 64/41 64/43 3/83 3/80 64/662 3/128 3/129 3/82 63/172 63/171 31/67 31/115 31/66 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 162: Power Windows, Rear Doors S40/V50

    Power windows, rear doors S40/V50 15/31 4/56 E:21 E:20 C:21 C:27 3/127 3/126 A:13 A:13 63/26 64/43 64/41 3/128 3/129 64/47 64/45 OG-BU OG-WH 63/192 63/193 63/172 63/171 BK-OG BK-OG 3/86 3/85 BK-WH BK-WH BK-BU BK-BU 31/66 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 163: Power Sunroof S40/V50

    Power sunroof S40/V50 15/31 64/111 4/56 E:20 E:22 E:21 A:30 3/25 CLOSE SLIDE OPEN OPEN TILT CLOSE F 31 3/117 D:14 H:18 H:20 A:28 D:12 C:11 63/10 63/211 BK-BU 10/22 BK-BU WH-GN 4/33 63/25 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 164: Power Roof C70

    GN-YE GN-YE POSITIVE SUPPLY F:14 YE-VT CLOSE ROOF SENSOR 1 HS1- 64/246 WH-VT SENSOR 2 HS5- BK-GN BK-GN BK-GN BK-GN 63/184 3/268 64/250 F:10 OG-BU OG-BU 63/173 63/86 3/78 64/25G 63/25 31/10 31/12 31/11 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 165: Group 84 Exterior Decorative Elements, Etc

    Group 84 Exterior decorative elements, etc. Power door mirrors S40/V50 15/31 4/56 E:21 C:31 C:24 64/41 64/43 3/126 3/127 A:12 A:18 A:18 A:11 A:12 A:14 64/43 64/41 6/63 6/62 3/81 WINDOW GN-YE POWER CONTROL SWITCH 63/198 31/115 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 166: Power Door Mirrors C70

    Power door mirrors C70 15/31 4/56 E:21 C:31 C:24 64/41 64/43 3/126 3/127 A:12 A:18 A:18 A:11 C:12 C:10 A:12 C:11 C:14 64/43 64/41 6/63 6/62 3/81 GN-OG GN-YE WINDOW BU-YE GN-WH CONTROL SWITCH YE-VT 31/115 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 167: Heated Door Mirrors

    Heated door mirrors 15/31 4/56 E:21 C:31 C:24 64/43 64/41 3/127 3/126 A:18 A:18 B:14 B:14 S40/V50 S40/V50 GN-OG GN-OG B:11 B:11 B:12 B:12 A:12 A:12 9/33 6/62 6/63 9/34 64/43 64/41 3/112 C°/F° 31/115 31/116 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 168: Heated Rear Window

    Group 84 Exterior decorative elements, etc. Heated rear window 15/31 3/112 2/82 C°/F° 64/111 E:30 4/56 A:17 GN-WH A:42 GY-BK A:14 64/113 GN-BU GN-BU GN-BU 64/48 16/141 16/142 63/12 63/172 31/66 31/84 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 169: Blind Spot Information System

    Group 84 Exterior decorative elements, etc. Blind Spot Information System 15/31 4/56 E:21 C:31 C:24 64/25G 64/43 64/41 OG-BU 3/286 3/126 3/127 A:18 A:18 B:12 B:12 64/25G 64/25G 3/112 C°/F° 4/126 4/127 64/43 64/41 63/25 31/116 31/10 31/115 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 170: Group 85 Interior Equipment

    Group 85 Interior equipment Power driver’s seat with memory function LHD S40/V50 15/31 4/56 E:20 E:21 2/89 F:30 F:15 C:30 C:20 4/52 64/30 RD-GN OG-BU EXT. X 63/173 6/16 RD-BU OG-YE 30 P BK-YE 31 P 63/172 GN-RD 31 S...

  • Page 171: Power Driver's Seat With Memory Function Rhd S40/V50

    Group 85 Interior equipment Power driver’s seat with memory function RHD S40/V50 15/31 4/56 E:20 E:21 2/89 F:30 F:15 C:20 C:30 4/52 64/30 RD-GN OG-BU EXT. X 63/173 6/16 RD-BU OG-YE 30 P BK-YE 63/171 31 P B:13 GN-RD 31 S...

  • Page 172: Power Driver's Seat With Memory Function Lhd C70

    31 S GN-BK 6/19 BK-YE GY-RD CAN + B:11 PK-RD BU-RD CAN - GN-BK 3/287 LOCK BK-YE 3/26 UNLOCK GN-BK 6/18 BK-YE B:13 YE-RD GN-BK 6/17 7/230 RD-WH B:10 BK-YE B:14 BU-RD BK-WH GN-BK 31/66 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 173: Power Driver's Seat With Memory Function Rhd C70

    31 S GN-BK 6/19 BK-YE GY-RD CAN + B:10 PK-RD BU-RD CAN - GN-BK 3/288 LOCK BK-YE 3/26 UNLOCK B:14 GN-BK 6/18 BK-YE YE-RD GN-BK 7/231 6/17 RD-WH B:11 BK-YE BU-RD BK-WH B:12 GN-BK 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 174: Power Passenger Seat With Memory Function Lhd C70

    31 S GN-BK 6/20 BK-YE GY-RD CAN + B:10 PK-RD BU-RD CAN - GN-BK 3/288 LOCK BK-YE 3/27 UNLOCK B:14 GN-BK 6/66 BK-YE YE-RD GN-BK 7/231 6/65 RD-WH B:11 BK-YE BU-RD BK-WH B:12 GN-BK 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 175: Power Passenger Seat With Memory Function Rhd C70

    31 S GN-BK 6/20 BK-YE GY-RD CAN + B:11 PK-RD BU-RD CAN - GN-BK 3/287 LOCK BK-YE 3/27 UNLOCK GN-BK 6/66 BK-YE B:13 YE-RD GN-BK 7/230 6/65 RD-WH B:10 BK-YE B:14 BU-RD BK-WH GN-BK 31/66 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 176: Power Driver's Seat Lhd

    15/31 4/56 E:21 E:20 3/26 2/89 6/17 BK-BU DOWN 6/18 BK-YE DOWN 6/19 BK-VT FORWARD BACK 6/16 C:20 C:30 BK-GN FORWARD STOP LOGIC BACK 64/30 EXT. X RD-GN OG-BU 63/173 RD-BU OG-YE 63/172 31/66 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 177: Power Driver's Seat Rhd

    15/31 4/56 E:21 E:20 3/26 2/89 6/17 BK-BU DOWN 6/18 BK-YE DOWN 6/19 BK-VT FORWARD BACK 6/16 C:20 C:30 BK-GN FORWARD STOP LOGIC BACK 64/30 EXT. X RD-GN OG-BU 63/173 RD-BU OG-YE 63/171 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 178: Power Passenger Seat Lhd

    15/31 4/56 E:21 E:20 3/27 2/89 6/65 BK-BU DOWN 6/66 BK-YE DOWN 6/20 BK-VT FORWARD BACK 6/64 C:20 C:29 BK-GN FORWARD STOP LOGIC BACK 64/31 EXT. X RD-GN OG-BU 63/173 RD-BU OG-YE 63/171 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 179: Power Passenger Seat Rhd

    15/31 4/56 E:21 E:20 3/27 2/89 6/65 BK-BU DOWN 6/66 BK-YE DOWN 6/20 BK-VT FORWARD BACK 6/64 C:20 C:29 BK-GN FORWARD STOP LOGIC BACK 64/31 EXT. X RD-GN OG-BU 63/173 RD-BU OG-YE 63/172 31/66 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 180: Heated Seats

    3/112 64/111 64/545 WH-GN 4/56 A:42 A:17 E:20 C:42 C:43 64/112 64/112 2/193 WH-GN 64/30 64/31 9/12 9/13 9/16 9/17 7/110 7/111 9/18 9/19 64/31 64/30 63/171 63/172 63/172 63/171 31/67 31/66 31/66 31/67 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 181: Group 87 Climate Control System Climate Control System Ptc Element

    Group 87 Climate control system Climate control system PTC element 15/31 64/111 64/861 4/56 A:17 E:22 E:21 9/41 GN-OG WH-BK 64/862 31/112 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 182: Climate Control System, 4-Cyl. Gasoline 1:2

    4 CYL A:13 1,8 L A:28 A:25 A:12 63/63 A:35 64/545 A:41 3/112 A:30 OG-GN GN-OG C°/F° WH-GN 6/28 YE-GN 4/31 BN-GN BU-WH GN-YE 63/25 6/117 64/114 YE-RD 63/53 63/108 BN-GN WH-GN 31/10 31/110 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 183 Group 87 Climate control system Climate control system, 4-cyl. Gasoline 2:2 6/95 6/96 6/102 6/48 6/103 7/159 64/545 7/41 BU-YE GN-OG TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 184: Climate Control System, 5-Cyl. 1:2

    B:28 A:17 B:51 B:31 B:47 A:12 B:16 B:58 5 CYL 2,4 L B:45 64/545 3/112 OG-GN 64/114 GN-OG C°/F° WH-GN YE-GN BU-WH BN-GN GN-YE 6/28 63/25 4/31 6/117 63/108 YE-RD BN-GN WH-GN 31/10 31/110 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 185 Group 87 Climate control system Climate control system, 5-cyl. 2:2 6/95 6/96 6/102 6/48 6/103 7/159 64/545 7/41 BU-YE GN-OG TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 186: Climate Control System, Diesel 1.6L & 2.0L 1:2

    A:12 A:C4 4 CYL 1,6 L D A:G3 B:E1 A:A3 A:A4 3/112 64/545 OG-GN GN-OG C°/F° WH-GN 6/28 YE-GN 4/31 BN-GN BU-WH GN-YE 63/25 6/117 63/108 YE-RD 64/114 63/53 BN-GN WH-GN 31/10 31/110 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 187 Group 87 Climate control system Climate control system, Diesel 1.6l & 2.0l 2:2 6/95 6/96 6/102 6/48 6/103 7/159 64/545 7/41 BU-YE GN-OG TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 188: Parking Heater, Auxiliary Heater

    Parking heater, auxiliary heater 15/31 4/56 3/112 C°/F° G:32 G:16 RD-OG C:11 6/73 C:10 C:14 C:13 64/51 C:12 RD-OG RD-OG 64/113 6/35 BK-OG BK-OG 9/30 FLAME COOLANT GLOW TEMP OVERHEAT 63/172 63/109 63/108 31/110 31/66 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 189: Relay, Electric Engine Heater

    Group 87 Climate control system, Accessories Relay, electric engine heater 4/78 2/192 Relay 31/102 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 190: Electric Engine Heater Flexifuel

    Group 87 Climate control system, Accessories Electric engine heater Flexifuel 9/41.1 31/102 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 191: Group 88 Internal Equipment Auto-Dimming Rearview Mirror

    Group 88 Internal equipment Auto-dimming rearview mirror 15/31 64/111 4/56 E:22 E:21 A:30 2/80 A:28 D:12 8/48 63/10 63/214 S40/V50 63/211 63/25 31/10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 192: Supplemental Restraint System Module (Srs) S40/V50 1:2

    Group 88 Internal equipment Supplemental Restraint System Module (SRS) S40/V50 1:2 15/31 18/4 8/30 BK-OG 8/61 BK-GN 63/30 8/31 64/425 BK-WH BK-WH 8/32 B:11 B:10 BK-YE BK-YE BK-GN BK-GN 63/12 31/84 USA/CDN 8/99 B:13 4/56 E:20 A:17 B:14 A:28 2/193...

  • Page 193: Supplemental Restraint System Module (Srs) C70 1:2

    WH-BN BK-OG BN-RD 64/30 A:65 BN-GN USA/CDN USA/CDN 7/93 3/255 A:51 BU-YE WH-RD A:57 A:52 GY-BK BN-RD BN-RD A:54 GN-BK RD-GN 63/130 BK-GN 31/66 LHD 63/171 31/67 LHD 31/10 31/67 RHD 31/67 31/66 RHD TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 194 Group 88 Internal equipment Supplemental Restraint System Module (SRS) S40/V50/C70 2:2 S40/V50/C70 8/34 8/33 A:41 A:74 A:75 A:42 RD-BK BU-RD 7/115 7/116 A:58 A:61 WH-VT YE-RD A:60 A:59 BN-VT GY-RD 8/56 8/55 A:32 A:28 A:27 A:31 RD-GN BK-VT 7/208 64/41...

  • Page 195: Connectors

    OG-BU 3/25:1 Power roof switch C70 OG-BU (CEM) 3/286:1 BLIS switch S40/V50 3/112:2 Climate Control Module (CCM) 3/286:3 BLIS switch S40/V50 YE-RD YE-RD 3/112:3 Climate Control Module (CCM) YE-GN 3/286:2 BLIS switch S40/V50 YE-GN TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 196 Igniter side airbag, driver’s System module (SRS) side 4/9A:36 Supplemental Restraint System module (SRS), RHD 4/9A:34 Supplemental Restraint BK-GN 8/51:2 Igniter side airbag, driver’s System module (SRS) side 4/9A:35 Supplemental Restraint System module (SRS), RHD continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 197 4/52B:6 Power Seat Module (PSM), memory, LHD 4/9A:64 Supplemental Restraint WH-BN 3/93:1 Belt buckle contact, driver’s BK-OG System module (SRS) seat 4/9A:65 Supplemental Restraint BN-GN 3/93:2 Belt buckle contact, driver’s System module (SRS) seat TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 198 Igniter side airbag, passenger 63/172 Branching point, RHD side 63/173 Branching point OG-BU 3/27:7 Switch unit, power passenger RD-GN seat, LHD 3/27:11 Switch unit, power passenger seat, RHD 4/54B:6 Power Seat Module (PSM) continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 199 Branching point BK-GN 7/93:9 Occupant Weight Sensor (OWS) 4/56C:37 Central Electronic Module GN-BK 7/93:2 Occupant Weight Sensor RD-GN (CEM) (OWS) 64/40 1-pin violet Dashboard harness Floor harness 16/60C:1 Phone Module (PHM) 16/47:1 GSM/GPS/RDAR antenna TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 200 Connector 64/660:3 Connector C70 63/59 Branching point C70 7/208:1 Side impact sensor, left door 4/9A:69 Supplemental Restraint System Module (SRS) C70 7/208:2 Side impact sensor, left door 4/9A:68 Supplemental Restraint System Module (SRS) C70 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 201 4/56F:31 Central Electronic Module (PDM), RHD (CEM) 3/127A:17 Passenger Door Module 4/56F:28 Central Electronic Module (PDM), RHD (CEM) 64/662:4 Connector C70 63/58 Branching point C70 3/127A:9 Passenger Door Module (PDM) 31/116 Ground connection continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 202 Antenna, rear left door lock 4/93D:3 Keyless Vehicle Module (KVM) GY-OG 16/6:2 Speaker, rear left door 16/105B:4 Audio Module (AUD) GY-WH 64/112:14 Connector 16/6:1 Speaker, rear left door 16/105B:12 Audio Module (AUD) WH-VT 64/112:13 Connector TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 203 BK-BU 3/35:1 Switch, handle, tailgate S40 4/56F:22 Central Electronic Module BK-YE 10/3:1 License plate lighting S40 (CEM) 4/93D:14 Keyless Vehicle Module (KVM) 3/78:3 Lock unit, trunk lid/tailgate BK-RD 4/56F:24 Central Electronic Module BK-RD (CEM) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 204 OG-BU ment 64/49 2-pin gray Floor harness Rear bumper harness 4/93E:14 Keyless Vehicle Module (KVM) WH-BK 16/132:1 Antenna, door lock, bumper WH-BK 4/93E:15 Keyless Vehicle Module (KVM) GY-BK 16/132:2 Antenna, door lock, bumper GY-BK TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 205 Connector, AWD S40/V50 64/112:4 Connector, S40/V50 4/83:2 Control module fuel pump GN-WH 4/56C:16 Central Electronic Module GN-WH 4/111:1 Additive Dosing Module (CEM) (ADM), S40/V50 6/33:1 Fuel pump 26/5 DC/AC converter, fuel tank FlexiFuel continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 206 (PAM) 4/86C:3 Parking Assistance Module WH-BU 7/132:2 Rear parking assistance sensor WH-BU (PAM) 4/86C:5 Parking Assistance Module WH-GN 7/131:2 Rear parking assistance sensor WH-GN (PAM) 4/86C:8 Parking Assistance Module BN-RD 63/416 Connector BN-RD (PAM) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 207 Switch, power roof GN-YE 4/59F:3 Convertible Roof Module GN-YE (CRM) 7/122:1 Mass Movement Sensor OG-YE 63/218 Branching point OG-YE Module (MMS), front 7/122:3 Mass Movement Sensor WH-RD 63/217 Branching point WH-RD Module (MMS), front TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 208 63/58 Branching point YE-BK compartment 10/27:3 Reading light, rear right RD-BK 63/212 Branching point BK-YE 10/27:2 Reading light, rear right RD-OG 63/171 Branching point 10/27:1 Reading light, rear right 63/173 Branching point BK-OG OG-YE TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 209 , 4-cyl. Diesel 4/46.5A:C4 Engine control module (ECM), 4-cyl. 1.6l Diesel 4/46.6A:14 Engine Control Module (ECM), BK-OG 8/119:2 Pressure monitor, climate BK-OG 4-cyl. 1.8l control system, 4-cyl. 4/46.7B:22 Engine Control Module (ECM), 4-cyl. 1.6l continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 210 4-cyl. 2.0l Diesel 63/103 Branching point 63/52 Branching point, 4-cyl. 1.6l GN-RD 63/95 Branching point, 4-cyl. 1.8l 8/111:2 High-pressure solenoid valve, GN-YE Diesel 4-cyl. 1.6l 8/113:1 Bypass valve, EGR cooling, GN-BK 5-cyl. Diesel continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 211 5-cyl. 2.4l Diesel 4/46.4A:D4 Engine control module (ECM), 4-cyl. 2.0l Diesel 4/46.5C:E2 Engine control module (ECM), 4-cyl. 1.6l Diesel 4/46.6A:1 Engine Control Module (ECM), 4-cyl. 1.8l 4/46.7A:9 Engine Control Module (ECM), 4-cyl. 1.6l continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 212 4/46.1B:20 Engine Control Module (ECM), WH-BK 64/113:7 Connector WH-BK 5-cyl. 4/46.2B:21 Engine Control Module (ECM), 5-cyl. 2.5l T 64/600:1 Connector, 4-cyl. Diesel WH-RD 4/109:1 Glow plug control module, GN-OG Diesel 20/26:1 Glow plug GN-OG continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 213 5-cyl. 2.4l control system 4/46.2B:31 Engine Control Module (ECM), 5-cyl. 2.5l T 4/46.3B:16 Engine control module (ECM), 5-cyl. 2.4l Diesel 4/46.6A:28 Engine Control Module (ECM), 4-cyl. 1.8l 4/46.7A:17 Engine Control Module (ECM), 4-cyl. 1.6l continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 214 4/46.7A:10 Engine Control Module (ECM), 4-cyl. 1.6l 4/46.3A:32 Engine control module (ECM), GN-BU 4/109:10 Glow plug control module, YE-GN 5-cyl. 2.4l Diesel Diesel 7/82:1 Rear heated oxygen sensor, GN-YE 63/13 Branching point, Turbo GN-YE Turbo continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 215 4-cyl. 1.6l Diesel 4/46.5B:M2 Engine control module (ECM), 4-cyl. 1.6l Diesel 4/46.6A:34 Engine Control Module (ECM), 4-cyl. 1.8l 4/46.7B:8 Engine Control Module (ECM), 4-cyl. 1.6l 63/65 Branching point 7/15:4 Side impact sensor, front left GN-YE TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 216 Lamp housing, front left, C70 GN-YE 10/2:12 Lamp housing, front right, C70 7/178:1 Front impact sensor, right 4/9B:5 Supplemental Restraint System module (SRS) 7/178:2 Front impact sensor, right 4/9B:9 Supplemental Restraint System module (SRS) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 217 64/45:19 Connector 16/1A:13 Integrated Audio Module (IAM) GY-WH 16/6:2 Speaker, rear left C70 GY-WH 64/45:18 Connector 16/1A:3 Audio module (AUD) 64/47:19 Connector 16/1A:10 Integrated Audio Module (IAM) 16/5:2 Speaker, rear right C70 64/47:18 Connector TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 218 Body Sensor Cluster Stability 4/16:25 Brake Control Module (BCM) Sensor (BSC) 64/50:8 Connector 4/112A:2 Gas Discharge Lamp Module (GDL), master, left 64/50:9 Connector 4/112A:3 Gas Discharge Lamp Module (GDL), master, left 7/121:5 Angle sensor, Bi-Xenon front continues TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 219 Branching point 64/120 1-pin black Engine harness Starter motor harness 64/90:11 Connector 6/25:A1 Starter motor 64/179G 1-pin gray Floor harness Microphone harness 16/105B:1 Audio module (AUD), C70 16/98 Microphone, pigtail 16/105B:16 Audio Module (AUD) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 220 4/59B:1 Convertible Roof Module BK-GN (CRM) 64/596:1 Connector GN-RD 4/59B:2 Convertible Roof Module GN-RD (CRM) 63/184 Branching point BK-GN 4/59B:3 Convertible Roof Module BK-GN (CRM) 64/596:2 Connector RD-WH 4/59B:4 Convertible Roof Module RD-WH (CRM) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 221 Igniter, airbag stage 2, passenger side 4/9B:11 Supplemental Restraint 8/32:1 Igniter, airbag stage 2, System module (SRS) passenger side 4/9B:10 Supplemental Restraint BK-YE 8/32:2 Igniter, airbag stage 2, BK-YE System module (SRS) passenger side TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 222 Interior temperature sensor 3/112:7 Climate Control Module (CCM) WH-GN 6/48:2 Damper Motor Module (DMM), 64/112:6 Connector recirculation 6/96:2 Damper Motor Module (DMM), right-hand side 6/102:2 Damper Motor Module (DMM), defroster 7/159:2 Air Quality Sensor (AQS) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 223 10/245:2 Lock indicator, left door 64/41:10 Connector 64/661 C70 2-pin yellow/green Driver’s door harness Driver’s door harness, addition 64/41:8 Connector 8/66:2 Igniter, left inflatable curtain 64/41:9 Connector BK-RD 8/66:1 Igniter, left inflatable curtain BK-RD TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 224 6-pin gray, option A Passenger door harness 63/41 Branching point 64/707:4 Connector 63/40 Branching point 64/707:3 Connector 16/3:2 Speaker, passenger door 64/707:2 Connector 16/3:1 Speaker, passenger door 64/707:1 Connector 64/662:2 Connector GY-BU 64/662:1 Connector WH-BU TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 225 Distribution filter, front left door 64/660:1 Connector WH-BU 16/151:6 Distribution filter, front left door 64/816 2-pin black Floor harness ABS harness, rear left 64/113:1 Connector 7/56:1 Sensor ABS, rear left 64/113:2 Connector 7/56:2 Sensor ABS, rear left TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 226 Audio Module (AUD) 64/97:2 Connector 16/139C:2 Global Positioning System Module (GPS) 64/973 C70 2-pin black Floor harness MOST amplifier harness 64/97:1 Connector 16/105D:1 Audio Module (AUD) 64/97:2 Connector 16/145C:2 Remote Digital Audio Receiver (RDAR) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 227 Audio Module (AUD) 64/97:2 Connector 16/105D:2 Audio Module (AUD) 64/979 S40/V50 2-pin black Floor harness MOST amplifier harness 64/978:1 Connector 16/49C:1 Traffic Message Channel Module (TMC) 16/49C:2 Traffic Message Channel Module (TMC) 16/105D:1 Audio Module (AUD) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 228 Parking Assistance Module 64/1300:2 Connector (PAM) 4/86B:7 Parking Assistance Module 64/1300:3 Connector (PAM) 4/86B:6 Parking Assistance Module 64/1300:4 Connector (PAM) 4/86B:5 Parking Assistance Module 64/1300:5 Connector (PAM) 4/86B:1 Parking Assistance Module 64/1300:6 Connector (PAM) TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 229: Branching Points

    OG-YE OG-YE 16/46A:3 7/182:1 BK-BU BK-BU 16/108A:5 16/1A:8 63/28 31/84 63/13 5-cyl. 63/29 15/31 4/56 64/90 A:21 GN-YE GN-YE OG-GN 16/1.2:A:1 63/13 OG-GN OG-GN 3/112:1 16/1:A:2 GN-YE GN-YE 8/84:1 63/29 GN-YE GN-YE 4/56:A:41 4/103:1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 230 16/1:A:2 63/40 64/961 16X/1A:2 16/56:2 64/43 63/34 64/707 63/35 63/41 4-cyl Diesel YE-RD 4/46.5:B:4 16/1A:1 4-cyl Diesel YE-RD 16/56:1 6/99:1 64/961 16X/1A:1 4-cyl Diesel YE-VT 64/43 7/21:1 63/35 4-cyl Diesel WH-GN 64/707 8/122:1 63/41 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 231 2,0L BK-YE 8/3:1 4/46.4:C:K4 2,0L BK-WH 2,0L BK-YE 4/46.4:B:K2 9/32:2 GN-BU GN-OG 7/17:1 6/143:1 2,0L 2,0L BK-YE 9/38:2 4/46.4:C:H4 63/53 63/54 2,0L 1,6L BK-YE BK-YE 4/46.5:A:H4 4/46.4:C:J4 1,6L BK-YE 4/46.5:A:H1 1,6L BK-YE 4/46.5:A:G4 31/52 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 232 GN-YE 7/187:1 63/63 63/74 4-cyl. Gasoline 1,8L S40/V50 4/46.6A:25 63/SH8 4/46.7:A:16 BK-RD 1,8L 7/15:3 S40/V50 BN-BU 3/81:15 SCRN BK-BU 63/53 S40/V50 1,8L BK-RD 7/82:3 BN-RD 3/126A:6 63/74 63/63 1,8L BN-RD BK-RD S40/V50 64/90 64/660 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 233 20/7:2 63/97 YE-RD YE-RD 4/46.1:A:12 20/5:2 GN-YE GN-YE 4/112A:6 4/113A:6 63/91G 63/92 63/98 5-cyl. 4/56 GN-YE 8/6:1 GN-YE 8/7:1 GN-YE GN-YE 64/90 8/8:1 63/98 E:27 GN-YE 8/9:1 GN-YE 8/10:1 GN-BK GN-BK 4/112:A5 10/1:3 63/92 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 234 C:40 8/119:1 10/2:9 63/109 5-cyl 3/271:2 10/2:4 4-cyl BU-BK 64/79V:3 GN-RD GN-BU 16/105:B:6 16/150 BU-BK 5-cyl 63/135 63/108 7/5:1 63/120 63/139 4/56 4/71:2 63/121 A:38 63/120 10/97:1 3/111:13 5/1:3 10/29:1 63/139 64/111 10/102:1 31/114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 235 4/56 3/83:6 3/75:4 BN-WH BN-WH 3/127A:11 3/259:2 OG-YE OG-BU S40 64/80A:5 10/24:2 BN-WH 3/263:6 3/75:1 OG-YE OG-YE 10/114:1 C:20 64/48 3/75:1 3/75:8 63/195 OG-BU OG-BU 64/30 64/31 OG-BU GN-WH 64/51 64/250 63/173 OG-YE 64/80 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 236 63/211 S40/V50 63/214 C70 63/212 3/117:A:4 4/56:D:12 4/56:D:12 10/114:3 3/117:A:5 3/117:14 10/115:3 3/117:B:2 10/115:3 63/214 63/211 4/33:10 10/150:1 63/211 C70 63/215 GY-RD 4/56:G:15 4/56:D:12 4/56:D:10 7/149:2 GY-RD GY-RD 6/71:A:3 63/222 63/215 4/103:6 8/48:2 63/211 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 237 64/31 64/43 GY-RD 4/93B:3 P104_63-225 63/221 63/228 BU-RD BU-RD 4/9A:53 63/229 63/221 GY-RD C70 GY-RD 64/245 63/232 BU-RD BU-RD 64/41 64/43 GY-RD GY-RD 64/322 63/220 BU-RD BU-RD 64/31 4/93B:4 63/228 GY-RD 4/59F:1 BU-RD 64/30 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 238 BN-RD 7/134:3 BU-RD BU-RD 64/41 4/56:F15 BN-RD 7/133:3 63/233 BN-RD BN-RD 7/132:3 64/53 BU-RD BU-RD 63/416 64/43 63/229 BN-RD 7/131:3 63/277 C70 63/420 4/86A:8 64/322 BK-YE 64/233 4/110B:4 63/420 BK-YE BK-YE 4/56:F:22 4/93:D:14 63/277 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 239 63/504 C70 63/SH8 4/56 63/74 63/SH7 C:44 63/SH8 64/43:7 64/41:7 RD-WH RD-WH 16/139B:1 16/49B:1 63/504 63/615 7/207:1 7/206:1 7/205:1 64/1300 63/615 7/204:1 63/616 YE-RD 7/134:1 YE-RD 7/133:1 YE-RD YE-RD 64/53 7/132:1 63/415 YE-RD 7/131:1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 240: Cable Harness Routing In Vehicle Engine Harness Gasoline, 4-Cyl. 1.6L

    Engine harness Gasoline, 4-cyl. 1.6l 63/74 63/SH8 64/90 63/53 64/60 64/120 Cable harness routing in vehicle Engine harness Gasoline, 4-cyl. 1.8l 63/99 63/74 63/H03 63/54 31/52 63/US02 63/67 63/95 63/63 64/90 63/53 63/226 64/120 63/227 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 241: Engine Harness Gasoline, 5-Cyl

    63/97 31/89 63/61 31/52 63/98 63/94 64/90 4/28 63/53 63/65 63/54 64/120 63/56 Cable harness routing in vehicle Engine harness Gasoline, 5-cyl., Turbo 63/103 31/88 31/52 63/98 4/46 64/90 4/28 63/53 63/65 63/54 63/56 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 242: Engine Harness Diesel 1.6L

    Engine harness Diesel 1.6l 64/600 63/42 64/120 64/90 4/56 C 63/41 4/56 B 4/56 A Cable harness routing in vehicle Engine harness Diesel 2.0l 64/600 31/52 64/90 63/53 64/120 63/54 63/65 4/46C 4/46B 4/46A TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 243: Engine Harness Diesel 2.4L

    Cable harness routing in vehicle Engine harness Diesel 2.4l 31/52 63/85 64/90 63/53 63/54 4/46B 4/46A 63/65 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 244: Engine Compartment Harness, 4-Cyl

    63/120 63/121 63/215 Cable harness routing in vehicle Engine compartment harness, 5-cyl. 63/131 & 64/113 64/114 64/111 63/132 63/93 63/124 4/56E 63/108 63/222 31/110 63/223 63/131 & 63/132 63/92 63/215 63/109 63/216 63/120 63/121 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 245: Dashboard Harness Lhd

    64/190 63/5 64/545 63/6 64/40 64/97 Cable harness routing in vehicle Dashboard harness RHD 63/28 63/339 63/27 63/29 64/25G 63/5 63/139 63/88 63/6 64/40 64/97 64/190 63/25 64/545 64/114 4/56A 4/56B 64/111 63/12 64/112 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 246: Floor Harness S40 Lhd

    64/45 64/43 63/130 64/113 63/173 4/56C 64/979 64/112 4/56F 31/66 64/48 31/116 64/978 63/172 64/51 63/232 64/47 64/816 64/599 63/233 64/31 63/170 63/31 63/171 31/67 64/50 64/817 63/229 31/11 63/228 64/817 63/49 31/12 64/322 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 247: Floor Harness S40 Rhd

    Floor harness S40 RHD 64/49 64/322 63/228 63/229 64/817 64/50 64/978 64/47 63/171 64/43 64/816 63/221 64/979 64/30 63/220 64/179 64/40 64/190 64/51 64/97 4/56C 4/56F 64/45 63/172 63/173 64/31 63/233 64/41 64/112 63/232 64/1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 248: Floor Harness V50 Lhd

    Floor harness, V50 LHD 64/41 64/40 64/179 64/97 63/220 63/221 63/172 63/173 64/48 63/130 64/45 63/170 63/31 31/116 64/43 64/978 64/112 64/817 64/113 64/51 64/816 63/232 63/233 64/47 63/171 31/67 31/11 64/50 31/12 63/228 63/229 64/322 64/49 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 249: Floor Harness V50 Rhd

    Floor harness V50 RHD 64/49 64/322 64/34 64/817 64/50 64/47 64/48 63/229 63/228 64/40 64/43 64/978 64/979 64/30 64/45 63/221 63/220 64/816 63/171 64/51 64/179G 64/31 64/190 63/172 63/173 64/41 63/232 63/233 64/1 64/1 4/56F 4/56C TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 250: Floor Harness C70 Lhd

    64/231-234 64/979G 64/43 64/80 31/67 63/232 4/56C 31/116 63/218 63/171 64/70 64/51 63/59 64/31 64/179 64/10B 63/58 63/130 64/816 64/112 64/113 63/277 64/596 64/30 63/170 63/504 63/135 63/217 63/212 31/6 63/233 4/56F 63/173 63/172 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 251: Floor Harness C70 Rhd

    63/220 64/43 64/80 64/70 64/234 63/221 64/30 63/59 64/31 64/40 64/977A 64/190 64/51 31/116 4/56C 64/816 63/135 63/173 63/212 63/277 4/56F 63/172 31/6 64/10B 63/504G 64/112 64/113 64/41 31/115 64/596 63/232 63/217 63/233 63/218 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 252: Roof Harness S40

    Cable harness routing in vehicle Roof harness S40 63/213 63/10 63/214 63/211 63/212 4/56D 4/56H Cable harness routing in vehicle Roof harness V50 63/218 63/217 63/213 63/214 63/10 63/211 4/56D 4/56H TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 253: Tunnel Harness S40/V50

    Cable harness routing in vehicle Tunnel harness S40/V50 64/25G Cable harness routing in vehicle Tunnel harness C70 63/86 64/25G 64/70 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 254: Driver's Door Harness S40/V50

    Cable harness routing in vehicle Driver’s door harness S40/V50 3/74 63/198 64/41 16/4 Cable harness routing in vehicle Passenger door harness S40/V50 63/195 64/43 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 255: Driver's Door Harness C70

    Cable harness routing in vehicle Driver’s door harness C70 63/198 63/63 63/64 64/708 64/661 64/41 64/660 Cable harness routing in vehicle Driver’s door harness supplement C70 64/661 64/660 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 256: Passenger Door Harness C70

    Cable harness routing in vehicle Passenger door harness C70 63/195 63/41 64/707 63/40 64/43 64/663 64/662 Cable harness routing in vehicle Passenger door harness supplement C70 64/663 64/662 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 257: Rear Right Door Harness S40/V50

    Cable harness routing in vehicle Rear right door harness S40/V50 63/192 64/47 Cable harness routing in vehicle Rear left door harness S40/V50 63/193 64/45 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 258: Harness, Rear Side Panel, Left C70

    Cable harness routing in vehicle Harness, rear side panel, left C70 64/80 Cable harness routing in vehicle Harness, rear side panel, right C70 64/80 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 259: Tailgate Harness S40

    Cable harness routing in vehicle Tailgate harness S40 64/48 63/196 Cable harness routing in vehicle Tailgate harness V50 64/48 31/117 63/199 63/196 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 260: Tailgate Harness C70

    Cable harness routing in vehicle Tailgate harness C70 64/250 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 261: Component Illustrations

    R7 - R12 - R3 - R1 - R11 - R8 - R5 - R4 - R2 - R14 - R13 - 2-63 2-22 2/23 Relay, fuel pump 2/64 Relay, auxiliary lights (accessory) 2-23 2-64 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 262 2/159 Relay, infotainment 2-89 2-159 2/92 Relay, windshield washer motor 2/182 Relay, headlight washer motor R10- R12- R11- R14- R13- 2-92 2-182 2/93 Relay, rear window washer motor 2/192 Relay, electric engine heater, 4-cyl. 2-93 2-192_4CYL TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 263 Switch, heated rear window/exterior rearview mirrors 2/193 Relay, comfort functions 2-193 2/238 Relay, audio disconnection Contact brake light 2/238 2-238 Ignition switch 3/10 Reversing light contact 3-10 Switch unit, cruise control (SWS) 3/25 Switch, power sunroof 3-25_S40V50 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 264 3-26 3-46 3/27 Switch unit, power passenger seat 3/47 Parking brake contact 3-27 3-47 3/35 Switch, handle, trunk lid/tailgate 3/60 Switch, auxiliary lights 3-35 3-60 3/37 Contact horn 3/62 Hood alarm contact 3-37 3-62 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 265 Lock unit, rear left door 3-76 3-82 3/83 Switch, power window passenger door 3/77 Lock unit, rear right door 3-77 3-83 3/78 Lock unit, trunk lid/tailgate 3/85 Power window switch, rear left door 3-78 3-85 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 266 Belt buckle contact, passenger seat 3/127 Passenger Door Module (PDM) 3-94 3-127 3/111 Light Switch Module (LSM) 3/128 Rear Left Door Module (LDM) 3-111 3-128 3/112 Climate Control Module (CCM) 3/129 Rear Right Door Module (RDM) 3-112 3-129 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 267 3/157 Switch, passenger side airbag 3/219 Belt buckle contact, rear right 3-157 3-219 3/173 Switch, trunk lid/tailgate private lock 3/254 Steering Wheel Module (SWM) 3-173 3-254 3/174 Switch, reduced alarm 3/255 Position sensor, driver’s seat 3-174 3-255 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 268 3/259 Contact, locking, front right 3/264 Contact, unlocking, rear left 3-259 3-264 3/260 Contact, locking, rear left 3/265 Contact, unlocking, rear right 3-260 3-265 3/261 Contact, locking, rear right 3/267 Switch unit, telematics 3-261 3-267 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 269 Transmission Control Module (TCM) 3-271 4-28 3/286 BLIS switch 4/31 Fan control module 3-286 4-31 Combustion Preheater Module (CPM) 4/33 Sunroof control module 4-33 Supplemental Restraint System Module (SRS) 4/46.1 Engine Control Module (ECM), 5-cyl 4-46_1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 270 Central Electronic Module (CEM) 4-56 4-46_4 4/46.5 Engine Control Module (ECM), 4-cyl. 1.6l D 4/56 A-H Central Electronic Module (CEM) 4-56 _A-H 4-46_5 4/46.6 Engine Control Module (ECM), 4-cyl. 1.8l 4/59 Convertible Roof Module (CRM) 4-46_6 4-59 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 271 Differential Electronic Module (DEM) 4/103 Remote Receiver Module (RRX) 4-82 4-103 4/83 Control module fuel pump 4/103 Signal receiver, keyless vehicle (RKE) 4-83 4-103RKE 4/86 Parking Assistance Module (PAM) 4/109 Glow plug control module 4-86 4-109 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 272 4/112 Control module, gas discharge lamp master, left Wiper Motor Module (WMM) 4-112 4/113 Control module, gas discharge lamp slave, right Washer pump 4-113 4/126 Left Camera Module (LCM) 6/16 Motor driver’s seat, backrest angle 4-126 6-16 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 273 6-18 6-28 6/19 Motor driver’s seat, fore/aft 6/29 Motor, electric cooling fan 6-19 6-29 6/20 Motor passenger seat, fore/aft 6/32 Rear window wiper motor 6-20 6-32 6/25 Starter motor 6/33 Fuel pump 6-33-2 6-25 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 274 Motor, passenger seat backrest angle 6-38 6-64 6/65 Motor, passenger seat, front edge up/down 6/39 Motor, right headlight adjustment 6-39 6-65 6/48 Damper Motor Module (DMM), 6/66 Motor passenger seat, up/down rear recirculation edge 6-48 6-66 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 275 Coolant pump, auxiliary heater 6-73 6-103 6/95 Damper Motor Module (DMM), 6/104 High pressure headlight washer temperature, left side motor 6-95 6-104 6/96 Damper Motor Module (DMM), right- hand side 6/114 Vacuum pump 6-96 6-114 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 276 Brake fluid level sensor 6-118 6/120 Engine throttle body Washer fluid level sensor 6-120 6/143 Regulator motor, Turbo Oil pressure monitor, 4-cyl 6-143 7-6_4CYL 6/149 Electric catch motor Oil pressure monitor, 5-cyl 6-149 7-6_5CYL TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 277 7/17 Mass air flow sensor (MAF), Turbo 7-17_T 7/12 Solar sensor, twilight sensor and indicator alarm 7/21 Camshaft position sensor 7-12 7-21 7/15 Heated oxygen sensor, front 7/24 Front knock sensor, 4-cyl 7-15 7-24 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 278 Sensor ABS, front left 7-24_T 7-31 7/25 Impulse sensor, 4-cyl 7/32 Sensor ABS, front right 7-32 7-25 7/25 Impulse sensor, 5-cyl 7/41 Temperature sensor evaporator 7-25_S 7-41 7/25 Impulse sensor, Turbo 7/51 Accelerator pedal sensor 7-25_T 7-51 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 279 Sensor input speed 7/77 Temperature sensor, intake air 1 7-61 7-77_1 7/62 Sensor output speed 7/77 Temperature sensor, intake air 2 7-62 7-77_2 7/69 Sensor outdoor temperature 7/81 Pressure sensor, intake manifold 7-69 7-81 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 280 Occupant Weight Sensor (OWS) 7/109 Side impact sensor, rear right 7-93 7-109 7/100 Level sensor alarm, S40 7/110 Sensor temperature driver’s seat 7-100_S40 7-110 7/100 Level sensor alarm, V50 7/111 Sensor temperature passenger seat 7-100_V50 7-111 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 281 7-124 7/121 Angle sensor, Bi-Xenon front 7/130 Fuel level sensor, ejector side 7-121 7-130 7/122 Mass Movement Sensor module 7/131- (MMS), front, S40/V50 7/134 Rear parking assistance sensor LR/O LR/I RR/I RR/O 7-122_S40V50 7-131-7-134 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 282 7/159 Air Quality Sensor (AQS) 7-154 7-159 7/156 Fuel pressure and temperature sensor, 5-cyl 7/162 Pressure sensor, fuel line 7-156_S 7-162 7/156 Pressure and temperature sensor fuel, Turbo 7/163 Camshaft position sensor 2 7-156_T 7-163 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 283 7/179 Front impact sensor, left 7-166 7-179 7/172 Position sensor camshaft, intake side 7/182 Remote control IR sensor, RTI 7-172 7-182 7/173 Position sensor camshaft, exhaust side 7/186 Heated oxygen sensor, rear 7-173 7-186 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 284 7/198 Detector, windshield frame 7-191 7-198 7/204- 7/192 Water detection sensor 7/207 Front parking assistance sensor RF/O RF/I LF/I LF/O 7-204-7-207 7-192 7/193 Position sensor turbo 7/208 Side impact sensor, left door, C70 7-193 7-208 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 285 7/221 Position sensor, rear roof section, 8/6-10 Injection valves 7-221 8-6-8-10 7/222 Position sensor, front roof section, 8/18 EVAP valve 7-222 8-18 7/223 Cargo compartment detector, C70 8/19 Solenoid, variable valve timing, intake 7-223 8-19 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 286 Airbag igniter, passenger side 8/37 Automatic transmission 8-31 8-37 8/32 Igniter, airbag stage 2, passenger side 8/38 Shift solenoid 1 8-32 8-38 8/33 Igniter, belt tensioner, driver’s side 8/39 Shift solenoid 2 8-33 8-39 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 287 Solenoid, variable valve timing, intake 8/56 Igniter, rear right belt tensioner 8-45 8-56 8/48 Auto-dimming rearview mirror 8/57 Igniter, left anti-roll bar 8-48 8-57 8/51 Igniter side airbag, driver’s side 8/58 Igniter, right anti-roll bar 8-51 8-58 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 288 Igniter, left inflatable curtain, C70 8/73 Shift solenoid 4 8-66_C70 8-73 8/67 Igniter, right inflatable curtain, S40/V50 8/74 Shift solenoid 5 8-67_S40V50 8-74 8/67 Igniter, right inflatable curtain, C70 8/77 Control valve, fuel volume 8-67_C70 8-77 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 289 Switch, vacuum pump 8/113 Bypass valve, EGR cooling 8-84 8-113 8/92 Lap belt tensioner, driver 8/114 Valve mixing air/fuel 8-92 8-114 8/119 Pressure monitor, climate control system 8/98 Control valve fuel pressure 8-98 8-119 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 290 8/122 Bypass valve, intercooler 8/133 Control valve fuel pressure 8-122 8-133 8/127 Pressure switch, climate control system 8/134 Solenoid, reverse interlock, manual 8-127 8-134 8/128 Driver’s belt force limiter 8/137 Lock motor, left door compartment 8-128 8-137 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 291 Seat Heating Module (SHM), compartment passenger side 8-140 9-13 8/141 Lock motor, rear right seat 9/16 Heating element, driver’s seat compartment backrest 8-141 9-16 9/17 Heating element, passenger seat backrest Front 12V outlet 9-17 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 292 9-19 9-34 9/25 Rear 12V outlet 9/38 Electrically heated fuel filter 9-25 9-38 9/30 Auxiliary heater 9/41 PTC-element 9-30 9-41 9/32 PTC resistor, oil trap 9/41.1 Electric engine heater 9-32 9-41-1 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 293 10/13 Direction indicator, front left 10-13 10-3 P104_10-13 10/5 Fog light, front left 10/14 Direction indicator, front right 10-5 P104_10-14 10/15 Direction indicator, rear-view mirror driver’s door 10/6 Fog light, front right 10-6 10-15 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 294 10/16 - 10/24 10/16 Direction indicator, passenger door mirror 10/19 Auxiliary brake light, S40/V50 10-16 10-19_S40V50 10/17 Lamp housing, rear right, S40/V50 10/19 Auxiliary brake light, C70 10-17_S40V50 10-19_C70 10/17 Lamp housing, rear right, C70 10/22 Ceiling light, S40/V50 10-22_S40V50...
  • Page 295 10-43_S40V50 10-24_C70 10/25 Cargo compartment lighting 10/43 Right brake light, C70 10-25 10-43_C70 10/26 Reading light, rear left 10/44 Right tail light 1, S40/V50 10-44_S40V50 10-26 10/27 Reading light, rear right 10/44 Right tail light 1, C70 10-27 10-44_C70 10/29 Glove compartment lighting...
  • Page 296 10/45 - 10/51 10/45 Right tail light 2, C70 10/48 Right reversing light, S40/V50 10-48_S40V50 10-45_C70 10/46 Rear right fog light, S40/V50 10/48 Right reversing light, C70 10-46_S40V50 10-48_C70 10/46 Rear right fog light, C70 10/50 Left brake light, S40/V50...
  • Page 297 Component illustrations 10/51 - 10/64 10/51 Left tail light 1, C70 10/54 Rear left direction indicator, S40/V50 10-51_C70 10-54_S40V50 10/52 Left tail light 2, S40/V50 10/54 Rear left direction indicator, C70 10-52_S40V50 10-54_C70 10/52 Left tail light 2, C70 10/55 Left reversing light, S40/V50...
  • Page 298 10/68 High beam, left 10/114 Vanity mirror lighting, left 10-68 10-114 10/69 Auxiliary light, front left 10/115 Vanity mirror lighting, right 10-69 10-115 10/148 Lighting, rear-view mirror driver’s door 10/70 Low beam, left 10-70 10-148 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 299 10/245 Lock indicator, left door 16/3 Speaker, passenger door 10-245 16-3 10/246 Lock indicator, right door 16/4 Speaker, driver’s door 10-246 16-4 15/31 Distribution box in engine compartment 16/5 Speaker, rear right door 15-31 16-5 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 300 16-6 16-16_S40V50 16/9 Window antenna 16/26 Speaker, dashboard middle 16-9 16-26 16/9.1 TMC antenna 16/35 Siren Control Module (SCM), S40 16-9.1 16-35_S40 16/10 Horn 1 16/35 Siren Control Module (SCM), V50 16-10 16-35_V50 16/11 Horn 2 16/35 Siren Control Module (SCM), C70...
  • Page 301 16/46 RTI Display 16-46 16-49.1 16/46.1 RTI Display 16/55 Treble speaker, driver’s door 16-46.1 16-55 16/47 GSM/GPS/RDAR antenna, S40/V50 16/56 Treble speaker, passenger door 16-47_S40V50 16-56 16/47 GSM/GPS/RDAR antenna, C70 16/60 Phone Module (PHM) 16-47_C70 16-60 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 302 16-79_C70 16/93 Control module, cellular phone handsfree 16/64 Cellular phone antenna, C70 16-64_C70 16-93 16/67 Antenna amplifier, bumper 16/98 Microphone 16-67 16-98 16/68 TMC and FM subantenna, bumper 16/105 Audio Module (AUD) 16-68 16-105 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 303 16-132 16-127 16/133 Antenna, rear door lock cabin 1, S40/V50 16/128 Antenna, front left door lock 16-128 16-133_S40V50 16/129 Antenna, door lock, front right 16/133 Antenna door lock cabin 1 rear, C70 16-129 16-133_C70 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 304 Component illustrations 16/134 - 16/141 16/134 Antenna, door lock cabin 2, S40/V50 16/137 Treble speaker, rear right door 16-137 16-134_S40V50 16/134 Antenna door lock cabin 2, C70 16/138 Rear window antenna, right 16-138 16-134_C70 16/139 Global Positioning System module (GPS)
  • Page 305 4-pin outlet, tow hitch cable harness 16-150 17-37 16/151 Distribution filter, front left door 17/38 7-pin outlet, tow hitch cable harness 16-151 17-38 17/39 13-pin outlet, tow hitch cable harness 16/152 Distribution filter, front right door 16-152 17-39 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 306 20/3-7 Spark plug and ignition coil 31/4 Ground connection, engine 20-3-20-7 31-4 31/6 Ground connection, A-post, driver’s side 20/17 Transformer, ignition coils 20-17 31-6 31/10 Ground connection, A-post, passenger side 20/22-26Glow plug 20-22_26 31-10 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 307 31/84 Ground connection, A-post, strut tower passenger side 31-52 31-84 31/66 Ground connection, front left seat riser 31/88 Ground connection, engine 31-66 31-88 31/67 Ground connection, front right seat riser 31/89 Ground connection, engine 31-67 31-89 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 308 31/116 Ground connection, right A-post 31-107 31-116 31/110 Ground connection, right 31/119 Ground connection, left MacPherson MacPherson strut tower strut tower 31-110 31-119 31/112 Ground connection, right MacPherson strut tower 64/25G Connector 31-112 64-25G TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 309 64/30 - 64/49 64/30 Connector 64/43 Connector 64-30 64-43 64/31 Connector 64/45 Connector 64-31 64-45 64/34 Connector 64/47 Connector 64-34 64-47 64/40 Connector 64/48 Connector, S40/V50 64-40 64-48 64/41 Connector 64/49 Connector 64-41 64-49 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 310 Component illustrations 64/50 - 64/111 64/50 Connector 64/79V Connector 64-50 64-79V 64/51 Connector 64/80 Connector 64-51 64-80 64/53 Connector 64/80A Connector 64-53 64-80A 64/60 Connector 64/90 Connector 64-90 64/70 Connector 64/111 Connector 64-70 64-111 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 311 64-112 64-233 64/113 Connector 64/245 Connector 64-113 64-245 64/114 Connector 64/246 Connector 64-114 64-246 64/120 Connector 64/250 Connector 1 1 1 1 1 1 1 1 64-120 64-250 64/179 Connector 64/322 Connector 64-179 64-322 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 312 Component illustrations 64/425 - 64/707 64/425 Connector 64/660 Connector 64-425 64-660 64/545 Connector 64/661 Connector 64-545 64-661 64/596 Connector 64/662 Connector 64-596 64-662 64/599 Connector 64/663 Connector 64-663 64/600 Connector 64/707 Connector 64-600 64-707 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 313 64/708 - F/no. 64/708 Connector 64/978 Connector 64-978 64-708 64/816 Connector 64/979 Connector 64-816 64-979 64/817 Connector 64/1300 Connector 64-1300 64-817 64/861 Connector 64/1400 Connector 64-1400 64-861 64/862 Connector F/no. Fuse, passenger compartment 64-862 F-nr_C TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 314 16X/105AConnector interface, original car 16X/105BConnector interface, original car 17X/19 Connector interface, original car 64X/322 Connector interface, original car FH-nr PF/no. Main fuse by battery PF-nr R/no. Relay, passenger compartment R18- R15- R-nr_C R/no. Relay, soldered R-nr_S TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 316: Index 1:2

    Ignition switch and relays ..........22 Driver’s door harness ..........255 Ignition switch symbols ..........7 Driver’s seat memory function ......170 Immobilizer ..............107 Instrument and control illumination ......96 Instruments, Group 38 ........123 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 317: Table Of Contents

    Turn by Turn navigation ..........138 Power windows, rear doors ........162 PTC element ............. 181 Windshield wiper/washer .......... 102 Wiring and fuses, Group 37 ........117 Rear door harness ............ 257 Rear parking assistance ........... 112 TP 3999202 S40 (04-)/V50/C70 (06-) 2007...

  • Page 318: List Of Components 1:6

    4/83 Control module fuel pump 3/86 Power window switch, rear right door 4/86 Parking Assistance Module (PAM) 3/93 Belt buckle contact, driver’s seat 4/93 Keyless Vehicle Module (KVM) 3/94 Belt buckle contact, passenger seat TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 319 Damper Motor Module (DMM), right-hand 7/81 Pressure sensor, intake manifold side 7/82 Heated oxygen sensor, rear 6/99 Engine EGR 7/86 Intake air temperature sensor, Diesel 6/102 Damper Motor Module (DMM), 7/93 Occupant Weight Sensor (OWS) defroster TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 320 8/140 Lock motor, rear left seat 7/223 Cargo compartment detector, C70 compartment 7/224 Hall sensor, roof, C70 8/141 Lock motor, rear right seat 7/230 Sensor, folding of backrest compartment 7/231 Sensor, folding of backrest TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 321 10/245 Lock indicator, left door 10/22 Ceiling light, S40/V50 10/246 Lock indicator, right door 10/22 Ceiling light, C70 10/24 Cargo compartment lighting, S40 15/31 Distribution box in engine 10/24 Cargo compartment lighting, C70 compartment TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 322 Antenna, rear right door lock 4-cyl. 16/132 Antenna, door lock, bumper 31/102 Ground connection, front member, 16/133 Antenna, rear door lock cabin 1, S40/V50 5-cyl. 16/133 Antenna door lock cabin 1 rear, C70 31/107 Ground connection, tailgate (V50) 16/134 Antenna, door lock cabin 2, S40/V50...
  • Page 323 Connector interface, original car 64/250 Connector 16X/105A Connector interface, original car 64/322 Connector 16X/105B Connector interface, original car 64/425 Connector 17X/19 Connector interface, original car 64/545 Connector 64X/322 Connector interface, original car 64/596 Connector TP 3999202 S40 (04-)/V50/C70 (06-) 2007...
  • Page 324 TP 3999202 (US English). Printed in Sweden, Gothenburg 06-2006...

This manual is also suitable for:

V50C702007 s402007 v502007 c70

Table of Contents
