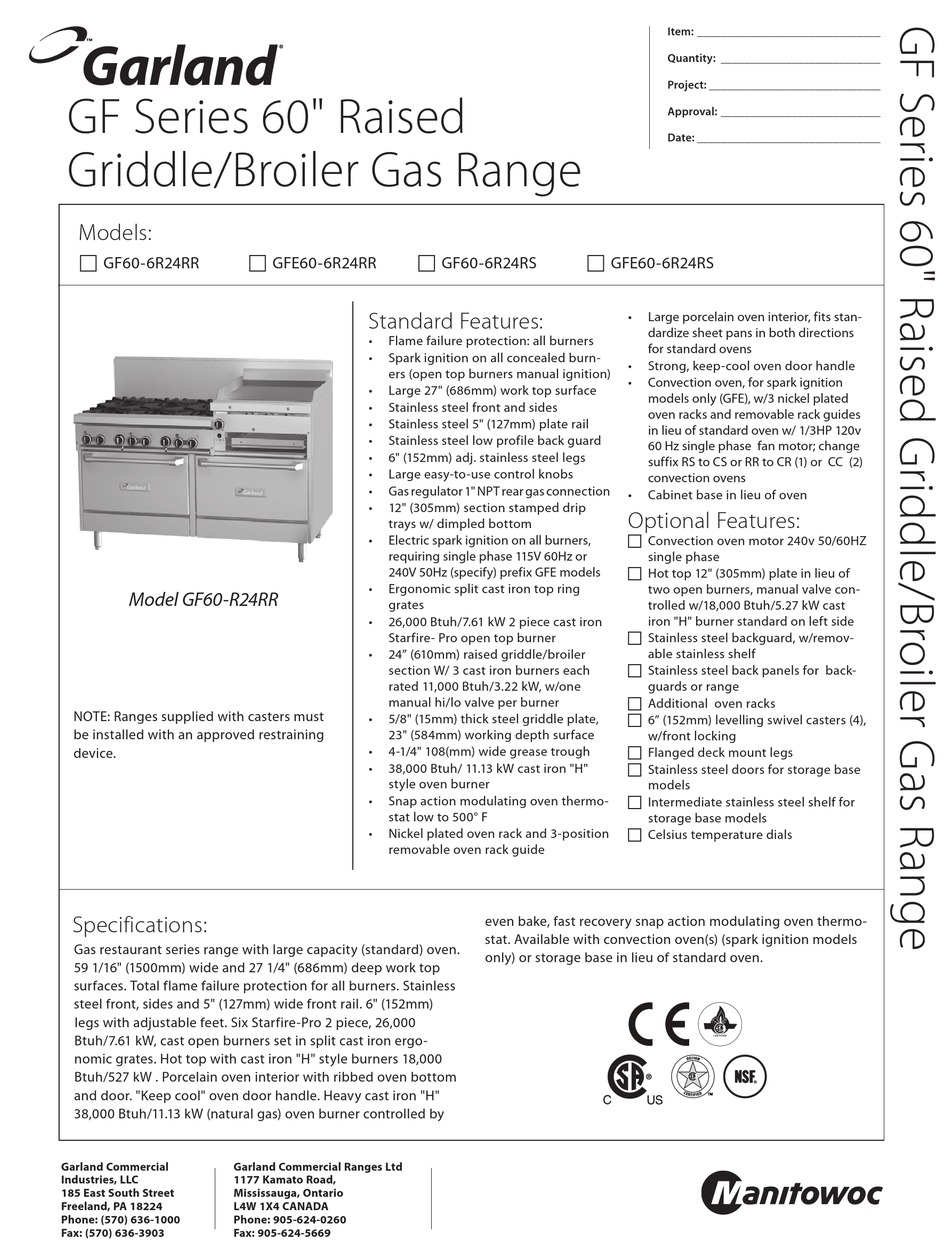

Garland GF60-6R24RR Instruction Manual

GF Series 60" Raised
Griddle/Broiler Gas Range
Models:
 GF60-6R24RR
Model GF60-R24RR
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

Gas restaurant series range with large capacity (standard) oven.
59 1/16" (1500mm) wide and 27 1/4" (686mm) deep work top
surfaces. Total flame failure protection for all burners. Stainless
steel front, sides and 5" (127mm) wide front rail. 6" (152mm)
legs with adjustable feet. Six Starfire-Pro 2 piece, 26,000
Btuh/7.61 kW, cast open burners set in split cast iron ergo-
nomic grates. Hot top with cast iron "H" style burners 18,000
Btuh/527 kW . Porcelain oven interior with ribbed oven bottom
and door. "Keep cool" oven door handle. Heavy cast iron "H"
38,000 Btuh/11.13 kW (natural gas) oven burner controlled by
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 GFE60-6R24RR  GF60-6R24RS

Standard Features:

• Flame failure protection: all burners
• Spark ignition on all concealed burn-
ers (open top burners manual ignition)
• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel low profile back guard
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator 1" NPT rear gas connection
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• Electric spark ignition on all burners,
requiring single phase 115V 60Hz or
240V 50Hz (specify) prefix GFE models
• Ergonomic split cast iron top ring
grates
• 26,000 Btuh/7.61 kW 2 piece cast iron
Starfire- Pro open top burner
• 24" (610mm) raised griddle/broiler
section W/ 3 cast iron burners each
rated 11,000 Btuh/3.22 kW, w/one
manual hi/lo valve per burner
• 5/8" (15mm) thick steel griddle plate,
23" (584mm) working depth surface
• 4-1/4" 108(mm) wide grease trough
• 38,000 Btuh/ 11.13 kW cast iron "H"
style oven burner
• Snap action modulating oven thermo-
stat low to 500° F
• Nickel plated oven rack and 3-position
removable oven rack guide
 GFE60-6R24RS
•
•
•
•

Optional Features:

 Convection oven motor 240v 50/60HZ
 Hot top 12" (305mm) plate in lieu of
 Stainless steel backguard, w/remov-
 Stainless steel back panels for back-
 Additional oven racks
 6" (152mm) levelling swivel casters (4),
 Flanged deck mount legs
 Stainless steel doors for storage base
 Intermediate stainless steel shelf for
 Celsius temperature dials
even bake, fast recovery snap action modulating oven thermo-
stat. Available with convection oven(s) (spark ignition models
only) or storage base in lieu of standard oven.
Enodis UK LTD
5E Langley Business Centre,
Station Road
Langley SL3 8DS Great Britain
Phone: 01753 485900
Fax: 01753 485901
Item: _______________________________
Quantity: ___________________________
Project: _____________________________
Approval: ___________________________
Date: _______________________________
Large porcelain oven interior, fits stan-
dardize sheet pans in both directions
for standard ovens
Strong, keep-cool oven door handle
Convection oven, for spark ignition
models only (GFE), w/3 nickel plated
oven racks and removable rack guides
in lieu of standard oven w/ 1/3HP 120v
60 Hz single phase fan motor; change
suffix RS to CS or RR to CR (1) or CC (2)
convection ovens
Cabinet base in lieu of oven
single phase
two open burners, manual valve con-
trolled w/18,000 Btuh/5.27 kW cast
iron "H" burner standard on left side
able stainless shelf
guards or range
w/front locking
models
storage base models
