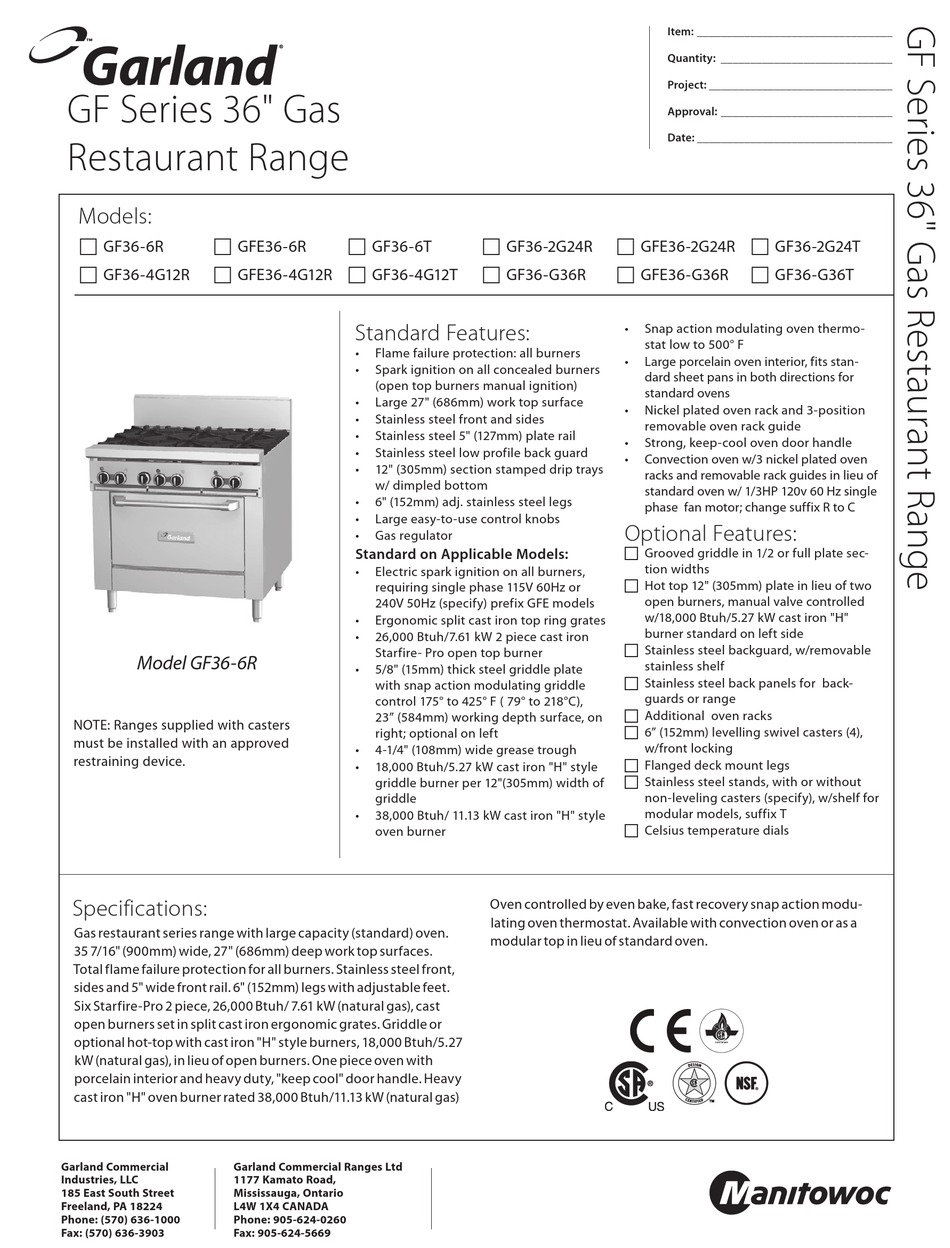

GF Series 36" Gas
Restaurant Range
Models:
 GF36-6R
 GFE36-6R
 GF36-4G12R
 GFE36-4G12R  GF36-4G12T
Model GF36-6R
NOTE: Ranges supplied with casters
must be installed with an approved
restraining device.

Specifications:

Gas restaurant series range with large capacity (standard) oven.
35 7/16" (900mm) wide, 27" (686mm) deep work top surfaces.
Total flame failure protection for all burners. Stainless steel front,
sides and 5" wide front rail. 6" (152mm) legs with adjustable feet.
Six Starfire-Pro 2 piece, 26,000 Btuh/ 7.61 kW (natural gas), cast
open burners set in split cast iron ergonomic grates. Griddle or
optional hot-top with cast iron "H" style burners, 18,000 Btuh/5.27
kW (natural gas), in lieu of open burners. One piece oven with
porcelain interior and heavy duty, "keep cool" door handle. Heavy
cast iron "H" oven burner rated 38,000 Btuh/11.13 kW (natural gas)
Garland Commercial
Garland Commercial Ranges Ltd
Industries, LLC
1177 Kamato Road,
185 East South Street
Mississauga, Ontario
Freeland, PA 18224
L4W 1X4 CANADA
Phone: (570) 636-1000
Phone: 905-624-0260
Fax: (570) 636-3903
Fax: 905-624-5669
 GF36-6T
 GF36-2G24R
 GF36-G36R

Standard Features:

Flame failure protection: all burners
Spark ignition on all concealed burners
(open top burners manual ignition)
Large 27" (686mm) work top surface
Stainless steel front and sides
Stainless steel 5" (127mm) plate rail
Stainless steel low profile back guard
12" (305mm) section stamped drip trays
w/ dimpled bottom
6" (152mm) adj. stainless steel legs
Large easy-to-use control knobs
Gas regulator
Standard on Applicable Models:
Electric spark ignition on all burners,
requiring single phase 115V 60Hz or
240V 50Hz (specify) prefix GFE models
Ergonomic split cast iron top ring grates
26,000 Btuh/7.61 kW 2 piece cast iron
Starfire- Pro open top burner
5/8" (15mm) thick steel griddle plate
with snap action modulating griddle
control 175° to 425° F ( 79° to 218°C),
23" (584mm) working depth surface, on
right; optional on left
4-1/4" (108mm) wide grease trough
18,000 Btuh/5.27 kW cast iron "H" style
griddle burner per 12"(305mm) width of
griddle
38,000 Btuh/ 11.13 kW cast iron "H" style
oven burner
Oven controlled by even bake, fast recovery snap action modu-
lating oven thermostat. Available with convection oven or as a
modular top in lieu of standard oven.
Enodis UK LTD
5E Langley Business Centre,
Station Road
Langley SL3 8DS Great Britain
Phone: 01753 485900
Fax: 01753 485901
Item: _________________________________
Quantity: _____________________________
Project: _______________________________
Approval: _____________________________
Date: _________________________________
 GFE36-2G24R  GF36-2G24T
 GFE36-G36R
 GF36-G36T
Snap action modulating oven thermo-
stat low to 500° F
Large porcelain oven interior, fits stan-
dard sheet pans in both directions for
standard ovens
Nickel plated oven rack and 3-position
removable oven rack guide
Strong, keep-cool oven door handle
Convection oven w/3 nickel plated oven
racks and removable rack guides in lieu of
standard oven w/ 1/3HP 120v 60 Hz single
phase fan motor; change suffix R to C

Optional Features:

 Grooved griddle in 1/2 or full plate sec-
tion widths
 Hot top 12" (305mm) plate in lieu of two
open burners, manual valve controlled
w/18,000 Btuh/5.27 kW cast iron "H"
burner standard on left side
 Stainless steel backguard, w/removable
stainless shelf
 Stainless steel back panels for back-
guards or range
 Additional oven racks
 6" (152mm) levelling swivel casters (4),
w/front locking
 Flanged deck mount legs
 Stainless steel stands, with or without
non-leveling casters (specify), w/shelf for
modular models, suffix T
 Celsius temperature dials
