Understanding the Touch Panel Call Indicators

Call connection bars
Your IP Address
Name of the far site
Hang Up button
Audio level bar
Current time
2 - 6

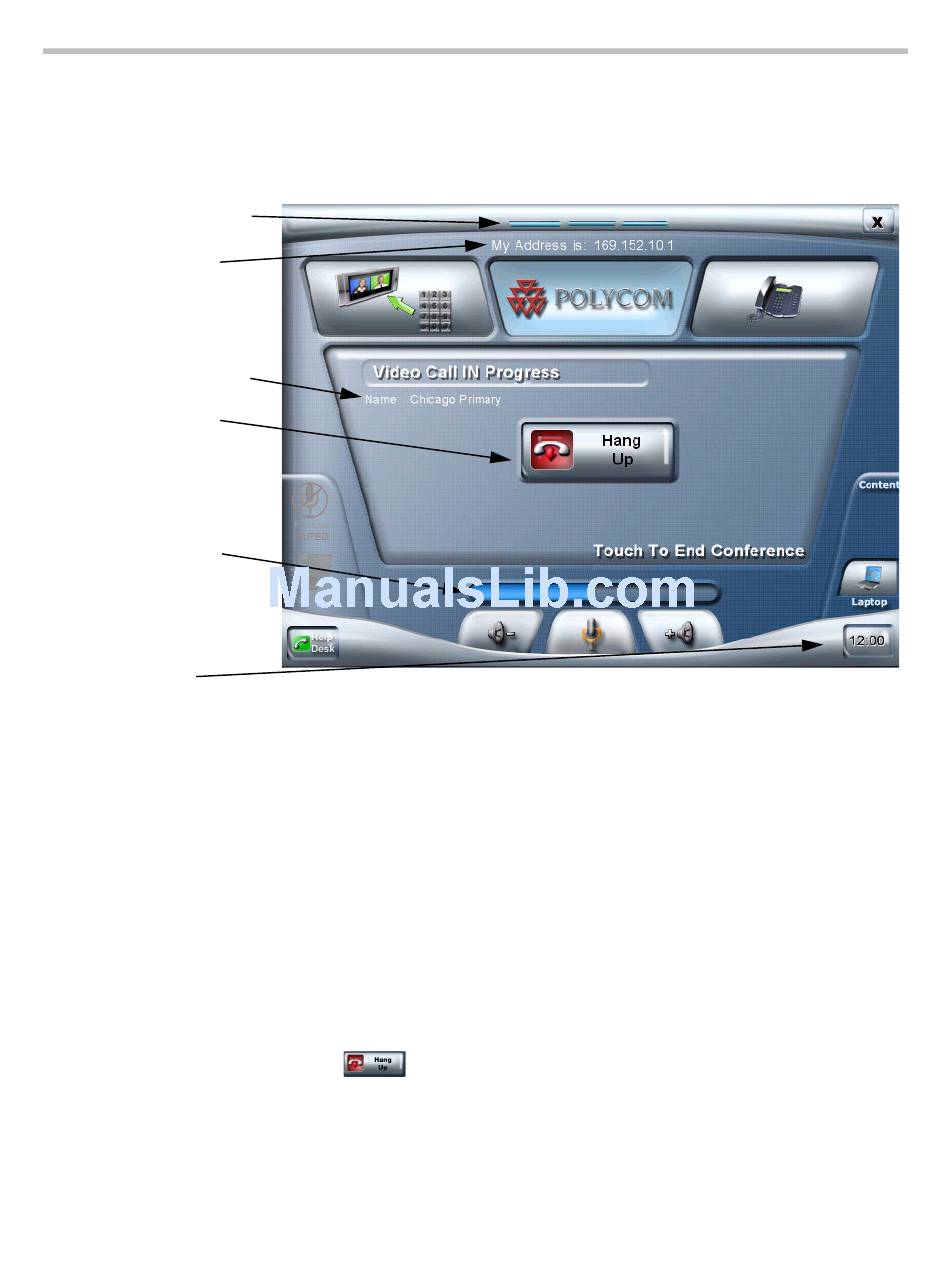

When you are in a call, the Touch Panel Home screen changes to display
information you may need during the call:
These are the changes you can expect to see on the Touch Panel Home screen
when you are in a call:
• Call connection indicators at the top of the screen light up to show you that
you are connected to another video conferencing system:
— All three indicators light up when you are connected to a TPX HD
306M or a Polycom RPX HD 400 Series.
— The left and center indicators light up when you are connected to a
Polycom RPX HD 200 Series.
— Only the center indicator lights up when you are connected to a
traditional video conferencing system.
• Your IP address and the name of the far site appear on the screen.
• The Hang Up button appears in the middle of the screen, enabling
you to end the call quickly and easily.
• A horizontal bar shows the audio level.
• The current time is displayed.
Home Screen: In a Call
