Polycom TPX HD 306M User Guide

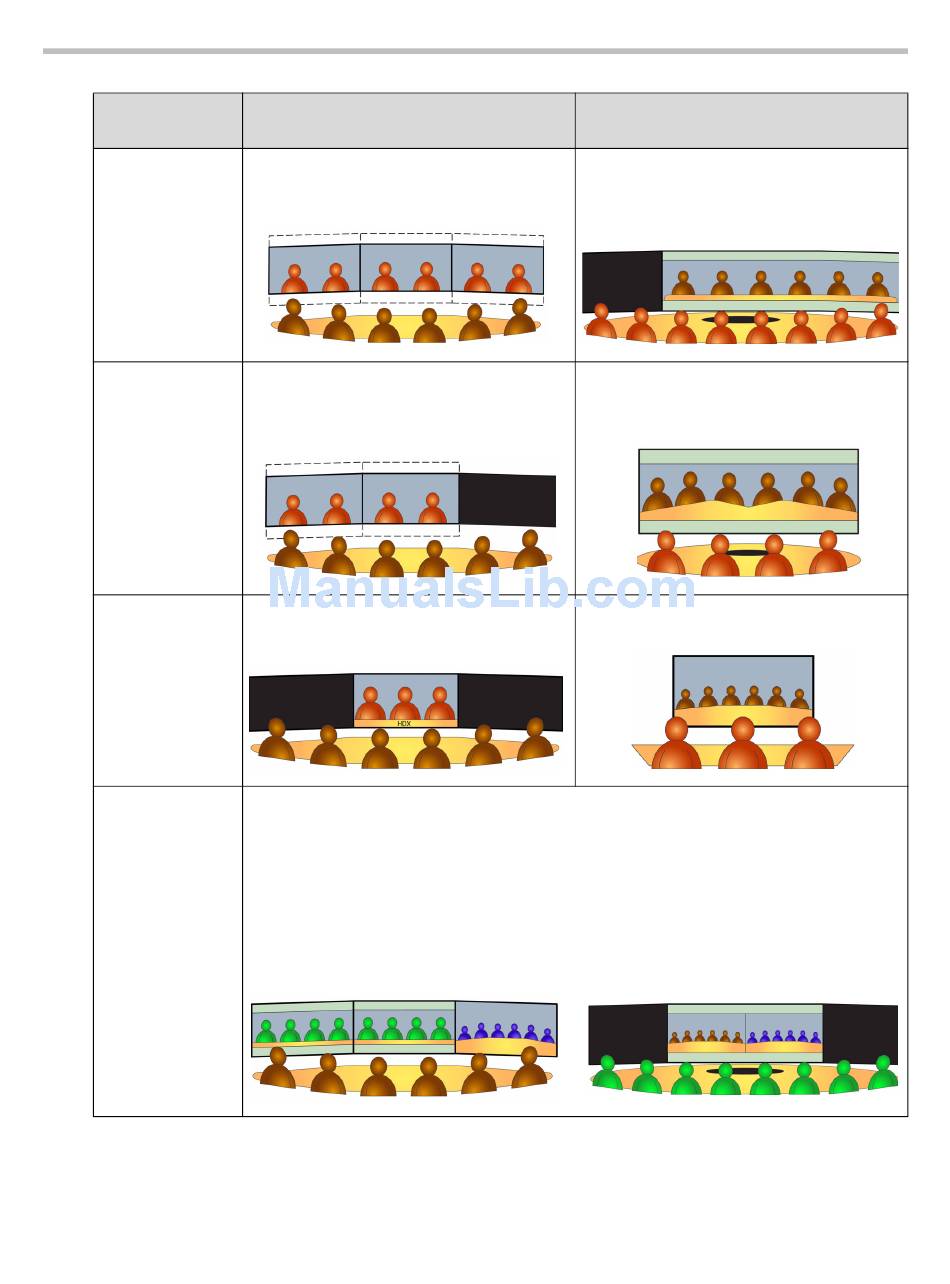

If you make a
call to...
RPX HD 400
Series
RPX HD 200
Series
Traditional video
conferencing
system (such as
a Polycom HDX
platforms)
More than one
other site
(multipoint call)
3 - 2
This is what you will see in your TPX
HD 306M room...
The right six seats at the RPX HD main
table. Two seats are shown on each
display.
The entire RPX HD Suite. Two seats are
shown on the left display and two seats
are shown on the center display. The right
display is blank.
The people at the far site on the center
display. The left and right displays are
blank.
In multipoint calls, the TPX HD 306M typically adjusts so that the full room is in view.
However, what you see and what the far site sees varies depending on a variety of
factors including the number of sites in the call, the types of systems in the call, and so
forth. If a site if using the VNOC, the VNOC operator usually configures the layout so
that every site sees all the other sites in the call.
The following illustrations show what you might see with two TPX HD 306Ms and one
RPX HD 400 Series in a multipoint call. The illustration on the left shows the view from
the TPX HD 306M site; the illustration on the right shows the view from the RPX HD 400
Series site.
This is what the far site will see...
The entire TPX HD 306 room. Two seats
are shown on the far right display, on the
center right display, and on the center left
display. The far left display is blank.
The entire TPX HD 306 room. Three seats
are shown on each display.
The entire TPX HD 306 room on the
People display.
