Please take a moment to fill out and mail your warranty card. This
will register your warranty, make you eligible for technical support,
and allow us to notify you with updates and new product information.
Don't worry, we respect your privacy and never sell our mailing list.

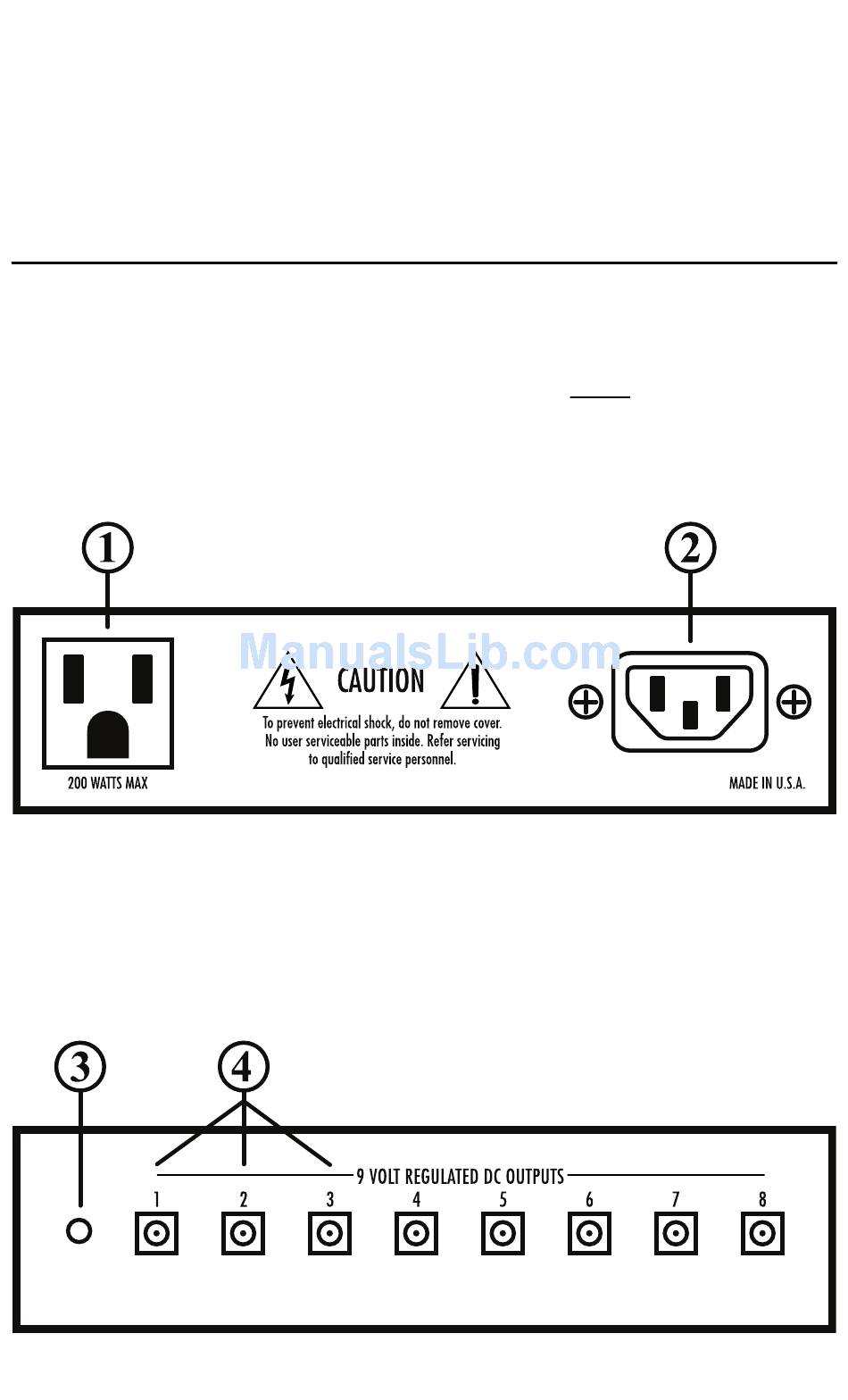

System Unit Description
1. AC auxiliary. This is a courtesy AC outlet for convenient
powering of AC powered effects or a MIDI foot controller.
Note the 200 watt maximum rating. Do NOT plug in your
amp here!
2. AC power input jack. This is a standard "IEC-type" connector.
3. Power indicator. This LED indicates the Pedal Power system
unit is operating.
4. DC output jacks (8). Each output provides 9 volts of isolated,
filtered and regulated DC power for your pedal effects.
