Summary of Contents for Voodoo Lab Pedal Power 2 Plus
- Page 1 PEDAL POWER PLUS User’s Manual...
- Page 2 This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form without the express prior consent in writing from Digital Music Corporation. Voodoo Lab and Pedal Power are trademarks of Digital Music Corp.

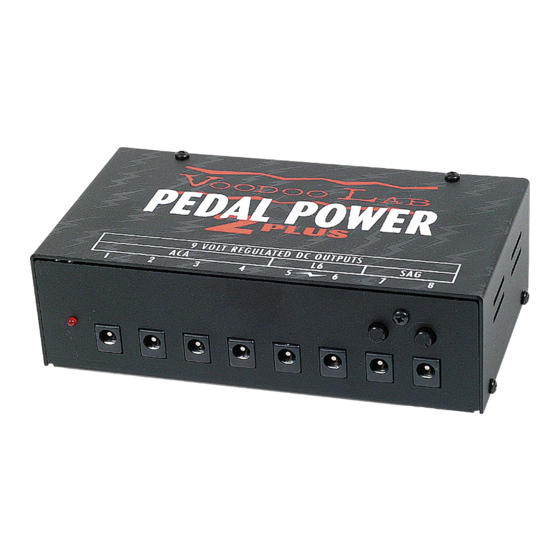

- Page 3 This insures reliable operation, free of hum and noise. The new Pedal Power 2 Plus now powers Line6 modeling pedals, Boss Twin pedals, and includes two variable voltage outputs to simulate worn batteries. The U.S. model (120V input) can operate from 50Hz or 60Hz mains to allow use with a step-down trans- former in 50Hz countries.
- Page 4 Please take a moment to fill out and mail your warranty card. This will register your warranty, make you eligible for technical support, and allow us to notify you with updates and new product information. Don’t worry, we respect your privacy and never sell our mailing list. System Unit Description AC auxiliary.
- Page 5 Voodoo Lab can supply you with most necessary materials includ- ing dual lock, cable, connectors, hardware and many professional wiring accessories. Contact us for current availability and pricing.
- Page 6 RED barrel (2), a 3.5mm mini-plug (1), or a battery snap (1). Use the standard barrel connector cables with Boss, newer DOD, Ibanez and Voodoo Lab pedals. If you have a pedal from another manufacturer which appears to use the same connector, you must verify that the polarity is “center negative”...
- Page 7 This will mate with the battery snap inside your pedal once its battery has been removed. Voltage Selector DIP Switches On the bottom of the Pedal Power is an 8 position DIP switch with switches numbered 1-8. These switches correspond to Outputs 1-8 and select the output voltage.
- Page 8 It is not recommended for digital pedals. More About Cables The DC power cables supplied with your Voodoo Lab Pedal Power 2 are suitable for most common pedal effects. If you need additional cables they are available directly from Voodoo Lab. If you need cables of a different length, with reversed polarity, or with a special connector, contact us and we can provide them for you.
-
Page 9: Frequently Asked Questions
The barrel connectors provided are for center negative and the 3.5mm mini plugs are for tip positive. If your pedal is different from this, contact Voodoo Lab to obtain the correct cable. Doesn’t my pedal need a 300mA power supply? Not if it runs on a standard 9V battery. - Page 10 Yes. Because the Pedal Power’s outputs are individually iso- lated, you can wire two of them in series for 18V . Be sure to observe proper polarity. Voodoo Lab can provide you with a custom cable to do this. How can I get additional DC power cables? Contact your dealer to obtain additional cables.
- Page 11 Specifications Input: IEC connector 120V 50/60Hz (North America) 100V 60Hz (Japan) 230V 50/60Hz (Europe/Australia) Outputs: 5.5x2.1mm barrel connectors center negative Six 9VDC 100mA regulated Two 9VDC 200mA regulated Four selectable for Boss ACA Two selectable for Line6 Modelers Two adjustable sag 4 to 9V Short circuit protected.
- Page 12 If the product should become defective within the warranty period, Voodoo Lab will repair it or replace it free of charge, provided it is returned freight prepaid to Voodoo Lab with a valid RMA (return material authorization) number.
