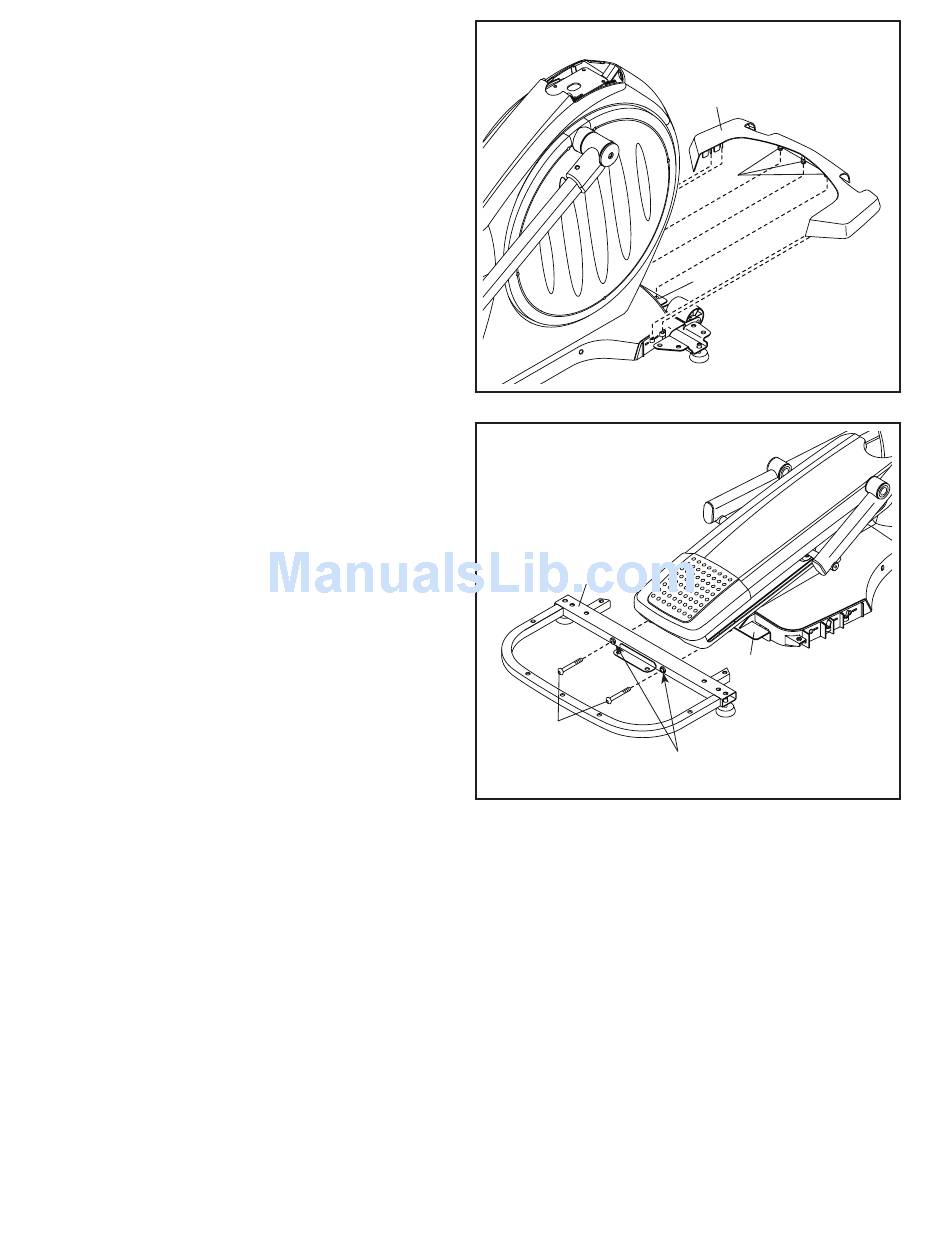

3. Orient the Front Stabilizer Cover (8) as shown.
Press the Mounts (117) (only three are shown)
on the underside of the Front Stabilizer Cover
(8) into the Frame (1). Then, press the Front
Stabilizer Cover into place.
4. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the rear of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the rear of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Orient the Rear Stabilizer (5) so that the welded
tubes are in the locations shown.
Attach the Rear Stabilizer (5) to the Frame (1)
with two M10 x 75mm Screws (119).
Then, remove and discard the shipping bracket
(not shown).
3
4
5
119
9
8
117
1
1
Welded Tubes
