Summary of Contents for Electrolux TK14014

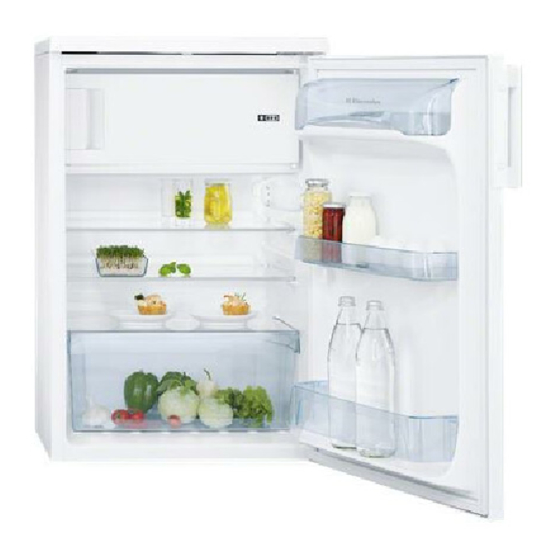

- Page 1 ....................TK14014 EN REFRIGERATOR USER MANUAL ERT1500FW...
-
Page 2: Table Of Contents
ENVIRONMENT CONCERNS ........... . 24 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. -
Page 3: Safety Information
ENGLISH SAFETY INFORMATION In the interest of your safety and to ensure Keep ventilation openings, in the appliance the correct use, before installing and first enclosure or in the built-in structure, clear using the appliance, read this user manual of obstruction. carefully, including its hints and warnings. - Page 4 If the power plug socket is loose, do • Do not use sharp objects to remove frost not insert the power plug. There is a from the appliance. Use a plastic scra- risk of electric shock or fire. per.
- Page 5 ENGLISH ENVIRONMENT PROTECTION This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam con- tains flammable gases: the appli- ance shall be disposed according to the applicable regulations to ob-...
-
Page 6: Product Description
PRODUCT DESCRIPTION Freezing compartment Butter compartment Door shelf Bottle shelf Rating plate (inside) Vegetable drawer Glass shelves... -
Page 7: Operation
ENGLISH OPERATION SWITCHING ON Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting. SWITCHING OFF To turn off the appliance, turn the Temper- ature regulator to the "O" position. TEMPERATURE REGULATION The temperature is automatically regulated. To operate the appliance, proceed as fol- lows: •... -
Page 8: First Use
FIRST USE CLEANING THE INTERIOR Before using the appliance for the first time, wash the interior and all internal accesso- ries with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. -
Page 9: Daily Use
ENGLISH DAILY USE In the event of accidental defrost- FREEZING FRESH FOOD ing, for example due to a power The freezer compartment is suitable for failure, if the power has been off for freezing fresh food and storing frozen and longer than the value shown in the deep-frozen food for a long time. -
Page 10: Helpful Hints And Tips
10 www.electrolux.com HELPFUL HINTS AND TIPS Cooked foods, cold dishes, etc..: these NORMAL OPERATING SOUNDS should be covered and may be placed on • You may hear a faint gurgling and a bub- any shelf. bling sound when the refrigerant is pum- Fruit and vegetables: these should be thor- ped through the coils or tubing. -
Page 11: Frozen Food
ENGLISH HINTS FOR STORAGE OF FROZEN FOOD To obtain the best performance from this appliance, you should: • make sure that the commercially frozen foodstuffs were adequately stored by the retailer; • be sure that frozen foodstuffs are trans- ferred from the foodstore to the freezer in the shortest possible time;... -
Page 12: Care And Cleaning
12 www.electrolux.com CARE AND CLEANING CAUTION! Clean the condenser (black grill) and the Unplug the appliance before carry- compressor at the back of the appliance ing out any maintenance operation. with a brush. This operation will improve the performance of the appliance and save This appliance contains hydrocar- electricity consumption. - Page 13 ENGLISH Switch on the appliance. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting. Reload the previously removed food in- to the compartment. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.
-
Page 14: What To Do If
14 www.electrolux.com WHAT TO DO IF… WARNING! There are some sounds during nor- Before troubleshooting, disconnect mal use (compressor, refrigerant the mains plug from the mains circulation). socket. Only a qualified electrician or com- petent person must do the trouble- shooting that is not in this manual. - Page 15 ENGLISH Problem Possible cause Solution Products prevent that wa- Make sure that products do ter flows into the water col- not touch the rear plate. lector. Water flows on the The melting water outlet Attach the melting water ground. does not flow in the evapo- outlet to the evaporative rative tray above the com- tray.
-
Page 16: Replacing The Lamp
16 www.electrolux.com REPLACING THE LAMP Disconnect the mains plug from the mains socket. Remove the screw from the lamp cov- Remove the lamp cover (refer to the il- lustration). Replace the used lamp with a new lamp of the same power and specifi- cally designed for household applian- ces. -
Page 17: Installation
ENGLISH INSTALLATION WARNING! class indicated on the rating plate of the Read the "Safety Information" care- appliance: fully for your safety and correct op- Cli- Ambient temperature eration of the appliance before in- mate stalling the appliance. class POSITIONING +10°C to + 32°C +16°C to + 32°C This appliance can be installed in a dry, well ventilated indoor (garage or cellar) also,... -
Page 18: Detaching The Worktop
18 www.electrolux.com INSTALLING UNDER A CONTINUOUS WORKTOP If your refrigerator is installed under a con- tinuous worktop, an air outlet opening of at 200 cm least 200cm and a ventilation grille match- 105 mm ing the worktop design should be installed 570 mm at the rear of the worktop. -
Page 19: Door Reversibility
ENGLISH FITTING AND MOUNTING TO CONTINUOUS WORKTOP Before fitting, change the door opening di- rection if necessary (see: Door reversibility). • Push the appliance carefully into the ni- che. • Take care that the mains cable is not jammed in. •... -
Page 20: Freezer Door
20 www.electrolux.com • Remove the door by pulling it down- wards while keeping it slightly opened. • Unscrew the upper door hinge, and screw it in on the opposite side. • Put the door back in its place. • Relocate the door holder pin in the door hinge as per the figure. -
Page 21: Plug Socket
ENGLISH 180˚ PLUG SOCKET CAUTION! Make sure that the mains cable can move freely. The plug socket necessary for connection of your appliance to the electricity supply should be positioned so that it is possible to pull out the appliance plug. If your appliance is installed under a contin- uous worktop, the plug socket should be provided as shown. -
Page 22: Noises
22 www.electrolux.com NOISES There are some sounds during normal run- ning (compressor, refrigerant circulation). HISSS! BRRR! BRRR! BRRR! BLUBB! BLUBB! -
Page 23: Technical Data
ENGLISH HISSS! HISSS! SSSRRR! SSSRRR! CRACK! CRACK! TECHNICAL DATA Dimension Height 850 mm Width 550 mm Depth 612 mm Rising Time 11 h Voltage 230 V Frequency 50 Hz The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label. -
Page 24: Environment Concerns
24 www.electrolux.com ENVIRONMENT CONCERNS and electronic appliances. Do not dispose Recycle the materials with the symbol with appliances marked with the symbol Put the packaging in applicable containers to recycle it. the household waste. Return the product Help protect the environment and human... - Page 25 ENGLISH...
- Page 26 26 www.electrolux.com...
- Page 27 ENGLISH...
- Page 28 200383991-A-432011...
