PART IDENTIFICATION CHART

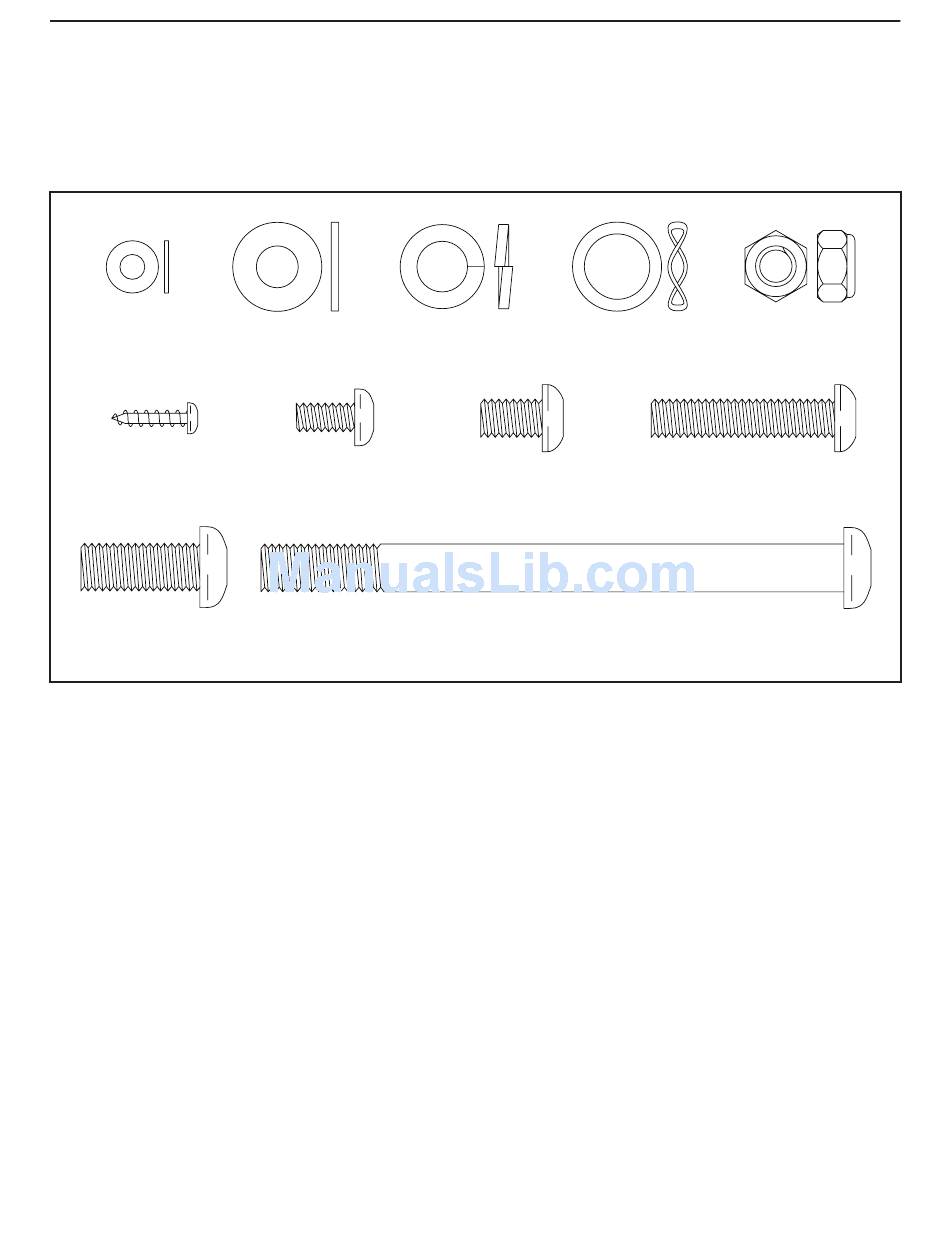

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Locknut
M5 Washer
M8 Washer M10 Split 16mm Wave
(94)––2 (102)––4
Washer (105)––8
(97)––8 Washer (54)––2
M4 x 16mm
M6 x 12mm M8 x 13mm M8 x 38mm
Screw (101)––16
Screw (103)––8 Bolt (96)––4
Screw (82)––8
M10 x 25mm M10 x 122mm
Screw (99)––4 Screw (104)––4
7
