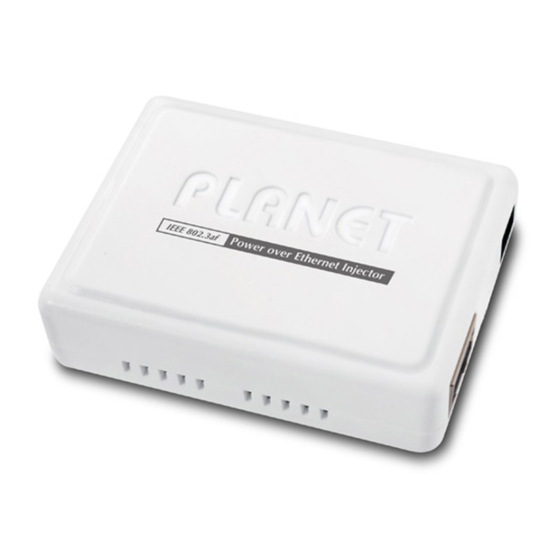

Power over ethernet adapter

Advertisement

Copyright
Copyright (C) 2005 PLANET Technology Corp. All rights
reserved.
The products and programs described in this User's
Manual are licensed products of PLANET Technology,
This User's Manual contains proprietary information
protected by copyright, and this User's Manual and all
accompanying hardware, software, and documentation
are copyrighted.
No part of this User's Manual may be copied, photo-
copied, reproduced, translated, or reduced to any elec-
tronic medium or machine-readable form by any means
by electronic or mechanical. Including photocopying,
recording, or information storage and retrieval systems,
for any purpose other than the purchaser's personal
use, and without the prior express written permission of
PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware
will work properly in all environments and applications,
and makes no warranty and representation, either
implied or expressed, with respect to the quality, per-
formance, merchantability, or fitness for a particular
purpose.
PLANET has made every effort to ensure that this User's
Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User's Manual is subject to change
without notice and does not represent a commitment on
the part of PLANET. PLANET assumes no responsibility
for any inaccuracies that may be contained in this User's
Manual. PLANET makes no commitment to update or
keep current the information in this User's Manual, and
reserves the right to make improvements to this User's
Manual and/or to the products described in this User's
Manual, at any time without notice.
If you find information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your
comments and suggestions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet POE-150

  • Page 1 Copyright Copyright (C) 2005 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted.
  • Page 2: Ce Mark Warning

    Trademarks The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware and software products by their trade names. In most, if...
  • Page 3: Table Of Contents

    Chapter 2 Package Contents Chapter 3 Features & Specifications Chatper 4 Hardware Installation 4.1 Prior Installation 4.2 POE-150, the Injector installation 4.3 POE-150S, the Splitter installation 4.4 Connect with 802.3af devices Appendix A RJ-45 pin assignment and cable system 12 A.1 Pin assignment...
  • Page 4 This page is intentionally left blank...
  • Page 5: Chapter 1 Introduction

    The POE-150 and POE-150S is an IEEE802.3af Power over Ethernet devices that provide 48V DC over Ethernet cables. The POE-150 / 150S product includes are an Injector and a splitter. An injector inserts DC Voltage into the CAT 5 cable allowing the cable between the Injector and Splitter to transfer data and power simultaneously.
  • Page 6: Chapter 2 Package Contents

    Chapter 2 Package Contents Your Power over Ethernet package shall contains one of the following contents: ® POE-150 – the power Injector Power over Ethernet Injector x 1 Power Adapter x 1 User’s Manual x 1 Reminder Paster x 1 ®...
  • Page 7: Chapter 3 Features & Specifications

    • Work with EIA568, category 5, 4-pair cable for 10Base-T or 100Base-TX. (2) Technical Specification Product Power over Ethernet Injector Model POE-150 Standard IEEE802.3, IEEE802.3u, 10/100Base-TX IEEE802.3af Ethernet connector 2 x RJ-45 (1 for Data in, 1 for Data+DC out)
  • Page 8 Input voltage 48VDC, 0.4A Number of devices that can be powered Ethernet data cable TIA/EIA-568, Category 5/5e cable LED Indicator 1 x power 1 x POE ready / in-use Dimensions 93 x 69 x 25 mm (L x W x H) Emission FCC class B, CE-mark Product...
  • Page 9 Dimensions 93 x 69 x 25 mm (L x W x H) Emission FCC class B, CE-mark (3) Product Outlook Figure 1: POE-150...
  • Page 10 Figure 2: POE-150S...
  • Page 11: Chatper 4 Hardware Installation

    DC power for this Ethernet Device conveniently and easily. The POE-150 comes with an AC-DC adapter with 48VDC output and injects this DC power into the un-used pin of the twisted pair cable (pair 4, 5 and pair 7, 8).
  • Page 12: Poe-150, The Injector Installation

    3. In the other end of the cable, place the paster to the RJ- 45 cable as the figure below. 4. Connect the AC adapter to “48V DC” of POE-150. The power LED will be steady on. Figure 3: Warning paster location 4.3 POE-150S, the Splitter installation...
  • Page 13 LED of POE-150S / POE-150 will start to flash continu- ously. Figure 5: Connection to POE-150S Supporting IEE802.3af, POE-150 will not  inject power to the cable if you are not con- NOTE: necting to an 802.3af device. POE-150S only accepts IEEE802.3af power...
  • Page 14: Connect With 802.3Af Devices

    Camera where support 802.3af In-line power Ethernet port. Please find the figure below for the connection. Figure 7: Connection to 802.3af device Once POE-150 detects is the existence of an IEEE802.3af device, the LED indicator will be steady ON to shows it is providing power.
  • Page 15 non-802.3af devices connecting to an IEEE802.3af in-line power device like Power over Ethernet Switch. The figure is as below. Figure 8: Connection to 802.3af in-line power switch Comply with IEEE802.3af, POE-150S also can co-work with IEEE802.3af end-span switch that feeding power over pin 1, 2, Hint and 3, 6.
  • Page 16: Appendix A Rj-45 Pin Assignment And Cable System

    DC current* Rx - (receive) TX - (transmit) 7, 8 Ground Gigabit Ethernet is not allowed to use POE- 150 since pair 4,5 and pair 7, 8 wires are all Remark: being used. Only 10Base-T and 100Base-TX can apply with POE-150.
  • Page 17: Cable System

    A.2 Cable system The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cable is with same pin assignment and color as above picture before deploying the cables...
  • Page 18: Appendix B Troubleshooting

    1. The device connected to POE-150S cannot be powered. Answer: a. Please check the POE-150S if it is connected with an IEEE 802.3af complied in-line device like POE-150, and check if the POE LED indicator at POE-150S is steady blink once attached to the 802.3af in-line power device.
  • Page 19 2. Can device only work at 100Mbps when it is connected to Gigabit Ethernet device? Answer: POE-150/150S will use 4-wire for data transmission (pair 1, 2, pair 3, 6) and 4-wire for power supply (pair 4, 5, pair 7, 8), thus Gigabit Ethernet device connect to POE-150/150S will not send data over the power wire and the transmit speed shall change to 100Mbps.
  • Page 20 This page is intentionally left blank...
