Page 1: User Manual
Pre-N Wireless USB 2.0 Adapter WNL-U550 User Manual Version: 1.00 Date: January 2007... - Page 2 PLANET WNL-U550 Copyright © 2007 by PLANET Technology Corp. All rights reserved. No part of this Copyright publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
- Page 3 PLANET WNL-U550 exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8,2000.
-
Page 4: Table Of Contents
PLANET WNL-U550 TABBLE OF CONTENTS Chapter 1 Introduction 1.1 Features ...2 1.2 Specification ...3 1.3 Package Contents ...4 1.4 Minimum System Requirements...4 1.5 Installation Considerations...4 1.6 PLANET WNL-U550 ...5 Chapter 2 Installation Procedure 2.1 Configuration Utility & Driver Installation ...6 Chapter 3 Configuration Utility 3.1 Status Information...14 3.2 Site Survey ...14... -
Page 5: Chapter 1 Introduction
WNL-U550 is up to 300Mbps which almost three times of standard G. Featuring smart antenna technology, the Pre-N design helps combat distortion and interference so the Network Card can send its date streams greater distances, more reliably. The WNL-U550 supports both 64/128-bit WEP (Wired Equivalent Privacy) and WPA/WPA2 (Wi-Fi Protected Access) for securing wireless network connections. -
Page 6: Specification
PLANET WNL-U550 Factories, Retailers, and Offices that frequently change locations and rearrange the workplace 4. Temporary network access Events, exhibitions, construction sites or some important occasions that require temporary network access. 5. Access to database for mobile workers Doctors, nurses, retailers, white-collar workers who need access to database while roaming in the hospital, retail store or office. -
Page 7: Package Contents
PLANET WNL-U550 Environmental & Mechanical Characteristics 13 x 40 x 97 mm Dimensions (D x W x H) Power Certifications FCC Class B,CE Operating Temp 0~55 degrees C Storage Temp -20~80 degrees C Management Built-in utility or Windows XP Zero Configuration utility Humidity 0~90%, Non-Condensing 1.3 Package Contents... -

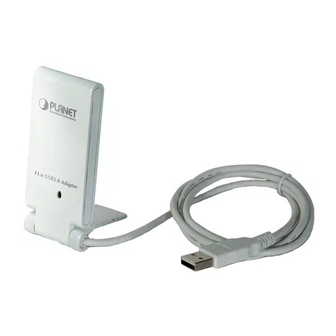

Page 8: Planet Wnl-U550
PLANET WNL-U550 1.6 PLANET WNL-U550 The status LED indicators of the PLANET WNL-U550 are described in the following. Blue: Power on Flashing: Indicates the Adapter is transmitting or receiving data. User Manual... -
Page 9: Chapter 2 Installation Procedure
PLANET WNL-U550 Chapter 2 Installation Procedure Before you proceed with the installation, it is necessary that you have enough information about the Wireless USB Adapter. Follow the procedure described below in this chapter to install the USB adapter under Windows 2000 Professional / XP SP2. 2.1 Configuration Utility &... - Page 10 PLANET WNL-U550 User Manual The “Welcome to the InstallShield Wizard for WNL-U550” will display on the screen and click “Next” to continue. Please select your Country Domain and click “Next” to continue.
- Page 11 PLANET WNL-U550 User Manual Please click “Next” to continue. If your operation system is Windows XP, the below window will pop up. Please select “Continue Anyway” to continue.
- Page 12 PLANET WNL-U550 User Manual The program will start installing the WNL-U550 drivers and utility automatically. You will see the below pop-up screen and please inserting WNL-U550 into the USB port on your computer now. Windows will detect the new driver and show you the “Found New Hardware Wizard”, please select “No, not this time”...
- Page 13 PLANET WNL-U550 User Manual When this screen appear to inform you that the USB adapter has not passed Windows Logo testing (WHQL). Click “Continue Anyway” to proceed. Please click “Continue Anyway” to continue.
- Page 14 PLANET WNL-U550 User Manual Please click “Finish” to complete the driver installation. A screen will appear to inform you that you most restart your computer. Click “Yes” to restart your computer now.
- Page 15 PLANET WNL-U550 User Manual...
-
Page 16: Chapter 3 Configuration Utility
PLANET WNL-U550 User Manual Chapter 3 Configuration Utility The Configuration Utility is a powerful application that helps you configure the WNL-U550 and monitor the link status and statistics during the communication process. When the WNL-U550 is installed, the configuration utility will be displayed automatically. This card will auto connect to wireless device which has better signal strength and no wireless security setting If the Configuration Utility does not appear, you can double-click the... -
Page 17: Status Information
PLANET WNL-U550 3.1 Status Information The menu options available from the system tray icon are: Restore – This will display the main screen. Radio Off – The wireless adapter is not associated with the network when the radio is off. Exit –... - Page 18 PLANET WNL-U550 PC (Ad-Hoc) Display 802.11b Select this check box to display 802.11b (infrastructure) network. Access Point Display 802.11a Select this check box to display 802.11a (infrastructure) network. This function is disable now. Access Point Display 802.11g Select this check box to display 802.11g (infrastructure) network. Access Point Available wireless networks are listed.
-
Page 19: Profile Manager
PLANET WNL-U550 3.3 Profile Manager This screen is accessed by clicking the Profile Manager tab on the main screen. Profile Name Enter or select a suitable name for this profile. Each profile must have a unique name. Network Name (SSID) If the desired wireless network is currently available, you can select its SSID. - Page 20 PLANET WNL-U550 Prefer Channel Select the channel you would like to use. Authentication Mode This setting has to be consistent with the wireless network that the device intends to connect. You must select the option to match the wireless LAN you wish to join. The available option are: Open System –...
- Page 21 PLANET WNL-U550 Security Off – Disable the encryption mode. WEP – Enable the WEP Data Encryption. When the item is selected, you have to continue setting the WEP Encryption keys. TKIP – TKIP (Temporal Key Integrity Protocol) changes the temporal key every 10,000 packets (a packet is a kind of message transmitted over a network.) This insures much greater security than the standard WEP security.
- Page 22 PLANET WNL-U550 certificate to the client. After validating the server’s certificate, the client presents a client certificate to the server for validation. PEAP - PEAP is similar and easier than TLS in that they specify a stand-alone authentication protocol be used within an encrypted tunnel.
- Page 23 PLANET WNL-U550 Click Open To delete a profile On the Profile Manager tab, select the profile that you want to delete. Click Delete Profile. To edit a profile On the Profile Manager tab, select the profile that you want to edit. Change the profile settings as necessary.
-
Page 24: Advanced Setting
PLANET WNL-U550 3.4 Advanced Setting Once you have created a profile, as described above, the Advanced Settings tab will be available on the Profile Manager screen. Do not change settings Enable this check box if you don’t want to modify the settings in this screen. - Page 25 PLANET WNL-U550 increase it again, but it will likely decrease overall network performance. Select a setting within a range of 256 to 2346 bytes. Minor change is recommended. The default value is 2346. In some case, you may be able to improve performance by adjusting this value.
-
Page 26: Network Status
PLANET WNL-U550 3.5 Network Status This screen displays the status of the current wireless link. Clicking the Network Status tab will display a screen like the following. Link information Current Status It will indicate the current link status. Network SSID It shows the SSID or network name of the selected wireless network. -
Page 27: About
PLANET WNL-U550 DHCP Server It shows the IP address of the DHCP server. Channel Performance It graphically presents the transmission (TX) rate and Receiving (RX) Channel Performance rate over time. Signal Signal It graphically presents the signal strength. 3.6 About This screen displays details of the traffic sent or received on the current wireless network. -
Page 28: Appendix A: Troubleshooting
PLANET WNL-U550 Appendix A: Troubleshooting This chapter provides solutions to problems that may occur during the installation and operation of the PLANET WNL-U550. Read the descriptions below to solve your problems. Q. The PLANET WNL-U550 does not work properly. 1. Reinsert the PLANET WNL-U550 into your PC’s USB port. 2. - Page 29 PLANET WNL-U550 5. In Ad-Hoc mode, both wireless clients will need to have the same SSID. Please note that it might be necessary to set up one client to establish a BSS (Basic Service Set) and wait briefly before setting up other clients. This prevents several clients from trying to establish a BSS at the same time, which can result in multiple singular BSSs being established, rather than a single BSS with multiple clients associated to it.
