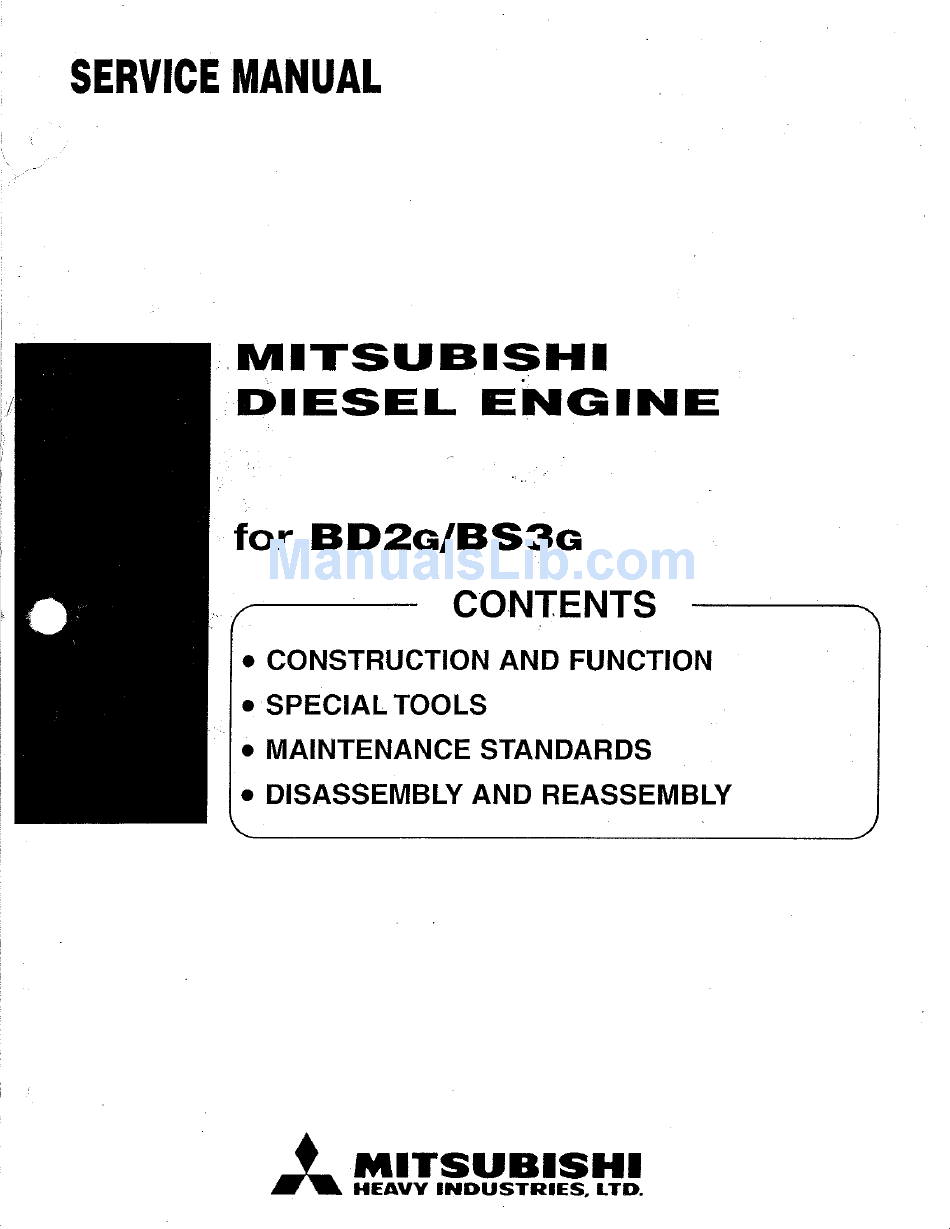

SERVICE MANUAL

·.MITSUBISHI

. DIESEL ENGINE

for BD2G/BS3G

CONTENTS

• CONSTRUCTION AND FUNCTION

• SPECIAL TOOLS

• MAINTENANCE STANDARDS

• DISASSEMBLY AND REASSEMBLY

Table of Contents
