Electro-Voice 409 Series Specifications

General Product Description
®

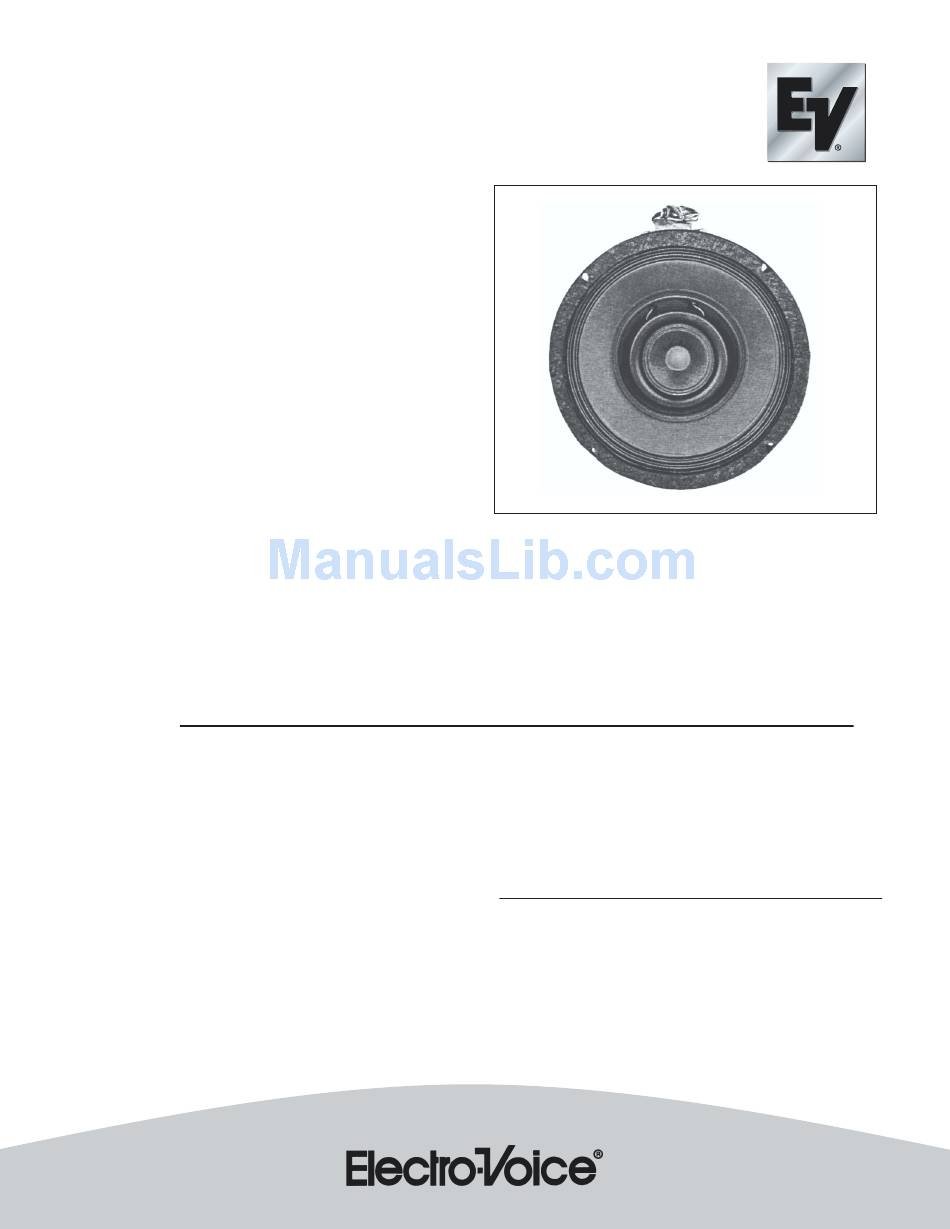

The Electro-Voice 409 series loudspeaker systems are
two-way loudspeakers with 8-inch low-frequency cones
and high temperature voice-coil assemblies coaxially
mounted with wide-dispersion cone tweeters. The dual
magnet construction allows each speaker to be structurally,
magnetically, electrically and mechanically independent of
the other. The 409 series utilize a single section crossover
network, centered at 2500 Hz, providing 6 dB of attenuation
for each element outside the operating range.
The 409-8E is an 8 ohm, 32 watt speaker. The 409-ST (with
15700 transformer) and the 409-4T (with 15704 transformer)
both offer a selection of 0.5, 1, 2 and 4W. The 409-8T (with
15708 transformer) offers a selection of 1, 2, 4 and 8W. The
409-16T (with 15716 transformer) offers 2, 4, 8 and 16W
and the 409-32T (with 15732 transformer) offers a 4, 8, 16,
32W selection.
Architects' and Engineers' Specifications
409 Series Loudspeakers. The loudspeaker shall have an
8-inch low-frequency cone and a high temperature voice
coil assembly coaxially mounted with a wide dispersion
cone tweeter. The loudspeaker shall meet the following
criteria. AES power rating shall be 32 watts of band limited
pink noise (85 Hz to 18 kHz, 6 dB crest factor). Frequency
response, uniform from 85 Hz to 18 kHz. Pressure
sensitivity, 97 dB SPL at 1 meter (95 dB at 4 feet) on axis
with one watt of band-limited pink noise from f
Specifications:
Power Rating: ........................... 32 watts, 85 Hz - 18kHz, AES method
Frequency Response: ........................................................ 85 - 18 kHz
Pressure Sensitivity: ........................................................... 97 dB SPL
Measured at one meter on axis with 1 watt input of pink noise, band-limited
from 500 - 3000 Hz (Ref.: 20 µPa)
Maximum SPL: .................................................. 112 dB for 32W @ 1M
Impedance:
Minimum ............................................................................. 6 ohms
Nominal .............................................................................. 8 ohms
Components:
8-inch, high-efficiency, low frequency driver with a coaxially mounted
2.5 inch cone tweeter.
Crossover Network:
Two-way at 2500 Hz with 6 dB per octave tweeter protection
Input Terminals:
Speaker: ................................... 0.212 in. push-on type connectors
Transformer: ........................................................................ Pigtails
High Performance Ceiling
20 uPa). Minimum impedance, 6.0 ohms. The
loudspeaker shall be 8.13 in (20.6 diameter and in (_cm)
deep and shall weigh lbs (_ kg). For dimensions see
next page.
The loudspeakers shall be EV (Electro-Voice®) models
409-8E, 409-ST (with 15700 transformer), 409-4T (with
15704 transformer), 409-8T (with 15708 transformer),
409-16T (with 15716 transformer) and the 409-32T (with
15732 transformer).
kHz (ref.
3
Mounting Data:
Baffle Opening:
96.8 mm (3.812 in.) diameter (rear mounted)
104.8 mm (4.125 in.) diameter (front mounted)
Mounting Bolt Centers: ............................... 4 equally spaced slots
90° apart on 120.7 mm (4.75 in.) diameter circle
Dimensions: ........................................ Diameter: 206.5 mm (8.13 in.)
409-8E
409-ST
4094T
409-8T
409-16T
409-32T
Finish:
Black
409 Series
8-inch Premium
Loudspeakers
Net
Depth Weight
83 mm (3.25 in.) 2.8 lbs (1.3 kg)
98 mm (3.86 in.) 3.1 lbs (1.4 kg)
105 mm (4.13 in.) 3.3 lbs (1.5 kg)
114 mm (4.50 in.) 4.0 lbs (1.8 kg)
124 mm (4.86 in.) 4.5 lbs (2.0 kg)
137 mm (5.38 in.) 5.0 lbs (2.3 kg)
COMMERCIAL
Shipping
Weight
3.3 lbs (1.5 kg)
3.6 lbs (1.6 kg)
3.8 lbs (1.7 kg)
4.5 lbs (2.0 kg)
5.0 lbs (2.3 kg)
5.5 lbs (2.5 kg)
