REPAIR PARTS

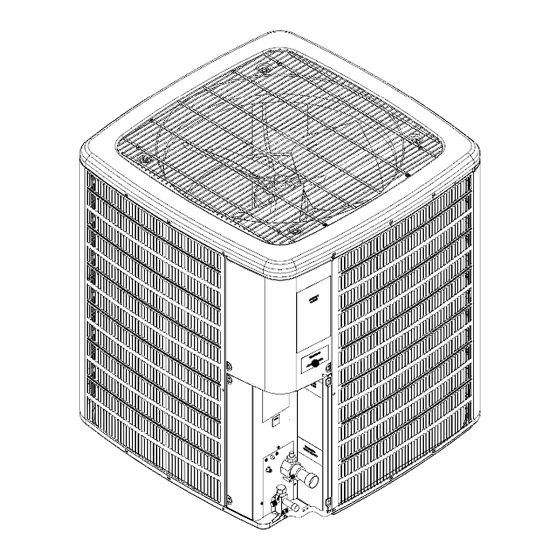

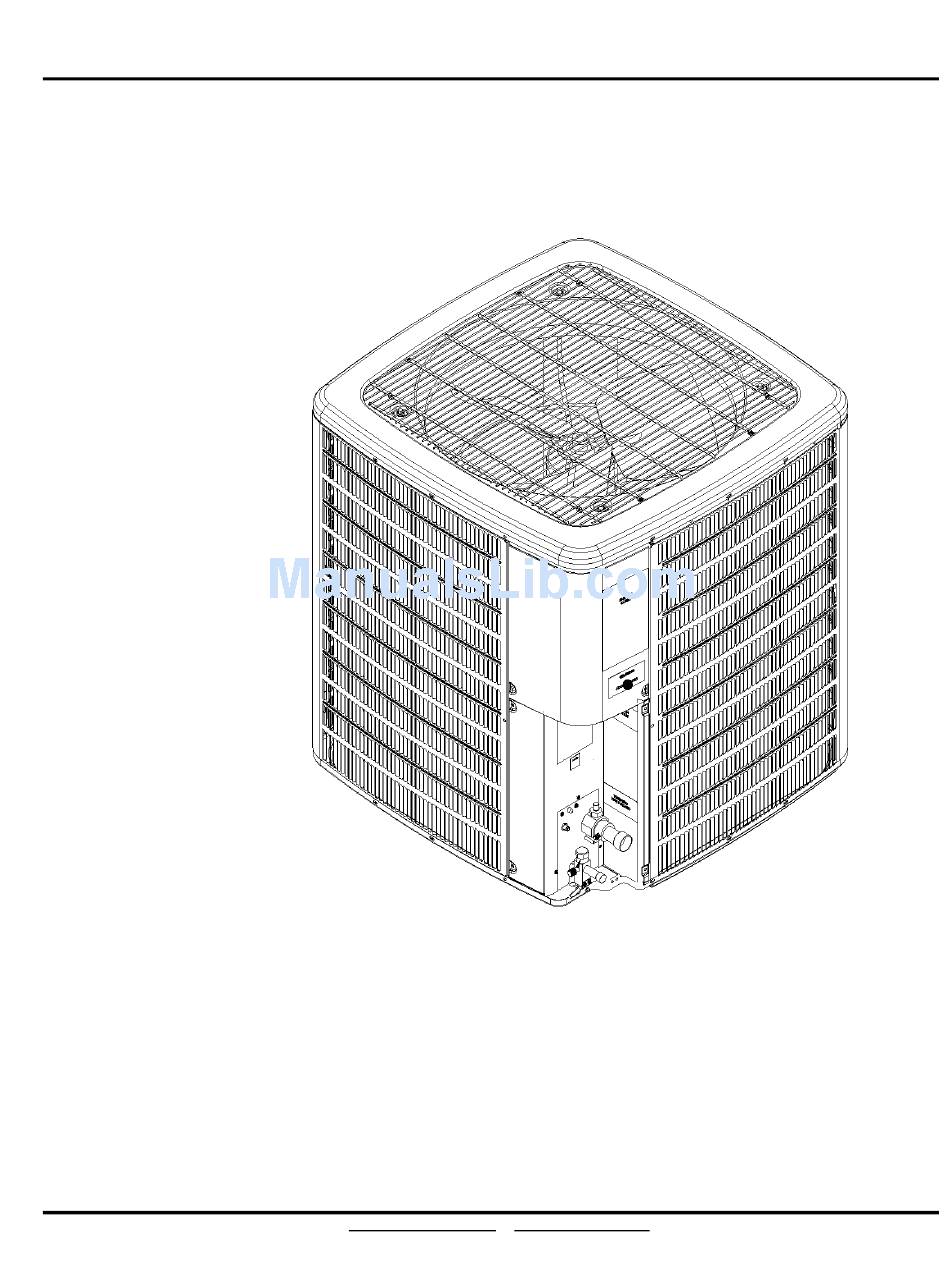

GSH 10 SEER
Remote Heat Pumps
GSH100903AA
GSH100903AB
GSH100904AA
GSH100904AB
GSH101203AA
GSH101203AB
GSH101204AA
GSH101204AB
This manual is to be used by qualified technicians only.
This manual replaces RP-364.
© 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
www.goodmanmfg.com
www.amana-hac.com
RP-364A
October 2006
Advertisement
Related Manuals for Goodman GSH 10 SEER
Summary of Contents for Goodman GSH 10 SEER
-
Page 1: Repair Parts
REPAIR PARTS GSH 10 SEER Remote Heat Pumps GSH100903AA GSH100903AB GSH100904AA GSH100904AB GSH101203AA GSH101203AB GSH101204AA GSH101204AB This manual is to be used by qualified technicians only. This manual replaces RP-364. © 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 www.goodmanmfg.com... - Page 2 Important Information Index Functional Parts List Illustration and Parts Views shown are for parts illustrations only, not servicing procedures. Rev. A: Added "AB" models. Text Codes: AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model...
- Page 3 Functional Parts Part Description: 0130M00025S 24V RELAY CAP200000440RPS CAPACITOR 20/370V ZR108KCTF5950 COMPRESSOR 10900, 200/230/60/3 (M5, M6) ZR108KCTFD950 COMPRESSOR 10900, 460/60/3 (M7, M8) ZR84KCTF5950 COMPRESSOR 85500, 200/230/60/3 (M1, M2) ZR84KCTFD950 COMPRESSOR 85500, 460/60/3 (M3, M4) 0131M00040S COND MOTOR 1 HP, 1 SP, 230V (M1, M2, M5, 0131M00041S COND MOTOR 1 HP, 1 SP, 460V (M3, M4, M7, CONT3P040024VS...
- Page 4 CONTROL COVER/CONTROL BOX www.goodmanmfg.com www.amana-hac.com RP-364A...
- Page 5 CONTROL COVER/CONTROL BOX Ref. Part Description: Image 1: 4400211PDG LOWER ACCESS PANEL (M5, M6, M7, M8) 4400212PDG LOWER ACCESS PANEL (M1, M2, M3, M4) 0121R00053PDG CONTROL COVER CONT3P040024VS CONTACTOR CAP200000440RPS CAPACITOR 20/370V 4400065 CAPACITOR STRAP PCBDM101S DEFROST CONTROL BOARD 0130M00025S 24V RELAY 0161R00009P NAMEPLATE...
- Page 6 COMPRESSOR/TUBING ASSEMBLY www.goodmanmfg.com www.amana-hac.com RP-364A...
- Page 7 COMPRESSOR/TUBING ASSEMBLY Ref. Part Description: Image 1: B1219227 FILTER DRIER (BI-FLOW) B1225020 SOLENOID COIL CORD W/1/4"TERMINAL B1787000 VALVE CORE B1360719 CUT-OUT SWITCH, LOW PRESSURE B1360721 CUT-OUT SWITCH, HIGH PRESSURE B1226212 ACCUMULATOR 4400031 VALVE BRACKET B1282574 1 1/8" SERVICE VALVE B1282573 5/8”...
- Page 8 COIL/CABINET TOP/SIDE PANELS www.goodmanmfg.com www.amana-hac.com RP-364A...
- Page 9 COIL/CABINET TOP/SIDE PANELS Ref. Part Description: Image 1: 0121R00013PDG VENTURI TOP PANEL 35" 0152R00003 WIRE GRILL 35" B1086768 FAN BLADE 26" 0121R00003 MOTOR MOUNT BRACKET 0131M00040S COND MOTOR 1 HP, 1 SP, 230V (M1, M2, M5, M6) 0131M00041S COND MOTOR 1 HP, 1 SP, 460V (M3, M4, M7, M8) 0121R00043PDGB LOUVERED SIDE PANEL (M5, M6, M7, M8) 0121R00044PDGB...
