REPAIR PARTS

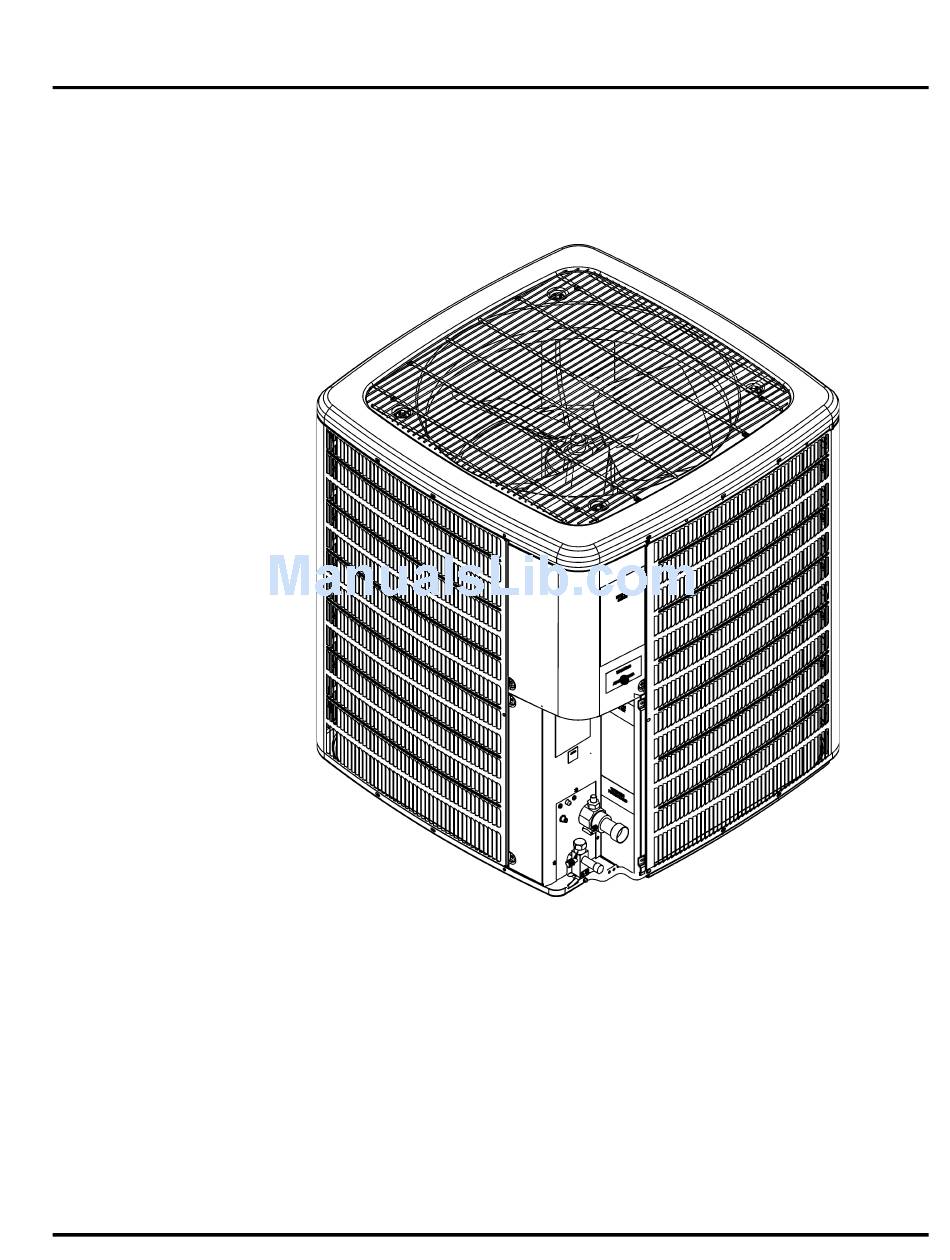

GSZ11 Remote Heat Pumps
GSZ110903AA
GSZ110904AA
GSZ111203AA
GSZ111204AA
This manual is to be used by qualified technicians only.
© 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
www.amana-hac.com
RP-636
February 2011
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Goodman GSZ11
Summary of Contents for Goodman GSZ11
-
Page 1: Repair Parts
REPAIR PARTS GSZ11 Remote Heat Pumps GSZ110903AA GSZ110904AA GSZ111203AA GSZ111204AA This manual is to be used by qualified technicians only. © 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 www.amana-hac.com RP-636 February 2011... - Page 2 Important Information Index Functional Parts List Illustration and Parts Views shown are for parts illustrations only, not servicing procedures. This system uses R410A refrigerant. If sealed system work is required, use approved equipment and follow service procedures. Refer to Service Manual or Installation Instructions for service procedures. Text Codes: AR - As Required NA - Not Available...
-
Page 3: Functional Parts
Functional Parts Part Description: 0130M00025S 24V RELAY CAP200000440RPS CAPACITOR 20/370V ZP103KCETF5155 COMP, 105,000, 200/230/60/3 (M3) ZP103KCETFD250 COMP, 105000, 460/60/3 (M4) ZP83KCETF5250 COMPRESSOR, 83000, 200/230/60/3 (M1) ZP83KCETFD130 COMPRESSOR, 83000, 460/60/3 (M2) 0131M00040S COND MOTOR 1 HP, 1 SP, 230V (M1, M3) 0131M00041S COND MOTOR 1 HP, 1 SP, 460V (M2, M4) CONT3P040024VS... - Page 4 Control Cover / Control Box www.goodmanmfg.com www.amana-hac.com RP-636...
- Page 5 Control Cover / Control Box Ref. Part Description: Image 1: 4400211PDG LOWER ACCESS PANEL 0121R00053PDG CONTROL COVER CONT3P040024VS CONTACTOR 40 AMP, 3P, 24V CAP200000440RPS CAPACITOR 20/370V 4400065 CAPACITOR STRAP PCBDM133 DEFROST CONTROL BOARD 0130M00025S 24V RELAY B1372801 SIGHT GLASS Expanded Model Nomenclature M1 - GSZ110903AA M2 - GSZ110904AA M3 - GSZ111203AA...
- Page 6 Compressor / Tubing Assembly www.goodmanmfg.com www.amana-hac.com RP-636...
- Page 7 Compressor / Tubing Assembly Ref. Part Description: Image 1: B1219227 FILTER DRIER (BI-FLOW) 0121R00007PDG BASE PAN 35" 0130M00088 SW-CUTOUT LOW PRESS 0130M00089 SW-CUTOUT HI PRESS B1787000 VALVE CORE B1226212 ACCUMULATOR B1282574 1 1/8" SERVICE VALVE B1282573 5/8” SERVICE VALVE 0151R00000P VALVE, REVERSING (M3, M4) 0151R00001P VALVE, REVERSING (M1, M2)
- Page 8 Coil / Cabinet Top / Side Panels www.goodmanmfg.com www.amana-hac.com RP-636...
- Page 9 Coil / Cabinet Top / Side Panels Ref. Part Description: Image 1: 0121R00013PDG VENTURI TOP PANEL 35" 0152R00003 WIRE GRILL 35" 0131M00040S COND MOTOR 1 HP, 1 SP, 230V (M1, M3) 0131M00041S COND MOTOR 1 HP, 1 SP, 460V (M2, M4) 0121R00003 MOTOR MOUNT BRACKET B1086768...
