American Standard Colony Oval 1742 Series Installation Instructions

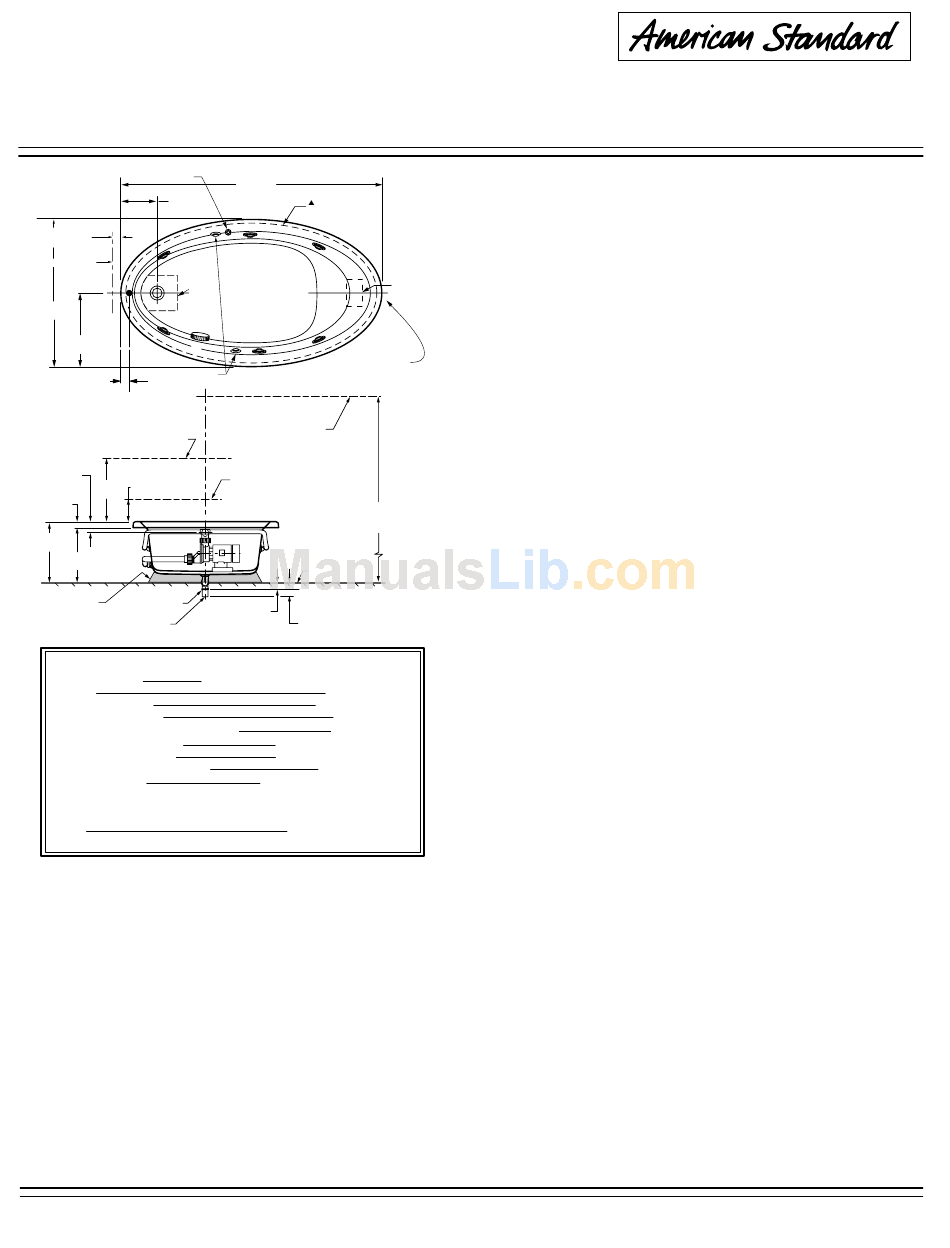

COLONY OVAL™
HIGH GLOSS ACRYLIC
SHOWN LESS ALL FITTINGS
ON/OFF
SWITCH
292 mm
(11-1/2)
SEE FTTG.SPECS
FOR DIMENSION
C L OF SUPPLIES
305mm(12) X 229 mm(9)
CUTOUT IN FLOOR FOR DRAIN
1041 mm
(41)
535mm
(21)
(2) AIR VALVES
98mm
(3-7/8)
C L OF DRAIN
OUTLET
C/L OF
VALVES
82mm
(3-1/4)
102mm
305mm
(4)
(12)
51mm
(2)
605mm
(23-7/8 )
555mm
(21-7/8)
BATH
1-1/2 N.P.T.M.
SUPPORT
THREADS
MATERIAL
1-1/2 O.D.
TAILPIECE
GENERAL SPECIFICATIONS FOR 1742 WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
PUMP
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor
immediately.
After inspection and during installation, protect the bath from construction damage. AFTER INSTALLATION, AND
BEFORE ENCLOSING WITH WALLBOARD, TILE, ETC., WATER TEST THE UNIT AND CHECK FOR LEAKS.
Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect
the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump,
motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and
enclosing materials are provided by others. Check for availability of optional American Standard wall tiling bead
(required for recess installations).
Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.
WARNING! Do not lift whirlpool by the piping harness at any time.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
753571-100
1742 SERIES
WHIRLPOOL/BATHING POOL

INSTALLATION INSTRUCTIONS

1803 mm
(71)
OUTLINE OF
CUTOUT-USE
TEMPLATE
PROVIDE ACCESS
TO PUMP FOR
SERVICING ON ALL
INSTALLATIONS
C/L OF
SHOWER ARM
C/L OF
SPOUT
1651-1981mm
(65-78)
OPTIONAL
ROUGH
FLOOR
35mm
(1-3/8)
98mm
(3-7/8)
71 x 41 x 23-7/8 In.(1805 x 1040 x 606mm)
119 Lbs. (54 Kg.)
680 Lbs. (308 Kg.)
67 Gal. (254 L)
50 Gal. (190 L)
49 x 26 In. (1245 x 660mm)
62 x 34 In. (1588 x 864mm)
16-7/8 In. (429mm)
32 Lbs./Sq.Ft. (157 Kgs./Sq.m)
1.1 HP, 9.9 AMPS, 120V.

THANK YOU...

for selecting an American Standard bath. Your new
bath is shipped to you after careful inspection. The
PUMP MAY
EXTEND whirlpool version is completely assembled with pump,
TO THE RIM
motor, and system piping. All you need to finish the
installation are your selected fittings and electrical
connections for a whirlpool.
To insure maximum performance and pleasure from
this product, please follow the instructions and
cautions.
List of Required Components (not included):
• Drain 1583.470*
• Bath Filler*
* see your American Standard Distributor
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard
Woodworking Tools
• Personal Safety
Equipment
• Caulking Gun
IMPORTANT: Water test unit before installation
and enclosure!
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 3 or 2 x 2
• Drop Cloth
• 15 amp GFCI
• Cement, Plaster,
© American Standard Inc. 2004
All product names listed herein are trademarks
of American Standard Inc. unless otherwise noted.
Stringers
Outlet
Grout
