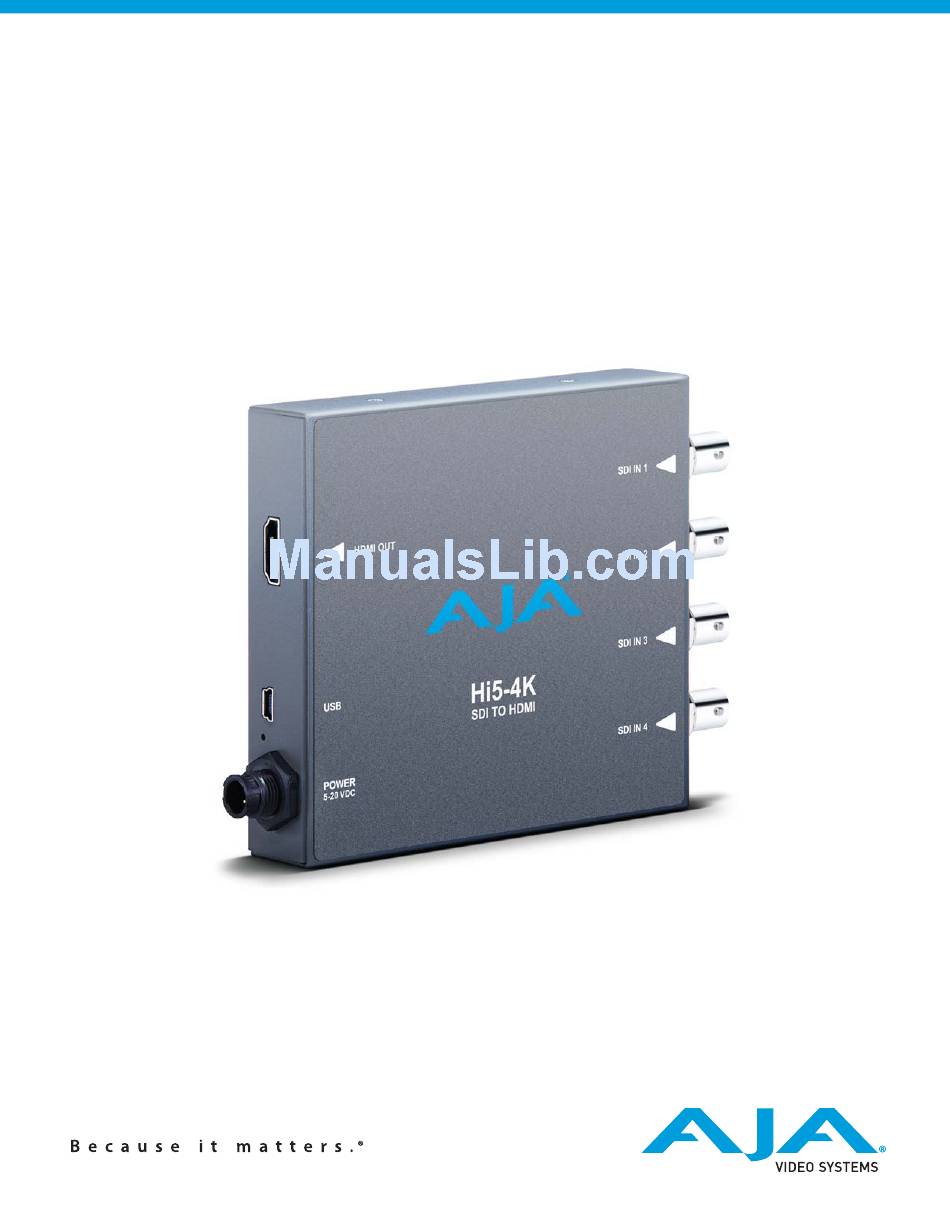

- Page 1 Hi5-4K Mini-Converter SDI to HDMI Installation and Operation Guide Version 2.4 Published: January 11, 2016...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA Mini-Config........ - Page 3 Index............30 Hi5-4K Mini-Converter v2.4...
-
Page 4: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products. -
Page 5: Chapter 1: Introduction
To use this mode change the Video Source Selection to '2 X SDI 4K' . The HI5-4K will output either 4K x2160 or 3840x2160 if more than one HD input is present and the monitor can support those resolutions. For 4K input the HI5-4K may provide a center cut 3840, or pass the 4096 to the output, but there is no scaling between the two. -
Page 6: Mini-Config Control
Advanced control will support channel selection and mapping for eight channels of audio from either of two groups of eight channels on any of the four SDI inputs. Configuration set via Mini-Config is stored in the Hi5-4K unit through subsequent power cycles. -
Page 7: I/O Connections
2. Connect video equipment to the convertor BNCs and HDMI connector. 3. Apply power to the converter (AJA power supply included). 4. The Hi5-4K will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to: •... -
Page 8: Chapter 2: Operation
Chapter 2: Operation USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs. -
Page 9: Mac Installation
5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the Mini-Config application in the AJA folder in the Programs listing. -
Page 10: Running Mini-Config
(supplied) to the Mini-Converter. PC Startup To run Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini-Config application located inside the Mini-Config folder. -
Page 11: Operating Mini-Config
Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- Mini-Config can manage multiple AJA Mini-Converters connected via USB—even when Converters they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner. -
Page 12: Tabbed Screens
Mini-Converter type. When you Click on any of the tab buttons, the pane below the tabs will change to match your tab selection. Any changes you make are immediately applied and will be saved, overwriting previous settings. Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 13: Input Screen
Mapping Select the 4K/UHD mapping format: • Auto (default) -automatically selects the mapping based on the input video. • 2SI - Two Sample Interleave • Quadrant - Square Division Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 14: Output Screen
• 1 x HD DS2 - use only Data Stream 2 as a single video Output Screen Click on the Output tab to view and make changes to the Hi5-4K Output settings. Color Space Selects the desired output video format. Choose from the following: •... -
Page 15: Audio Screen
4K/UHD HFR Mode Choose Frame Drop or HDMI 2.0b. • Frame Drop, the default setting, makes the Hi5-4K drop every other frame of an incoming 50/59.94/60 frame rate to output at 25/29.97/30p. • The HDMI 2.0b setting provides 50/59.94/60p frame rate output for a 3840x2160p50/ 59.94/60 input. -
Page 16: Update Screen
This indicator bar shows the progress of firmware installation. Software Update 1. Check the AJA website for new Mini-Config software for your Mini-Converter. If new Procedure software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking: http://www.aja.com/en/products/mini-converters/mini-config-software... -
Page 17: Info Screen
This is the factory set model name of the Mini-Converter. Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your Mini-Converter. If you ever call AJA Support for service, you may be asked for this number. Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 18: Appendix A: Specifications
• 1920x1080p 23.98, 24, 25, 29.97, 30 • 1920x1080PsF 23.98, 24, 25, 29.97, 30 • 1920x1080i 25, 29.97, 30 (50, 59.94, 60 fields) • 1280x720p 50, 59.94, 60 • 525i 29.97 (59.94 fields) 270Mb SD-SDI • 625i 25 (50 fields) Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 19: Video Output
Physical Power • +5 to 20V DC regulated, 10 watts max • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input Size • 5.8” x 3.9” x 0.8” (147 mm x 99 mm x 20 mm) including connectors... -
Page 20: Appendix B: Safety & Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 21: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 22: Recycling Notice
This is a Class B product based on the standard of the VCCI Council (VCCI V-3/2011.04). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. Hi5-4K Mini-Converter v2.4 www.aja.com... -
Page 23: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. Hi5-4K Mini-Converter v2.4 www.aja.com... - Page 24 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. Hi5-4K Mini-Converter v2.4 www.aja.com...
- Page 25 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. Hi5-4K Mini-Converter v2.4 www.aja.com...
- Page 26 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. Hi5-4K Mini-Converter v2.4 www.aja.com...
- Page 27 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
- Page 28 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. Hi5-4K Mini-Converter v2.4 www.aja.com...
-
Page 29: Warranty Information
Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. -
Page 30: Index
I/O Connections 7 Info Screen 17 Input Screen 13 Input Source setting 15 Installation overview 7 Mapping setting 13 Mini-Config Acquiring 8 Installation on Mac 9 Installation on PC 8 Operation 11 Running Multiple Converters 11 Hi5-4K Mini-Converter v2.4 www.aja.com...
