Summary of Contents for AJA HI5-PLUS-R0

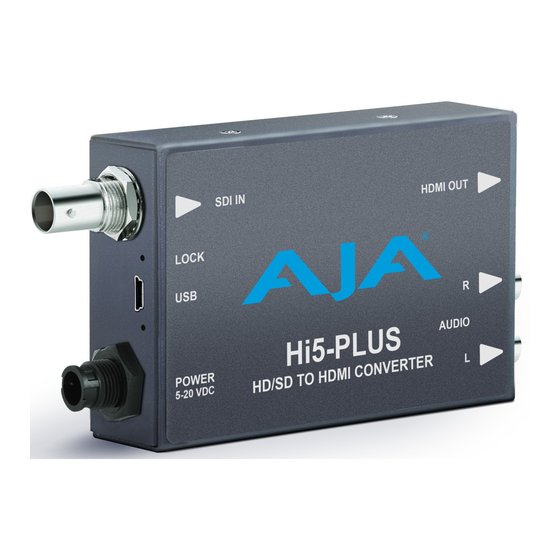

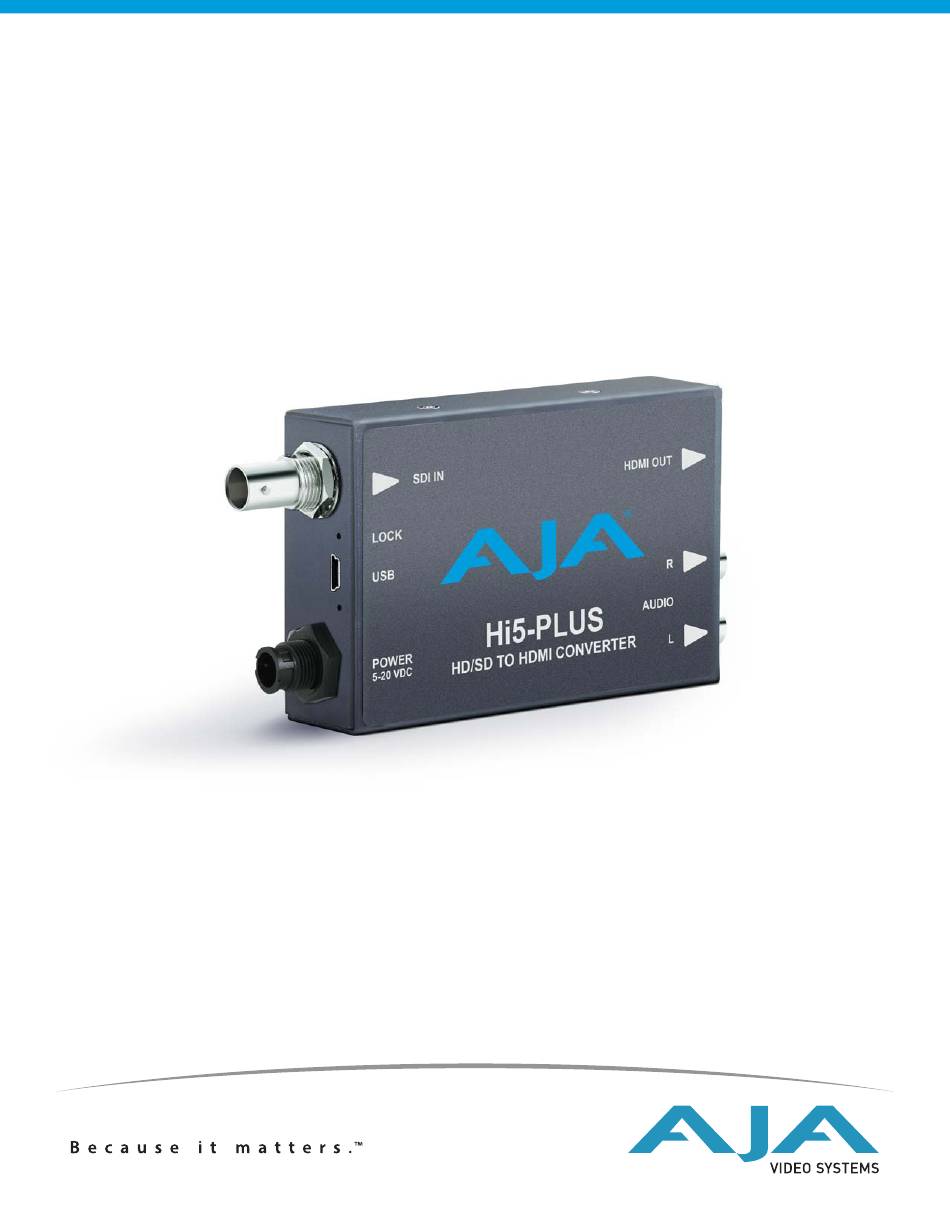

- Page 1 Mini-Converter Hi5-Plus Installation and Operation Guide Version 1.0 Published: March 31, 2014 ®...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA MiniConfig ........ - Page 3 Index............27 Hi5-Plus v1.0 www.aja.com...
-
Page 4: Notices
Copyright Copyright © 2014 AJA Video, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Inc. -
Page 5: Chapter 1: Introduction
• Full HDMI support including 10-bit video and 8 channels of embedded audio • Additional 2 Channel RCA jack audio output (selectable channel pairs) • HDMI cable supplied • Uses universal input +5V power supply AJA model DWP-U-R1 (included) • No configuration necessary Block Diagram Figure 1. -
Page 6: I/O Connections
5. The converter will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to: • Install the AJA MiniConfig software (supplied on CD) on your computer • Attach the converter via USB •... -
Page 7: Chapter 2: Operation
A Setup Wizard will guide you through the installation. Just click Next to begin. Answer all questions in the subsequent dialogues; when done, you will be able to locate the MiniConfig application in the AJA folder in the Programs listing. Running MiniConfig Connect the Mini-Converter to the PC or Mac via the supplied USB cable. -
Page 8: Pc Startup
PC Startup To run MiniConfig on a PC, find the AJA MiniConfig in the program list and locate the AJA MiniConfig application. Figure 4. PC MiniConfig Startup Mac Startup To run MiniConfig on a Mac, double-click the Applications folder and locate the AJA MiniConfig application. - Page 9 Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- MiniConfig can manage multiple AJA Mini-Converters connected via USB—even when Converters: they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner.
-
Page 10: Tabbed Screens
ID. Video Format: Selects the Input Video Format. Choose from Auto, Progressive (P), Interlaced, or PsF (progressive segmented frame). Choosing “Auto” automatically selects the format based on the input video parameters and the payload ID. Hi5-Plus v1.0 www.aja.com... -
Page 11: Output Tab Screen
Choose from Auto, 8-bit, 10-bit, or 12-bit. Choosing “Auto” automatically selects the bit depth based on the input video and the attached device's capabilities. RGB Range: Choose Auto, SMPTE or Full. Choosing “Auto” automatically selects the input color range setting. Hi5-Plus v1.0 www.aja.com... -
Page 12: Audio Tab Screen
1/16 of a frame increments. Range is from 0 video frame to +7.0 video frames. The actual time duration of delay will vary depending on the frame rate of the format being converted. Hi5-Plus v1.0 www.aja.com... -
Page 13: Update Tab Screen
This indicator bar shows the progress of software being installed. Software Update 1. Check the AJA website for new MiniConfig software for your Mini-Converter. If new Procedure software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking: http://www.aja.com/en/products/mini-converters/mini-config-software... -
Page 14: Info Tab Screen
This is the factory set model name of the Mini-Converter (Hi5-Plus). Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your Hi5-Plus. If you ever call AJA Support for service, you may be asked for this number. Hi5-Plus v1.0 www.aja.com... -
Page 15: Appendix A: Specifications
• Ch 1-2 (or 9-10), through Ch 7-8 (or 15-16) Physical Size 4.6" x 2.4" x 1" (117mm x 61mm x 25mm.) Power • Uses AJA Power Supply model DWP-U-R1 (included) • 100-240V, 50/60Hz Universal Input • +5V DC regulated, 3 watt capacity Hi5-Plus v1.0 www.aja.com... -
Page 16: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Hi5-Plus v1.0 www.aja.com... -
Page 17: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. Hi5-Plus v1.0 www.aja.com... -
Page 18: Korea Kcc Compliance Statement
Install and use the equipment according to the instruction manual. Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. Hi5-Plus v1.0 www.aja.com... -
Page 19: Before Operation Please Read These Instructions
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. Hi5-Plus v1.0 www.aja.com... - Page 20 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. Hi5-Plus v1.0 www.aja.com...
- Page 21 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. Hi5-Plus v1.0 www.aja.com...
- Page 22 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. Hi5-Plus v1.0 www.aja.com...
- Page 23 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. Hi5-Plus v1.0 www.aja.com...
- Page 24 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 25 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. Hi5-Plus v1.0 www.aja.com...
-
Page 26: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 27: Index
Starting 7 MiniConfig installation Mac 7 PC 7 Mini-Converters Multiple 9 Multiple Mini-Converters 9 Output Channel Count setting 12 Output Tab Screen 11 Output Video Selections 11 RGB Range (input) setting 10 RGB Range (output) setting 11 Hi5-Plus v1.0 www.aja.com...
