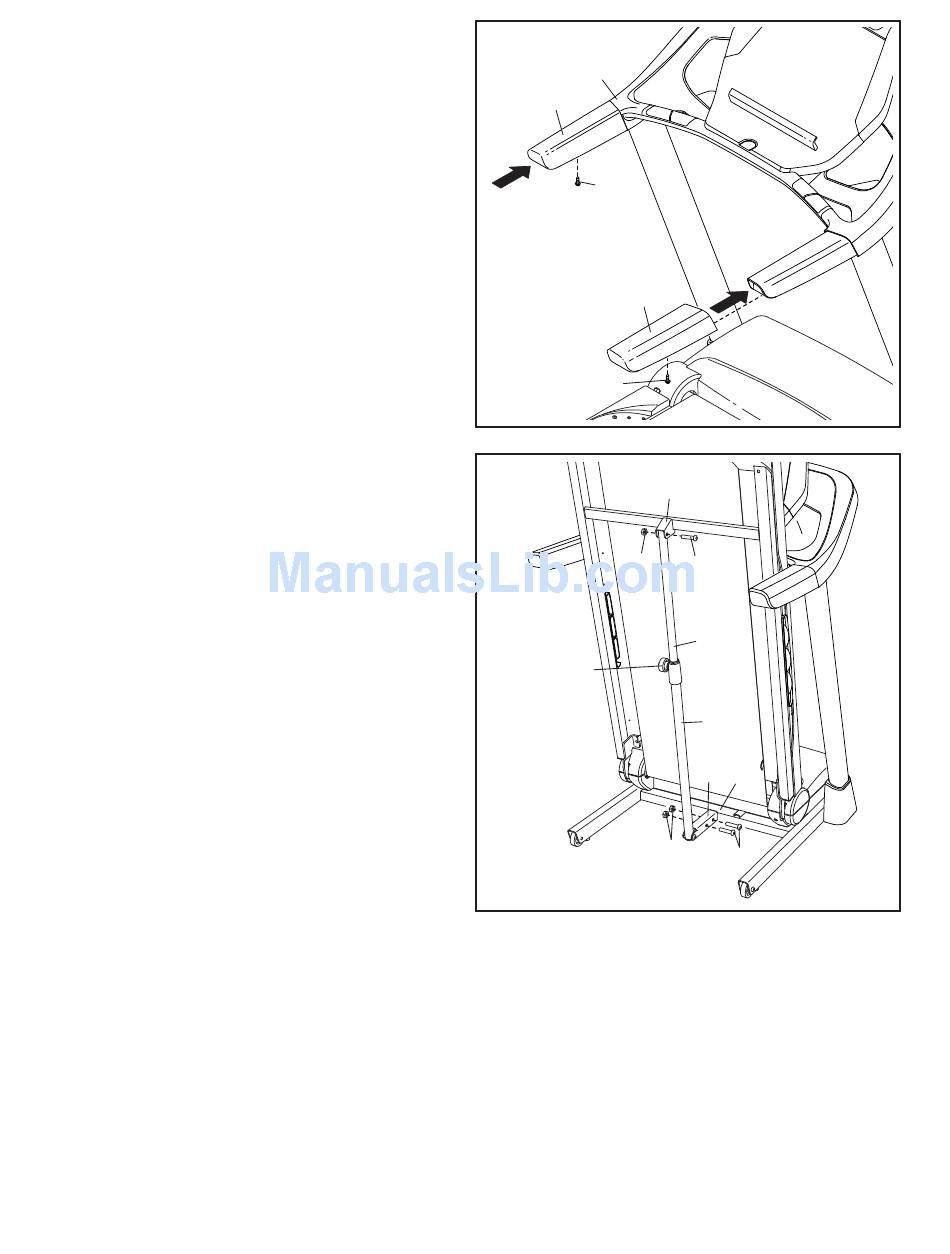

14. Identify the Left and Right Handrail
Covers (83, 86).
Slide the Left Handrail Cover (83) up against the
console assembly and tighten a #8 x 3/4" Screw
(1) into the bottom of the Cover. Be careful not
to overtighten the Screw.
Attach the Right Handrail Cover (86) in the
same way.
15. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the Latch Bracket (39) and the Storage
Latch (51) to the Base (95) with two 3/8" x 2"
Bolts (8) and two 3/8" Nuts (10).
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x
2" Bolt (8) and a 3/8" Nut (10). Note: It may be
necessary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 22).
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see pages 24 and 25).
