Pro-Form 600 Le Elliptical Manual page 12

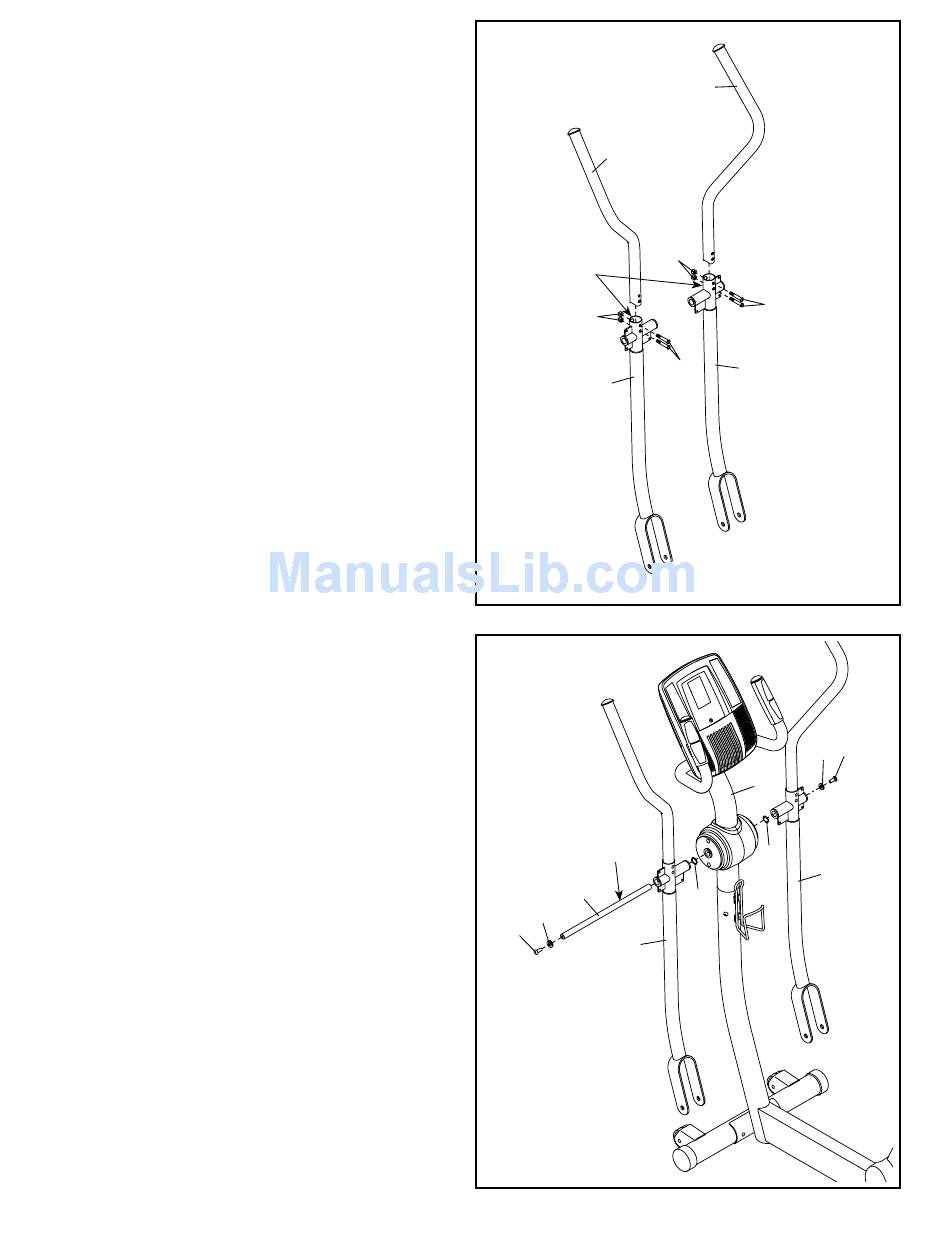

12. Identify the Left Upper Body Arm (8) and the Left
Upper Body Leg (11) and orient them as shown.
Insert the Left Upper Body Arm (8) into the Left
Upper Body Leg (11).
Attach the Left Upper Body Arm (8) with two M8
x 41mm Bolts (78) and two M8 Jam Nuts (79).
Make sure that the Jam Nuts are in the hex-
agonal holes in the Left Upper Body Leg (11).
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (12) in the same way.
13. Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Pivot Axle (74) and to two Wave
Washers (111).
Insert the Pivot Axle (74) into the Upright (3) and
center it.
Slide a Wave Washer (111) onto each end of the
Pivot Axle (74).
Orient the Left Upper Body Leg (11) as shown,
and slide it onto the left end of the Pivot Axle
(74). Slide the Right Upper Body Leg (12) onto
the right end of the Pivot Axle.
At the same time, tighten an M8 x 23mm Screw
(84) with an M8 Washer (88) into each end of the
Pivot Axle (74).
12
8
Hexagonal
Holes
79
11
13
Grease
74
88
84
11
12
9
79
78
78 12
88 84
3
111
12
111
