Pro-Form 6.5 X Treadmill User Manual page 9

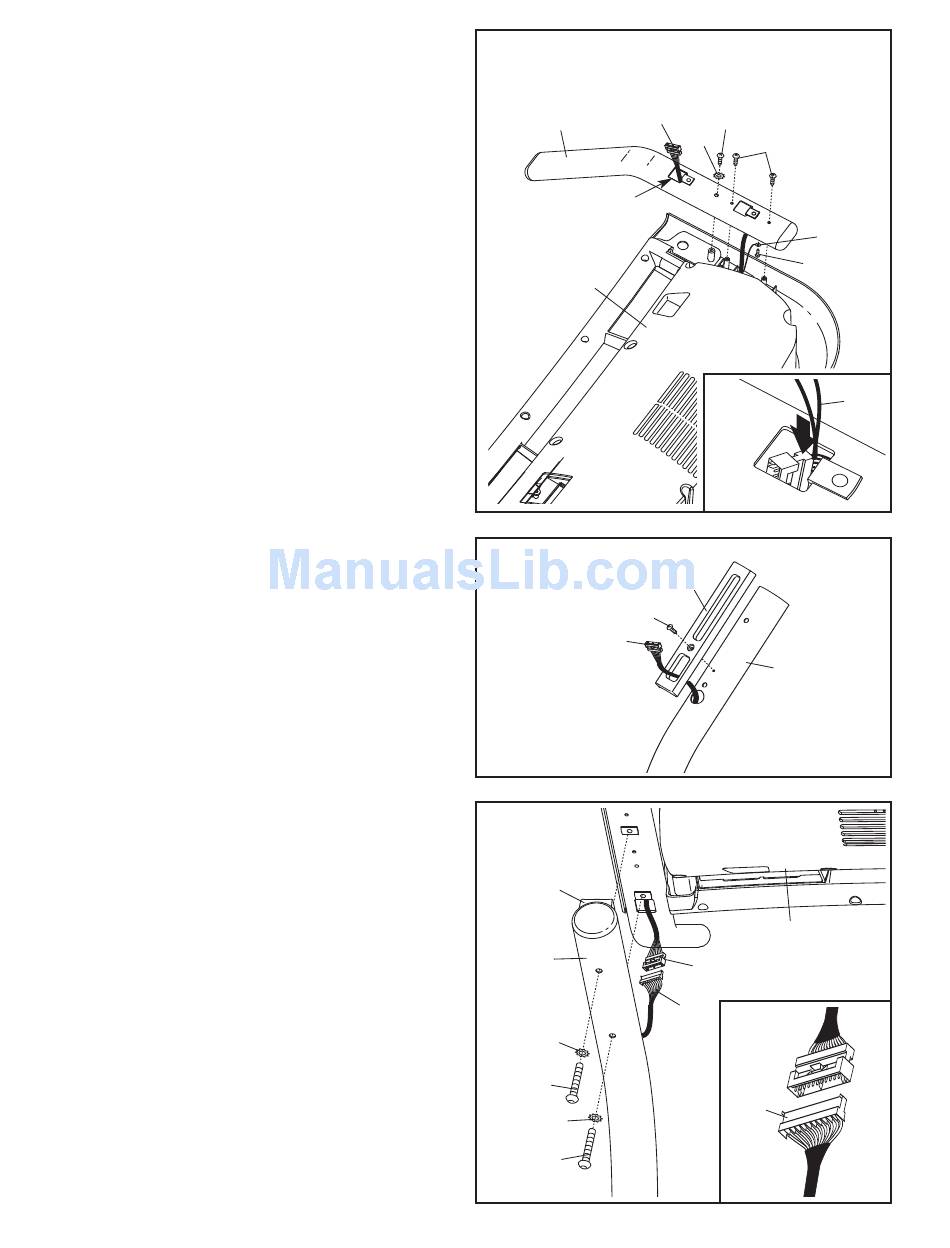

7. Set the console assembly face down on a soft
surface to avoid scratching it.
Have a second person hold a Handrail (18) in
the position shown. Insert the console wire into
the Handrail and out of the indicated square
hole. If necessary, grip the connector with
needlenose pliers only in the area indicated by
the arrow in the inset drawing. Then, remove
the tie from the console wire.
Attach the ground wire to the Handrail (18) with
a Silver Ground Screw (11). Next, set the
Handrail on the console assembly. Make sure
that no wires are pinched. Finger tighten a
Console Bolt (22) with a 1/4" Star Washer (21)
into the Handrail, and then finger tighten two 3/4"
Screws (2) into the Handrail. Tighten the
Console Bolt and then tighten the two
Screws; do not overtighten the Screws.
Attach the other Handrail (not shown) in the
same way. Note: There are no wires on the
other side.
8. Insert the Upright Wire (28) through a Handrail
Spacer (88) as shown. Attach the Handrail
Spacer to the Right Upright (36) with a 3/4"
Screw (2).
Attach the other Handrail Spacer (not shown)
to the Left Upright (not shown) in the same
way. Note: There are no wires on the left
side.
9. While another person holds the Console Base
(26) near the right Handrail Spacer (88), connect
the console wire to the Upright Wire (28) as
shown in the inset drawing. Important: If the
connectors are oriented correctly, they will
slide together easily and snap into place. If
the connectors are not oriented correctly, the
console may be damaged when the power is
turned on. Insert the connectors into the Right
Upright (36).
Attach the Console Base (26) to the Right
Upright (36) and the Left Upright (not shown)
with four Handrail Bolts (20) and four Handrail
Star Washers (19) (only one side is shown).
Start all four Handrail Bolts before tightening
any of them.
7
Console
Wire
18
Square
Hole
Console
Assembly
8
2
28
9
88
36
19
20
19
20
9
22
21
2
Ground
Wire
11
Tie
88
36
26
Console Wire
28
28
