Recommended oil
Fork oil 10W or equivalent

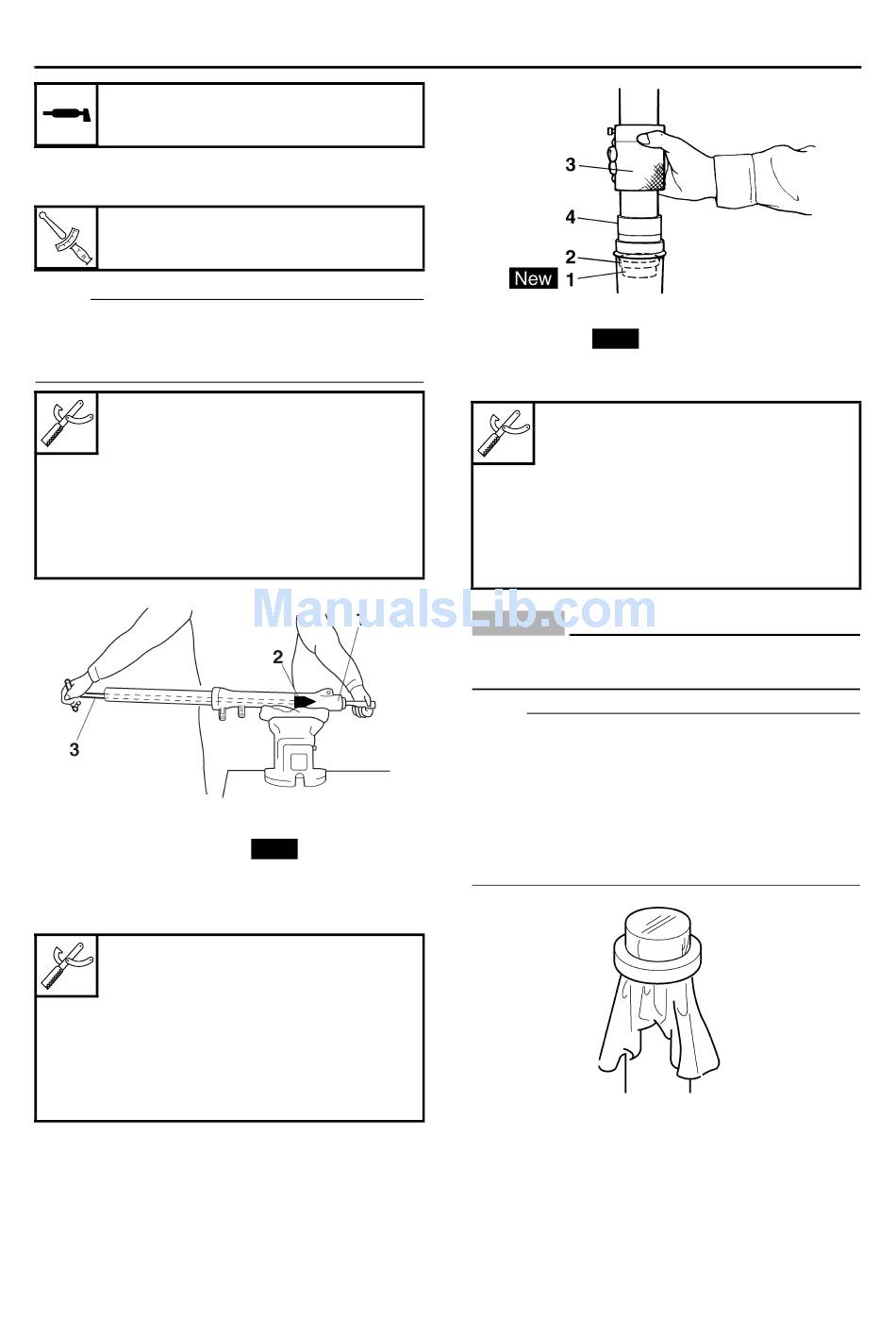

3. Tighten:
• Damper rod bolt "1"
Damper rod bolt
28 Nm (2.8 m·kg, 20 ft·lb)
NOTE:
While holding the damper rod with the damper
rod holder "2" and T-handle "3", tighten the
damper rod bolt.
Damper rod holder
90890-01294
Damping rod holder set
YM-01300
T-handle
90890-01326
T-handle 3/8" drive 60 cm long
YM-01326
4. Install:
• Outer tube bushing "1"
• Washer "2"
(with the fork seal driver weight "3" and fork
seal driver attachment "4")
Fork seal driver weight
90890-01367
Replacement hammer
YM-A9409-7
Fork seal driver attachment (ø33)
90890-01368
Replacement 33 mm
YM-A9409-4
New
4-49
5. Install:
• Oil seal "1" New
(with the fork seal driver weight "2" and fork
seal driver attachment "3")
Fork seal driver weight
90890-01367
Replacement hammer
YM-A9409-7
Fork seal driver attachment (ø33)
90890-01368
Replacement 33 mm
YM-A9409-4
ECA14220
CAUTION:
Make sure the numbered side of the oil seal
faces up.
NOTE:
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
• Before installing the oil seal, cover the top of
the front fork leg with a plastic bag to protect
the oil seal during installation.
