Burley d’lite Owner's And Safety Manual

Trailer
Hide thumbs Also See for d’lite:
Table of Contents

Advertisement

Quick Links

See also: User Manual

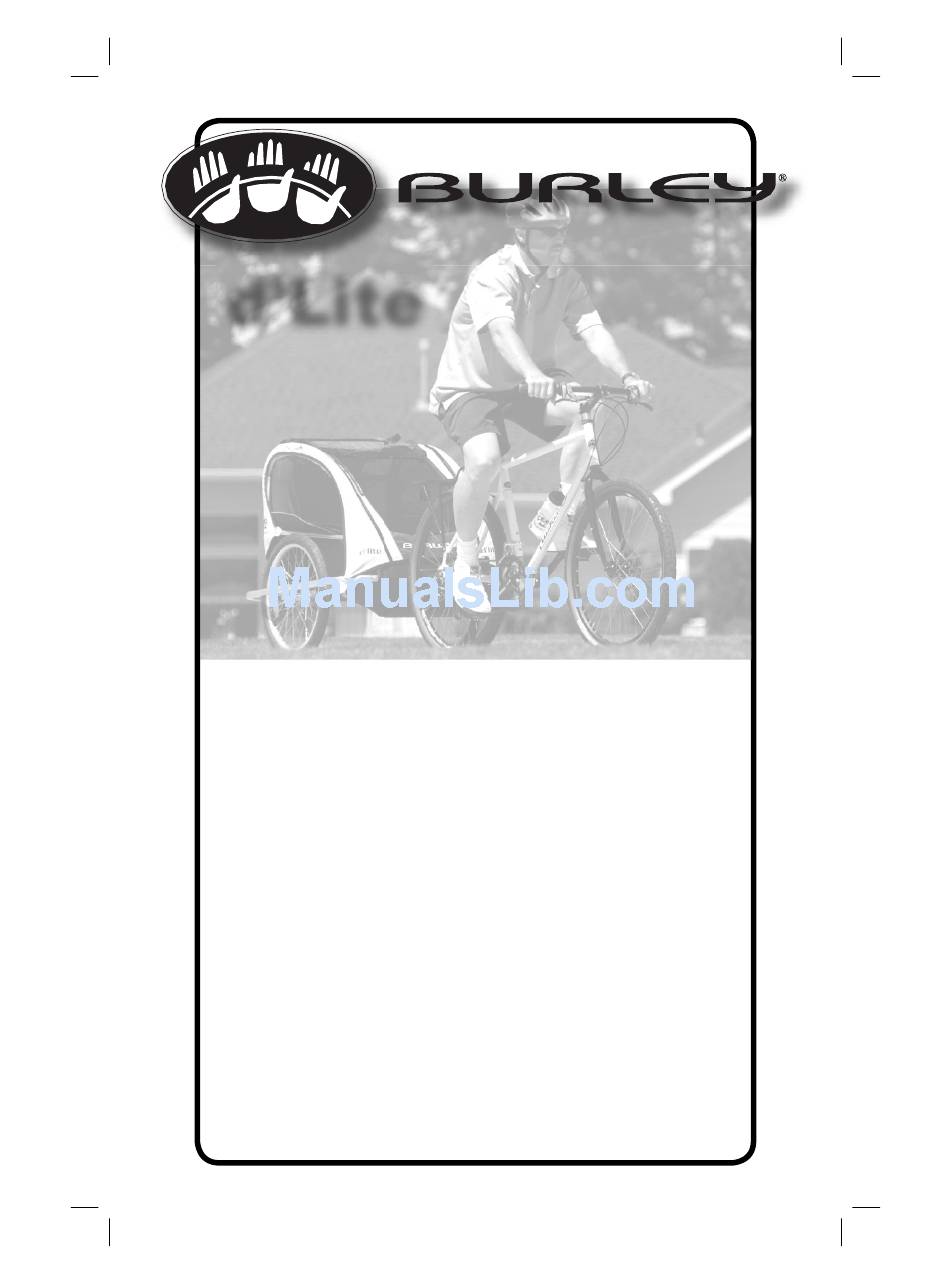

d'Lite
I.
II.
V.
X.
Owner's
Instruction
Safety
Manual
Contents
&
2
3
3
4
5
6
11
13
15
17
18
19
25
26
28

Advertisement

Table of Contents
loading

Related Manuals for Burley d’lite

Summary of Contents for Burley d’lite

  • Page 1: Table Of Contents

    VII. Padded Seat & Shoulder Harness, Child Seat Recliner™, Recessed Helmet Pocket™, and Child Seat Divider™ VIII. Completing Assembly IX. Hitching a Burley d’Lite to Your Bicycle Trailer Main te nance and Care XI. Safety Guidelines XII. Safety Checklists XIII. Parts List and Drawing...

  • Page 2: Introduction

    When Loaning or Selling Your Trailer If you loan or sell your Burley d’Lite, supply the new user with this manual. They must familiarize them selves with all sec tions—especially sections “XI. Safety Guidelines”...

  • Page 3: Hardware Bag Contents And Tool List

    IMPORTANT: Please verify that you have received all of the con tents listed. Do not proceed with as sem bly if any parts are miss ing; contact Burley im me di ate ly for replacement parts. Hardware Bag Contents Refl ectors: Quick-Release Levers: (2) Front refl...

  • Page 4: Installing The Quick-Release Levers

    This ensures that the lever will be on the outside when wheel is properly installed. Thumb Nut Quick Release Lever Burley d’Lite Owner’s Instruction and Safety Manual...

  • Page 5: Attaching The Wheels

    When properly ad just ed, you will feel re sis tance halfway through tight en ing the lever (when the lever is pointing straight out away from the trailer). If you are unfamiliar with the use of quick-release levers, contact your Burley dealer for a demonstration.

  • Page 6: Unfolding And Folding Your Burley D'lite

    Improperly installed wheels can fall off, causing ac- cident and serious injury. Only use dished, 20 x 1.75 wheels supplied with Burley d’Lite. Do not operate with tires in fl at ed above 35 P.S.I. Failure to comply can cause trailer tip over, resulting in accident and serious injury to cyclist or pas sen gers.
  • Page 7 Always check to ensure the tongue is properly installed before using trailer. Front Tongue Rear Tongue Mount Mount Trailer Pin Hole Stroller Pin Hole Button Burley d’Lite Owner’s Instruction and Safety Manual...
  • Page 8 This option brings the stroller wheel closer to the main body to stroller easily in tight spaces. DO NOT attempt to attach the bicycle with the tongue in the stroller position. There will not be adequate clearance for a bicycle wheel. Burley d’Lite Owner’s Instruction and Safety Manual...
  • Page 9 The handle is also an important part of the optional Burley Jogger Kit ™ and the optional Walk ‘n Roller™ kit. Both of these accessories are available at your local bike shop.
  • Page 10 Folding Your Burley d’Lite Folding your Burley d’Lite is ba si cal ly the reverse of un fold ing it. Fa mil iar ize your- self with un fold ing the trailer as out lined above. To fold your trailer: 1.

  • Page 11: Using The Seat Harness

    Check child pe ri od i cal ly to ensure that he/she has not slipped from correct seated position. Your children will ride comfortably and safely in your d’Lite with Burley’s fi ve- point restraint system. In addition to the safety and comfort afforded by Burley’s restraint system, you also have the option of seating one or two passengers.
  • Page 12 5. Ensure that the shoulder straps are adjusted so that the child is comfortably kept from moving too far forward in the seat. 6. Repeat for the second child. 7. Fasten and adjust the lap belt so that it is snug. Ladder Lock Burley d’Lite Owner’s Instruction and Safety Manual...

  • Page 13: Padded Seat & Shoulder Harness, Child Seat Recliner™, Recessed Helmet Pocket™, And Child Seat Divider

    The seat in your Burley d’Lite is designed to provide the utmost comfort for your children. From a padded seat and shoulder harnesses to reclining the seat to room for your children’s helmets to fl...
  • Page 14 • Connect/tighten upper buckle strap (B), also lo cat ed be hind child seat. • For maximum recline, the lower buckle strap (A) must be loose to allow seat to move backward. Burley d’Lite Owner’s Instruction and Safety Manual...

  • Page 15: Completing Assembly

    NOTE: It’s easier to snap these when the trailer is folded; they can remain snapped in place during folding and un fold ing. Burley d’Lite Owner’s Instruction and Safety Manual...
  • Page 16 You’re done! Please go back over these direc- tions and recheck your work. For increased security and safety, Burley offers a clear front and red rear LED light package. These lights mount directly in the place of the left hand side refl ectors.

  • Page 17: Hitching A Burley D'lite To Your Bicycle

    IMPORTANT: Read and study sec tions “IX. Hitching the Burley d’Lite to Your Bicycle,” “XI. Safety Guidelines,” and “XII. Safety Checklists” before using your Burley d’Lite. Hitching a Burley d’Lite to Your Bicycle The trail er hitch was designed to quick ly and safe ly at tach to vir tu al ly all types of bi cy cles.

  • Page 18: Trailer Main Te Nance And Care

    fl ush es out ends of bush ing. Replace inner cap on end of tongue to protect pivot bushing from dirt and moisture. Burley d’Lite Owner’s Instruction and Safety Manual...

  • Page 19: Safety Guidelines

    Re place any fabric that is ripped, scuffed, or oth er wise damaged. Burley offers a durable polyester storage cover to protect your d’Lite from the elements when it is not in use. Contact your Burley dealer for details.
  • Page 20 Inspect and maintain your trailer as out lined in section “XII. Safety Check lists” of this manual. Have your Burley dealer main tain and inspect your bicycle and trailer if you are not qualifi ed to do so.
  • Page 21 No Motorized Vehicles Your Burley d’Lite is only in tend ed for use with pedal-pow ered cy cles; never pull it with a motorized vehicle, as the in creased ac cel er a tion and speed could dam- age the trail er or cause the trailer to tip over.
  • Page 22 Ride on Clean, Paved Surfaces Your Burley d’Lite is not intended for off-road use. Towing a child off road can be especially dan ger ous. Any bumps or ir reg u lar i ties could cause tip over and seri- ous in ju ry to the bicyclist or pas sen ger, or damage to the trailer.
  • Page 23 Clamp the hitch securely to the bicycle frame, and check for a tight attachment each time you use the trailer. Refer to sections “IX. Hitching the Burley d’Lite to Your Bicycle” and “X. Trailer Main te nance and Care” of this man u al for proper in stal la tion, use and main te nance of your hitch.
  • Page 24 So, whether you’re going down to the corner store, across town on a picnic, or off for an ex- tended vacation, enjoy your Burley d’Lite and remember . . . ALWAYS RIDE DE FEN - SIVE LY!

  • Page 25: Safety Checklists

    Inspect fabric canopy, child seat, and harness for rips, abra sion, or missing/dam- aged hardware √ Contact authorized Burley dealer for repairs/replacement of any damaged or worn out parts IMPORTANT: Refer to section “X. Trailer Main te nance and Care” of this manual for additional periodic maintenance.

  • Page 26: Parts List And Drawing

    Rear Refl ector with Self-Tapping Screw Wheel Quick-Release Levers (not shown) Dished Wheels w/Quick-Release Seal-Mech Hubs (not shown) Upper Buckle Strap Lower Buckle Strap Brake Shoulder Pads Handle Handle Receivers Side Pockets Rear Tongue Reciever Burley d’Lite Owner’s Instruction and Safety Manual...
  • Page 27 Burley d’Lite Owner’s Instruction and Safety Manual...

  • Page 28: Warranty

    About Burley Design Cooperative Burley has been supplying products to the bi cy cle in dus try since 1975. Burley products are designed and man u fac tured at our Eu gene, Oregon shop. As worker-own ers of our cooperatively owned busi ness, we bring an un com mon degree of personal pride and attention to our work.
