Thank you for purchasing TOA's Audio Interface Unit.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
......................................................................................................... 2
...................................................................................................... 3
.................................................................................................... 4
.................................................................................................... 6
........................................................................................................................ 6
.................................................................................................................... 8
................................................................................................................... 8

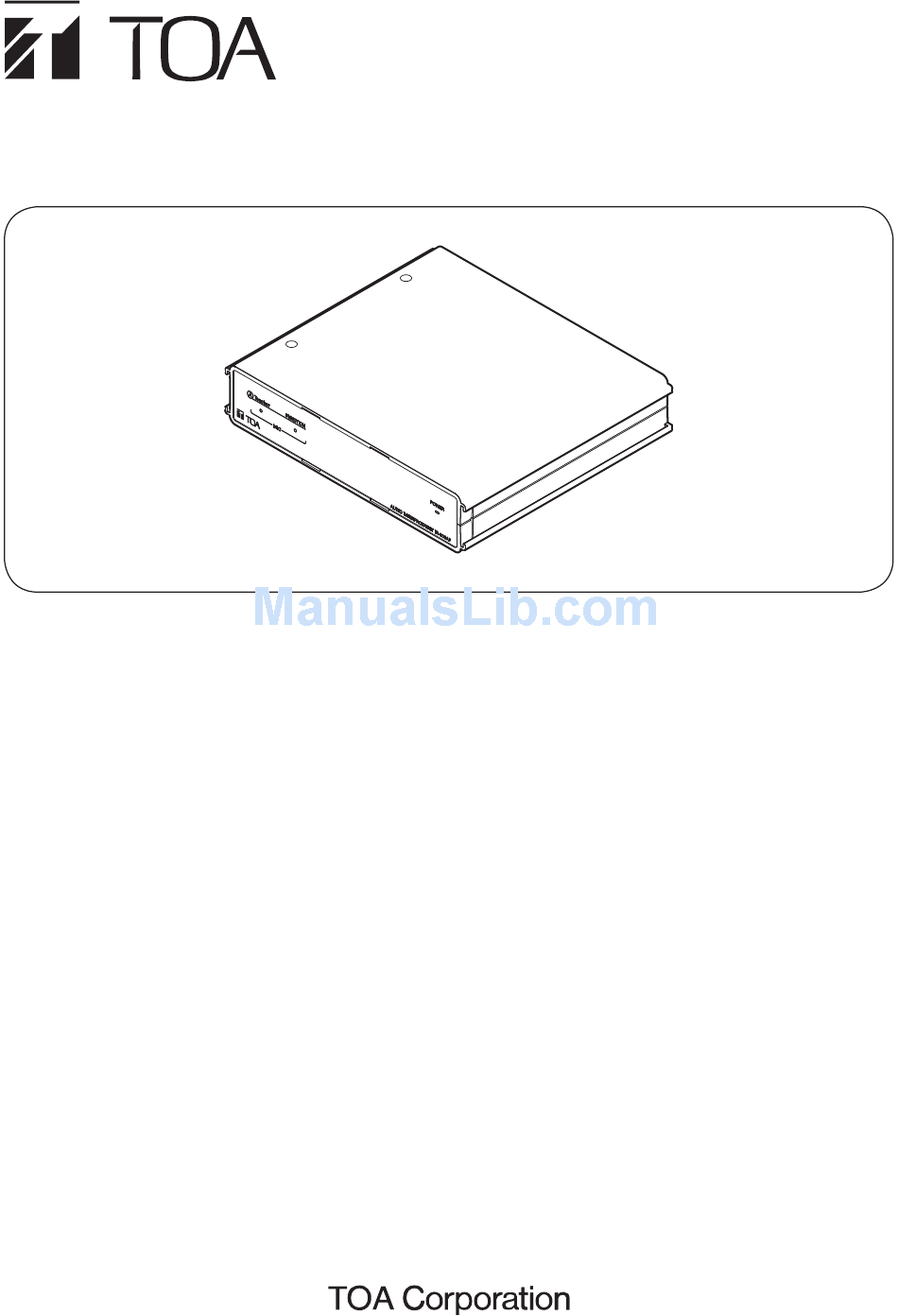

INSTRUCTION MANUAL
................................................................................ 2
................................................................................... 4
IR-801AF
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa IR-801AF
Summary of Contents for Toa IR-801AF
- Page 1 9. RACk MOUNTING ........................8 10. SPECIFICATIONS ........................8 Accessories ..........................8 Optional product .......................... 8 Thank you for purchasing TOA’s Audio Interface Unit. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Safety Precautions
1. IMPORTANT SAFETy INSTRUCTIONS • Read these instructions. • Only use attachments/accessories specified • Keep these instructions. by the manufacturer. • Heed all warnings. • Use only with the cart, stand, tripod, bracket, • Follow all instructions. or table specified by the manufacturer, or sold • Do not use this apparatus near water. with the apparatus. • Clean only with dry cloth. When a cart is used, use caution when moving • Do not block any ventilation openings. the cart/apparatus combination to avoid injury Install in accordance with the manufacture's from tip-over. -
Page 3: General Description
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. 3. GENERAL DESCRIPTION The IR-801AF is an Audio interface unit designed for exclusive use with TOA’s Infrared wireless microphone system* consisting of the IR-310M Infrared Wireless Microphone, IR-802T Infrared Wireless Tuner, and IR-820SP Infrared Wireless Speaker. The IR-801AF is equipped with a single channel wireless tuner having a fixed frequency. It provides... -
Page 4: Handling Precautions

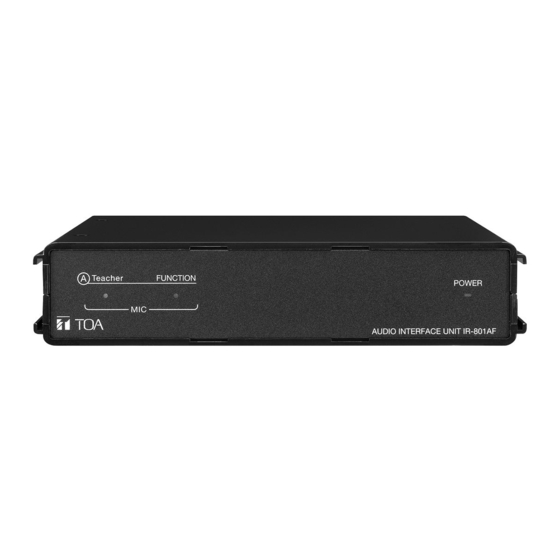

6. NOMENCLATURE AND FUNCTIONS [Front] FUNCTION Teacher POWER AUDIO INTERFACE UNIT IR-801AF 1. Power indicator 3. Function indicator Lights while DC Power is supplied from the Lights during reception of control signal from IR-802T. the infrared wireless microphone. -
Page 5: Rear
[Rear] TO IR-820SP TO IR-802T AUDIO OUT CONTROL OUT DC24V MADE IN TAIWAN 4. Audio output terminal 6. IR-820SP connection terminal* Outputs the Channel A’s audio signals while Connect this terminal to the IR-820SP the IR-310M’s Function button is being Infrared Wireless Speaker using a Category pressed. -
Page 6: System Configuration
Recording system, Flash light, or Messaging system IR-820SP Infrared Wireless Speaker Category 5 cable (straight type) IR-310M* Infrared Wireless Microphone IR-801AF Audio Interface Unit IR-310BC Battery Charger C H A R G E F U L IR-802T Infrared Wireless Tuner IR-200BT-2... -
Page 7: Terminal Connections
AUDIO OUT CONTROL OUT TO IR-820SP TO IR-802T Category 5 cable DC24V (straight type)* MADE IN TAIWAN Note: The IR-801AF's power is supplied from the IR-802T. IR-802T To AC mains AC adapter * Notes • Use a Category 5 plenum cable (straight type) when routing the cable in locations where plenum- rated cable is required. • Cross type cables cannot be used. -
Page 8: Rack Mounting
Operating Temperature −10 to +50 ºC (14 to 122 ºF) Operating Humidity 90 % RH or less (no condensation) Finish Control section: ABS resin, Black Dimensions 210 (w) x 44 (h) x 181 (d) mm (8.27" x 1.73" x 7.13") Weight 560 g (1.23 lb) * 0 dB = 1 V Note: The design and specifications are subject to change without notice for improvement. • Accessories Removable terminal block (3 pins) ..... 1 Removable terminal block (2 pins) ..... 1 • Optional product MB-WT3 Rack Mount Kit URL: http://www.toa.jp/ 133-07-323-00...
