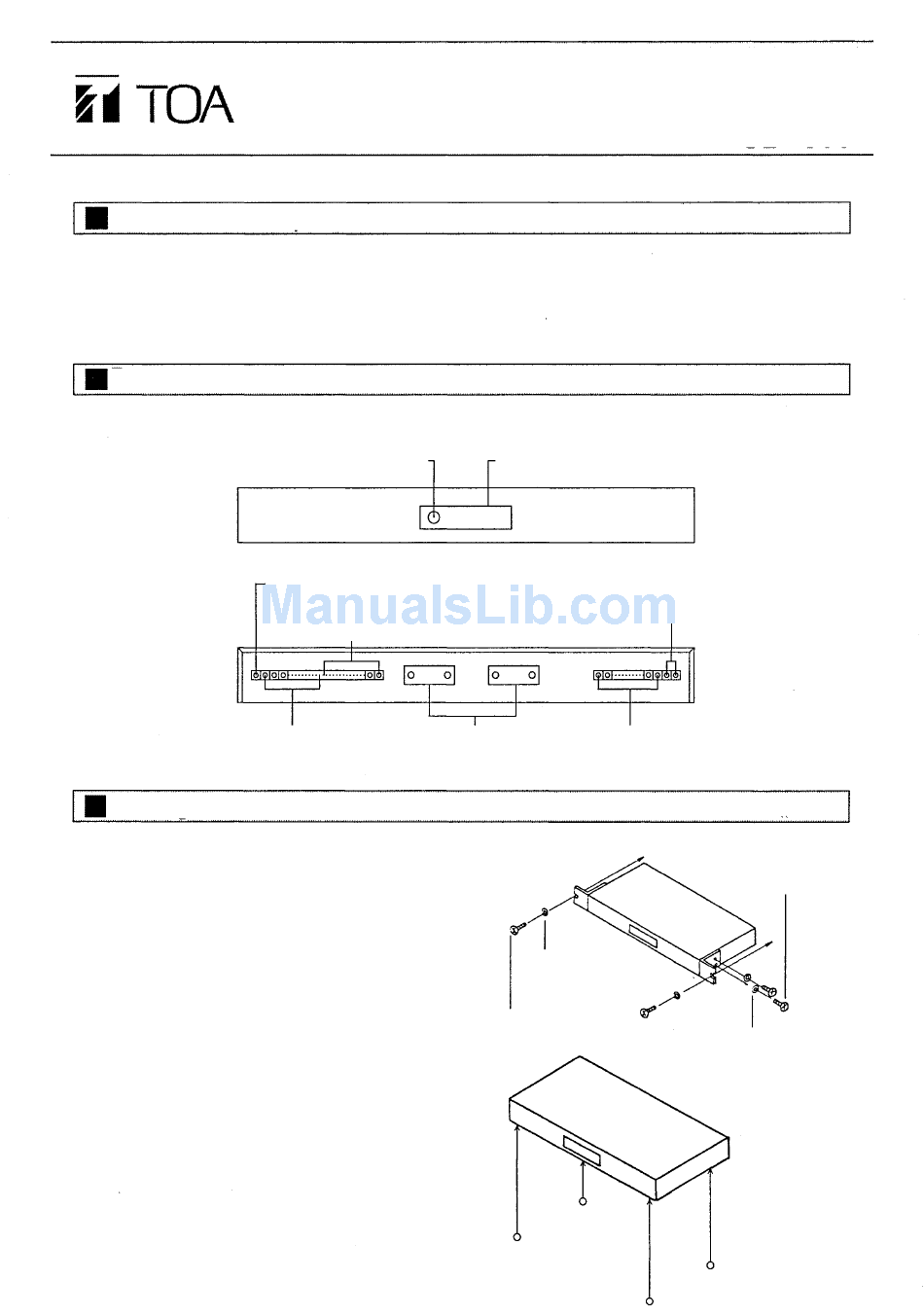

General description

The CB -600 adds to the versatility of the EX-610/620/630 exchanges by offering the function
of making or receiving a telephone call. The device is directly connected to either the telephone
line or to the PBX extension.

Part names

(Front-mounted
facilities)
(Rear-mounted
facilities)
Telephone line terminal
Fixing unit
1 . Mounting unit in an equipment rack.
(Exchange is mounted in an equipment rack.)
Attach the accessory rack mounting brackets
to the CB-600 to mount it in the rack. (See
the figure.)
2.
Desk-top application
Attach the accessory rubber foot to each of
4 holes (3mm in diameter) in the bottom
surface.
Telephone line interface
Knob
Earth terminal
(Be sure to ground.)
Ringing tone output terminal
Control signal input
and output connectors
(CN1,CN2)
Cover
Power supply terminal
Intercom line terminal
Fiber washer
M5 Rack mount ing
screw
Installation manual
CB-600
M3 Binding head
screw
M3 Washer
