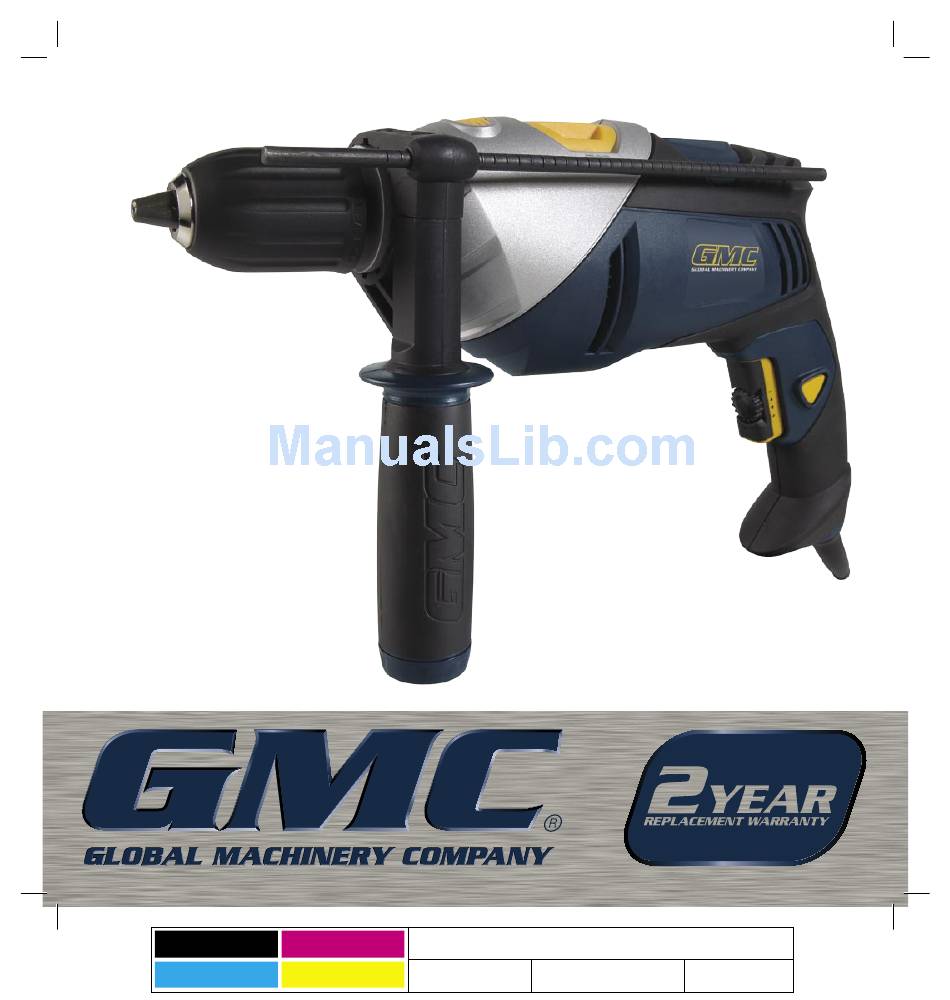

- Page 1 1000W 13mm HAMMER DRILL MX1G100 INSTRUCTION MANUAL Black Magenta Cyan Yellow Code: MX1G100 Date: 060223 Edition: 07 Op: DCR...
-
Page 2: Table Of Contents
Contents Warranty Description of symbols Specifications Safety instructions Additional safety rules for drills Contents of carton Unpacking Know your product Auxiliary handle and depth gauge Inserting and removing bits Operation Variable speed trigger switch Speed adjustment Reversing the direction of rotation Drilling/hammer mode selector Chuck replacement Hints for use... -
Page 3: Dear Customer
Dear Customer If you require any help with your product, whether it � is a Warranty claim, spare part or user information, � please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or � 0800 445 721 in New Zealand. -
Page 4: Safety Instructions
Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. -
Page 5: Additional Safety Rules For Drills
Ensure that the lighting is adequate. • Do not put pressure on the drill, such that it slows the motor down. Allow the drill bit to cut without pressure. You will get better results and you will be taking better care of your tool. -
Page 6: Contents Of Carton
Periodically check that all nuts, bolts and other fixings are properly tightened. • When using the drill, use safety equipment including safety glasses or shield, ear protectors, and protective clothing including safety gloves. Wear a dust mask if the drilling operation creates dust. -
Page 7: Know Your Product
Know your product 1. Keyless chuck 2. Auxiliary handle 3. Depth gauge 4. Drilling/hammer mode selector 5. Lock-on button 6. Forward/Reverse selector 7. Variable speed trigger switch 8. Speed dial 9. Spindle lock button... -
Page 8: Auxiliary Handle And Depth Gauge
The drill is fitted with a keyless chuck for easier tightening and more grip torque. 1. Open the chuck jaws by pressing down the spindle lock... -
Page 9: Operation
Variable speed trigger switch 1. You can adjust the speed of the drill between zero and maximum by varying the pressure on the trigger. The harder you press on the trigger the faster the drill will operate. -
Page 10: Chuck Replacement
If the job is too hard for the drill do not continue otherwise permanent damage to the motor will occur. -
Page 11: Drilling - Wood/Metal/Masonry
- Produce off-centre or irregular shaped holes • When drilling large holes in metal it is recommended to drill with a small bit at first, then finish with a larger bit. Also, lubricate the bit with oil to improve drilling action and increase bit life. - Page 12 Carefully read the entire Instruction Manual before using this product. Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: GMC Product Type GMC Product Code A GMC Service Engineer will take your call and, in most cases, will be able to solve your problem over the phone.
