e
r
t

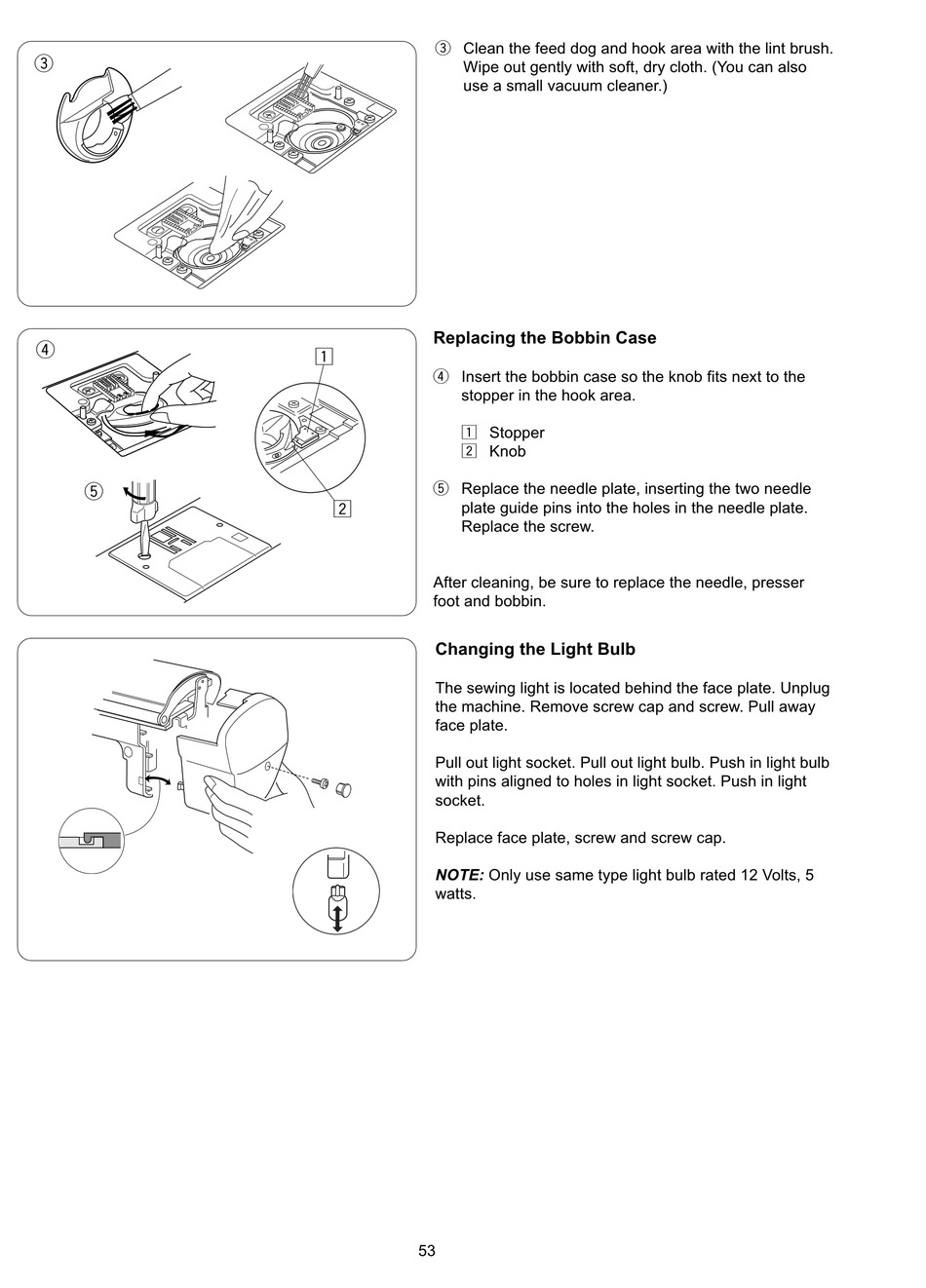

e Clean the feed dog and hook area with the lint brush.
Wipe out gently with soft, dry cloth. (You can also
use a small vacuum cleaner.)

Replacing the Bobbin Case

z
r Insert the bobbin case so the knob fits next to the
stopper in the hook area.
z Stopper
x Knob
t Replace the needle plate, inserting the two needle
x
plate guide pins into the holes in the needle plate.
Replace the screw.
After cleaning, be sure to replace the needle, presser
foot and bobbin.

Changing the Light Bulb

The sewing light is located behind the face plate. Unplug
the machine. Remove screw cap and screw. Pull away
face plate.
Pull out light socket. Pull out light bulb. Push in light bulb
with pins aligned to holes in light socket. Push in light
socket.
Replace face plate, screw and screw cap.
NOTE: Only use same type light bulb rated 12 Volts, 5
watts.
53
