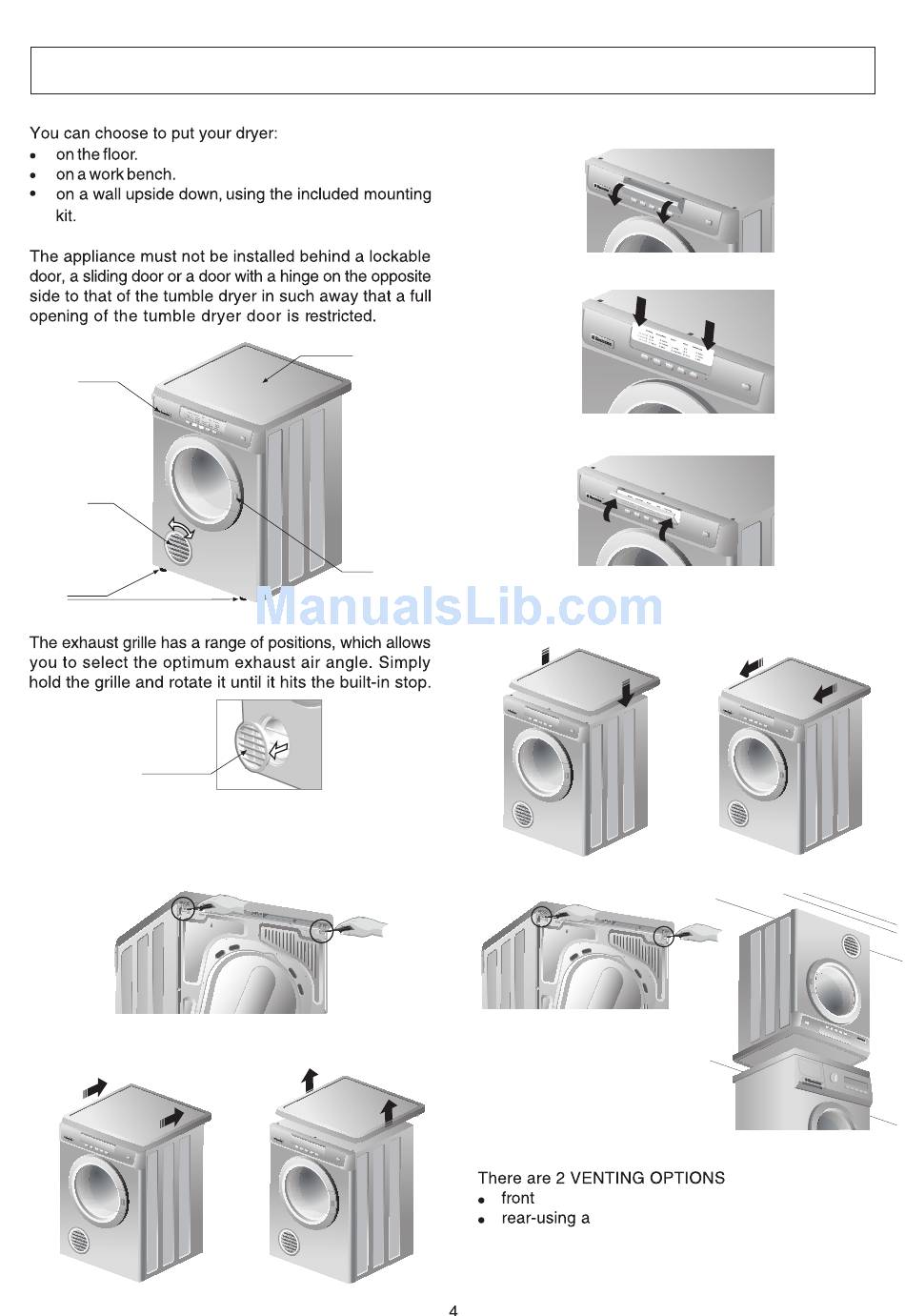

Installation Instructions

NAME
BADGE
EXHAUST
GRILLE
LEGS
REMOVABLE
EXHAUST GRILLE
Trim Insert
You can invert the trim insert when you want to mount
your dryer upside down on the wall.
1. Remove two screws at the back as indicated below.
2. Slide worktop to the back and lift up.
SLIDE THE WORKTOP
TO THE BACK
WORKTOP
DOOR
SAFETY
SWITCH
BUTTON
LIFT UP THE WORKTOP
3. Unclip the cover trim insert window from the panel.
4. Insert reverse label provided in accessory bag.
5. Clip back the cover trim insert window.
6. Place worktop onto original position, then slide to
the front.
PLACE ONTO ORIGINAL POSITION
7. Put two screws at the back.
included kit
SLIDE THE WORKTOP
TO THE FRONT
DRYER
WASHING MACHINE
